2007-2008 Pontiac Grand Prix 3.8L V6 | Fuel Pump Assembly | OE#19152659/P76634M - PHILTOP

2007-2008 Pontiac Grand Prix 3.8L V6 | Fuel Pump Assembly | OE#19152659/P76634M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.9

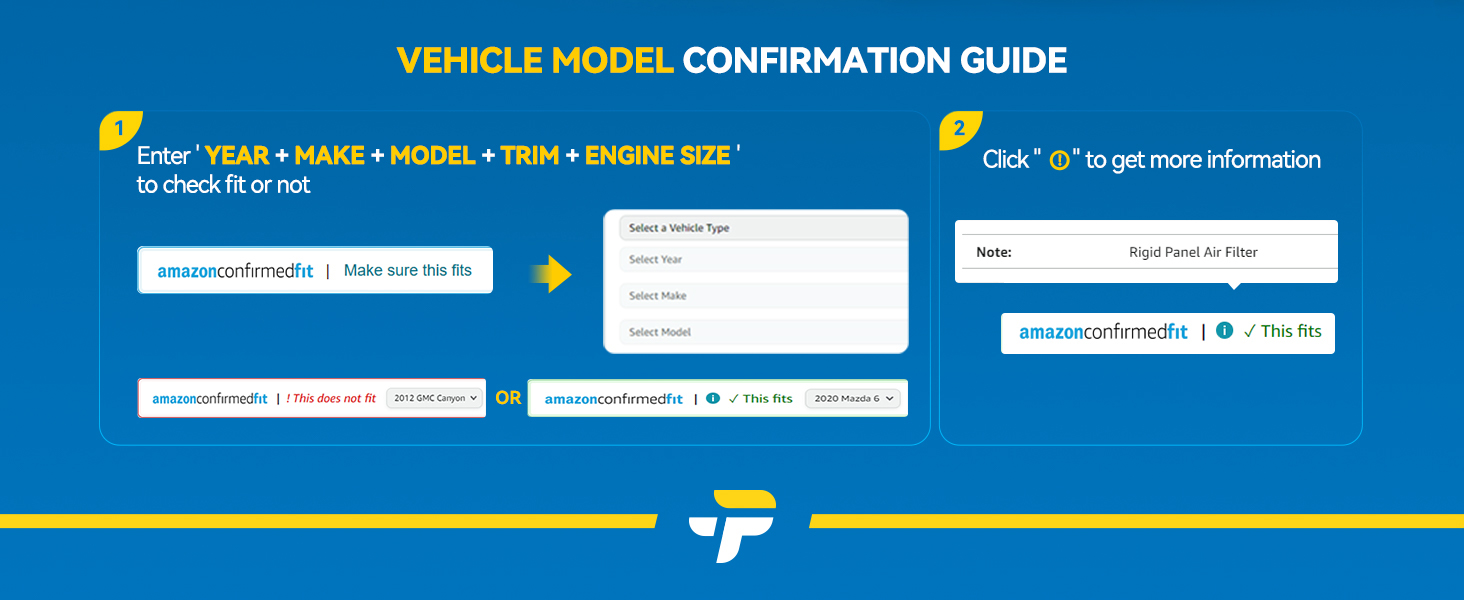

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6388FUP012WUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

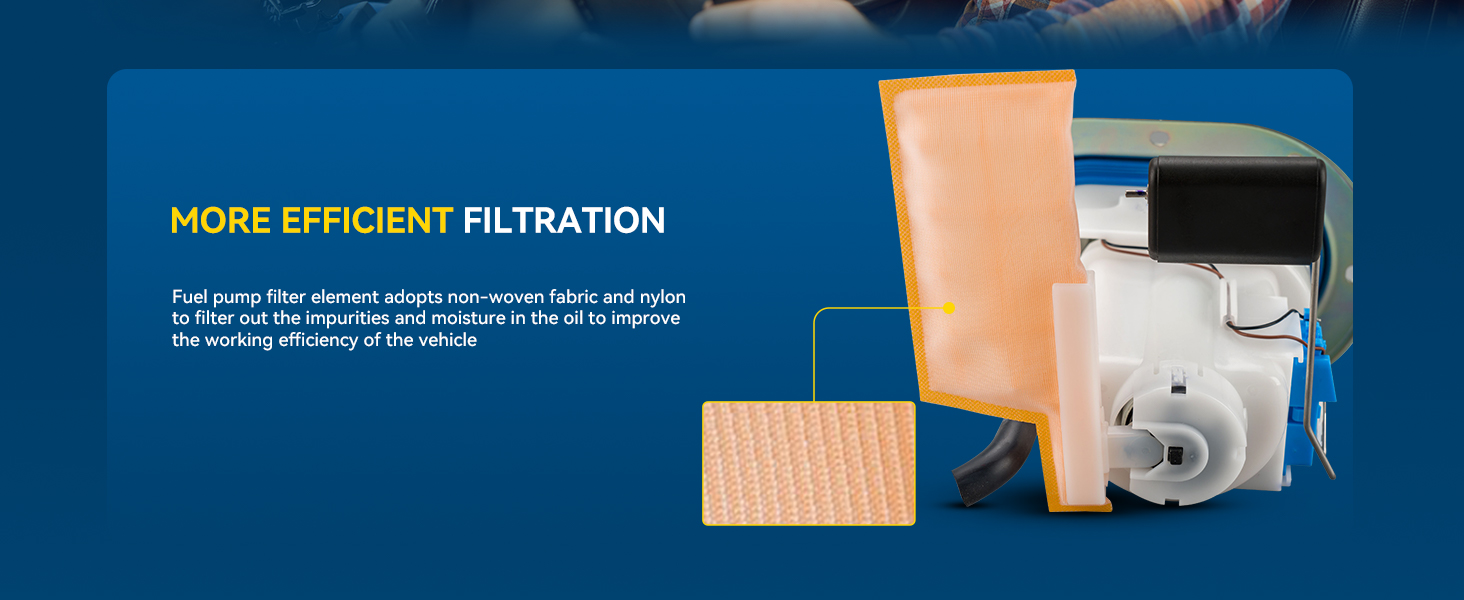

Strainer Included
Yes

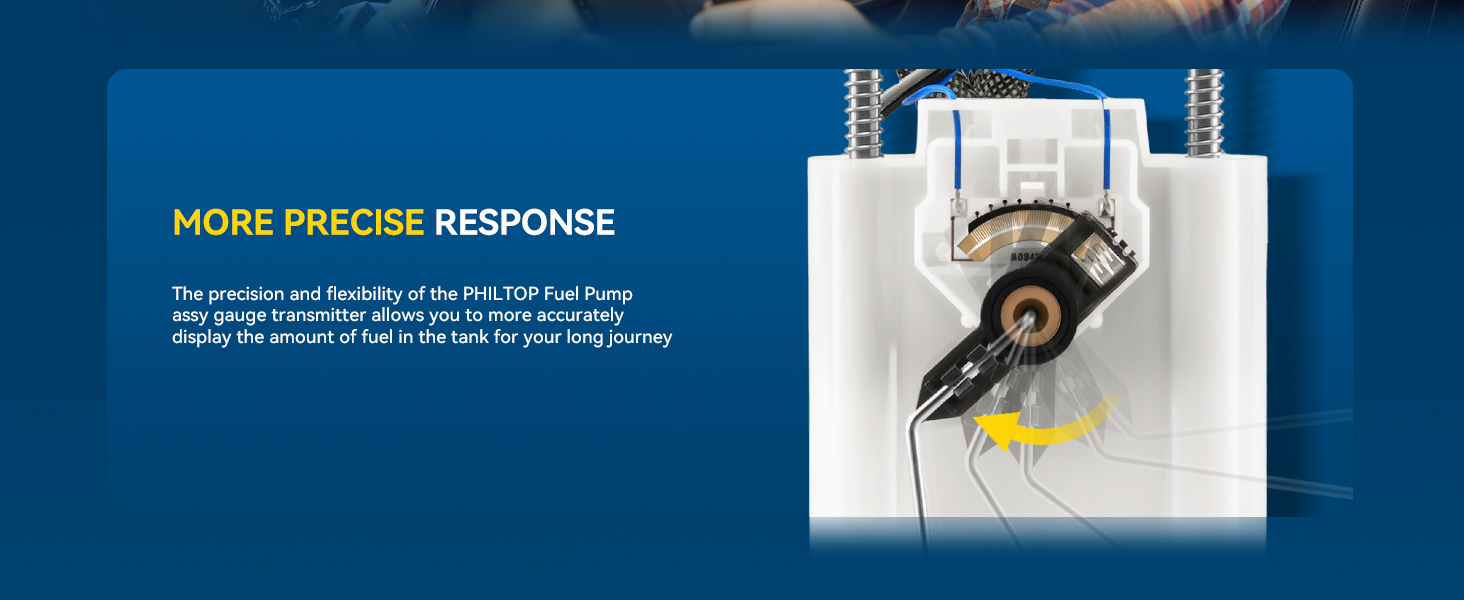

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
250.0 Ω
Resistance Ohms Full
40.0 Ω
Average Flow Rating
16 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure

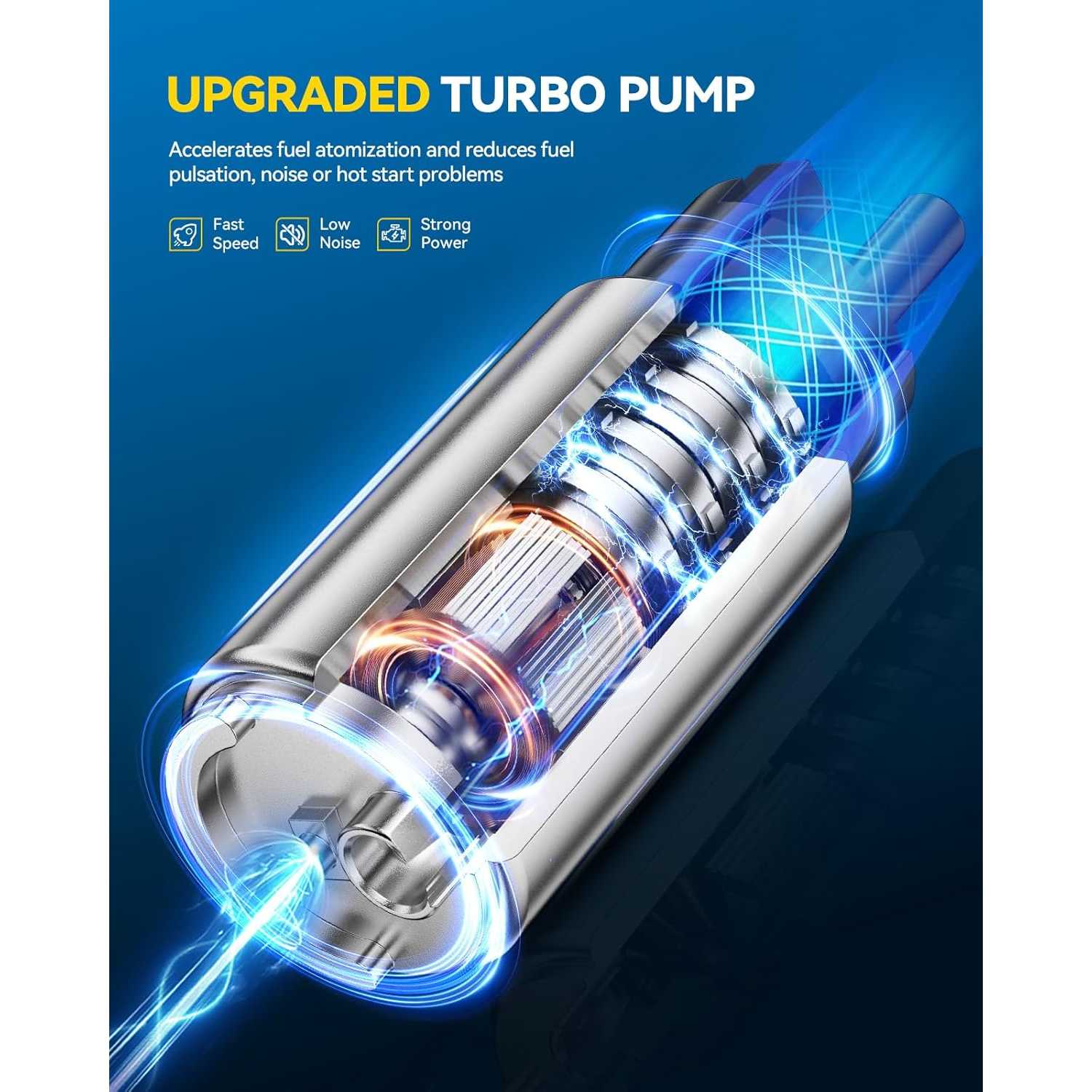

Turbine Impeller

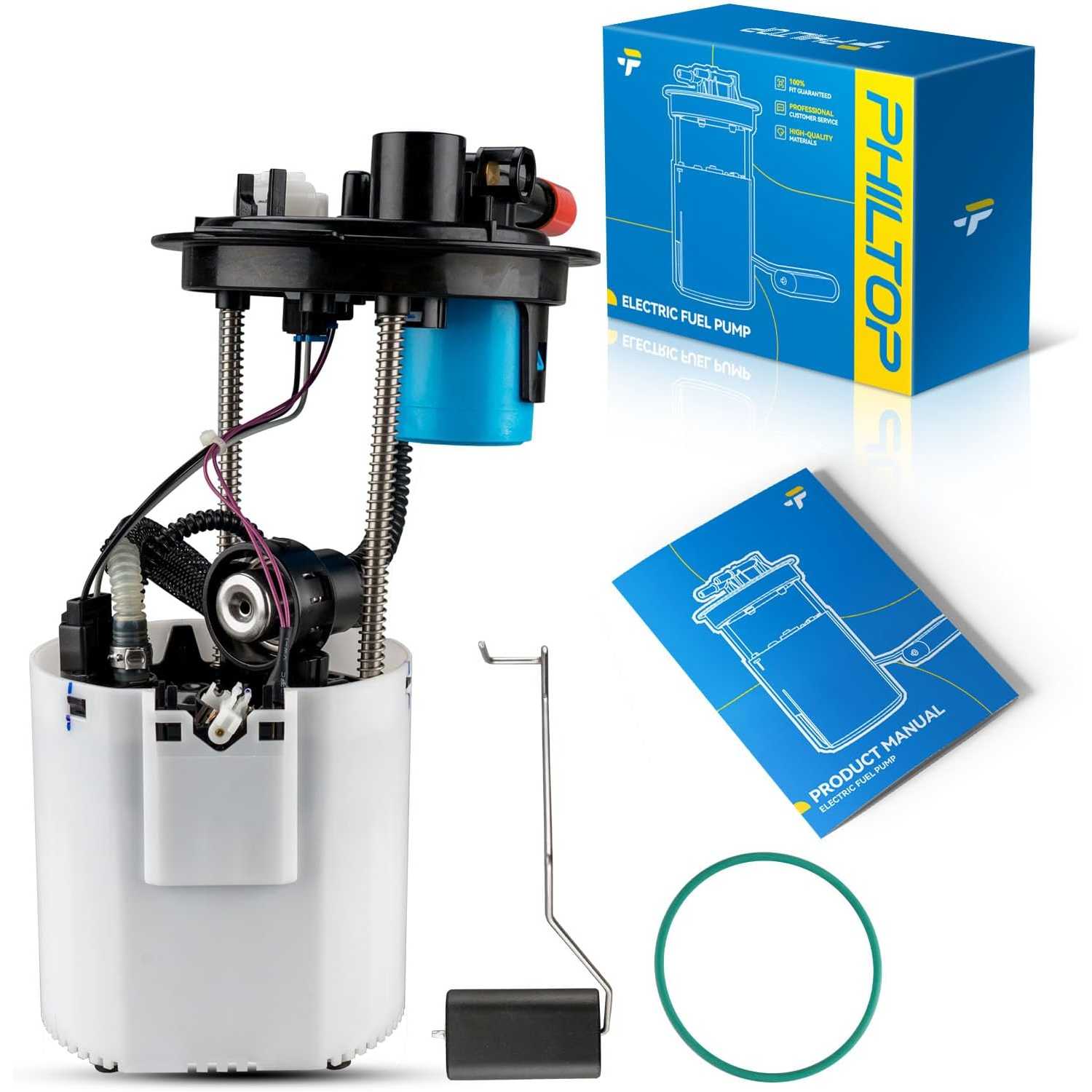

Items Included
1x Fuel Pump Assembly - FG0491
Warranty Period
2-Year
OE Number
19152659,19331969,28081968,19331968,19149678,19149676,19370064,19152657
Part Number
P76634M,FG0491,SP6491M,USEP3824M,E3792M,A30212,4010615,FP22050S,C0314M,D11111275TG,A30525,1AMFP00148,M2496244,1234865,FFG0491,A46190,TNKSP6491M

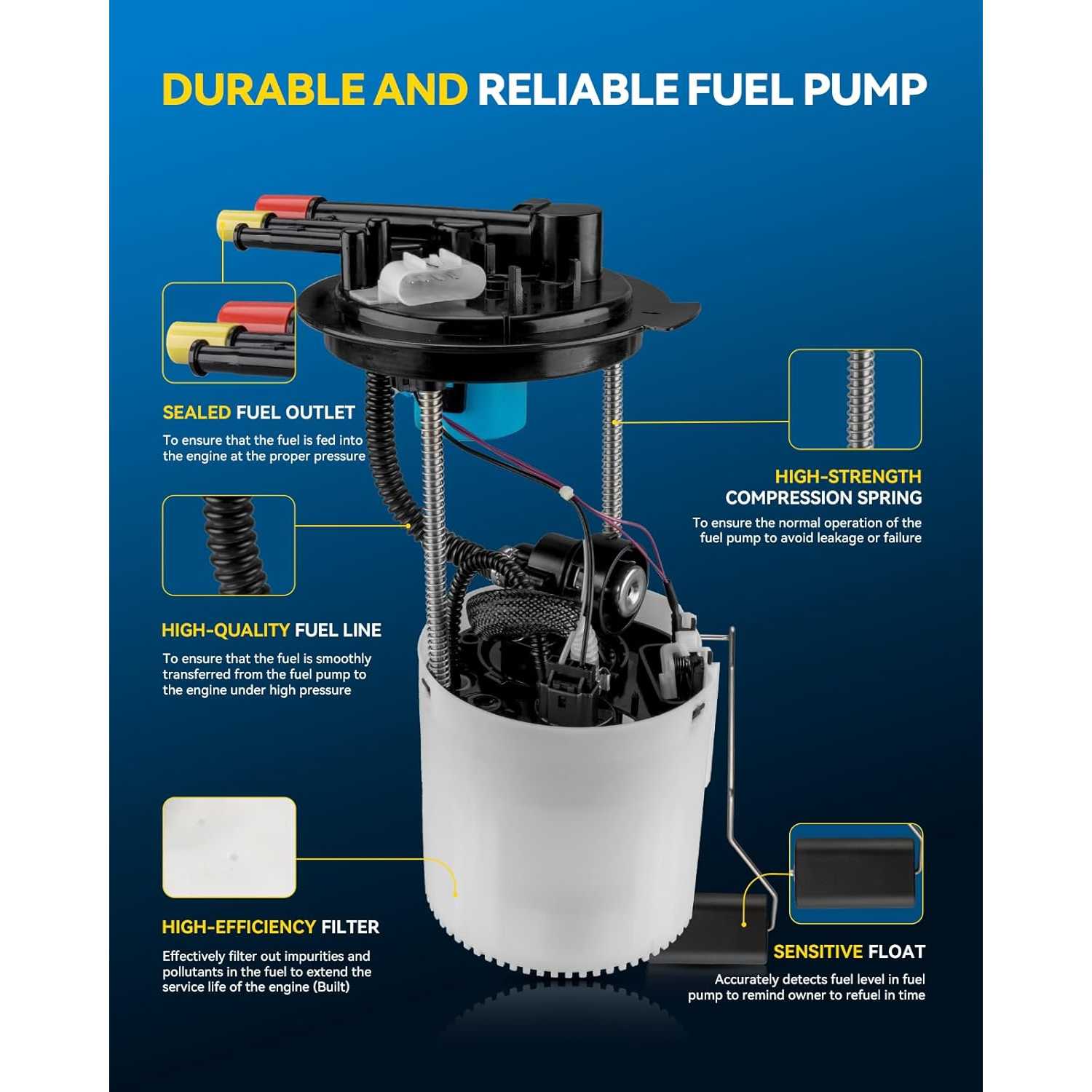

Highlights

  • Fitment: Compatible with [Chevrolet] 2007-2008 Impala 3.5L, 2007 Monte Carlo 3.5L, [Pontiac] 2007-2008 Grand Prix 3.8L, [Buick] 2007-2008 LaCrosse 3.8L, 2007-2008 Allure 3.8L, (with California Emissions System;Partial Zero Emissions Vehicle (PZEV);RPO Code NU6).
  • Reference Number: 19152659, 28081968, 19149678, 19331968, 19152657, E3792M, 4010615, FP22050S, P76634M, USEP3824M, 19331969, FG0491, SP6491M, C0314M, A30212, 19149676, 1234865, M2496244, TNKSP6491M, A46190, D11111275TG, 19370064, FFG0491, 1AMFP00148, A30525.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.

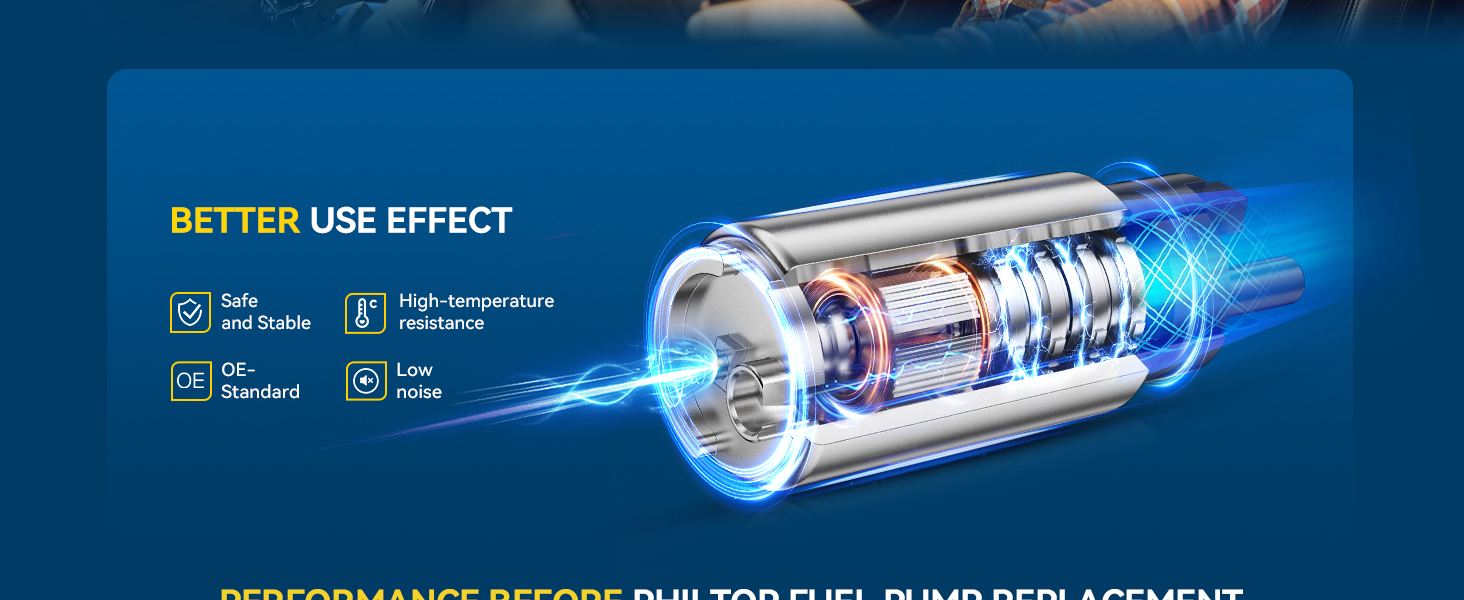

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20082007 - 200820082007 - 20082007 - 2008200720072007 - 20082007
MakeBuickBuickChevroletChevroletChevroletChevroletChevroletPontiacPontiac
ModelLaCrosseLaCrosseImpalaImpalaImpalaMonte CarloMonte CarloGrand PrixGrand Prix
TrimCXCXL50th Anniversary EditionLSLTLSLTBaseGT
Engine3.8L V63.8L V63.5L V63.5L V63.5L V63.5L V63.5L V63.8L V63.8L V6
Note
Delphi Fuel System;Partial Zero Emissions Vehicle;RPO Code NU6;with California Emissions System
Delphi Fuel System;Partial Zero Emissions Vehicle;RPO Code NU6;with California Emissions System
Delphi Fuel System;Partial Zero Emissions Vehicle;RPO Code NU6;with California Emissions System
Delphi Fuel System;Partial Zero Emissions Vehicle;RPO Code NU6;with California Emissions System
Delphi Fuel System;Partial Zero Emissions Vehicle;RPO Code NU6;with California Emissions System
Delphi Fuel System;Partial Zero Emissions Vehicle;RPO Code NU6;with California Emissions System
Delphi Fuel System;Partial Zero Emissions Vehicle;RPO Code NU6;with California Emissions System
Delphi Fuel System;Partial Zero Emissions Vehicle;RPO Code NU6;with California Emissions System
Delphi Fuel System;Partial Zero Emissions Vehicle;RPO Code NU6;with California Emissions System

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

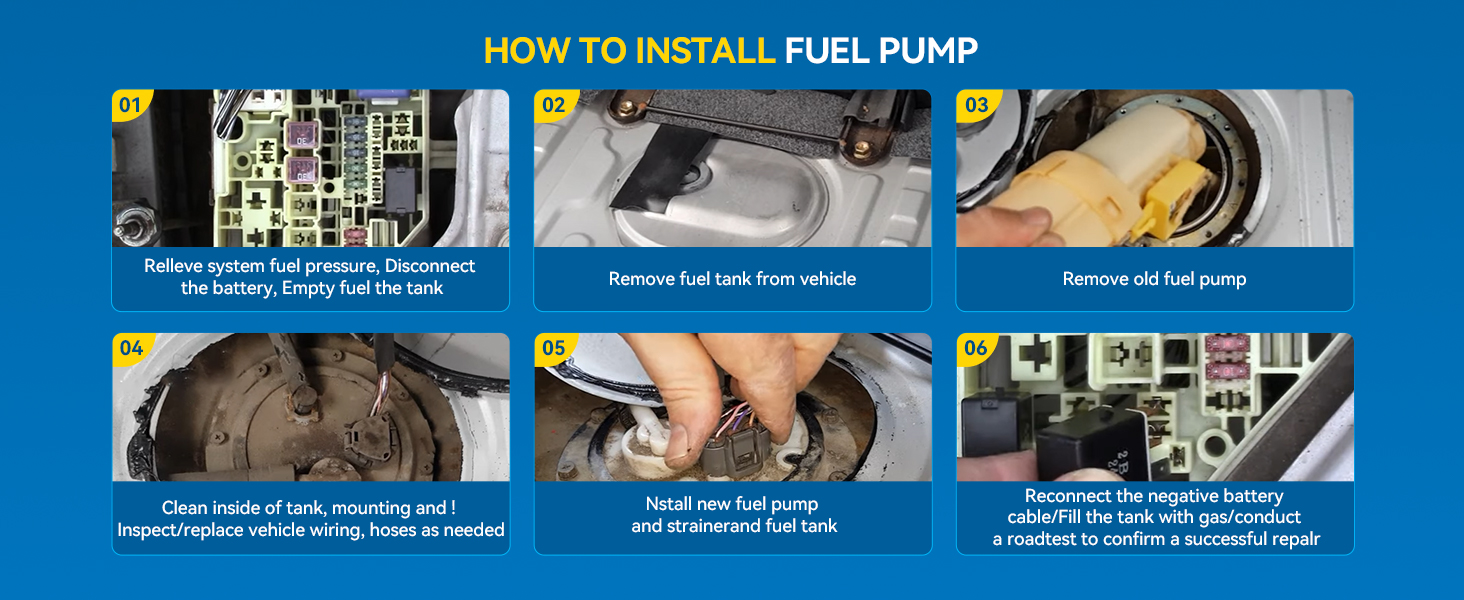

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

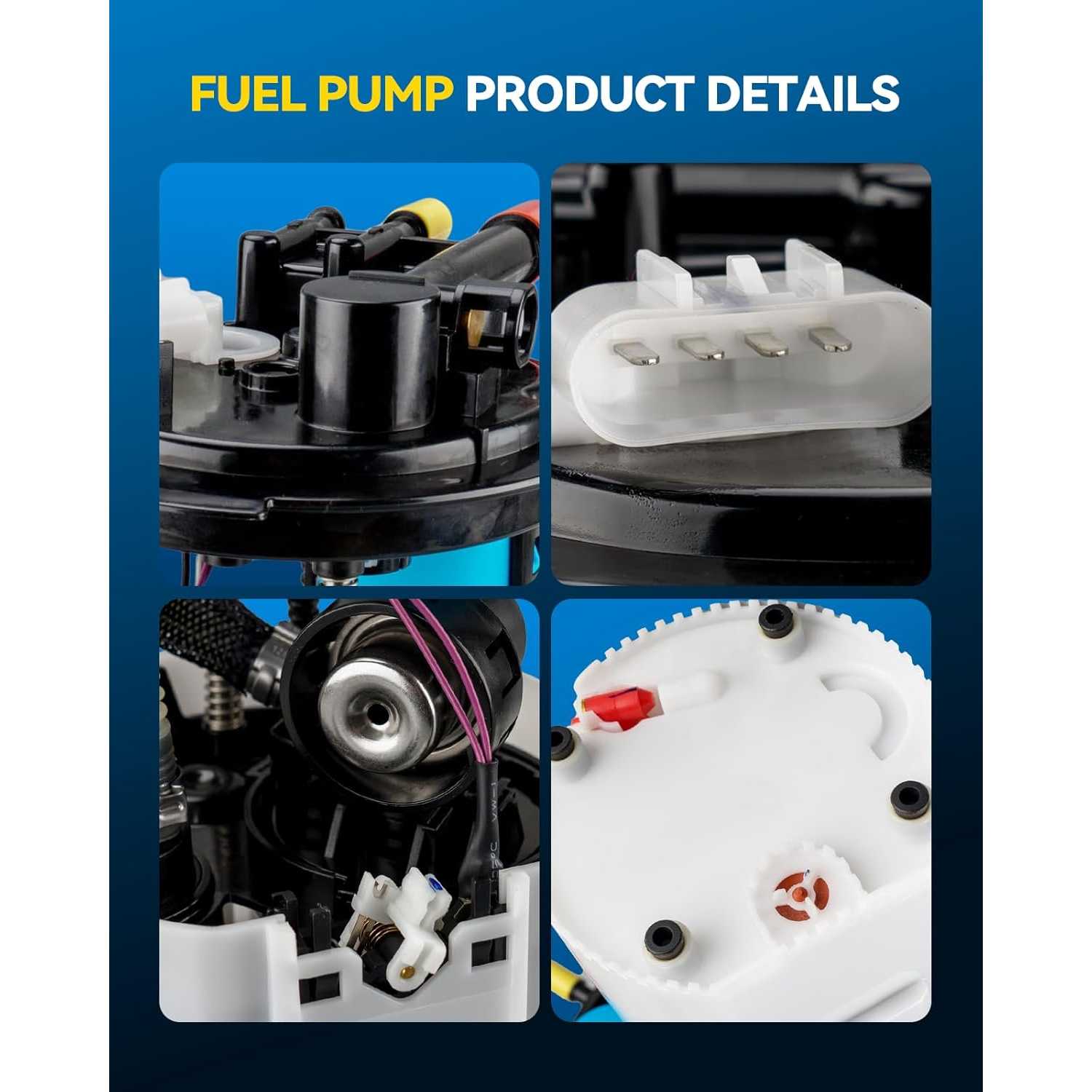

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.9/5

Based on 168 reviews

586%
414%
30%
20%
10%

Customer photos and videos

VW

05/18/2026

Verified buyer

My husband and I try to tackle a lot of our own car maintenance, so when our 2013 328i started taking way too long to crank and throwing fuel pressure codes, we knew it was time for a new high pressure fuel pump. I ordered this one because the factory versions are incredibly expensive and we wanted a reliable alternative. We got it swapped out in our garage over the weekend. The pump itself feels heavy and solid. The metal housing looks basically identical to the original, and all the bolt holes and the electrical connector lined up exactly right. If you are doing this installation yourself, make sure you pull the fuel pump fuse and try to start the car before you unbolt anything. That relieves the line pressure so you do not get sprayed with fuel when you take the old unit off. It has been on the car for a little while now. The engine fires up immediately every morning and it runs totally smooth under hard acceleration. Given the quality of the part compared to the price, it is a fantastic value that got our car back on the road. I would definitely order replacement parts from this brand again in the future.

Maybel M.

02/05/2026

Verified buyer

The PHILTOP electric fuel pump assembly compatible with the Toyota Camry 2008–2011 is a dependable replacement that performs exactly as expected. The assembly feels solid and well constructed, with components that match the original fit closely. Installation is straightforward, as it drops in cleanly without modifications. Once installed, the engine starts smoothly and runs consistently, restoring proper fuel delivery and eliminating common issues like hesitation or hard starts. What really stands out is the overall quality and value of this fuel pump set. It operates quietly and maintains steady pressure, which is essential for reliable daily driving. Having a complete assembly makes the replacement process easier and more efficient compared to replacing individual parts. If you’re looking for a cost-effective, OEM style fuel pump solution that brings your Camry back to smooth and reliable operation, this PHILTOP fuel pump assembly is a solid and confidence inspiring choice.
