2007-2011 Toyota Camry 2.4L L4 | Fuel Pump Assembly | OE#7702006121/SP9043M - PHILTOP

2007-2011 Toyota Camry 2.4L L4 | Fuel Pump Assembly | OE#7702006121/SP9043M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5027FUP219UUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
410.0 Ω
Resistance Ohms Full
15.0 Ω
Average Flow Rating
17 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
94.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

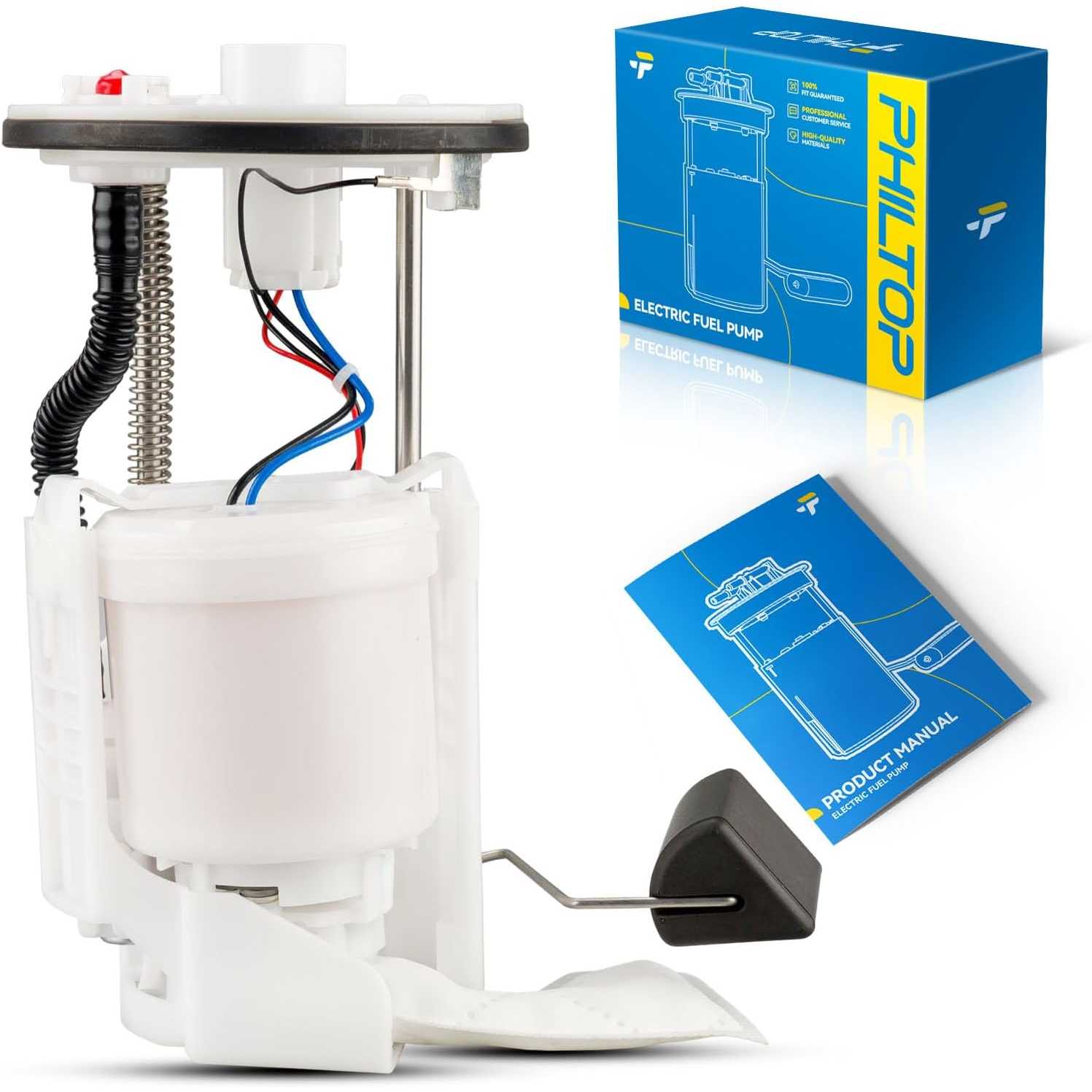

1x Fuel Pump Assembly - FG1169
Warranty Period
2-Year
OE Number
7702006121,7702006120
Part Number
SP9043M,P76820M,FG1169,USEP8722M,69932,P72189,9500205,E8727,DFG1169,A30457,4010647,A15111414TG,C0659M,M2520969,A27154,TNKSP9043M,2920756

Highlights

  • Fitment: Compatible with [Toyota] 2007-2009 Camry(engDesign: 2AZ-FE), 2010-2011 Camry(engDesign: 2AR-FE), 2007-2008 Solara 2.4L, (Exc. Japan Built;without California Emissions System).
  • Reference Number: USEP8722M, 7702006121, 7702006120, P72189, 9500205, E8727, DFG1169, A30457, SP9043M, P76820M, FG1169, 4010647, 69932, 2920756, M2520969, A27154, TNKSP9043M, A15111414TG, C0659M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring .

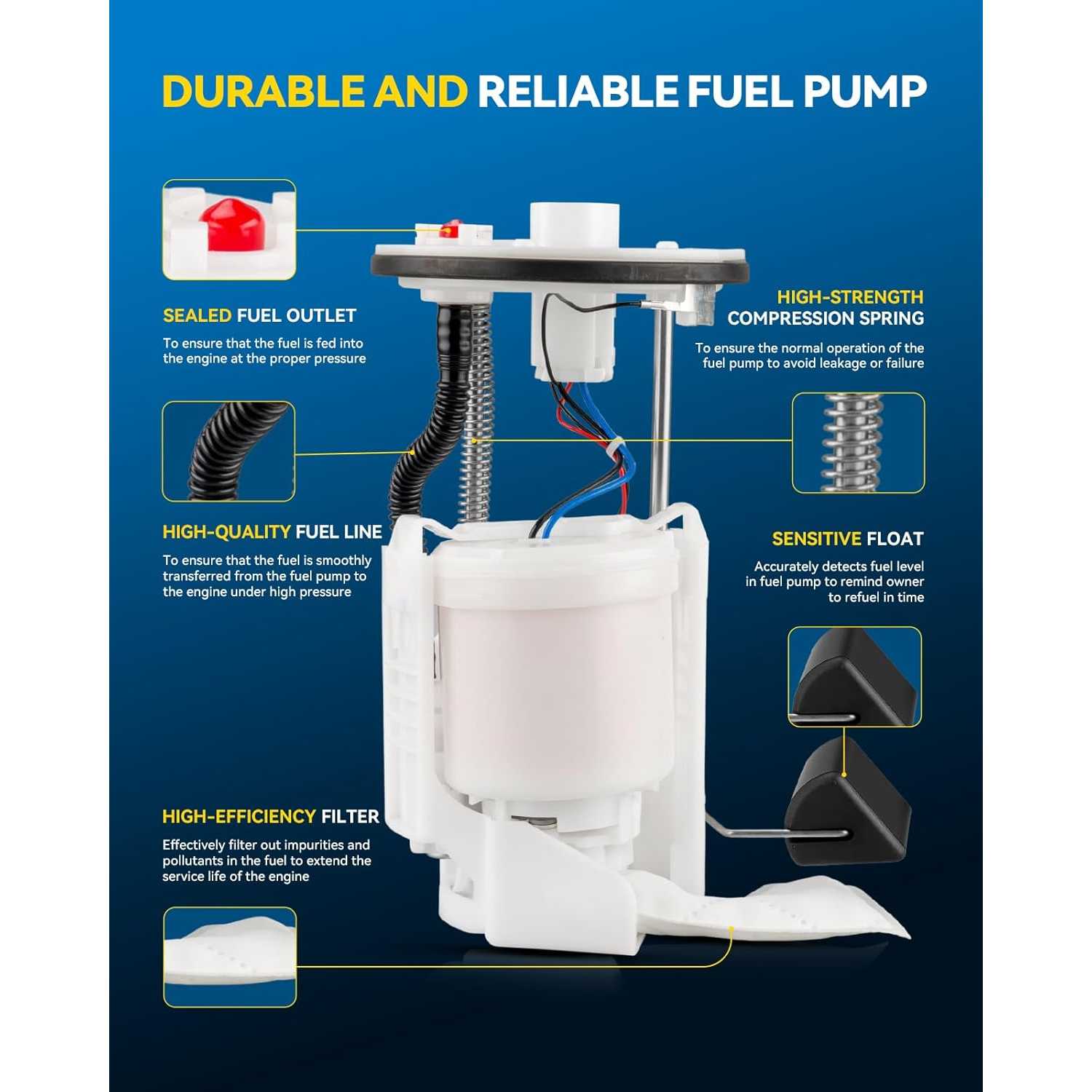

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20092010 - 20112007 - 20082007 - 20092010 - 20112007 - 20092010 - 20112007 - 20092010 - 20112007 - 20082007 - 20082007 - 2008
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelCamryCamryCamryCamryCamryCamryCamryCamryCamrySolaraSolaraSolara
TrimBaseBaseCELELESESEXLEXLESESLESport
Engine2.4L L42.5L L42.4L L42.4L L42.5L L42.4L L42.5L L42.4L L42.5L L42.4L L42.4L L42.4L L4
Note
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System
Except Japan Built;without California Emissions System

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.
