2012-2016 Dodge Charger 5.7L V8/6.4L V8 | Fuel Pump Assembly | OE#68103913AA/SP7234M - PHILTOP

2012-2016 Dodge Charger 5.7L V8/6.4L V8 | Fuel Pump Assembly | OE#68103913AA/SP7234M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4953FUP1884US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
990.0 Ω
Resistance Ohms Full
51.0 Ω
Average Flow Rating
20 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Outlet Outside Diameter
0.313 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

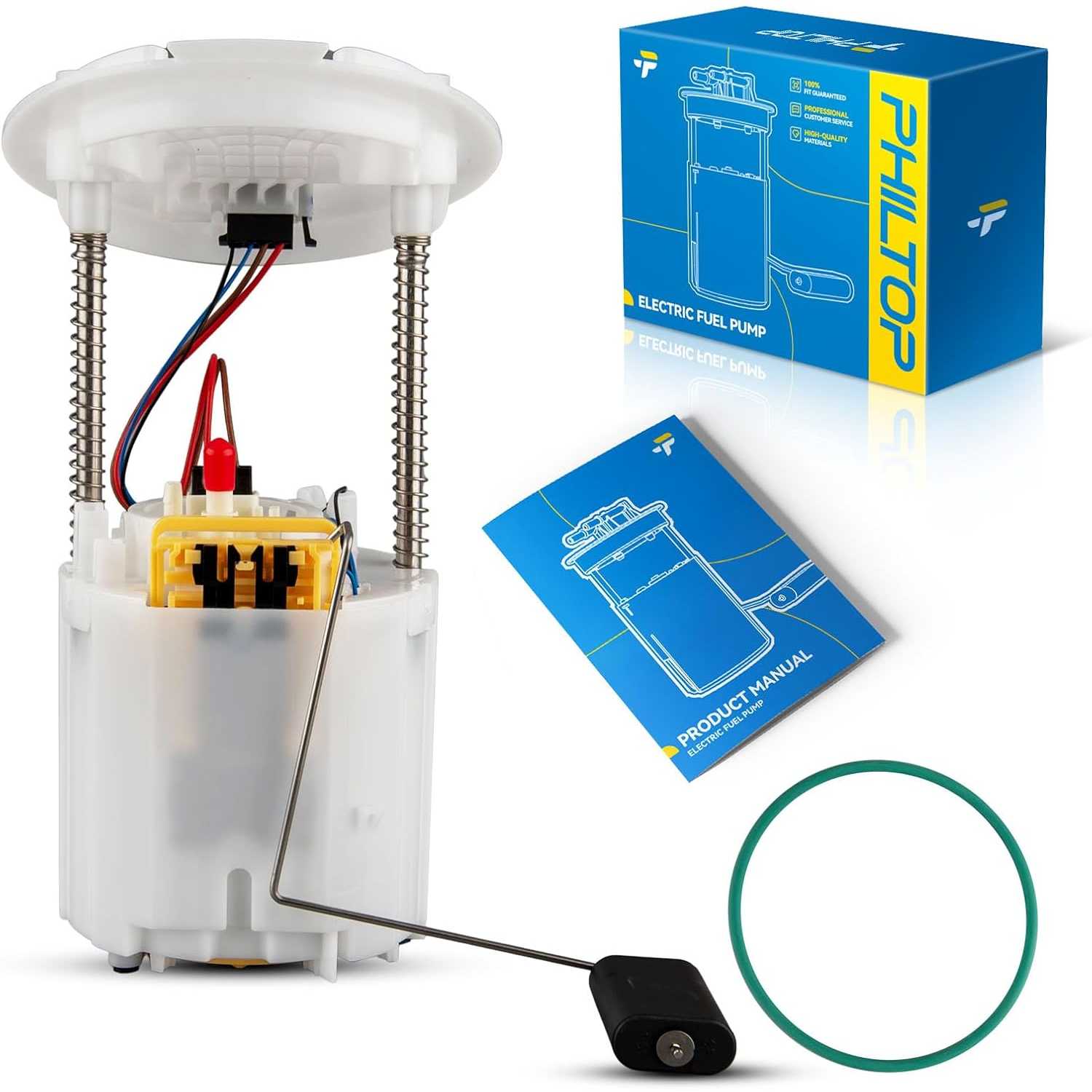

1x Fuel Pump Assembly - SP7234M
Warranty Period
2-Year
OE Number
68103913AA,68103913AC,68103913AB,68103913AD
Part Number
SP7234M,P77338M,USEP7267M,FG1588,C0960M

Highlights

  • Fitment: Compatible with Left For:, [Dodge] 2011-2012 Charger 3.6L FLEX, 2012-2013,2015-2016 Charger 6.4L, 2013 Charger FLEX, 2014 Charger SRT8, 2014 Charger FLEX SE/SXT, 2015-2016 Charger R/T Scat Pack/SE/SRT 392/SXT, 2015-2016 Charger 5.7L Pursuit, 2008 Challenger, 2011-2014 Challenger 3.6L, 2011-2016 Challenger 6.4L, [Chrysler] 2011-2012 300 3.6L FLEX, 2012-2013 300 6.4L, 2013-2019 300 FLEX.
  • Reference Number: 68103913AE, 68102700AA, 68102700AC, 68041381AB, E7263M, SP7234M, 5161808AE, 68103913AA, 68102700AB, SP7029M, RL161808AE, 5161808AD, 68103913AB, 68041407AA, 68041407AB, A30378, 68103913AC, 5136021AF, 5136021AG, P77191M, P76662T, SP7083M, CFG1588, A30389, P77338M, 68103913AD, 68041381AA, 4011508, FG1588, M2520933, A47073, C0960M, A46252, USEP7267M, 5170582AA, 5170582AB, 68041385AA, 68041385AB, 68145811AA, 68145811AB, 68145815AC, TNKSP7234M, C0486M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20132013201620172016 - 20172015 - 20172011 - 2014201520172014 - 20162014 - 20162015 - 20162015 - 20162015 - 20162012 - 2014
MakeChryslerChryslerDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodge
Model300300ChallengerChallengerChallengerChallengerChallengerChallengerChallengerChargerChargerChargerChargerChargerCharger
TrimSRT8SRT8 Core392 Hemi Scat Pack ShakerR/T 392R/T Scat PackSRT 392SRT8Scat PackT/A 392PursuitR/TR/T Road & TrackR/T Scat PackSRT 392SRT8
Engine6.4L V86.4L V86.4L V86.4L V86.4L V86.4L V86.4L V86.4L V86.4L V85.7L V85.7L V85.7L V86.4L V86.4L V86.4L V8
Note---------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.9/5

Based on 7 reviews

586%
414%
30%
20%
10%

Customer photos and videos

John John

03/30/2026

Verified buyer

This appears to be a very good quality aftermarket fuel pump. Better quality than what you’d get from a discount auto parts store. It came very well packaged with additional air pillows not shown in my picture. It comes with pretty good instructions that have color pictures. I would not hesitate to order this again.

Fred Bloggs

04/18/2026

Verified buyer

A budget aftermarket fuel pump module that offers a full “drop-in” replacement for the FG1588 platform. It’s attractive because it’s inexpensive and complete, but like most non-OEM pump assemblies, the real tradeoff is long-term reliability and fuel level sensor consistency.👍 ProsDirect-fit replacement design: Intended as a plug-in substitute for OEM module FG1588 applicationsComplete assembly: Includes pump, sending unit, strainer, and regulatorWide OEM cross-reference coverage: Fits multiple Chrysler/Dodge platforms (Charger, Challenger, 300) across 2011–2016+ rangesCost advantage: Cheaper than OEM Delphi or Mopar unitsConvenient for full failure replacement: Good when the original module has both pump and sender issues👎 ConsAftermarket durability variability: These assemblies are known to have inconsistent lifespan compared to OEM Delphi/Mopar unitsFuel level sender accuracy issues: A common failure point in budget modules (erratic gauge readings or early failure)Pump longevity uncertainty: Typically fine initially, but long-term flow degradation is more likely than OEM unitsQC variance between batches: Performance can differ even within the same brand/part number runNot performance-oriented: Designed as OEM replacement, not for upgraded fueling demandsAcross this FG1588 platform (OEM Delphi and aftermarket equivalents), the pattern is consistent:OEM Delphi units are expensive but very stable and long-livedBudget replacements often work fine initially, but:Sender issues (fuel gauge weirdness) are common in cheaper assembliesPump noise or pressure drop can appear earlier than OEMMany DIY owners use these as “get it running now” replacements, not lifetime fixesVerdictA cost-effective full fuel pump module replacement that makes sense when OEM pricing is too high or when the original unit has completely failed. It is functional and convenient, but not something you pick if you’re prioritizing maximum long-term reliability.Bottom lineGood “all-in-one fix” for getting a Challenger/Charger/300 back on the road quickly. If you want OEM-level consistency and longevity, Delphi/Mopar units still clearly outperform it—but at a much higher price.
