2012-2018 Ford Focus 2.0L L4 | Fuel Pump Assembly | OE#BV6Z9H307V/FG1532 - PHILTOP

2012-2018 Ford Focus 2.0L L4 | Fuel Pump Assembly | OE#BV6Z9H307V/FG1532 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4296FUP1706US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
464.0 Ω
Resistance Ohms Full
50.0 Ω
Average Flow Rating
21 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
84.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

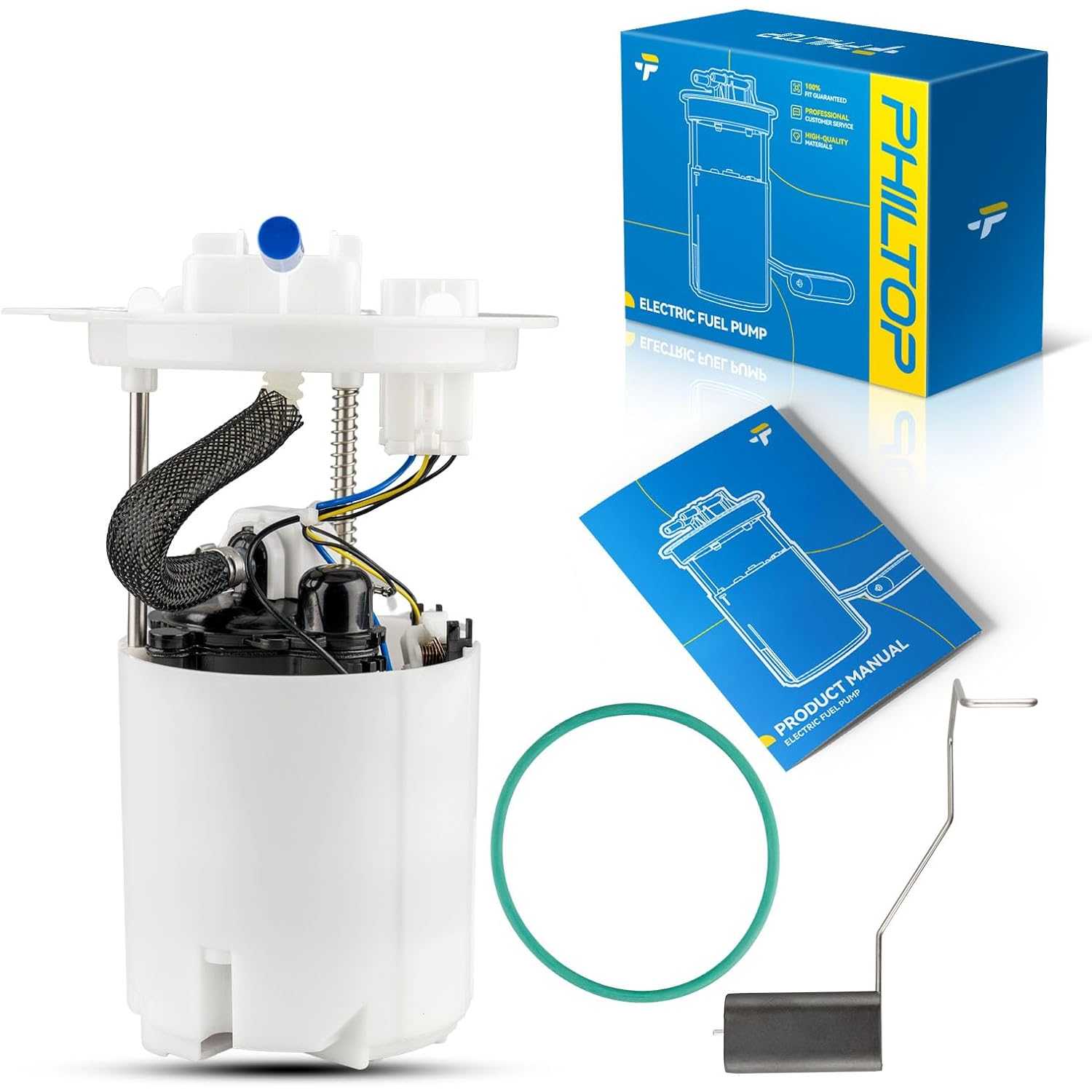

1x Fuel Pump Assembly - FG1532
Warranty Period
2-Year
OE Number
BV6Z9H307V,BV6Z9H307S,BV6Z9H307R,BV6Z9H307T,BV6Z9H307K,BV6Z9A299A,BV6Z9H307AX,BV6Z9H307AW,BV6Z9H307M,BV6Z9H307AH,BV6Z9H307UFC,BV6Z9H307P,BV6Z9H307H,BV6Z9H307U,BV6Z9H307AV
Part Number
FG1532,SP2516M,P76863M,FG1937,USEP2592M,SP2543M,66094,PFS990,PFS1179,4010774,PS602,CFG1532,A46008,B12111687TG,A33191,C0157M,1234832,M3542478,TNKSP2516M,MO555,PFS991,PFS1188,PFS1094,DFG1937,2921115

Highlights

  • Fitment: Compatible with [Ford] 2012 Focus GAS, 2013-2014 Focus Naturally Aspirated GAS, 2015-2017 Focus GAS(engineVIN: 2), 2015-2018 Focus(engineVIN: E), 2018 Focus(engineVIN: 9).
  • Reference Number: BV6Z9H307T, BV6Z9H307K, BV6Z9A299A, FG1532, SP2516M, P76863M, BV6Z9H307P, BV6Z9H307AV, BV6Z9H307AX, BV6Z9H307H, PFS1179, 4010774, BV6Z9H307U, PS602, BV6Z9H307AW, BV6Z9H307M, BV6Z9H307V, FG1937, SP2543M, 66094, PFS990, BV6Z9H307S, CFG1532, A46008, BV6Z9H307R, USEP2592M, BV6Z9H307AH, BV6Z9H307UFC, 2921115, MO555, DFG1937, 1234832, M3542478, TNKSP2516M, PFS1094, PFS1188, PFS991, C0157M, A33191, B12111687TG.
  • Related Parts: ① Fuel Pump, ② Strainer.

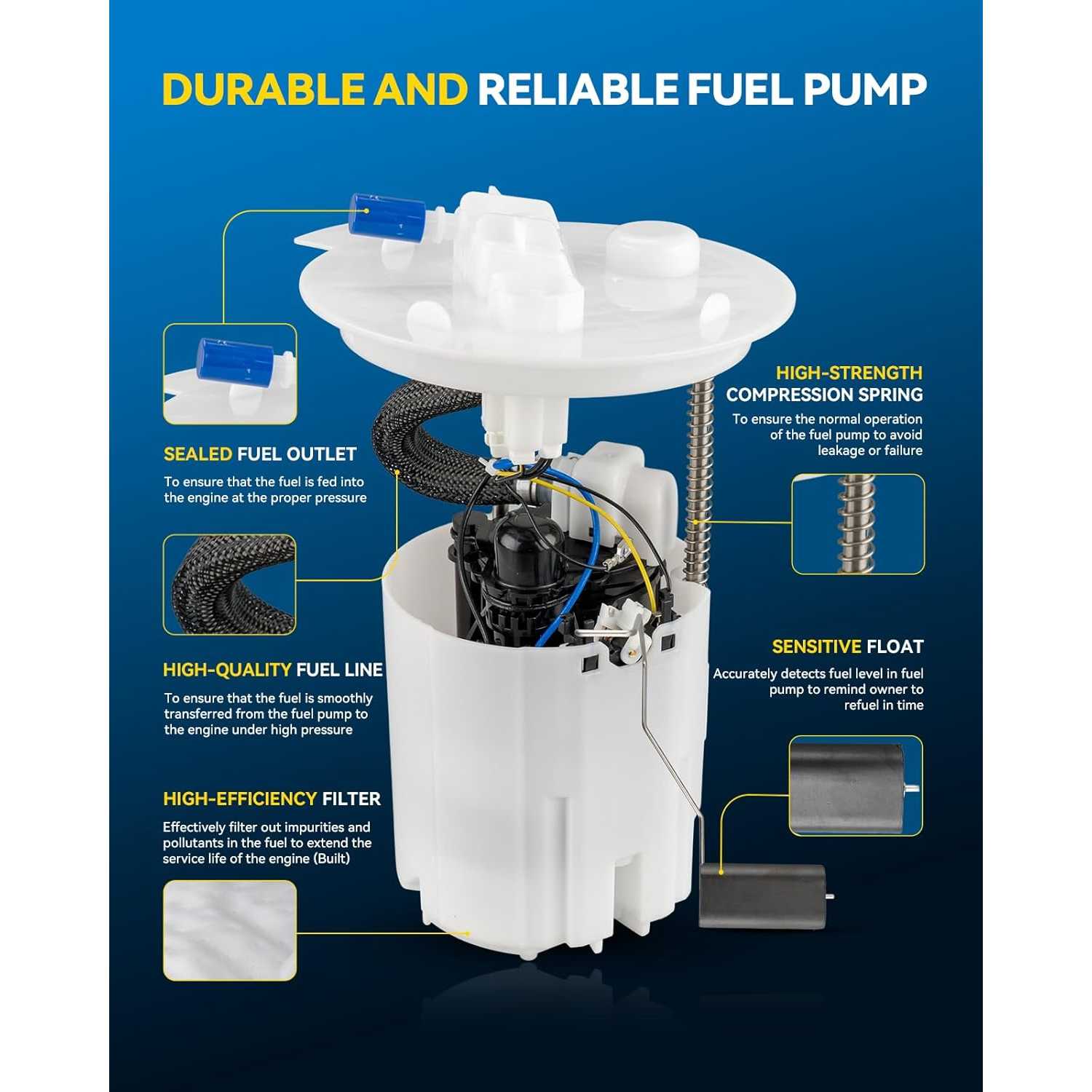

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2013 - 20172015 - 20182012 - 2017201720182013 - 2017
MakeFordFordFordFordFordFord
ModelFocusFocusFocusFocusFocusFocus
TrimSSESESELSTTitanium
Engine2.0L L41.0L L32.0L L42.0L L42.0L L42.0L L4
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

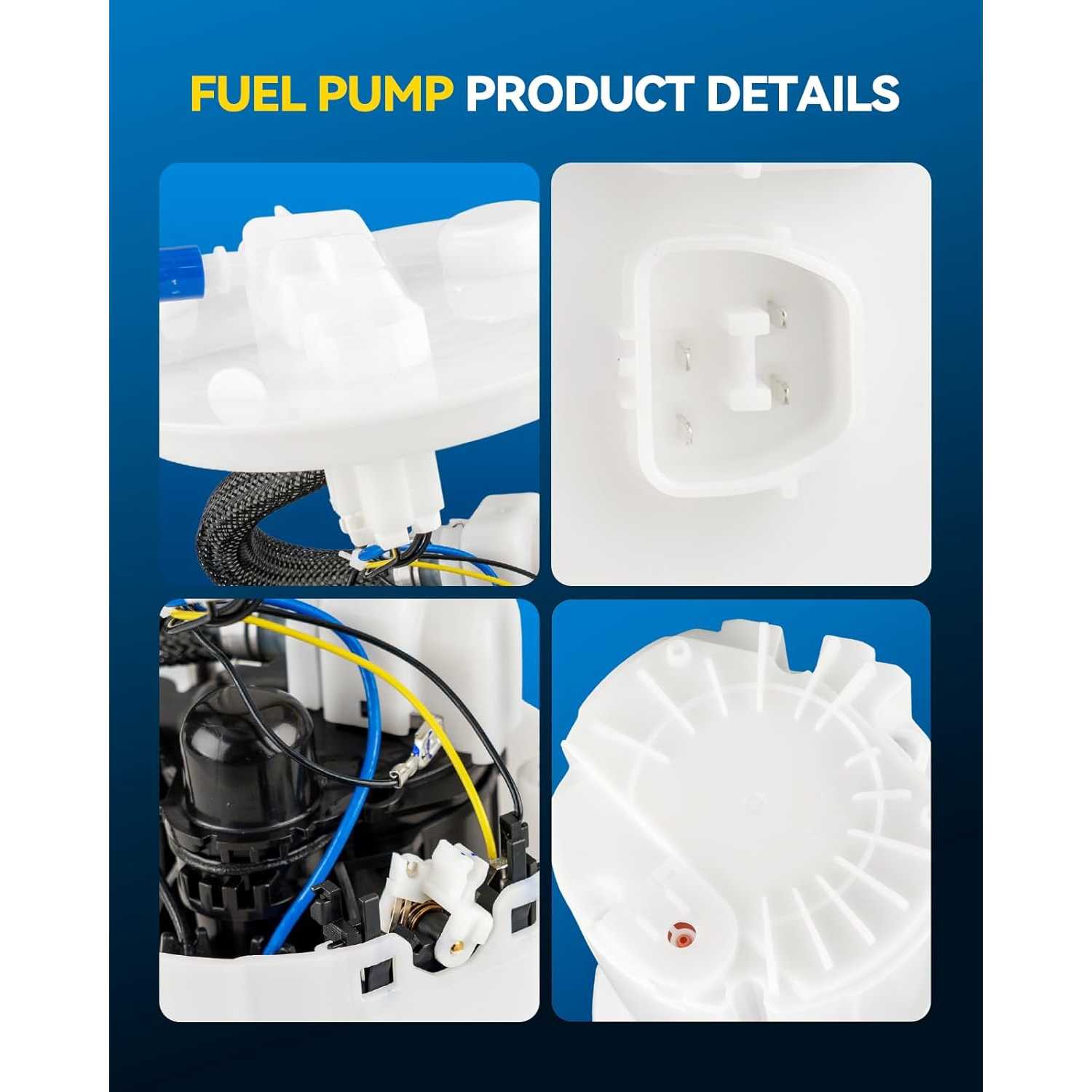

Electric Fuel PumpElectric Fuel Pump

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

chris

02/05/2026

Verified buyer

fits good been in car and still pumping

Ingrid Rivera

09/24/2025

Verified buyer

Buena calidad este producto
