Electronic Power

Effortless Steering

Leak-Tested

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7203SGE1984US

Specifications

Brand
PHILTOP
Steering Type
Electronic Power
Input Shaft Diameter
0.63 in
Input Shaft Length
4.69 in
Rack Length
42.25 in
Thread Length
1.87 in
Material
Aluminum / Iron
Items Included

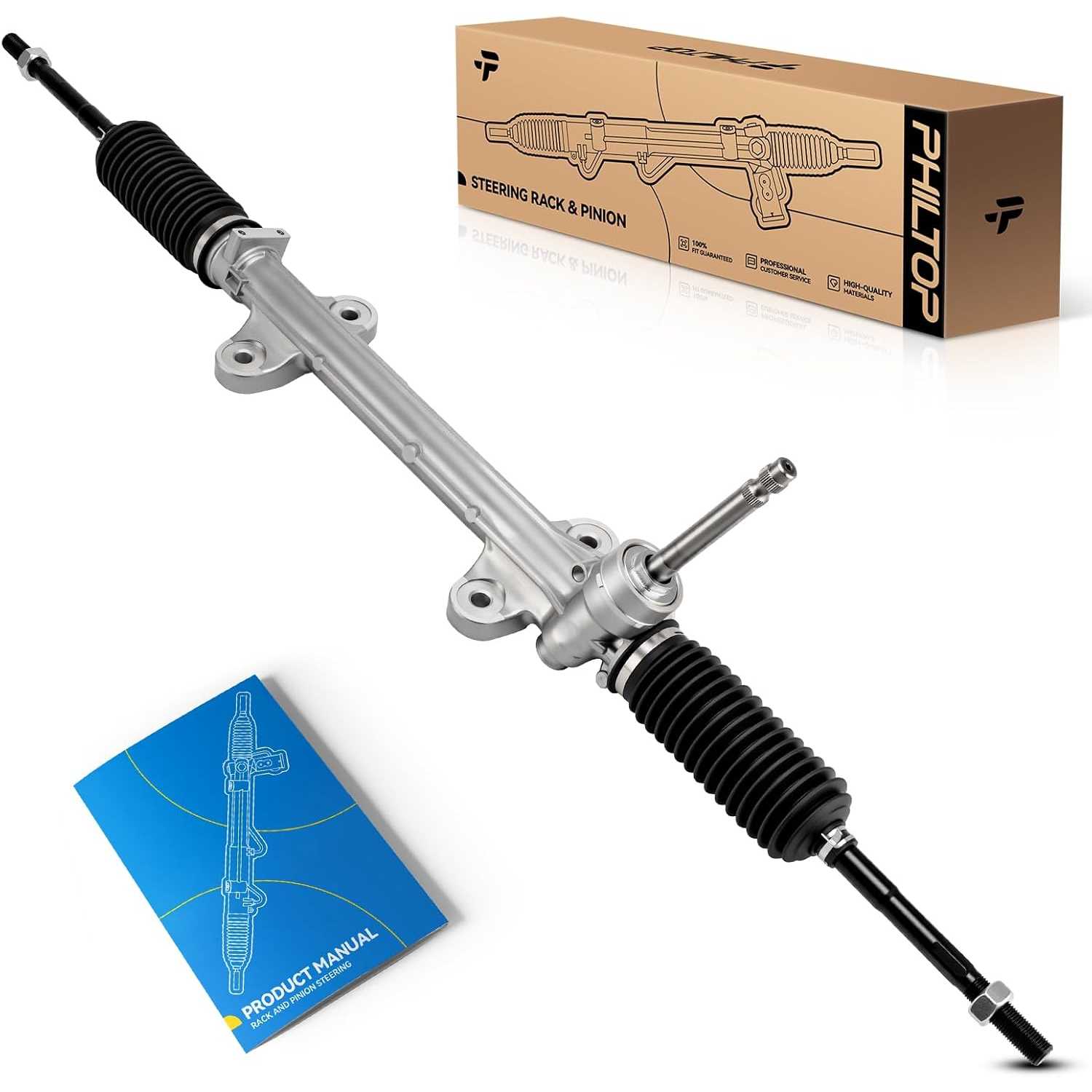

1x Rack and Pinion - 1G2409
Warranty Period
2-Year
Part Number
1G2409

Highlights

  • [FITMENT] --- Electronic rack and pinion steering assembly replacement for 2014-2016 Elantra All Models, 2013-2017 Elantra GT All Models, 2013-2014 Elantra Coupe All Models, 2013-2017 Veloster All Models. Note: Electronic Power Steering with Manual Rack.
  • [INTERCHANGE PART NUMBER] --- The rack and pinion kit reference number: 1G-2409, 1G2409, 565003X100, 565003X200, 56500A5000, 56500A5500. More responsive and gives compact control ensuring safety when driving through icy or rough, or all those roads in poor condition.
  • [PROFESSIONAL MADE] --- Manufactured in strict accordance with the original factory standards, with stable performance, excellent workmanship, strict factory quality control testing, professional manufacturing, high performance and high reliability.
  • [SUPERIOR QUALITY] --- Our power steering rack and pinion assembly is made of high-strength alloy steel processed by high-precision CNC, with good wear resistance, high temperature resistance, corrosion resistance, aging resistance, which can guarantee maximum strength and durability with long service life.

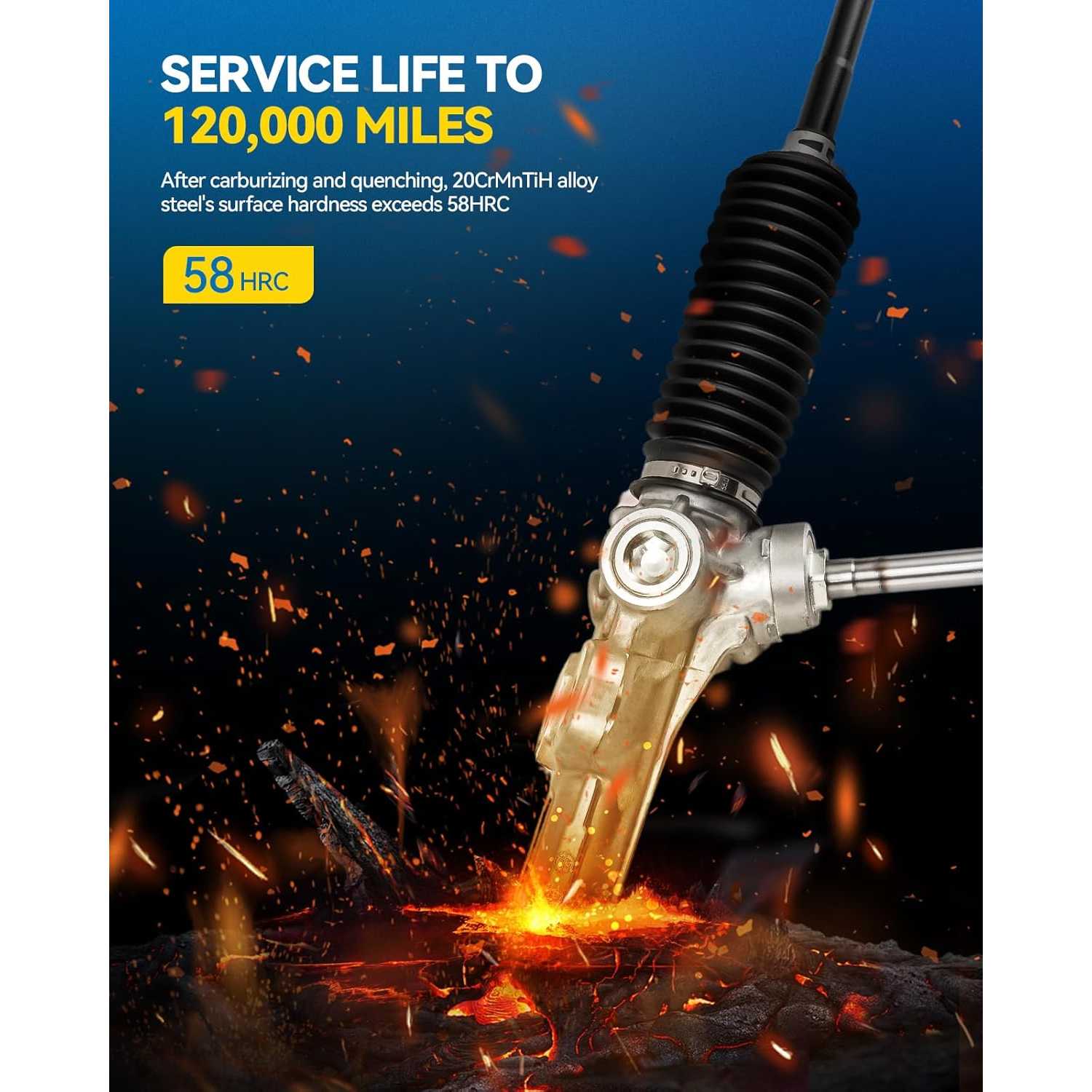

  • [IMPORTANT NOTE] --- This is a Column-type electric power steering system (C-EPS) with a manual steering rack assembly. The assist motor is fully integrated into the steering column. Please verify compatibility with your vehicle. Service life more than 120,000 miles, 12-month unlimited mileage guarantee.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2014 - 20162014 - 20162014 - 2016201620132014201320132014 - 20172013 - 20172014 - 201520162013 - 20172014 - 20172017
MakeHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundaiHyundai
ModelElantraElantraElantraElantraElantra CoupeElantra CoupeElantra CoupeElantra GTElantra GTVelosterVelosterVelosterVelosterVelosterVeloster
TrimLimitedSESportValue EditionGSGSSEBaseBaseBaseRE:FLEXRally EditionTurboTurbo R-SpecValue Edition
Engine1.8L L41.8L L42.0L L41.8L L41.8L L42.0L L41.8L L41.8L L42.0L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L4
Note
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

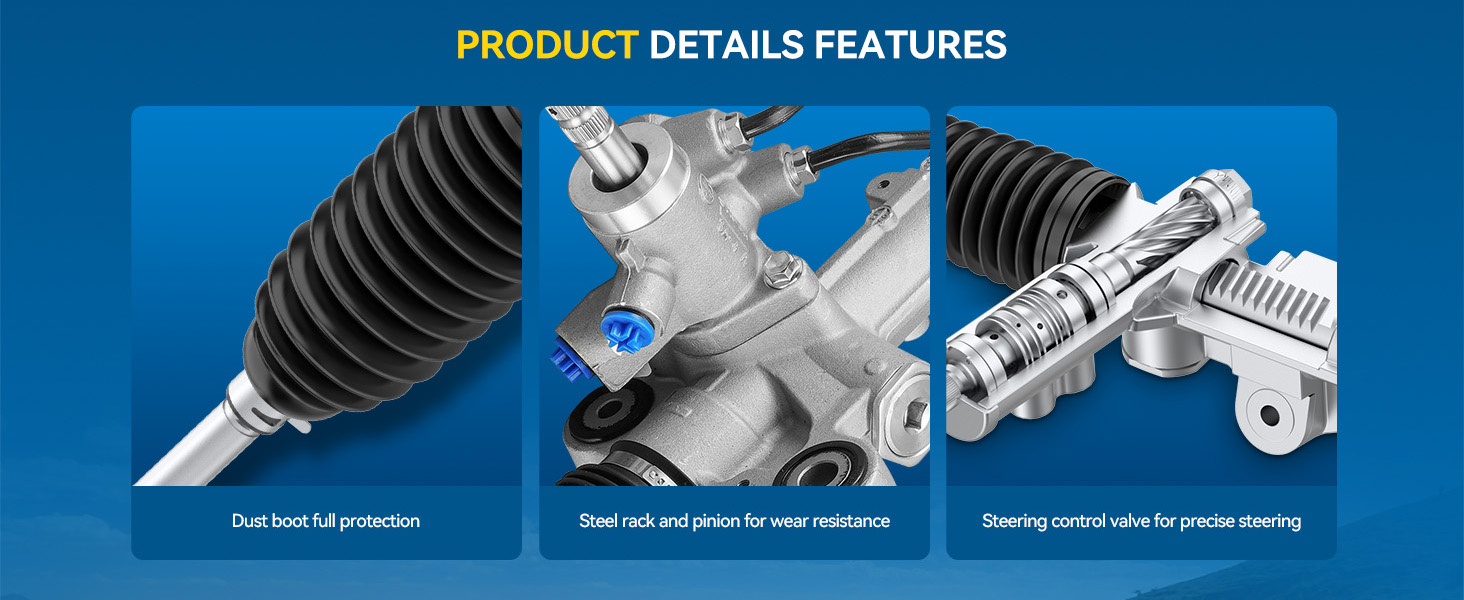

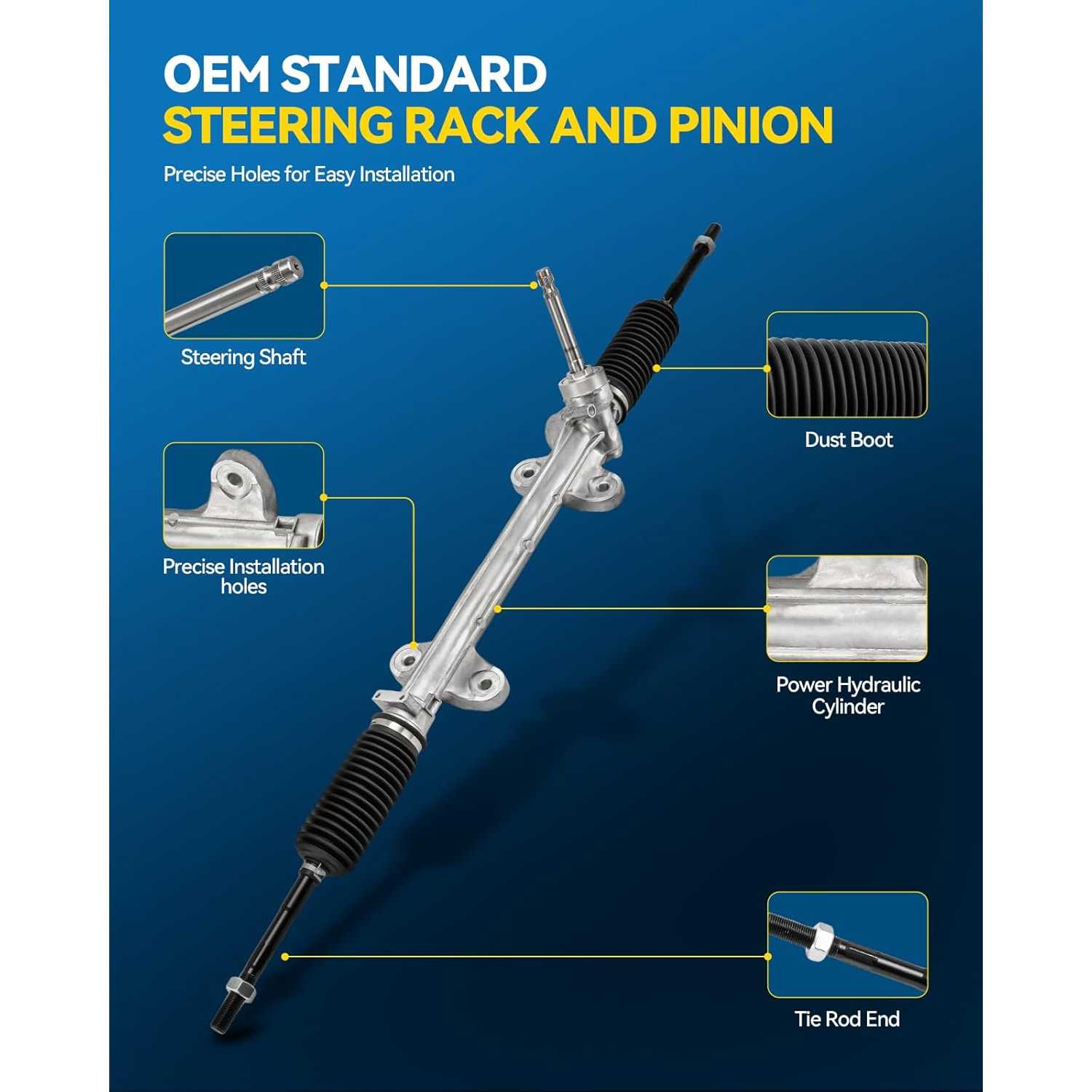

power rack and pinion assemblyPower Steering Rack and Pinion

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Dale

05/18/2026

Verified buyer

Good quality, would buy again.

Eric Hurst

06/08/2025

Verified buyer

Absolutely solid quality for my 2016 Elantra rack pinion. Installation went smoothly.

FAQS

The name ‘rack and pinion’ is more accurately called a power steering gear. It’s a complete assembly, and the parts aren’t replaced individually

The steering type varies by product. Check the specifications and compare the connectors, fluid ports, and motor configuration with the original unit.

Included components vary by product. Please check the Package Contents section and product images before ordering.
