Manual

Effortless Steering

Leak-Tested

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8506SGE210LUS

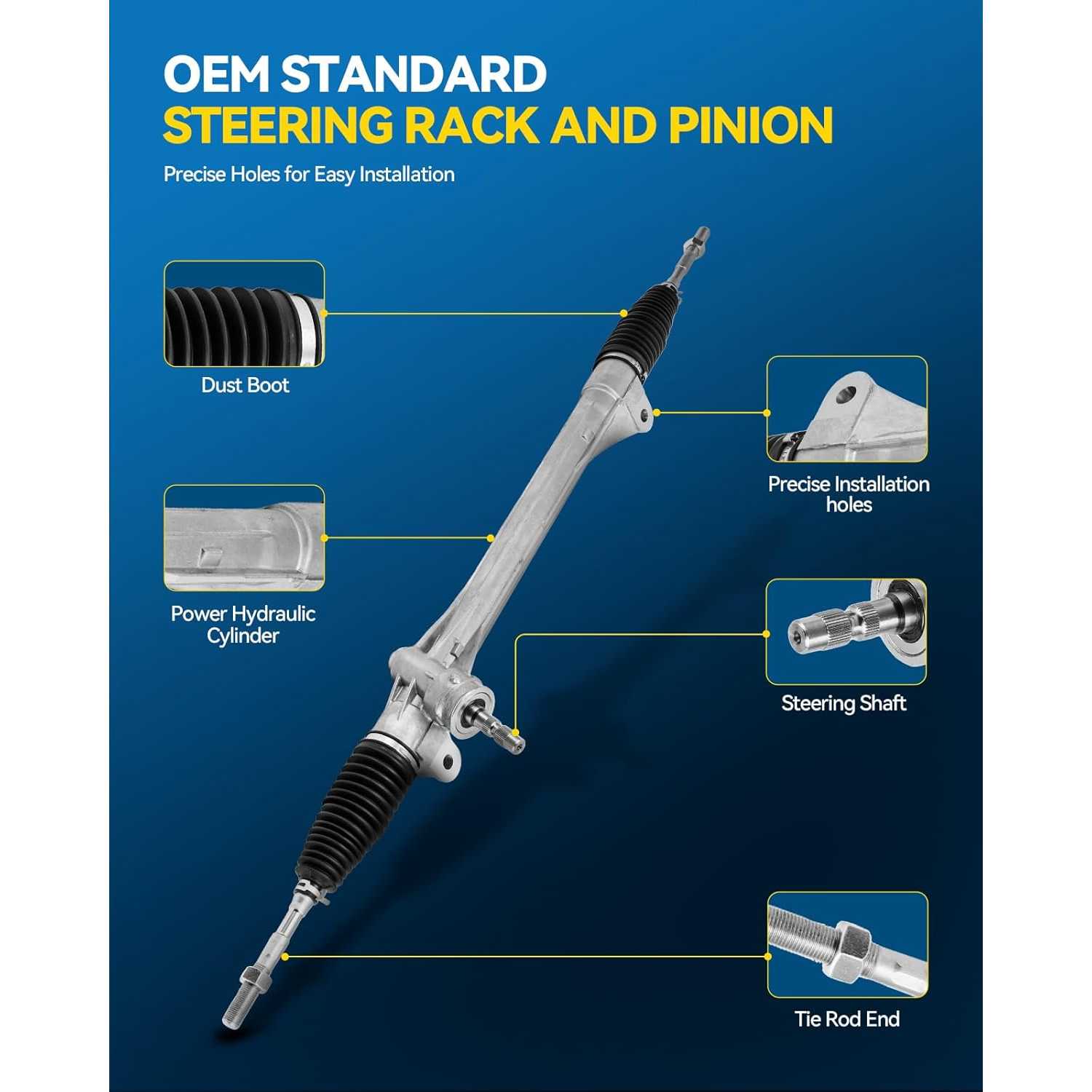

Specifications

Brand
PHILTOP
Steering Type
Manual
Input Shaft Diameter
0.71 in
Input Shaft Length
2.63 in
Rack Length
43.38 in
Thread Length
2.04 in
Material
Aluminum / Iron
Items Included

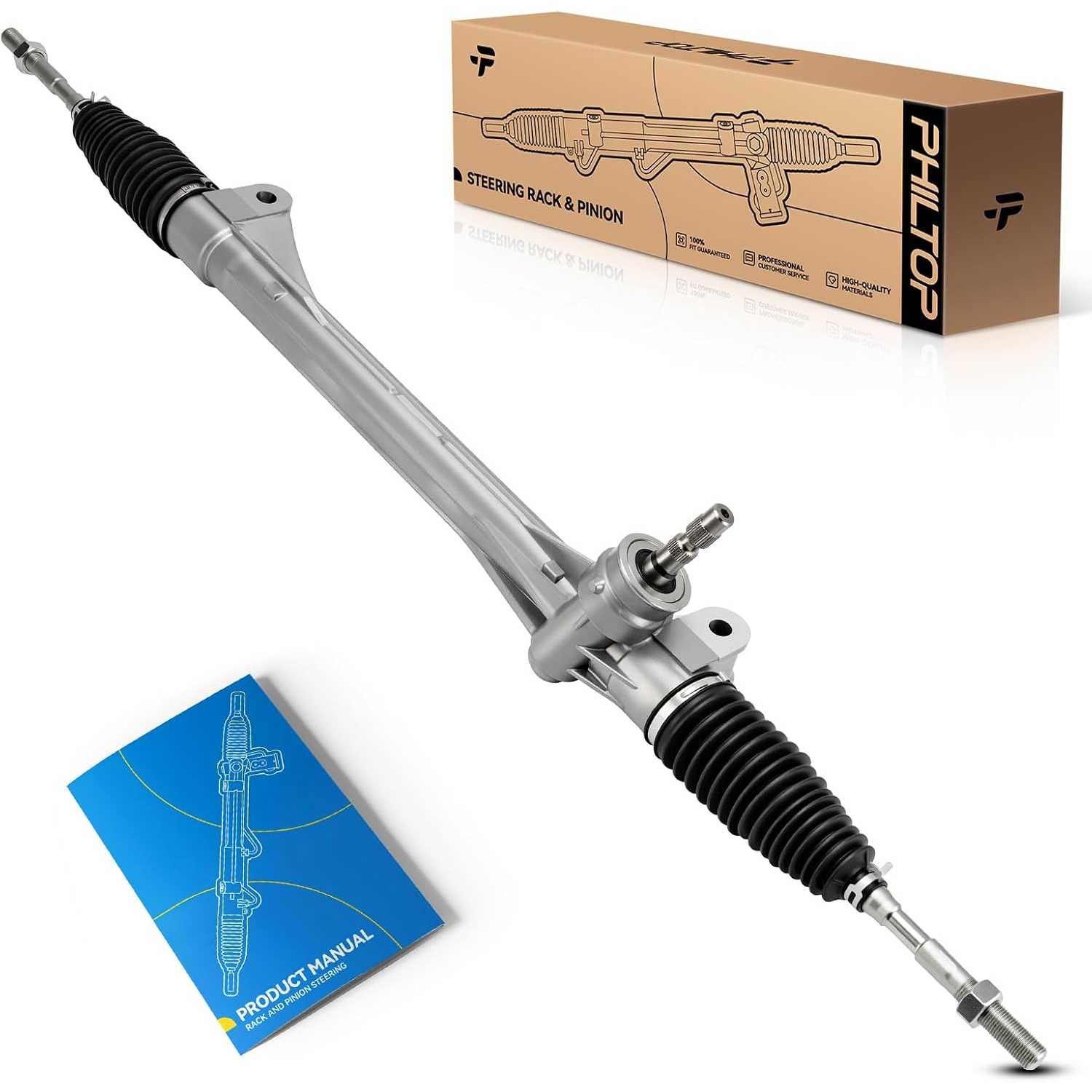

1x Rack and Pinion - 2426012
Warranty Period
2-Year
OE Number
2426012
Part Number
1G26012

Highlights

  • [Vehicle Fitment]: Electronic steering rack and pinion assembly compatible with 2013-2018 RAV4 Adventure/Limited/Platinum/SE, 2015-2017 NX200t, 2015-2021 NX300h. Note: 2013–2016 RAV4 2.5L models with 18-inch wheels Only.
  • [Reference Number]: Rack and pinion steering assembly OE number 24-26012, .
  • [Specifications]: ①Steering Type: Electronic; ②Rack Length(In): 43.38; ③Thread Length(In): 2.04; ④Input Shaft Length(In): 2.63; ⑤Input Shaft Diameter(In): 0.71; Package included: 1x Rack and Pinion - 2426012.

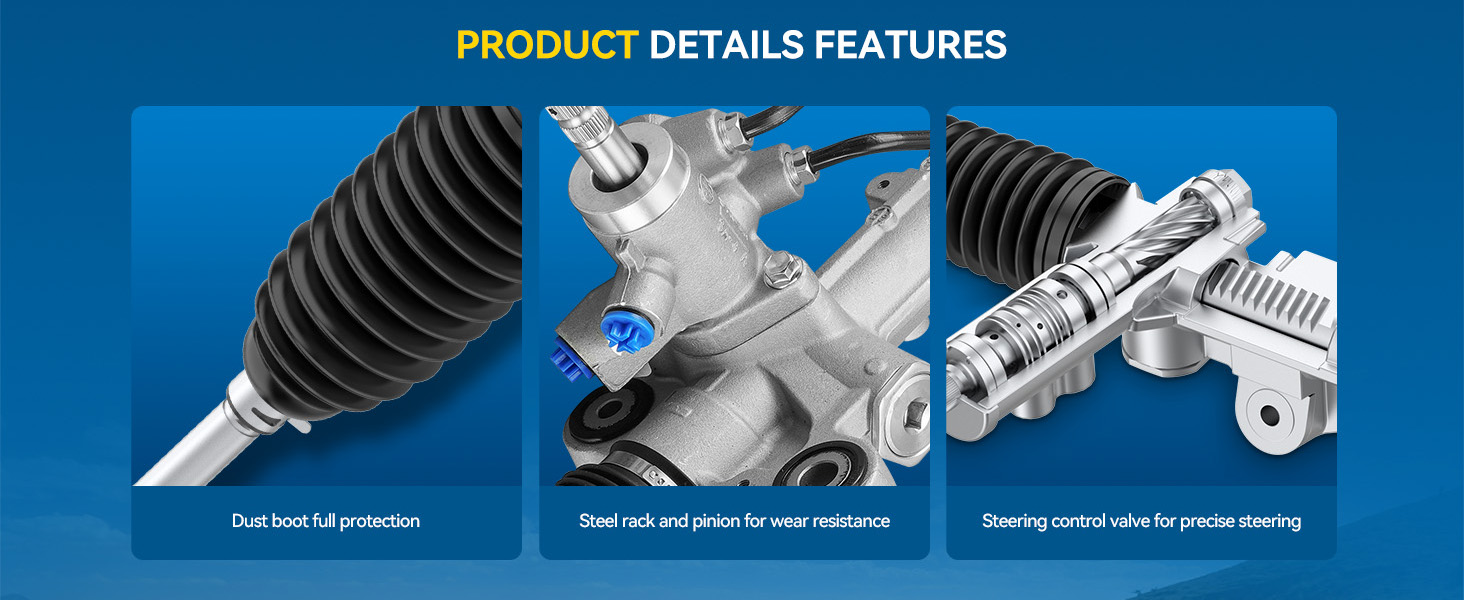

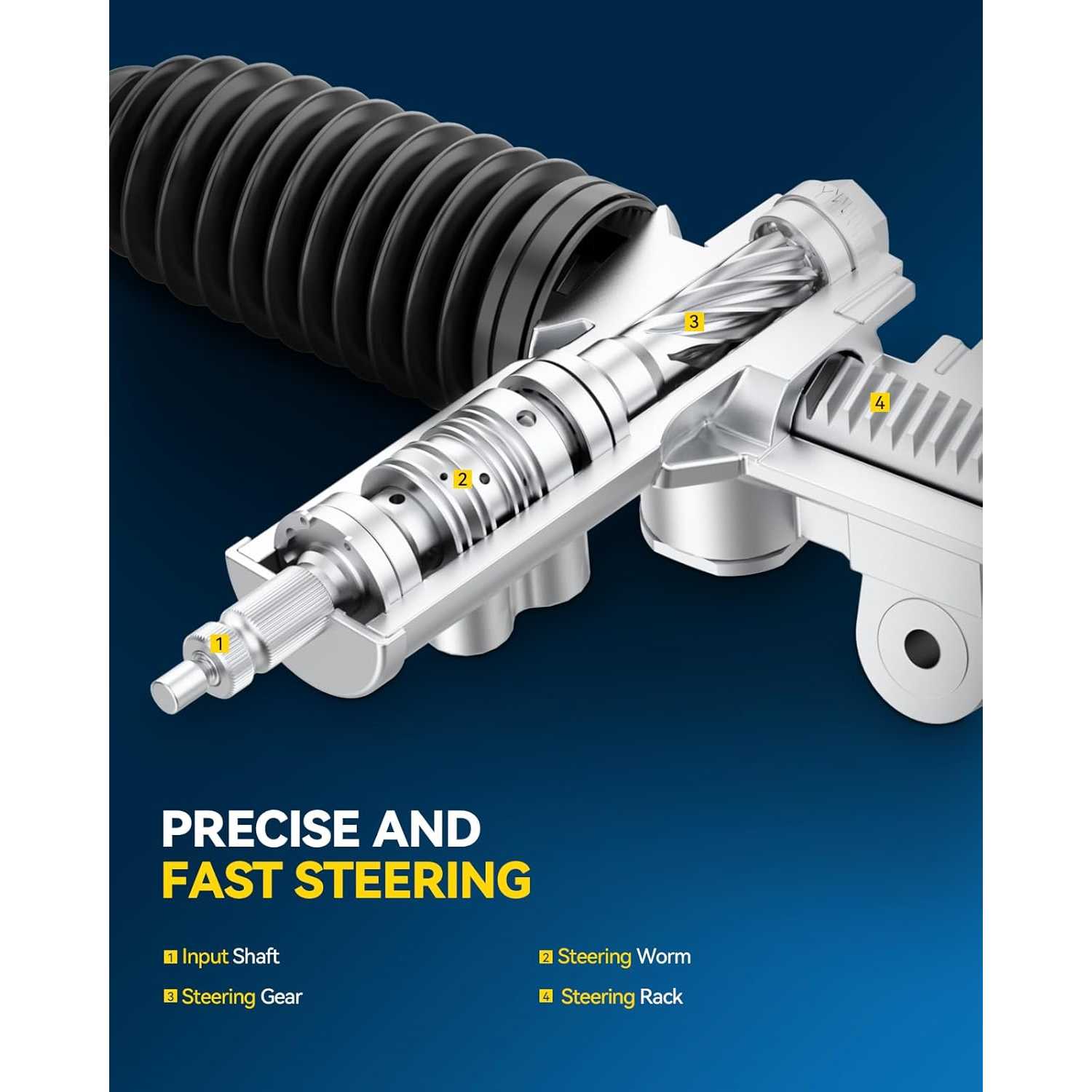

  • [High Verticality]: The rack and worm gear in the steering rack and pinion are made of high-strength alloy steel processed by high-precision CNC, which ensures the high verticality of the helical gear system, making the steering wheel operation more stable and driving safer. Closely integrated with the vehicle chassis will not produce noise and vibration.

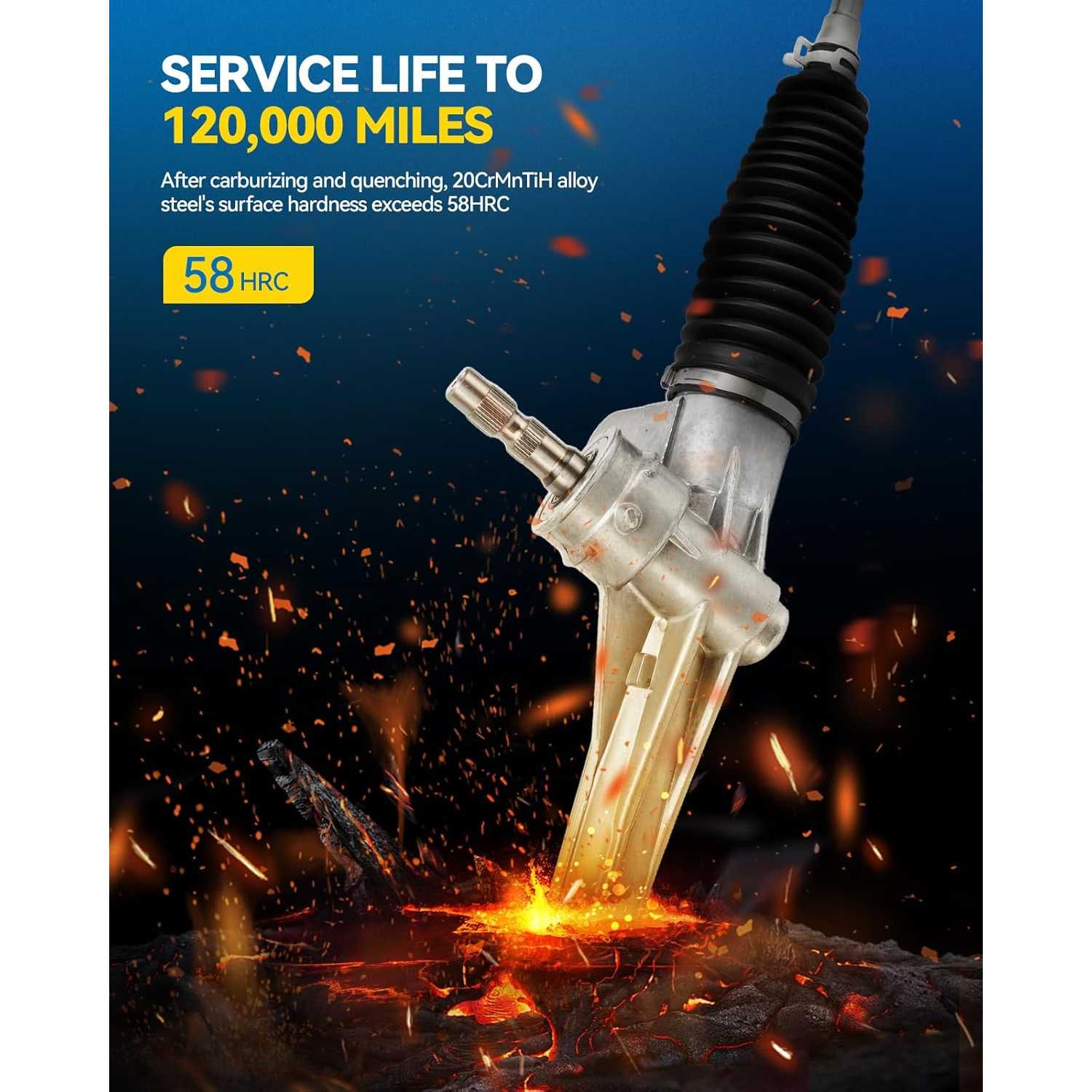

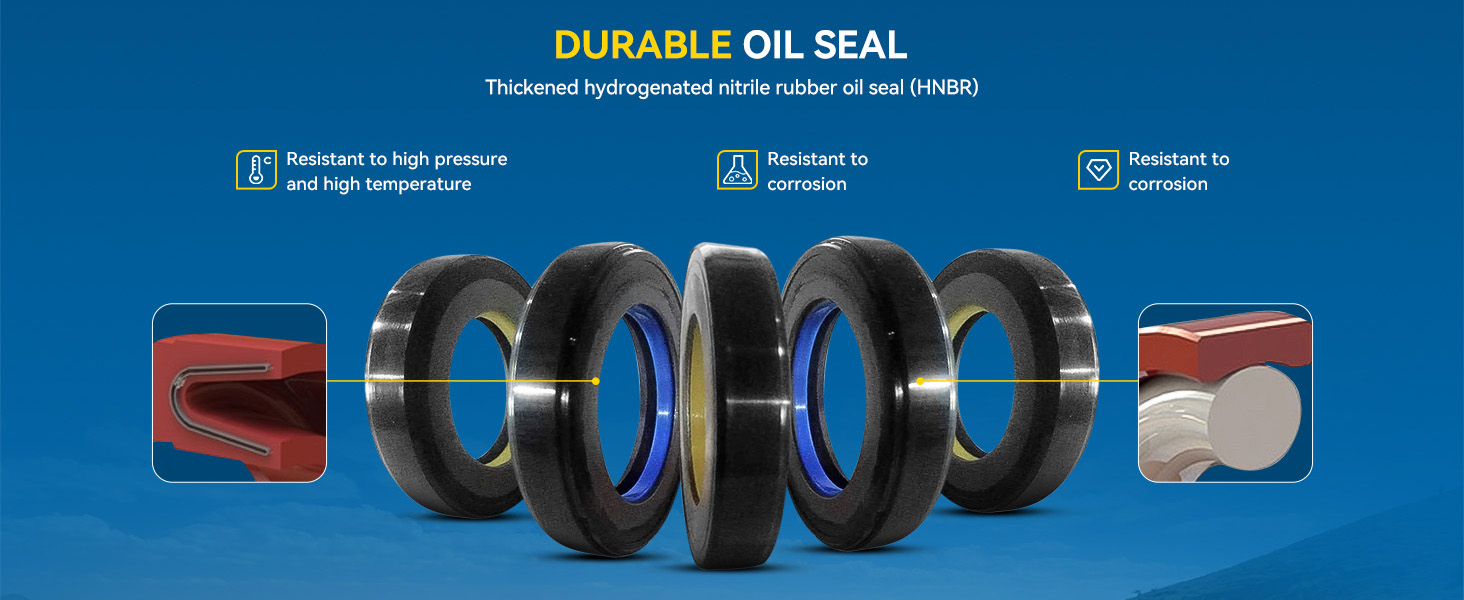

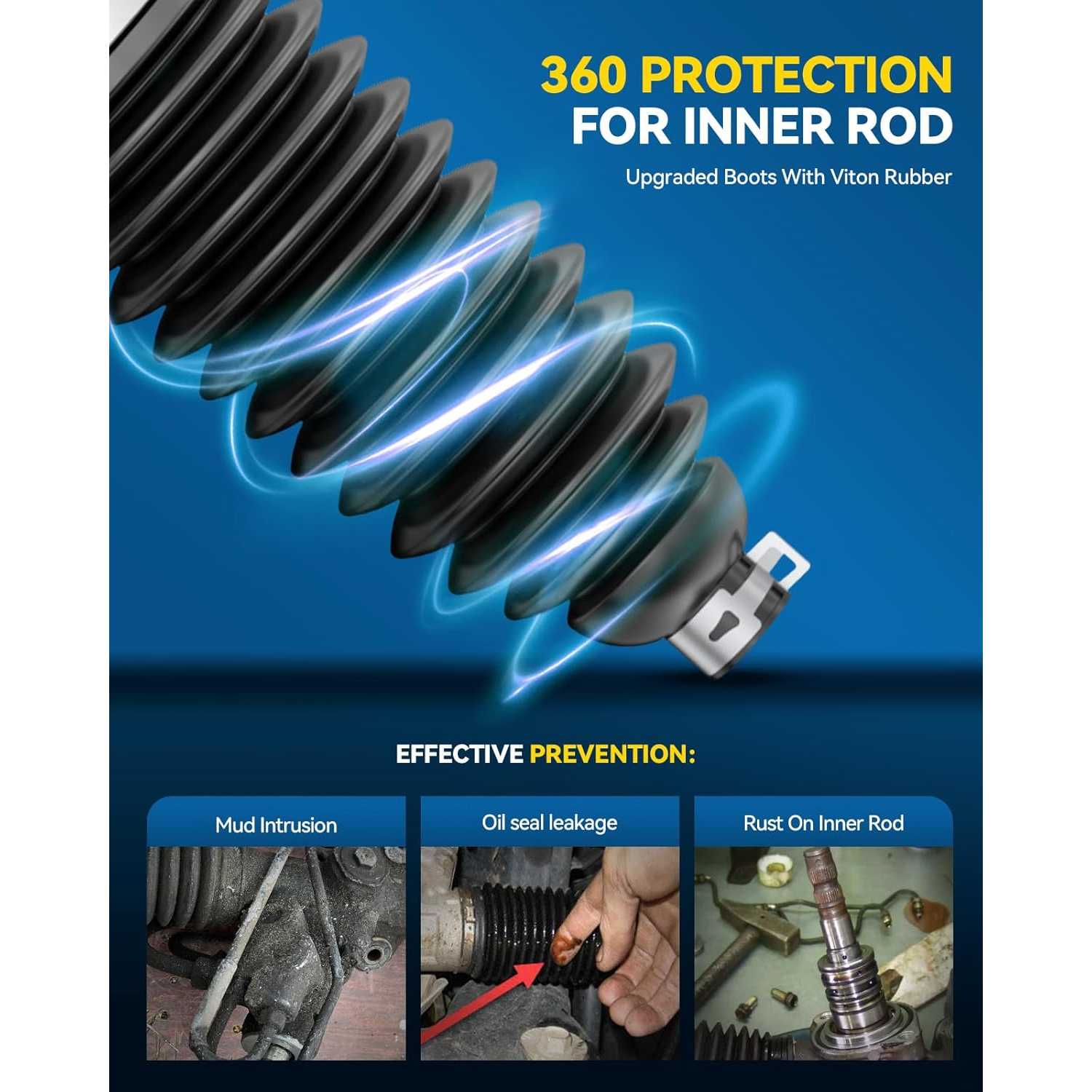

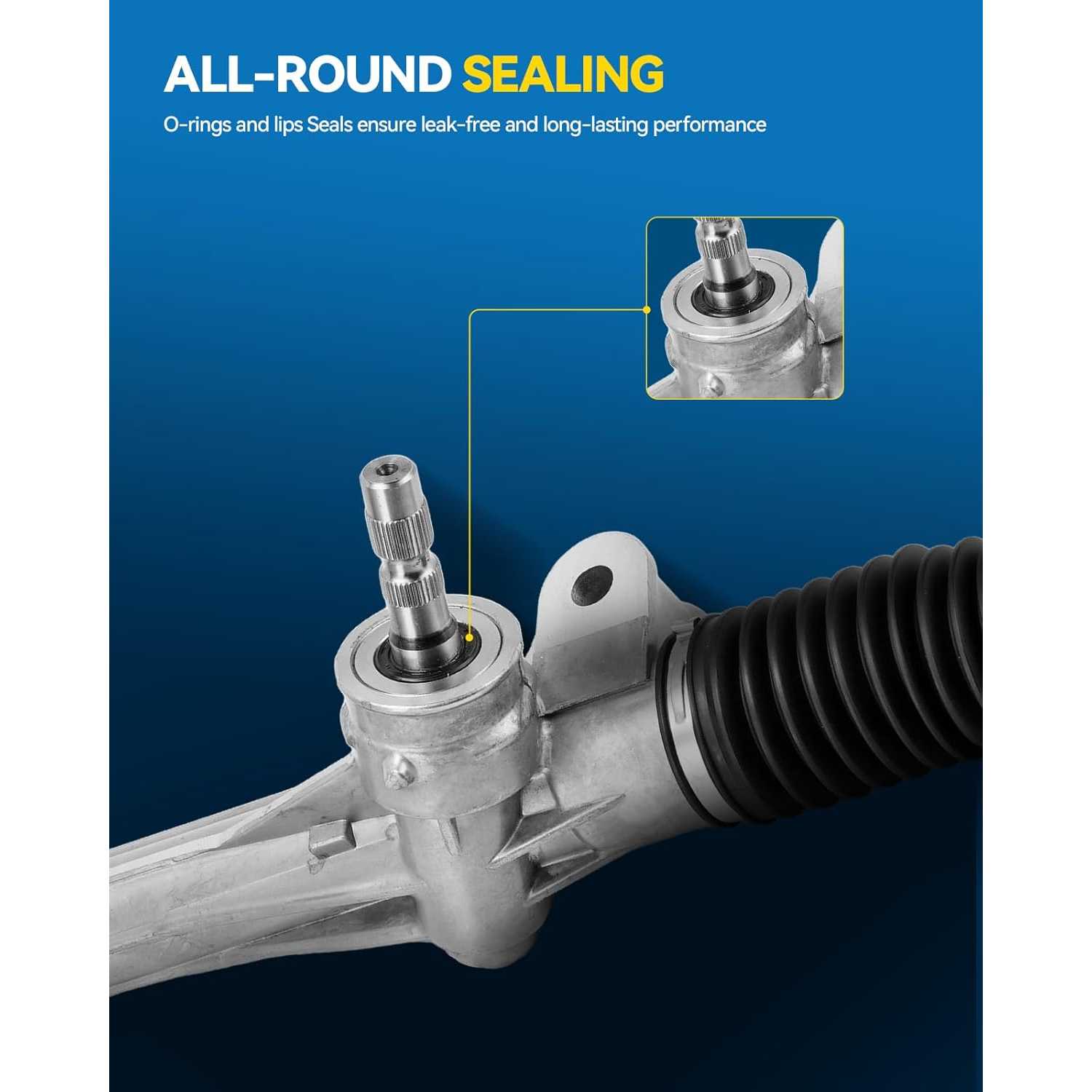

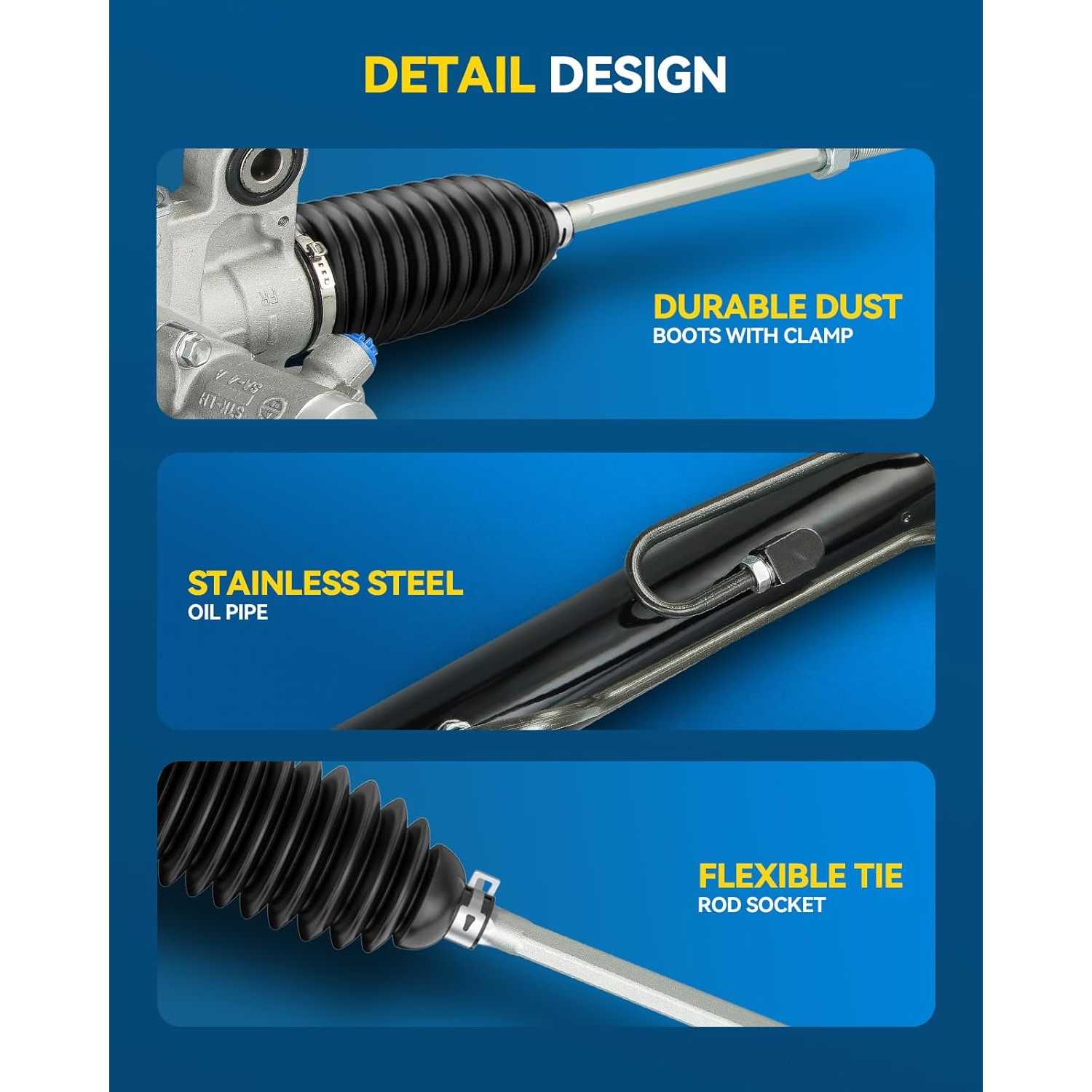

  • [Durable Performance]: PHILTOP steering rack and pinion adopts corrosion-resistant oil seals and lip seals, and butyl rubber sealing covers. The 360°dust cover is fully protected to effectively prevent dust and dirt from entering the rack gear to cause wear and oil leakage. Service life more than 120,000 miles, 24-month unlimited mileage guarantee.

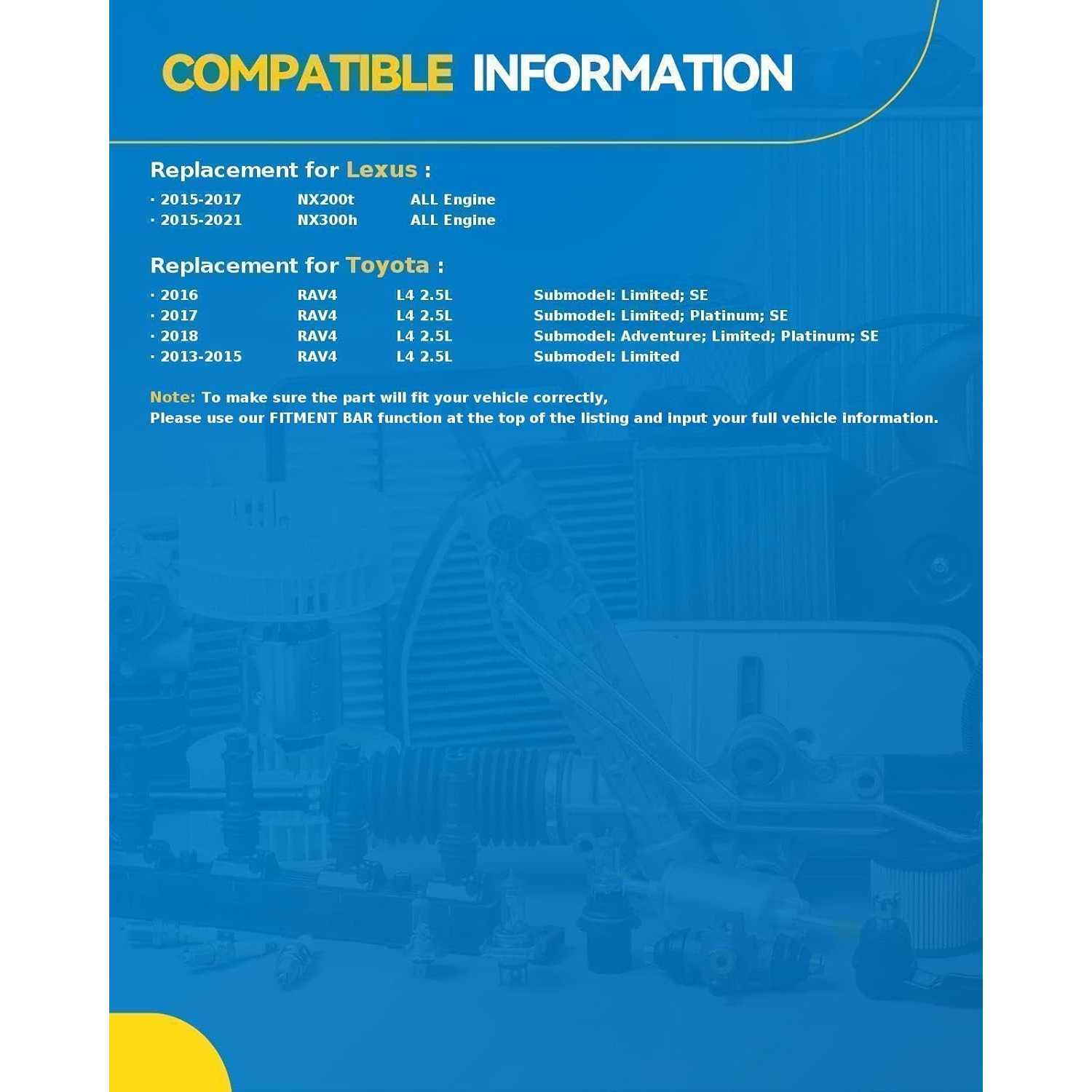

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2015 - 20172015 - 20172015 - 202120212020 - 202120182013 - 20162017 - 20182017 - 201820162017 - 2018
MakeLexusLexusLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyota
ModelNX200tNX200tNX300hNX300hNX300hRAV4RAV4RAV4RAV4RAV4RAV4
TrimBaseF SportBaseF Sport Black LineLuxuryAdventureLimitedLimitedPlatinumSESE
Engine2.0L L42.0L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L4
Note

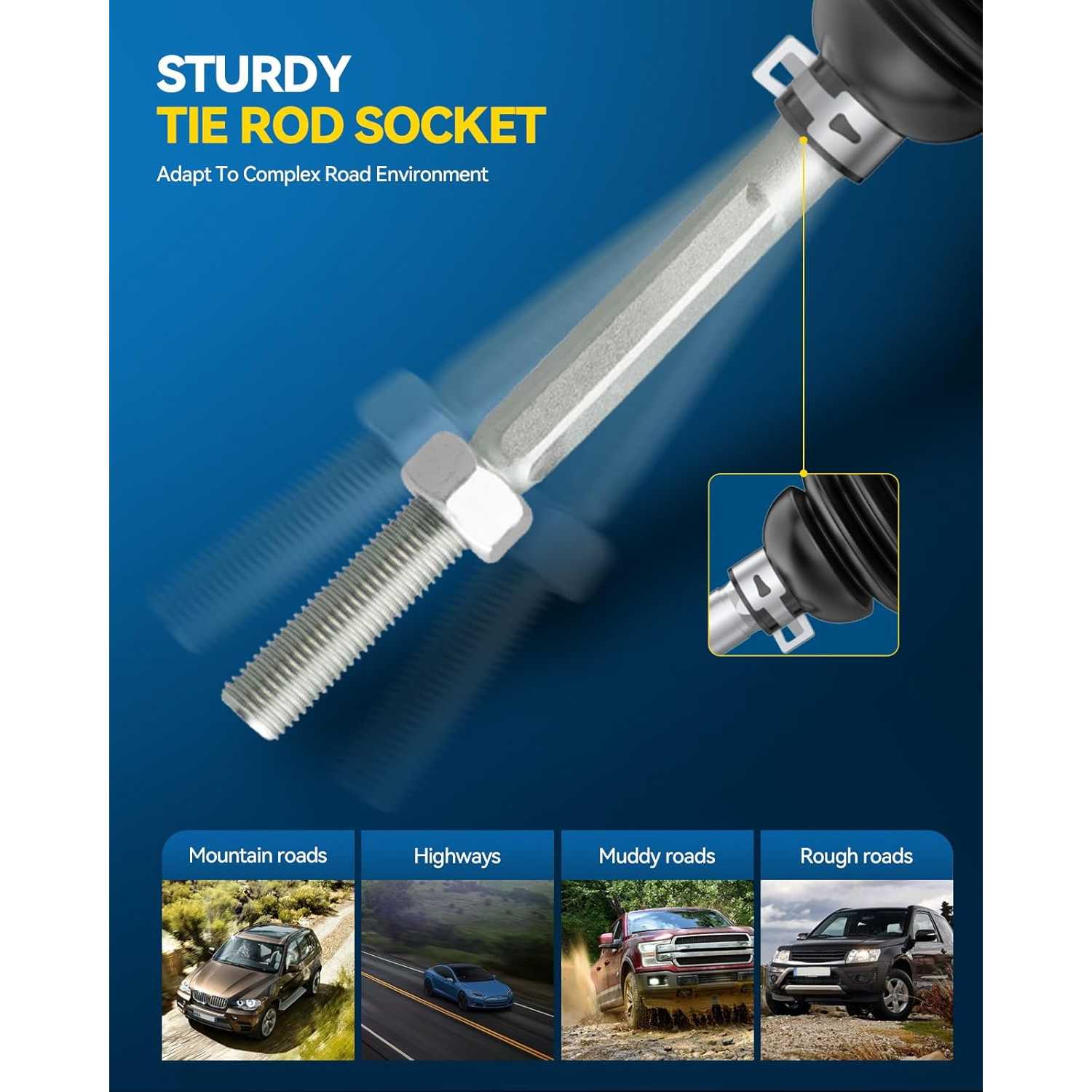

Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods;with 18 (in) Wheels
--
Electronic Power Steering with Manual Rack;Includes Inner Tie Rods;with 18 (in) Wheels
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm fitment: Compare mounting dimensions, input shaft connections, and hydraulic ports.
  • Inspect related parts: Check tires, suspension, tie rods, steering joints, pump, and hoses.
  • Prepare the system: Flush contaminated fluid and prepare new seals that match vehicle specifications.

Installation Steps

  • STEP 1 — Secure the vehicle, disconnect the negative battery cable, and secure the steering wheel to prevent free rotation.
  • STEP 2 — Mark connection positions. Disconnect tie rods, hydraulic lines, and the steering shaft; collect drained fluid.
  • STEP 3 — Remove the old rack and flush the lines before connecting the replacement.
  • STEP 4 — Center the new rack and install it in alignment with the steering wheel. Tighten fasteners to vehicle specifications.
  • STEP 5 — Reconnect the steering shaft, tie rods, and hydraulic lines using new specified seals.
  • STEP 6 — Refill with the correct power steering fluid and bleed the system using the vehicle-specific procedure. Never run the system without sufficient fluid.

After Installation

  • Check fluid level, hydraulic connections, and fasteners.
  • Verify smooth steering without binding, unusual noise, or fluid foaming.
  • Have a four-wheel alignment performed.
  • After the alignment and safety checks, road-test for straight tracking, steering wheel centering, and normal steering return.

Product Video

Product Description

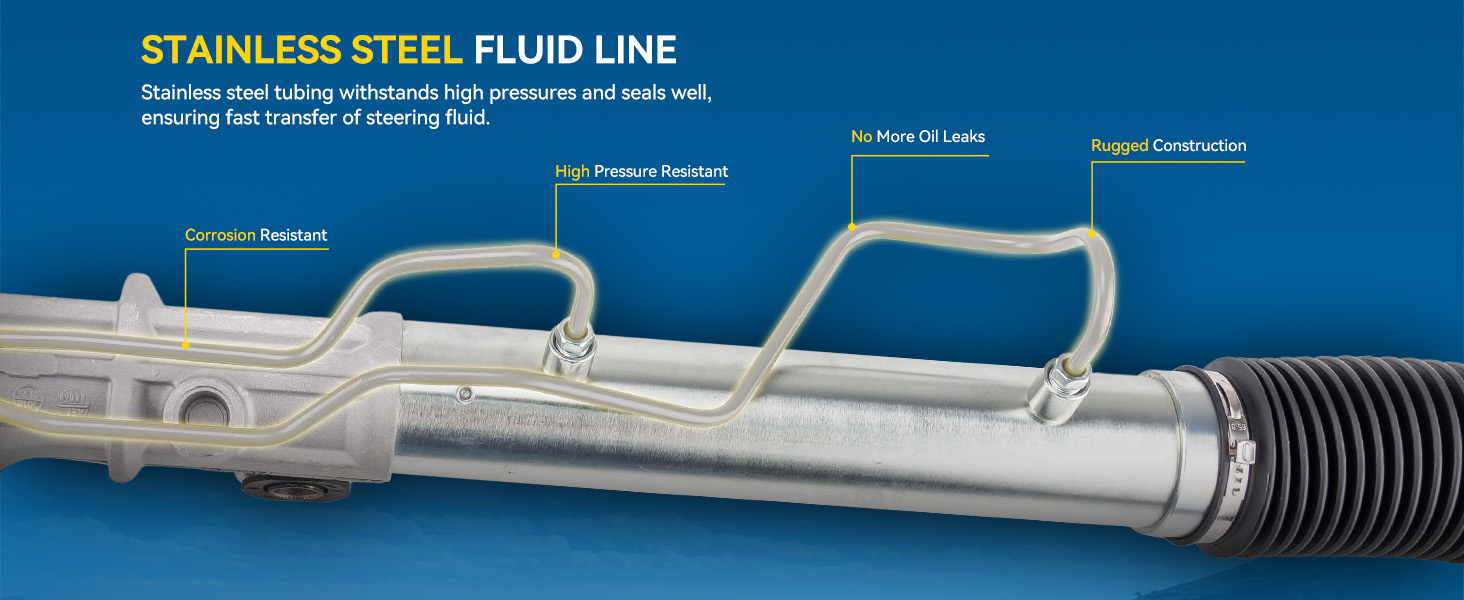

power rack and pinion assemblyPower Steering Rack and Pinion

Reviews

4.6/5

Based on 5 reviews

560%
440%
30%
20%
10%

Emma_DailyCommute_46

02/15/2026

Feels really sturdy and well-made, a definite upgrade from the original. The price is fantastic for this level of quality. Highly recommend it.

AutoMom_2019_224

11/26/2025

The steering on my Lexus was getting really sloppy and noisy. This replacement fixed it all. It's tight, precise, and totally quiet now. Big difference.

FAQS

Check the fasteners, fluid level, hose connections, steering movement, and wheel alignment. Confirm that there is no binding, leakage, or unusual noise before normal driving.

Warranty coverage and duration may vary by product. For specific warranty period details by product category, please refer to our Warranty & Returns Policy page. Damage related to incorrect fitment, installation or other vehicle problems may require further review.

Please provide your order number, vehicle information, installation date, current mileage and a description of the issue. Photos, videos or inspection information may also help us review the claim.
