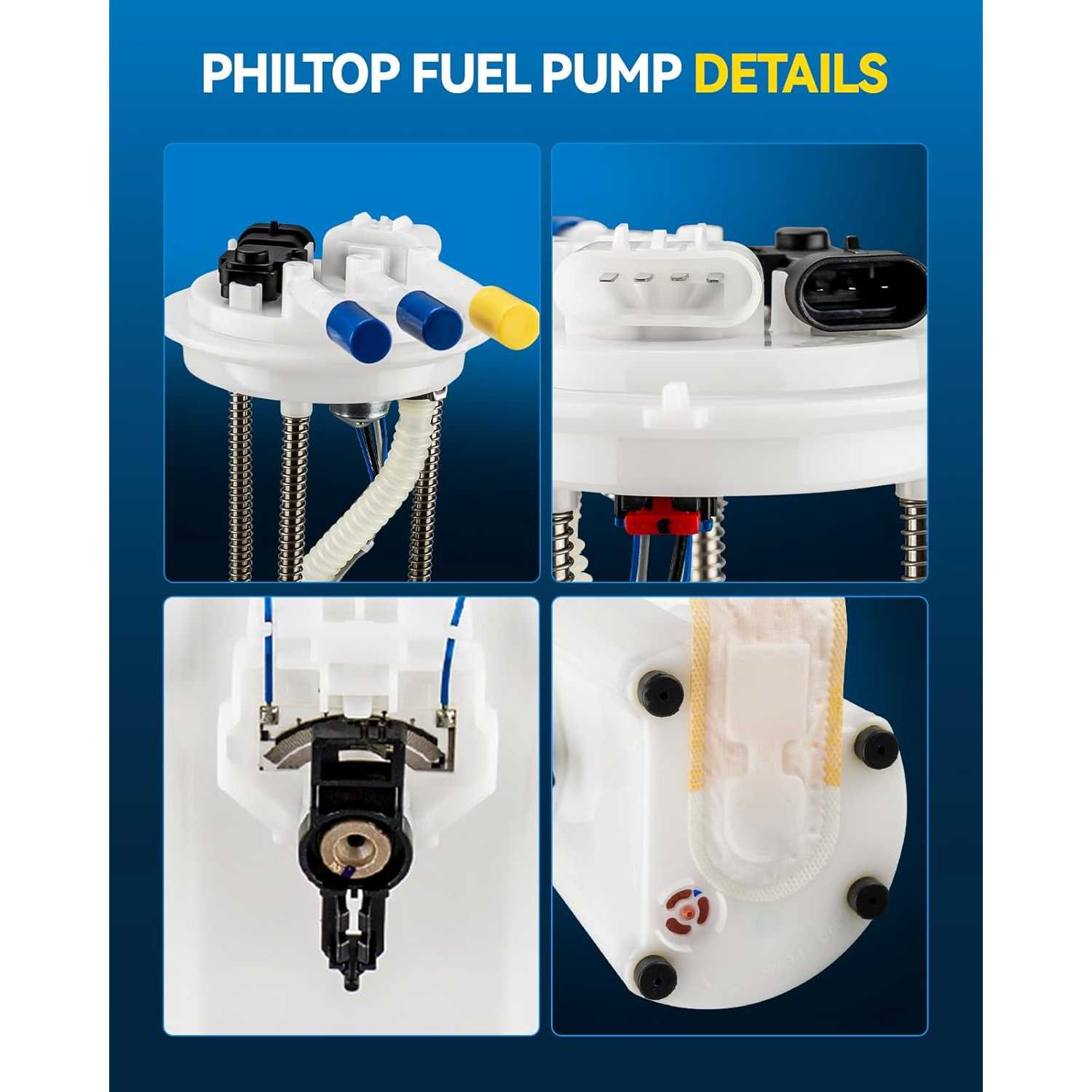

1997-1999 Chevrolet Astro 4.3L V6 | Fuel Pump Assembly | OE#25167567/FG0068 - PHILTOP

1997-1999 Chevrolet Astro 4.3L V6 | Fuel Pump Assembly | OE#25167567/FG0068 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7794FUP018RUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes

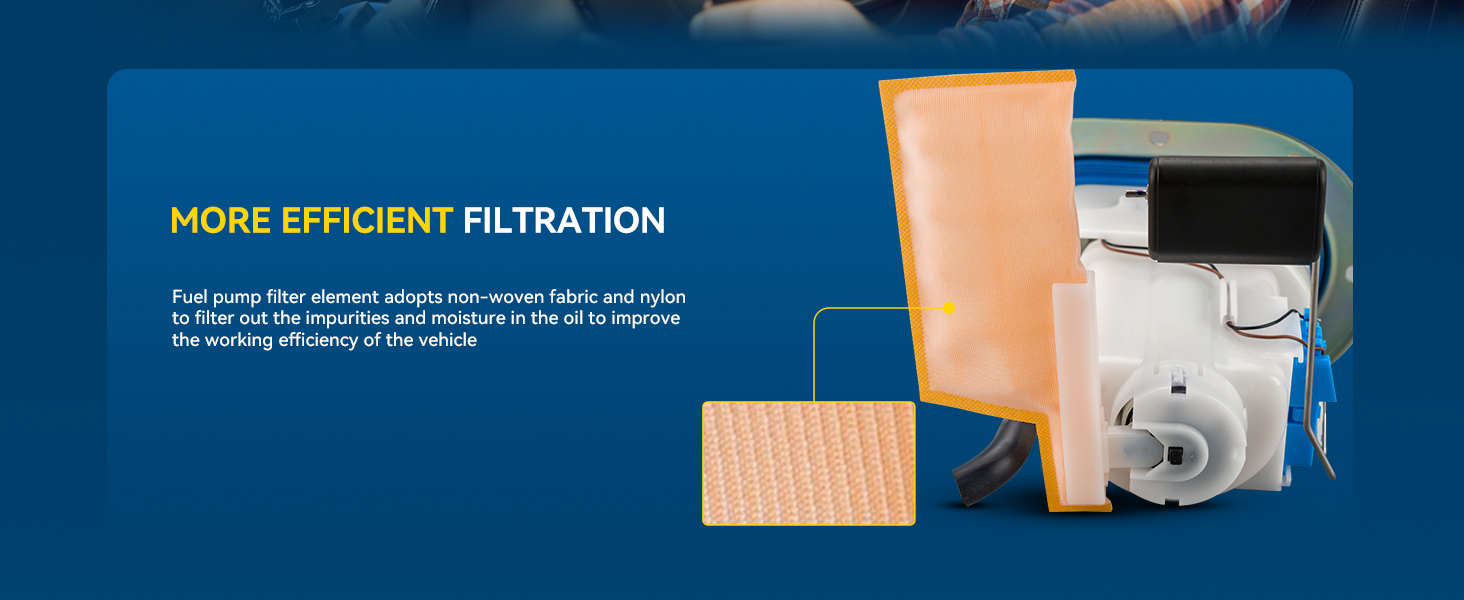

Strainer Included
Yes

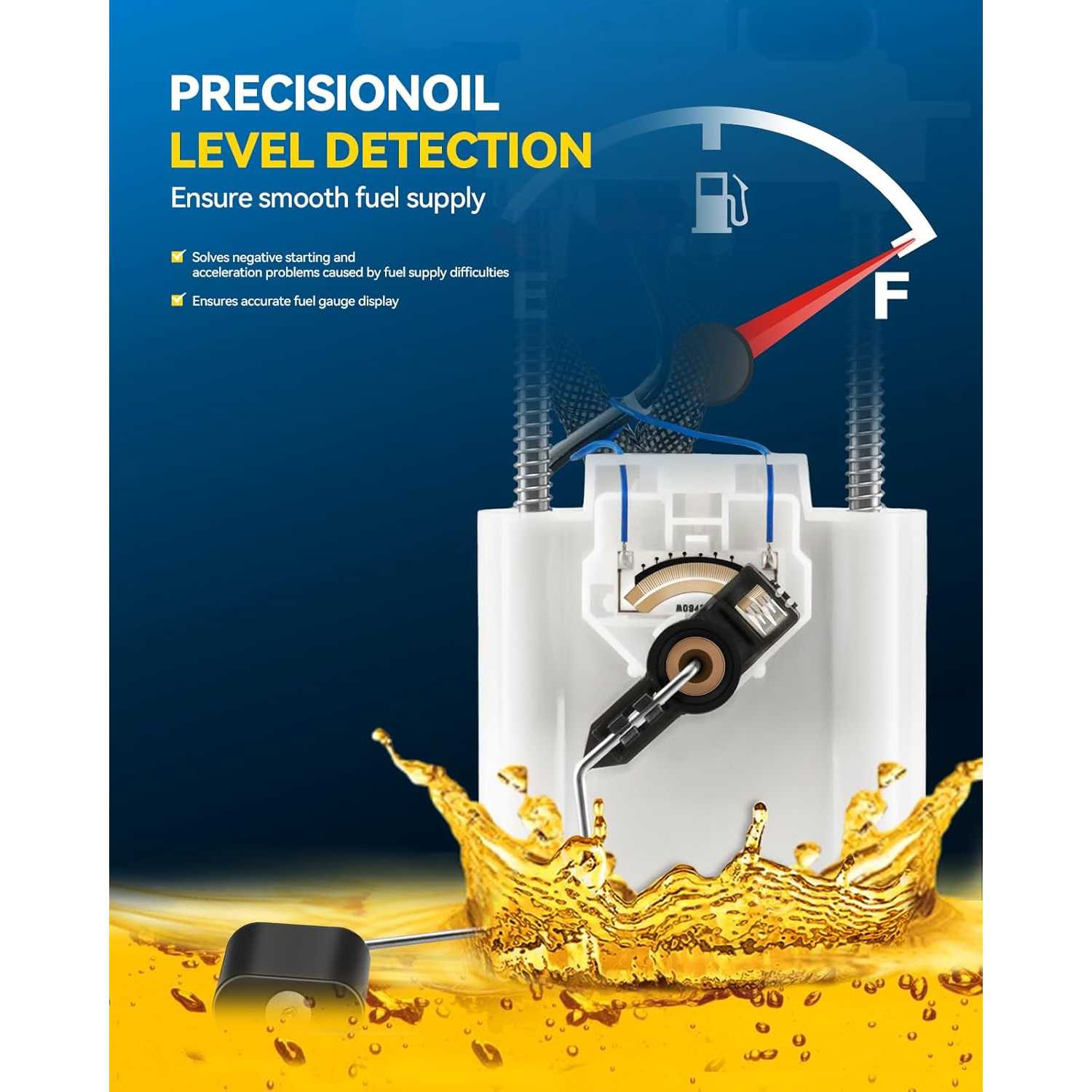

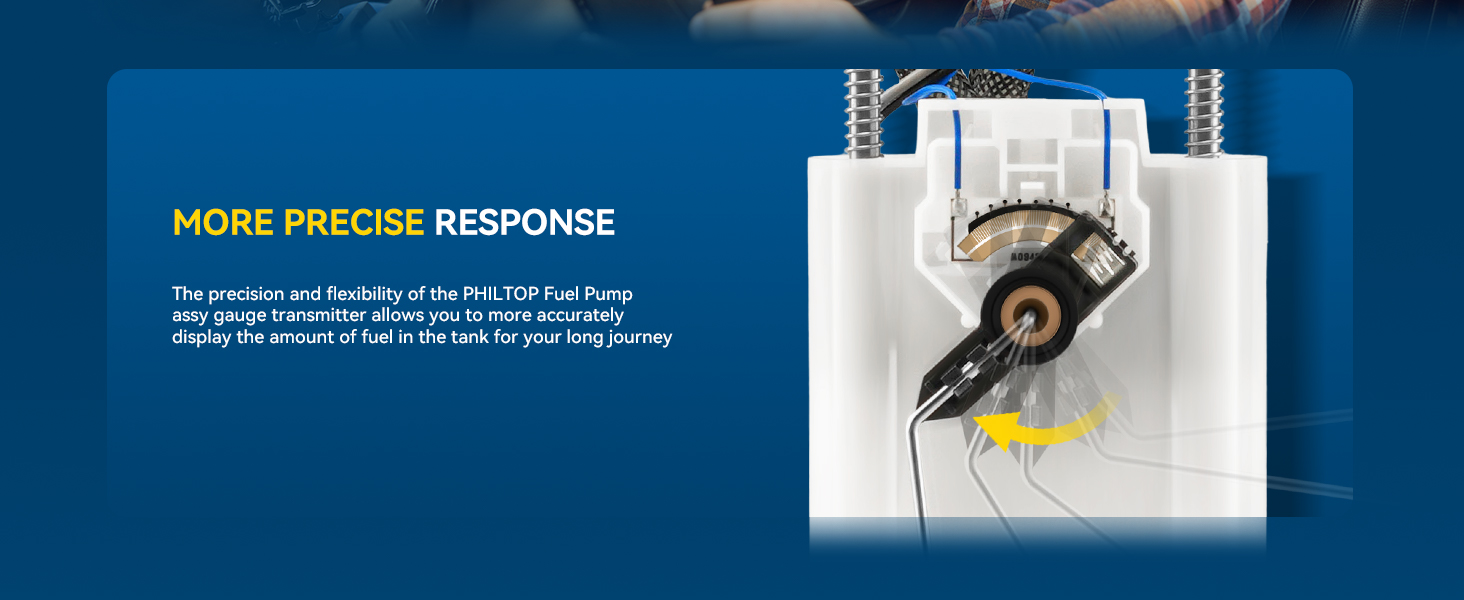

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
40.0 Ω
Resistance Ohms Full
250.0 Ω
Average Flow Rating
24 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
109.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

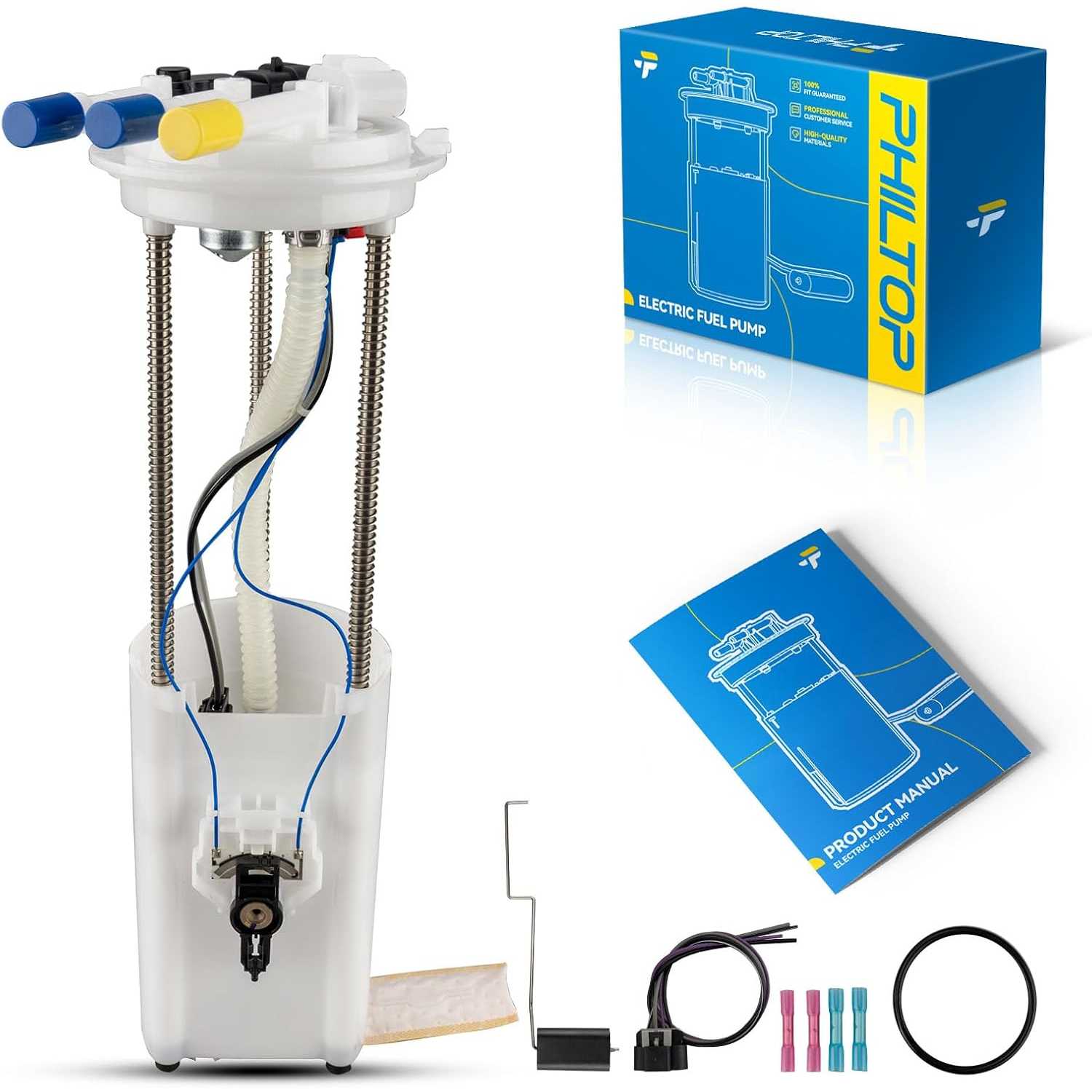

Items Included
1x Fuel Pump Assembly - FG0068
Warranty Period
2-Year
OE Number
25167567,P413M,19369961,19331282,25320523,25312308,25178737,25176885,19180091,25178736,25314776
Part Number
FG0068,SP413M,P74752M,9530013,USEP3940M,5302180,079GE

Highlights

  • Fitment: Compatible with [Chevrolet] 1997-1999 Astro, [GMC] 1997-1999 Safari.
  • Reference Number: 25320523, 25312308, 19180091, FG0068, 5302180, 25178736, SP413M, USEP3940M, 079GE, 25167567, P413M, 25178737, P74752M, 9530013, 19369961, 19331282, 25176885, 25314776.

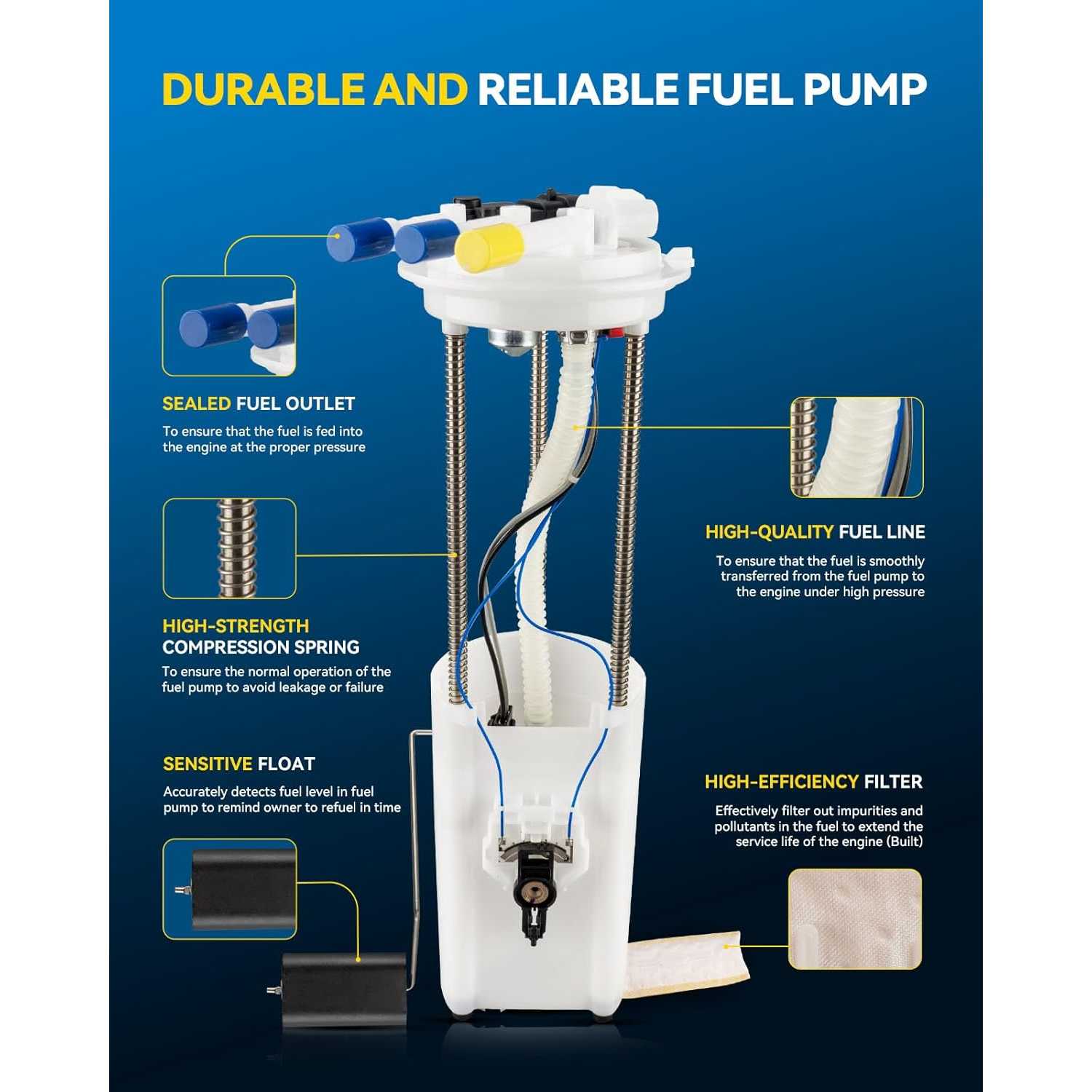

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring, ④ Pressure Sensors.

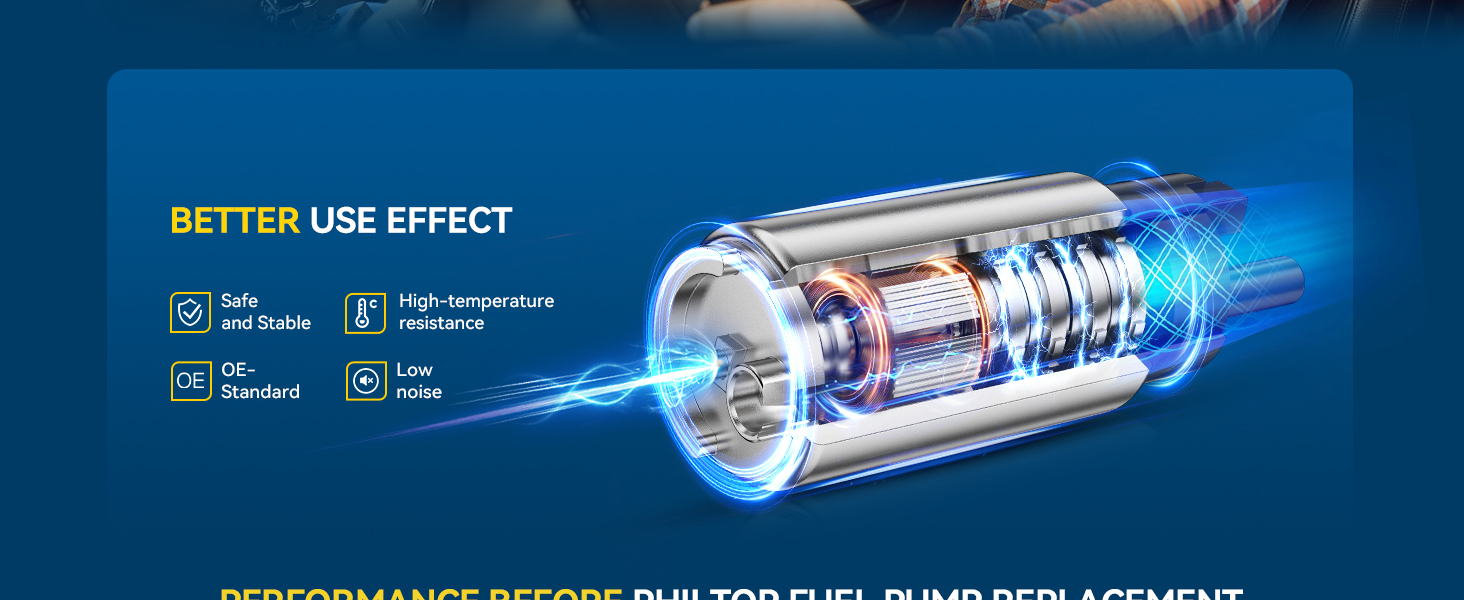

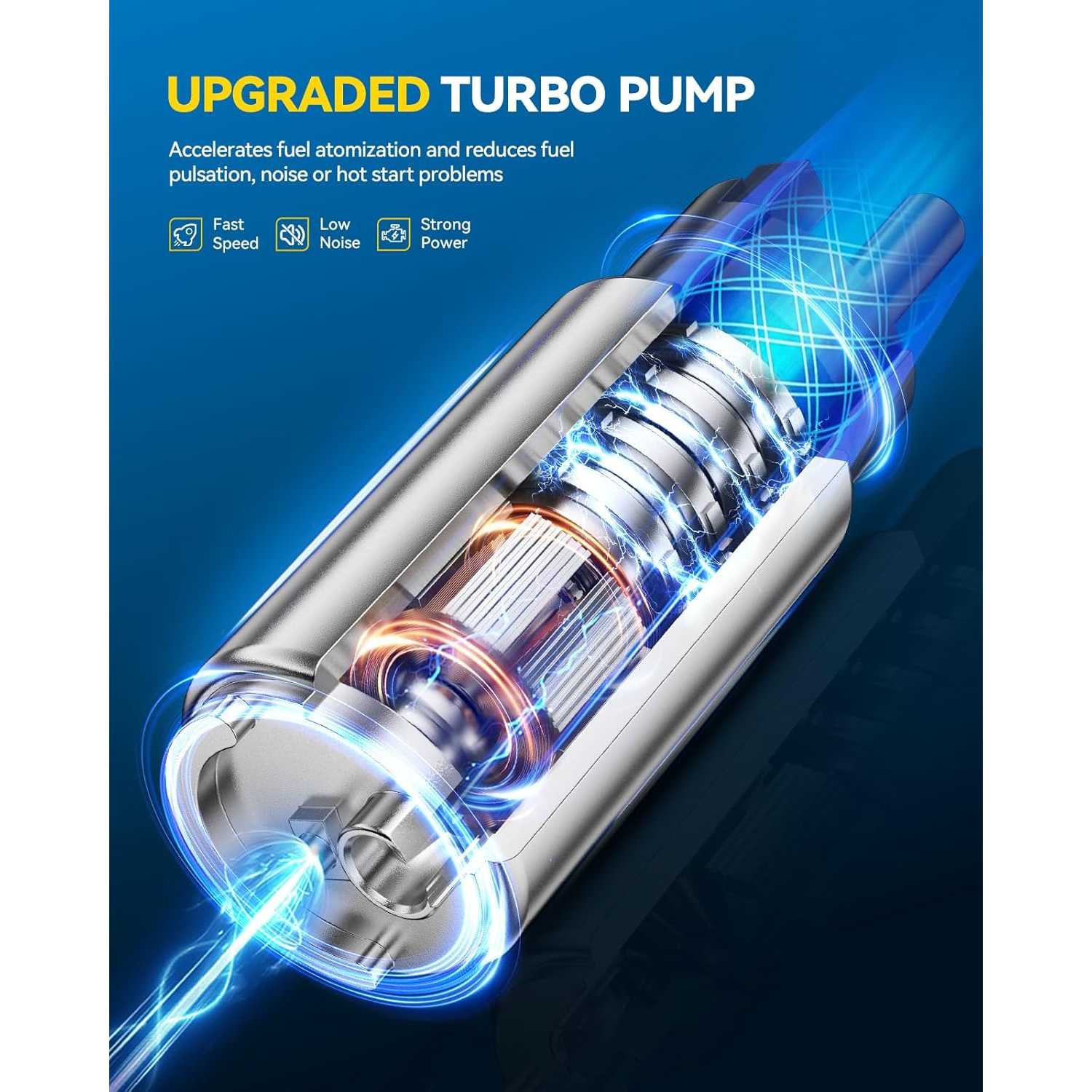

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1997 - 19991997 - 19991997 - 199919971997 - 19991997 - 19991997 - 19991997 - 1998
MakeChevroletChevroletChevroletGMCGMCGMCGMCGMC
ModelAstroAstroAstroSafariSafariSafariSafariSafari
TrimBaseLSLTBaseSLSLESLTSLX
Engine4.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V64.3L V6
Note--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

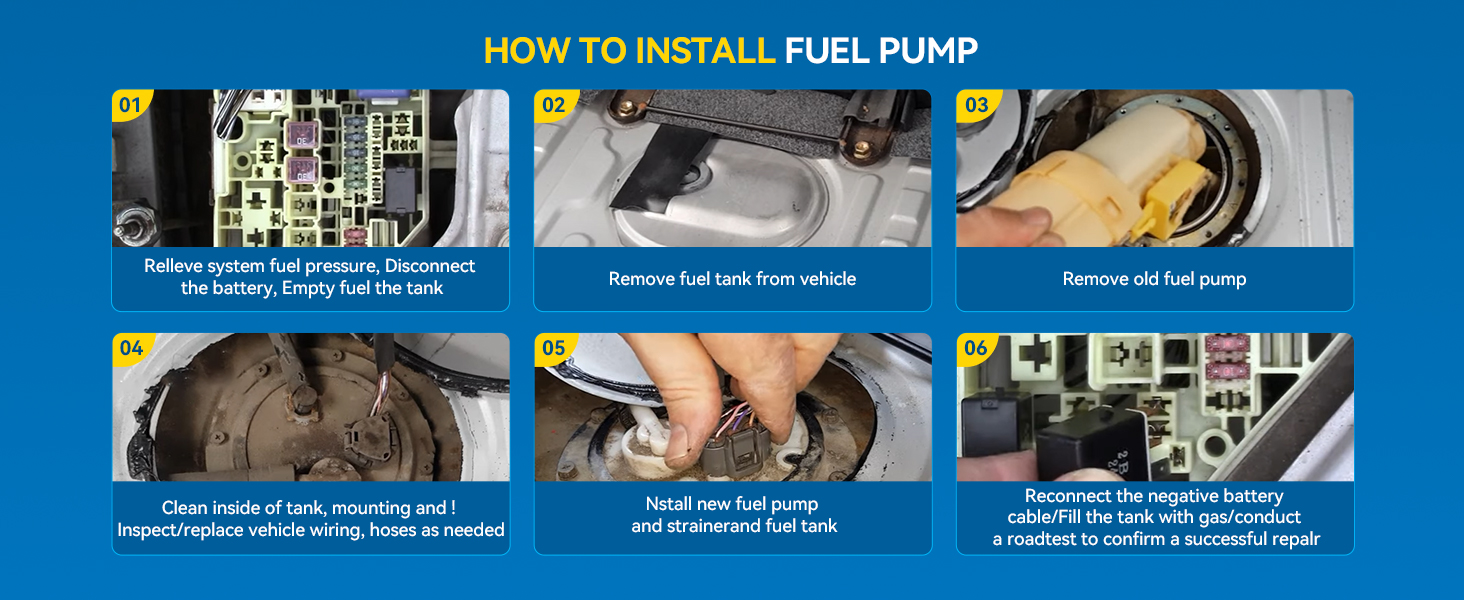

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.7/5

Based on 6 reviews

567%
433%
30%
20%
10%

SO SATISFIED

04/13/2026

Verified buyer

So I was sceptical about this pump at first (due to price) and I have only had it a few days, however it fit perfectly after the TANK HAD TO BE DROPPED FROM THE CAR just to replace so yes that cost alot in labor however this economy pump seems to be doing okay and it has driven well with good fuel pressure from a half tank down to less than a quarter tank of gasoline.

Jason Reisinger

03/12/2026

Verified buyer

Great value works perfectly good pressure install easily fuel levels great. quiet pump durability seems good
