2002-2003 Chevrolet Avalanche 1500 5.3L V8 | Fuel Pump Assembly | OE#19331260/FG0273 - PHILTOP

2002-2003 Chevrolet Avalanche 1500 5.3L V8 | Fuel Pump Assembly | OE#19331260/FG0273 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9843FUP017AUS

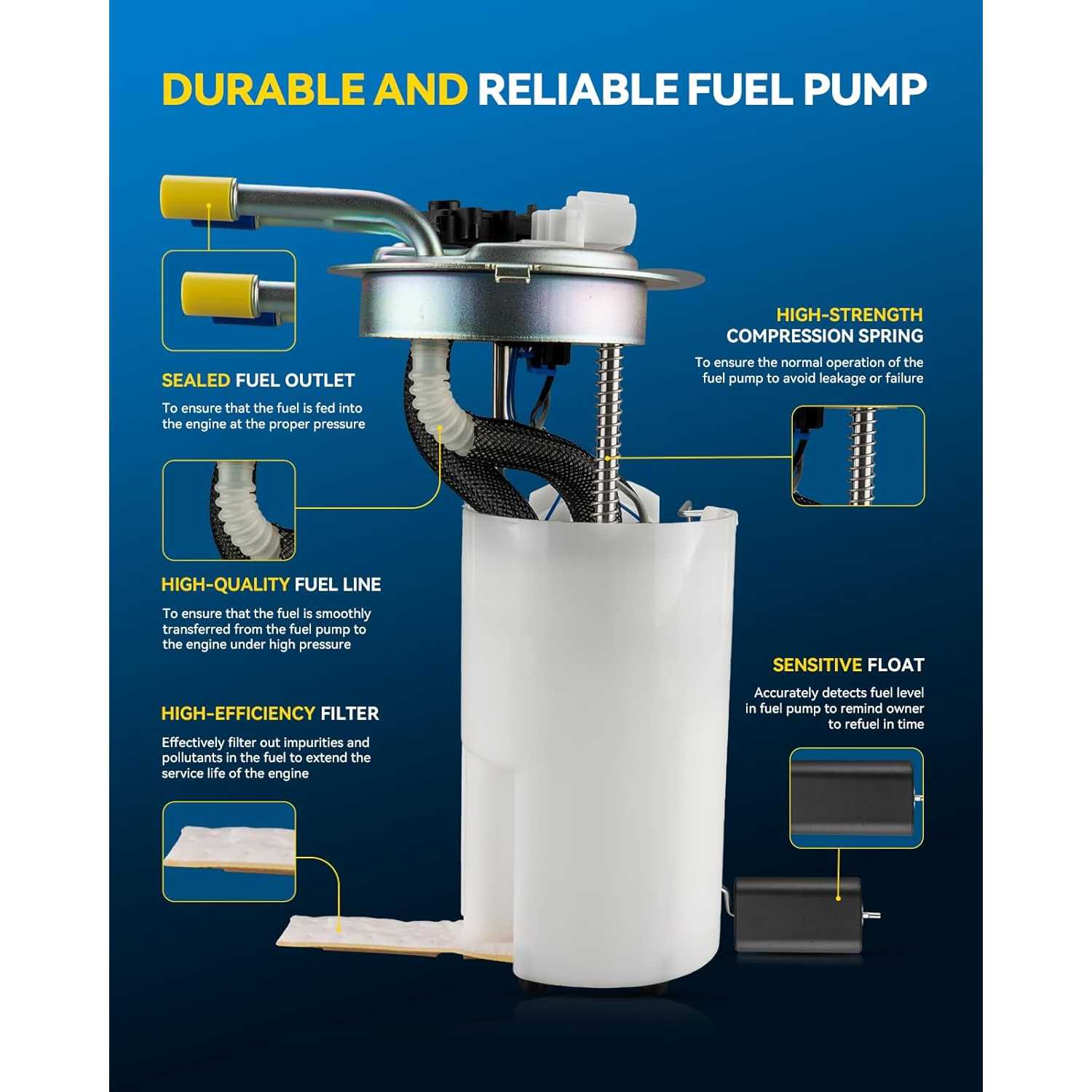

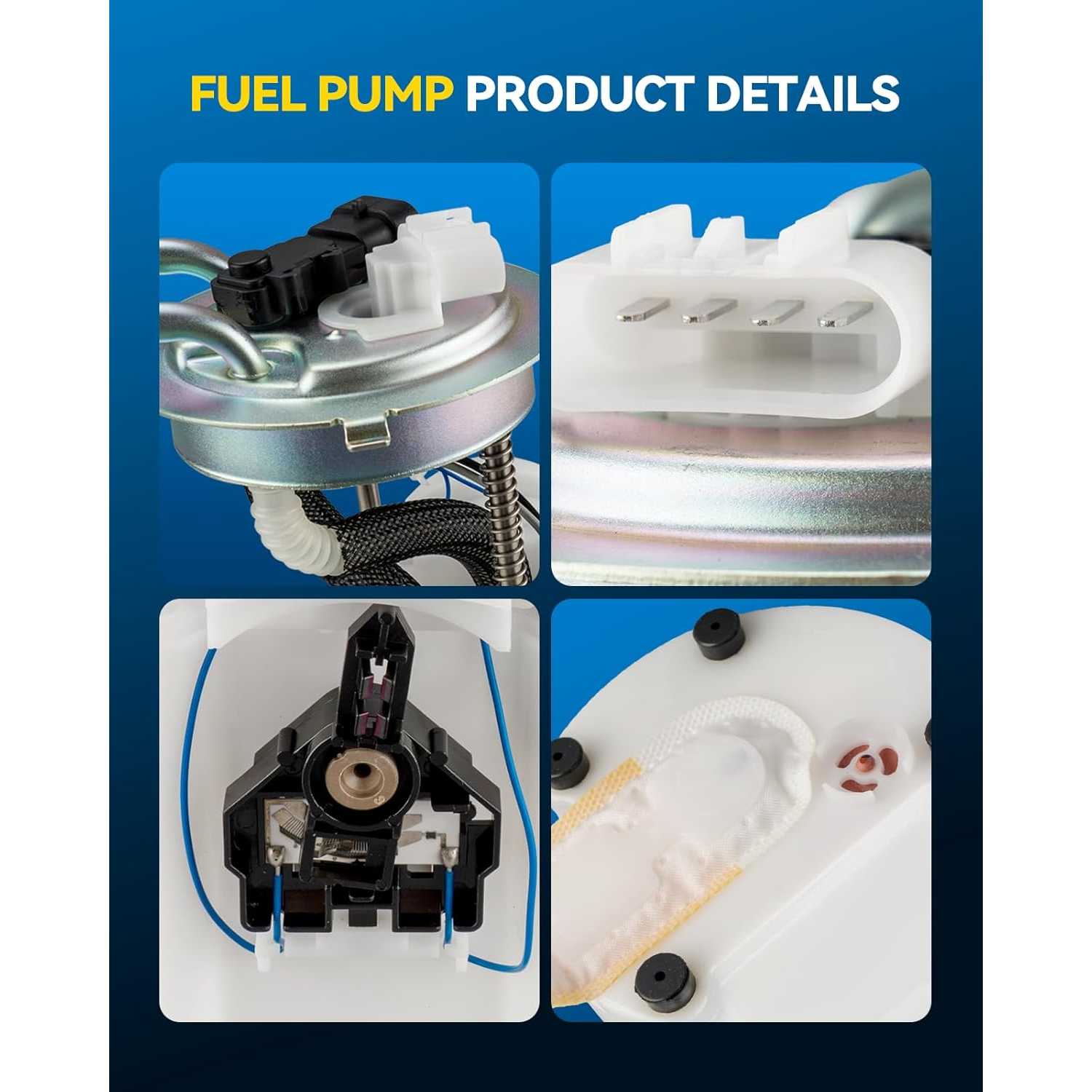

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
40.0 Ω
Resistance Ohms Full
250.0 Ω
Average Flow Rating
32 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
109.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

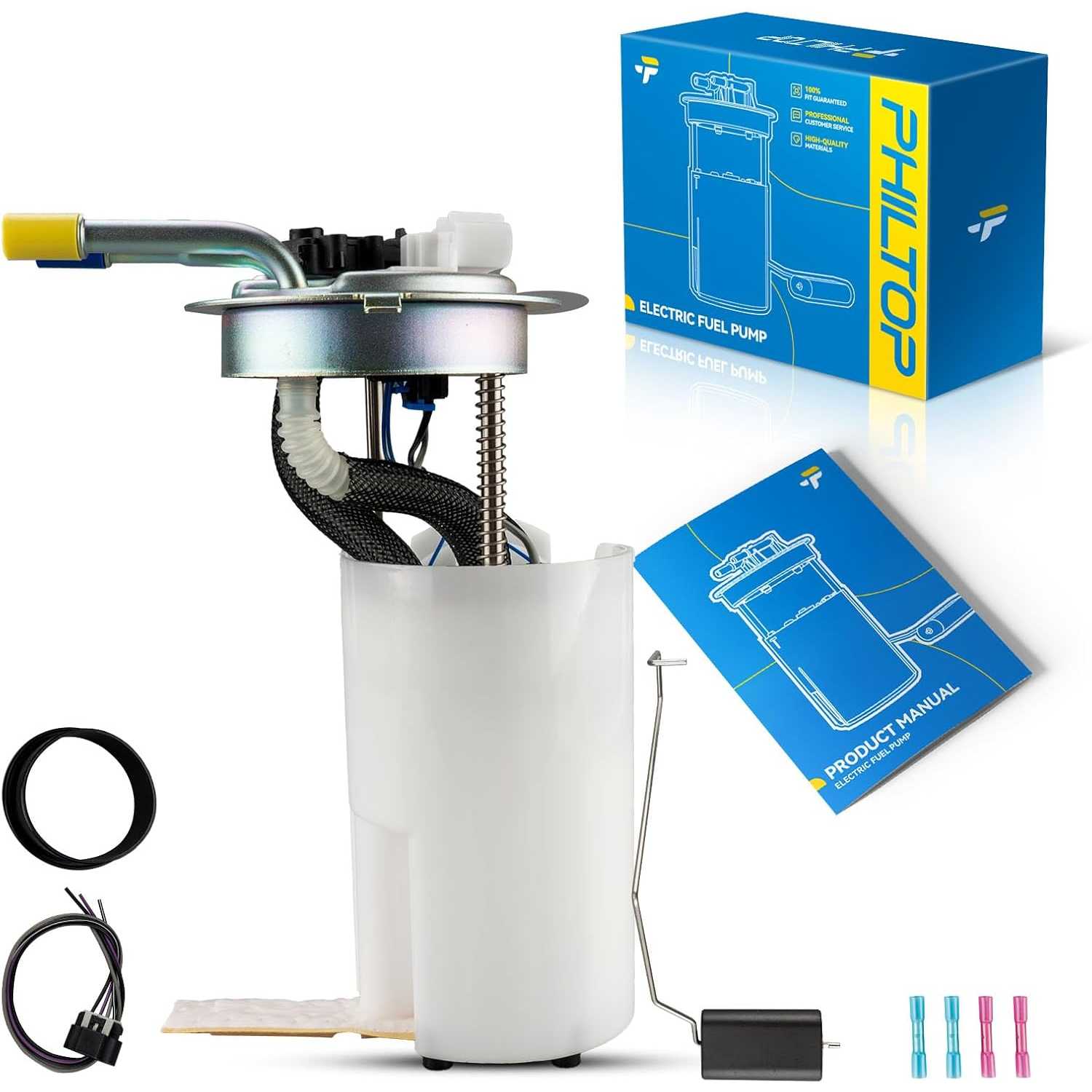

Items Included
1x Fuel Pump Assembly - FG0273
Warranty Period
2-Year
OE Number
19331260,19369909,25340156,19180099,25345024,P1540M
Part Number
FG0273,P75023M,SP61088M,9530035,5302120,USEP3556M,081GE,E3556M,67458,MU1088,9535105,1AMFP00085,5302130,P76348M,DFG0273,M2246724,4010318,B5321024,2630376,TNKSP61088M,E3586M,PN3023,EC556M,SP6610M,150078,C8028,C0201M,P0041M,2920064,B11111039TG,237848,SF3556M,FL1088M,FPE3556MA,MO346,FP5139,G3567A,MU1035

Highlights

  • (Direct Fit) - Direct replacement for fuel pump assembly Compatible with Cadillac Escalade ESV 2003 V8 6.0L(Except Export), Escalade EXT 2002-2003 V8 6.0L(Except Export); Compatible with Chevrolet Avalanche 1500 2002-2003 V8 5.3L, Suburban 1500 2002-2003 V8 5.3L(Except Export, VIN: T, With Oblong Connector); Compatible with GMC Yukon XL 1500 2002-2003 V8 5.3L(Except Export, VIN: T, With Oblong Connector), V8 6.0L(Except Export)
  • (OEM Number)--PHILTOP fuel pump meets OE standard, replace# E3556M,19180099,FG0273,P75023M,P74832M,9535105,67458,MU1738
  • (Premium Quality & Service)--One year hassle-free return and exchange. All plastic parts are made of imported high performance POM raw materials, and the module adopts the most mature fuel pump structure, which is ethanol resistant, more efficient and longer service life
  • (Product Advantage)--PHILTOP fuel pumps generate noise as low as 48dB during operation and can operate stably in different media (e.g. gasoline, diesel, alcohol). The anti-electromagnetic interference level of fuel pump products reaches level 3. At the same time philtop fuel pump made 3500 hours life test, the test results show that the flow decay is less than 15%, so its long life is also a major advantage
  • (Easy to install)--No need to buy other accessories, can be installed directly. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. You can refer to the fitment description on the product detail page or use the "Suncentautoconfirmedfit" in the upper left corner of the link to confirm

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20032002 - 20032002 - 20032002 - 20032002 - 200320032002 - 20032000 - 20012000 - 20032000 - 20032002 - 20032002 - 20032002 - 20032002 - 2003
MakeCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMC
ModelEscalade ESVEscalade EXTAvalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500
TrimBaseBaseBaseNorth FaceOn Road EditionWBHZ71BaseLSLTZ71DenaliSLESLT
Engine6.0L V86.0L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V86.0L V85.3L V85.3L V8
Note
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender
Without Robust Fuel System Sender

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

fuel pumpfuel pump

Reviews

4.9/5

Based on 134 reviews

586%
414%
30%
20%
10%

Customer photos and videos

True North Reviews

03/26/2026

Verified buyer

This review is for the PHILTOP Electric Fuel Pump Assembly Compatible with 1990-1993 1997-2000 Chevrolet S10, 1997-2000 GMC Sonoma, Isuzu Hombre, 1990 GMC S15, FG0069 As a "Jack of Many Trades" who performs all his own mechanical repairs, I believe in proactive maintenance. My 1999 Chevy S-10 has reached 165,000 miles, and while the original pump is still functioning, the pressure has dropped to the very edge of the acceptable range. Replacing it now with a high-quality aftermarket unit like this one is a smart move to avoid being stranded. Build and Packaging: • First Impressions: The product arrived extremely well-packaged in large bubble wrap, ensuring it was protected during transit. Upon inspection, I found no manufacturing defects, and the assembly appears to be robust and well-constructed. • Complete Kit: This assembly is a comprehensive replacement. It comes with instructions, which is helpful for a straightforward installation. • Engineering Standards: The unit is designed to meet or exceed OE specifications. Performance Expectations: • Proactive Replacement: Given the high mileage on my S-10, I am installing this before the original pump fails. Conclusion: While I haven't completed the installation yet—planned for this summer—the initial quality and reputation of the company are very promising. I will update my review if there are any negative problems discovered. As it is now, I see none. UPDATE: Its installed and is working great. Engine starts easier too, possibly because the fuel pressure is back to normal.

Kas A

06/20/2026

Verified buyer

So far so good started right up after putting it in. Gauge is working
