2007-2008 Pontiac Grand Prix 3.8L V6 | Fuel Pump Assembly | OE#19152995/SP6505M - PHILTOP

2007-2008 Pontiac Grand Prix 3.8L V6 | Fuel Pump Assembly | OE#19152995/SP6505M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5985FUP3570US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
250.0 Ω
Resistance Ohms Full
40.0 Ω
Average Flow Rating
22 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

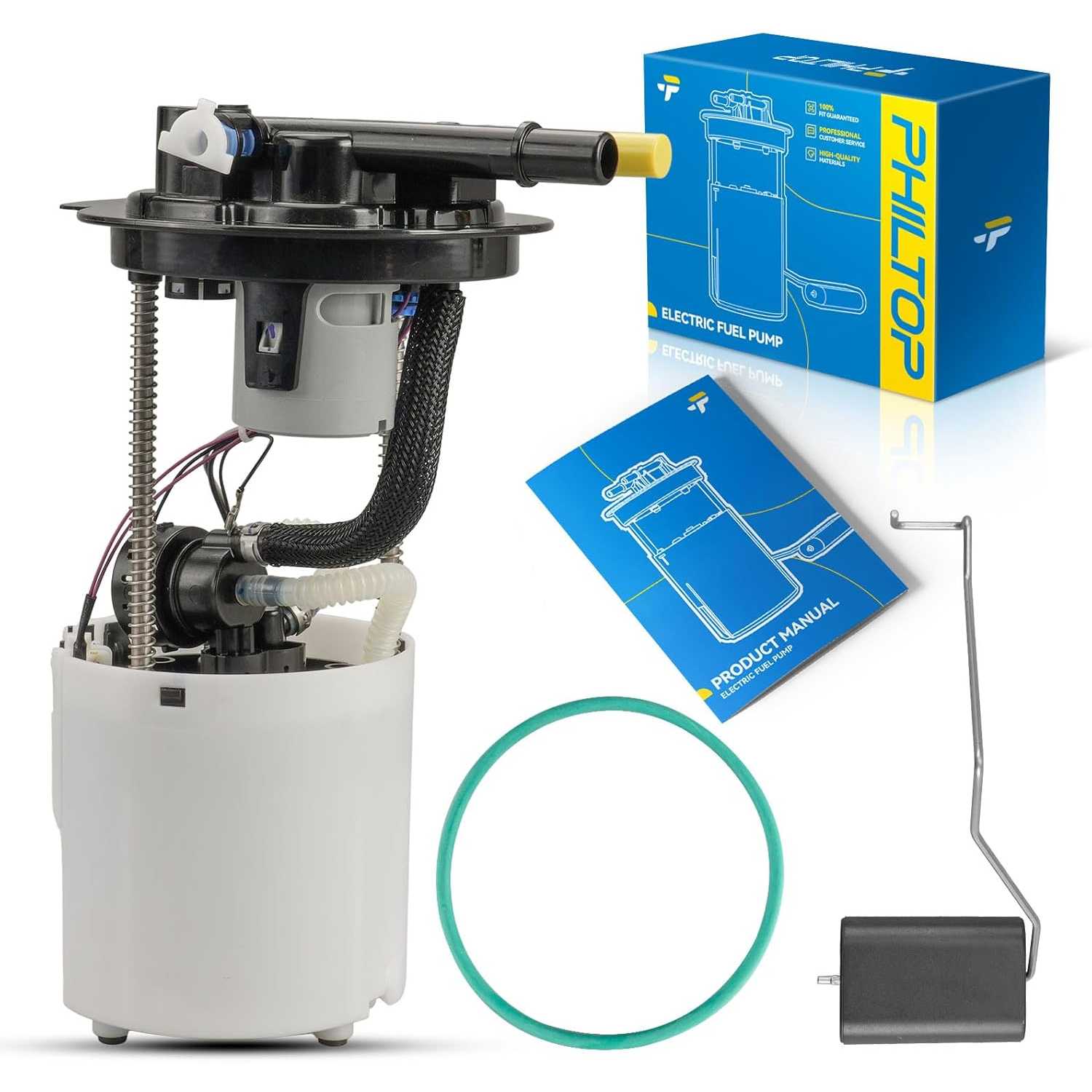

Items Included
1x Fuel Pump Assembly - FG0505
Warranty Period
2-Year
OE Number
19152995,19122340,19121842,19121844,19149706,88965427,88965402,88965426,19331943,19152994,19331963
Part Number
SP6505M,FG0505,P77359M

Highlights

  • Fitment: Compatible with [Chevrolet] 2007 Impala LS/LTZ, 2007 Impala LT(engDesign: LZ8), 2007-2008 Impala(engDesign: LZ4), 2007 Monte Carlo(engDesign: LZ4/LZE), [Buick] 2007-2008 LaCrosse 3.6/3.8L, 2007-2008 Allure 3.6/3.8L, [Pontiac] 2007-2008 Grand Prix Base, (With California Emissions System;Low Emission Vehicle 2 (LEV2)).
  • Reference Number: 19152995, 19122340, 88965402, 88965426, 19121844, 19149706, 19121842, SP6505M, FG0505, 88965427, 19331943, 19331963, 19152994, P77359M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring, ④ Pressure Sensors.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20082007 - 20082007 - 20082008200720082007200820072007200720072007 - 2008
MakeBuickBuickBuickChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletPontiac
ModelLaCrosseLaCrosseLaCrosseImpalaImpalaImpalaImpalaImpalaImpalaImpalaMonte CarloMonte CarloGrand Prix
TrimCXCXLCXS50th Anniversary EditionLSLSLTLTLTLTZLSLTBase
Engine3.8L V63.8L V63.6L V63.5L V63.5L V63.5L V63.5L V63.5L V63.9L V63.9L V63.5L V63.5L V63.8L V6
Note
Low Emission Vehicle 2 (LEV2);with California Emissions System
Low Emission Vehicle 2 (LEV2);with California Emissions System
Low Emission Vehicle 2 (LEV2);with California Emissions System
Low Emission Vehicle 2 (LEV2);with California Emissions System
-
Low Emission Vehicle 2 (LEV2);with California Emissions System
-
Low Emission Vehicle 2 (LEV2);with California Emissions System
--
Low Emission Vehicle 2 (LEV2);with California Emissions System
Low Emission Vehicle 2 (LEV2);with California Emissions System
Low Emission Vehicle 2 (LEV2);with California Emissions System

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

j.craver

07/17/2026

Verified buyer

Works really well and would definitely recommend for the price
