2004-2007 GMC Yukon XL 1500 6.0L/6.2L/5.3L V8 | Fuel Pump Assembly | OE#88965555/FG0809 - PHILTOP

2004-2007 GMC Yukon XL 1500 6.0L/6.2L/5.3L V8 | Fuel Pump Assembly | OE#88965555/FG0809 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2805FUP0408US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
250.0 Ω
Resistance Ohms Full
40.0 Ω
Average Flow Rating
30 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

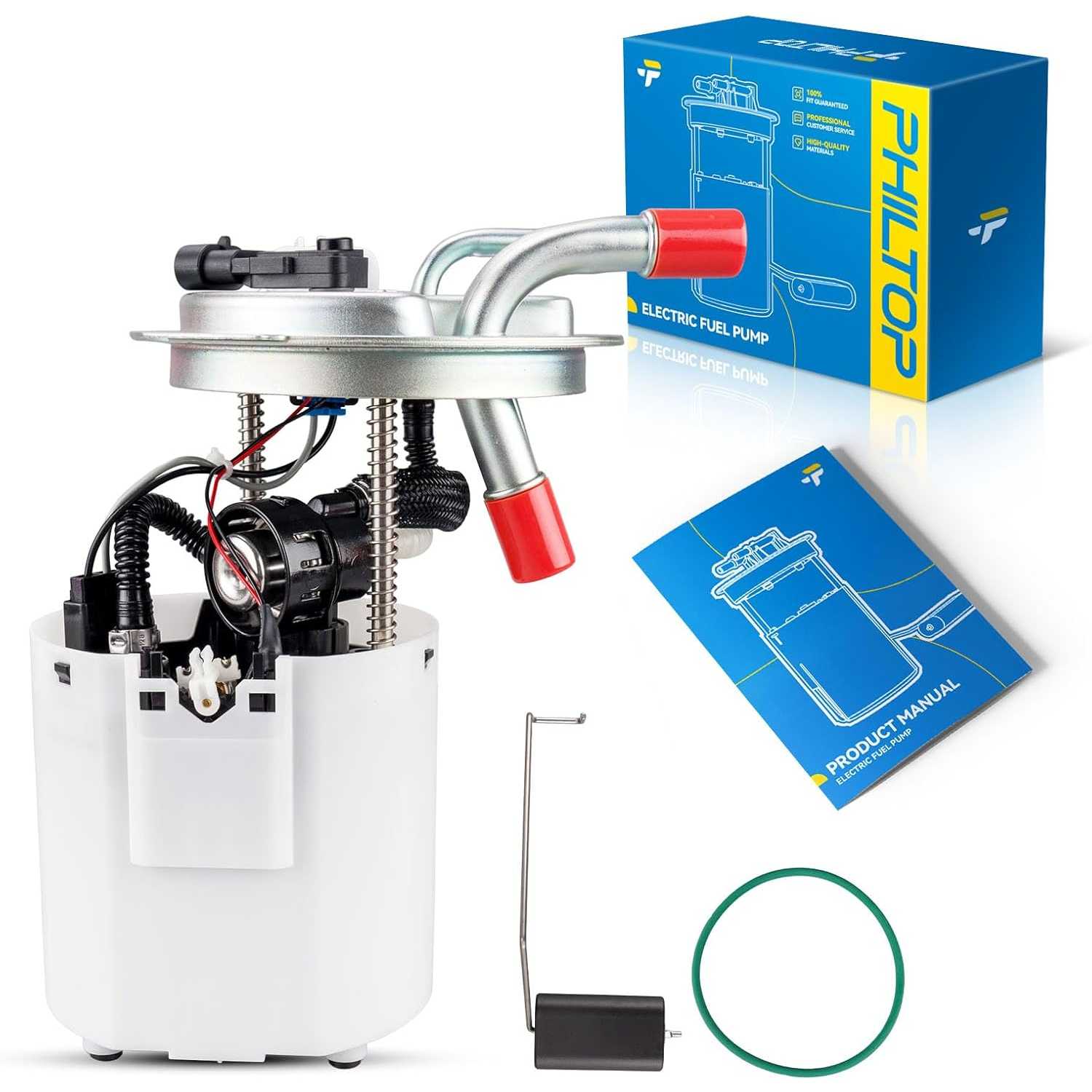

Items Included
1x Fuel Pump Assembly - FG0809
Warranty Period
2-Year
OE Number
88965555,88965386,89060651,19370396,19149059,88983269,88983122,88983254,19168774,19207718,19256622,19168775,88965557
Part Number
FG0809,P76272M,SP6026M,5302292,USEP3610M,E3610M,67567,AFS0957S,RE0957S,1AMFP00104,DFG0809,M2520851,F2621A,150204,4010450,PN3052,67517,MO427,2920424,D11111068TG,D0236M,830717,1234744,402P3610M,TNKSP6026M,M10136,M10033

Highlights

  • Fitment: Compatible with [GMC] 2004-2007 Yukon XL 1500 GAS, [Chevrolet] 2004-2006 Avalanche 1500 GAS, 2004-2007 Suburban 1500 GAS, 2007 Avalanche GAS, [Cadillac] 2004-2007 Escalade ESV/EXT.
  • Reference Number: MO427, 88965555, 67567, SP6026M, 19168774, 19207718, 19256622, 88983269, F2621A, 88983122, 150204, 88965386, 88983254, AFS0957S, 89060651, 19370396, RE0957S, 4010450, 19149059, PN3052, USEP3610M, 2920424, 1AMFP00104, 19168775, 67517, 5302292, DFG0809, M2520851, 88965557, FG0809, P76272M, E3610M, M10033, M10136, 1234744, 830717, TNKSP6026M, 402P3610M, D11111068TG, D0236M.

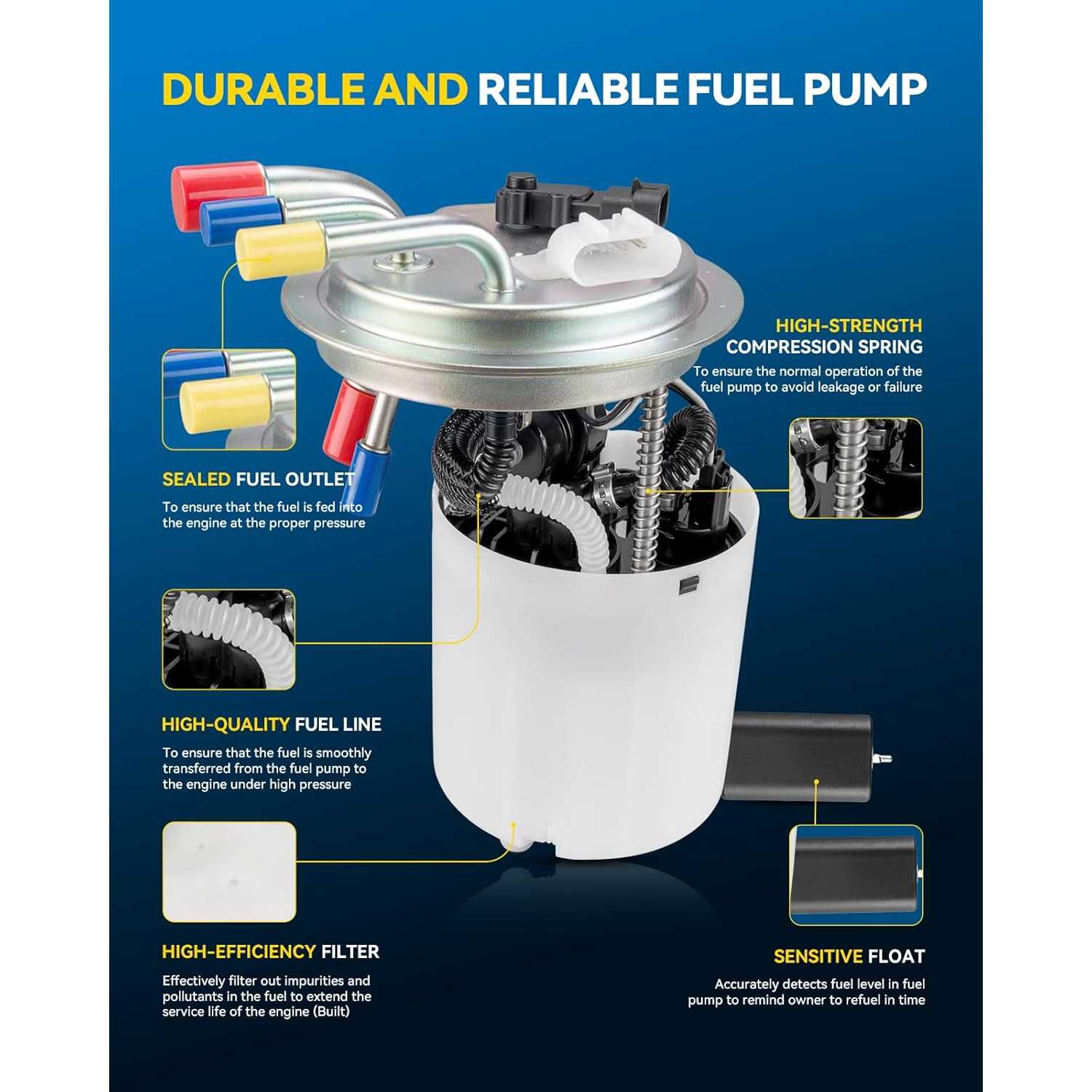

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring, ④ Vapor Pressure Sensor.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 200620072004 - 20062007200720072007200720072004 - 20052005 - 20062005 - 20062004 - 20062004 - 200620062004 - 20072004 - 2007200720072006 - 20072004 - 20062004 - 2006200720062004 - 200720072004 - 20072007
MakeCadillacCadillacCadillacCadillacChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCGMC
ModelEscalade ESVEscalade ESVEscalade EXTEscalade EXTAvalancheAvalancheAvalancheAvalancheAvalancheAvalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Avalanche 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Suburban 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500Yukon XL 1500
TrimBaseBaseBaseBaseLSLTLTLTZLTZBaseLSLTZ66Z71BaseLSLTLTLTZLTZZ71DenaliDenaliSLSLESLESLTSLT
Engine6.0L V86.2L V86.0L V86.2L V85.3L V85.3L V86.0L V85.3L V86.0L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V85.3L V86.0L V85.3L V86.0L V85.3L V86.0L V86.2L V85.3L V85.3L V86.0L V85.3L V86.0L V8
Note----------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Frank Flint

08/17/2026

Verified buyer

My 1999 Cherokee was acting up, stalling at stoplights and losing power on hills. I was worried it was the injectors, but after checking the forums, I realized it was likely the pump. This assembly dropped right in. The installation was straightforward, and the kit included the seal and strainer, which saved me a trip to the local parts store. Now the engine idles perfectly and that hesitant feeling when I punch the gas is completely gone. It feels like the Jeep has a brand new lease on life. Definitely worth the investment for any XJ owner

pedro krisciunas

10/13/2026

Verified buyer

The electric fuel pump works great and it’s compatible with Chevrolet sub 1500 and, GMC Yukon Xl and some Cadillacs , if you intend to used in foreign cards (outside of the states) they are a good choice and affordable compared to other market abroad , I haven’t used it but i have looked abroad such as in Venezuela were inHelping my cousin with his car , he recommended me these brand for the easy access and comparability with other cars in South America , I will give 4 starts only because I haven’t test yet

FAQS

No FAQs have been added for this product yet.
