2005-2007 Ford Escape 3.0L V6/2.3L L4 | Fuel Pump Assembly | OE#P2662M/SP2055M - PHILTOP

2005-2007 Ford Escape 3.0L V6/2.3L L4 | Fuel Pump Assembly | OE#P2662M/SP2055M - PHILTOP

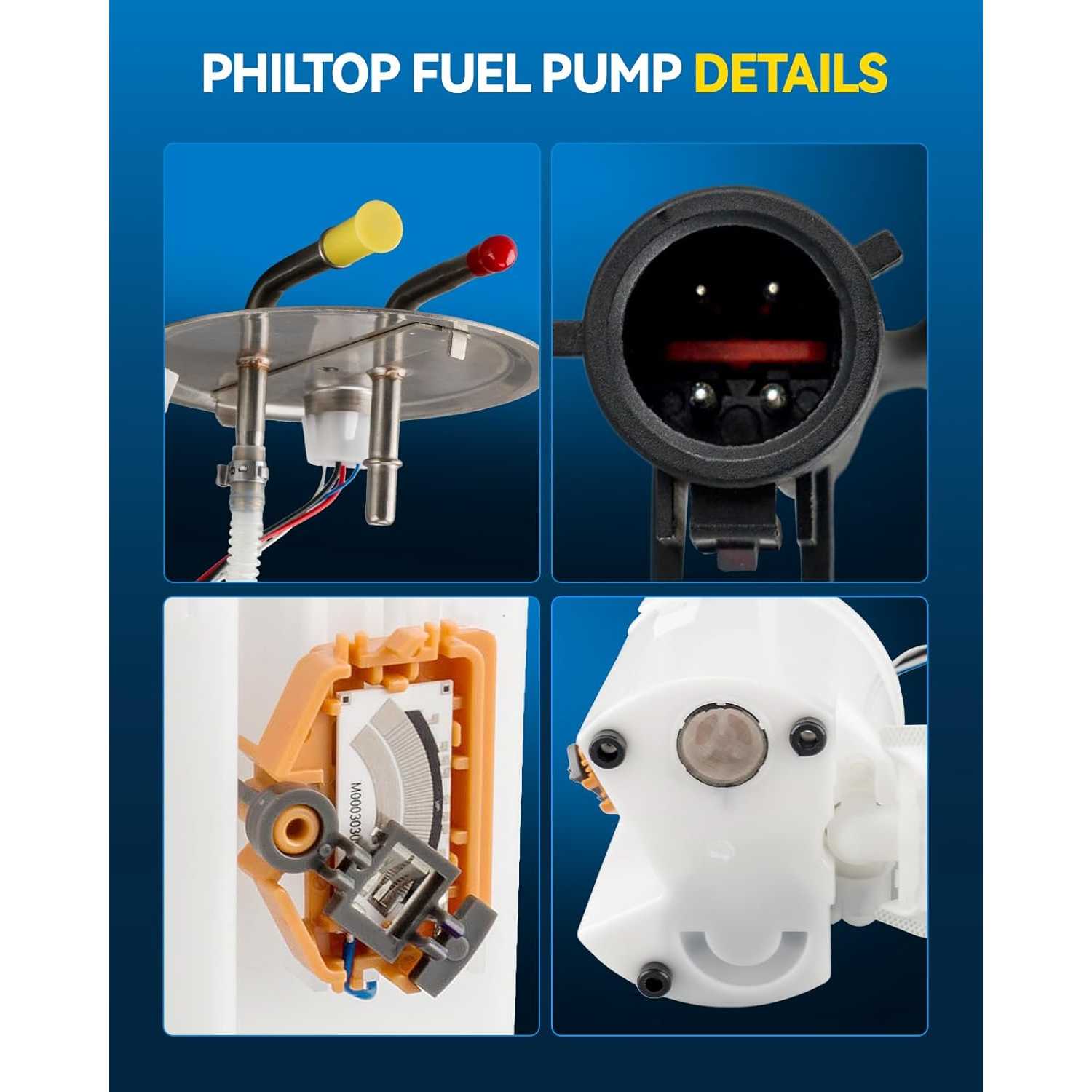

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5084FUP057GUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
15.0 Ω
Resistance Ohms Full
160.0 Ω
Average Flow Rating
22 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
73.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

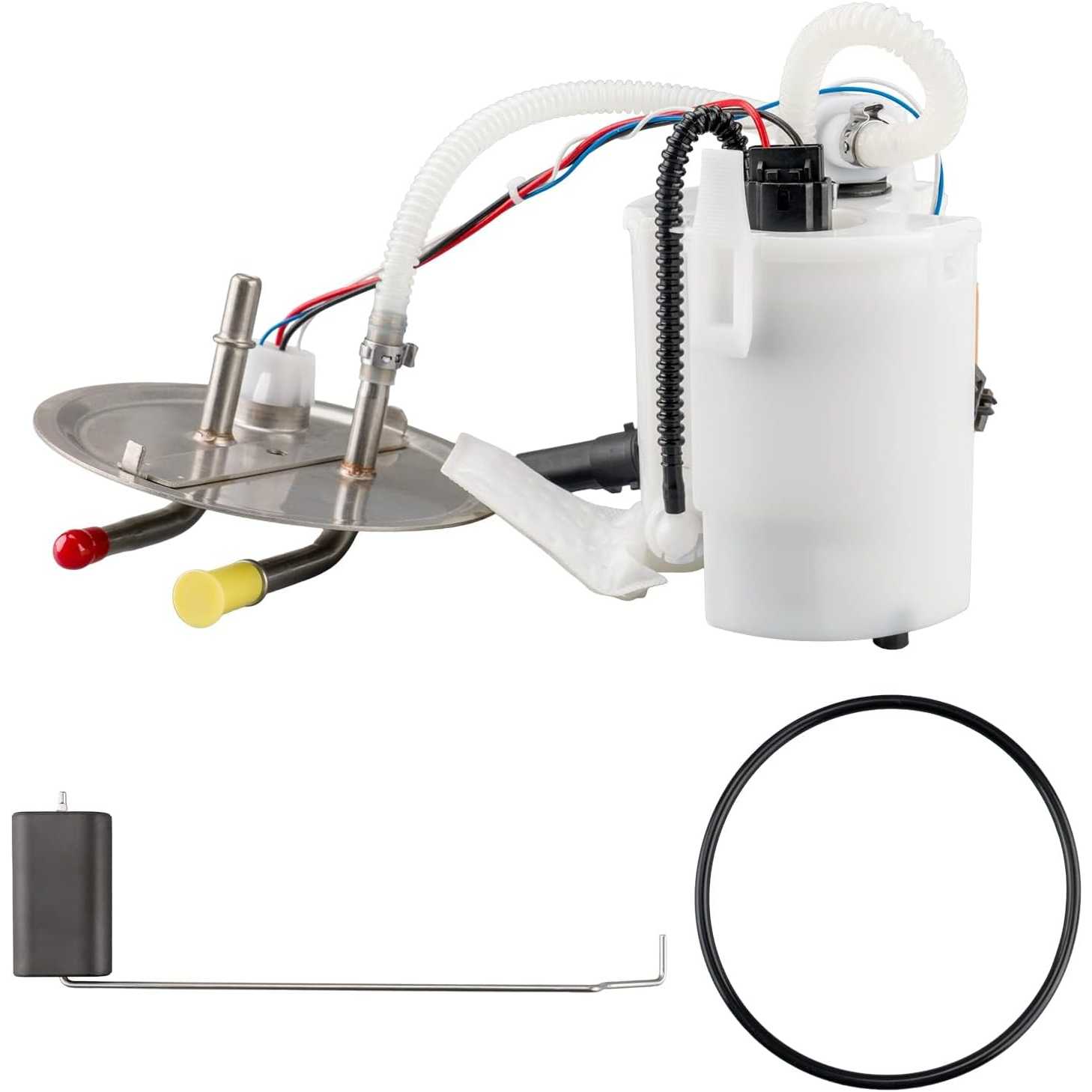

Items Included
1x Fuel Pump Assembly - FG0842
Warranty Period
2-Year
OE Number
P2662M,5L849H307BF,7L8Z9H307B,5L8Z9H307A,6L8Z9H307BA,5L8Z9H307BD,5L8Z9H307BC
Part Number
SP2055M,FG0842,P76128M,5252730,USEP2453M,E2314,E16028,E2453M,150200,PFS403,AFS0967P,TU259,9534178,1AMFP00061,4010511,CFG0842,B12112478TG,C0092M,M2520812,PFS349,PFS323,PFS315,PFS247,TNKSP2055M,2920290

Highlights

  • Fitment: PHILTOP fuel pump assembly fit for Escape 2005-2007 2.3L 3.0L, Mariner 2005-2007 2.3L 3.0L.
  • OE NUMBER: FG0842, E2314, SP2055M, 7L8Z9H307B, 5L8Z9H307A, 7L8Z 9H307-B, 5L8Z 9H307-A, SP1134, E2453M, 69168, PFS-403, E16028, AFS0967P, FG0968, FE0420.

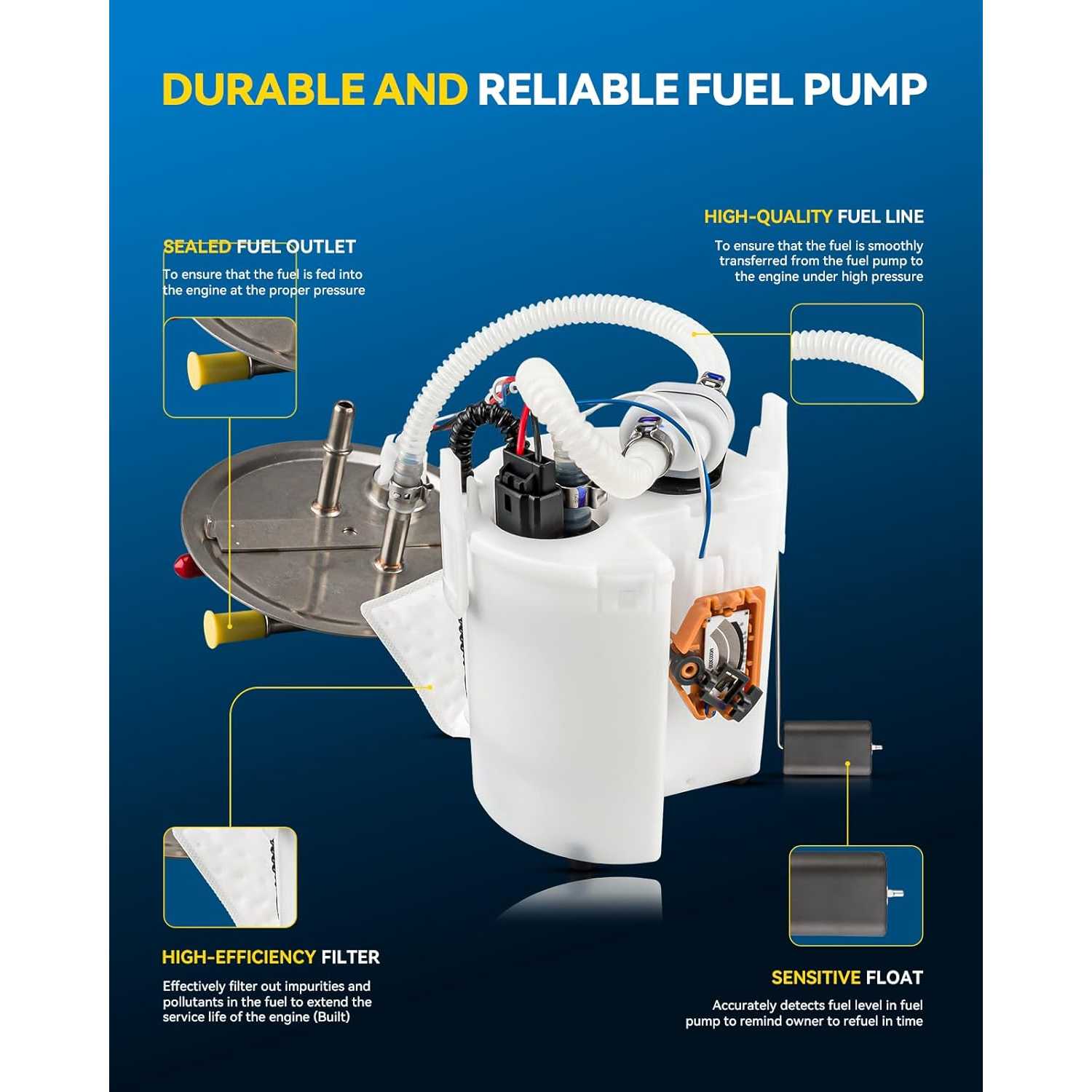

  • Long Service Life: Fuel pump assembly adopt injection molding technology to strengthen plastic components which improves the efficiency and stability of fuel delivery.
  • Tips: For a better experience, please confirm through "Suncentautoconfirmedfit" that the product is suitable for your vehicle before purchasing.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20072005 - 200720052005 - 20072005 - 200720052005200520052006 - 20072006 - 20072005 - 2007
MakeFordFordFordFordFordFordFordFordMercuryMercuryMercuryMercury
ModelEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeMarinerMarinerMarinerMariner
TrimLimitedXLSXLSXLTXLTXLT No BoundariesXLT No BoundariesXLT SportBaseConvenienceLuxuryPremier
Engine3.0L V62.3L L43.0L V62.3L L43.0L V62.3L L43.0L V63.0L V62.3L L42.3L L43.0L V63.0L V6
Note
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery
To 01/02/2007;without Onboard Fuel Vapor Recovery

How to Install?

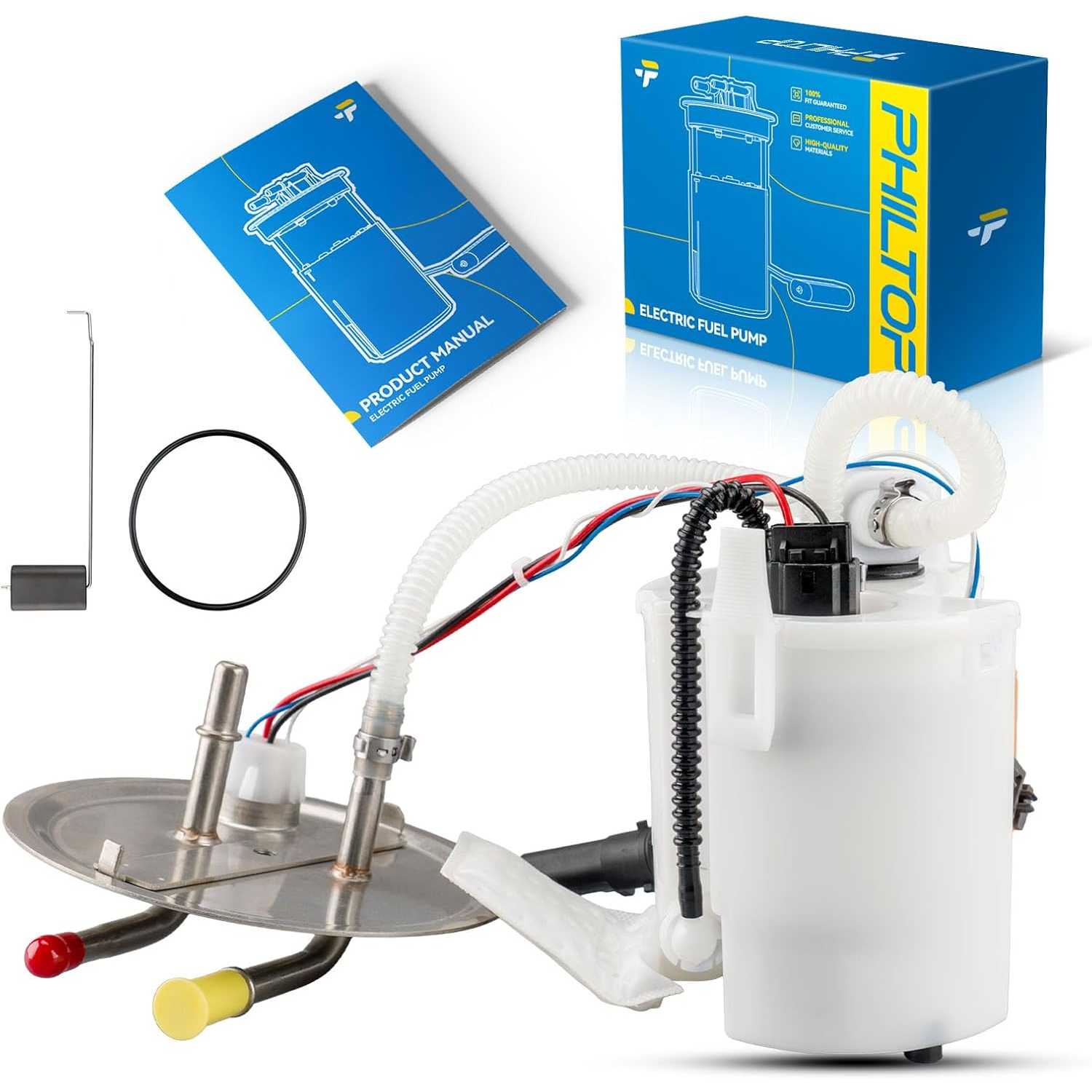

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.3/5

Based on 3 reviews

533%
467%
30%
20%
10%

James H Sybers

09/24/2026

Verified buyer

Easy install just pay attention to O ring

jerome millhouse

11/28/2023

Verified buyer

Everything ok
