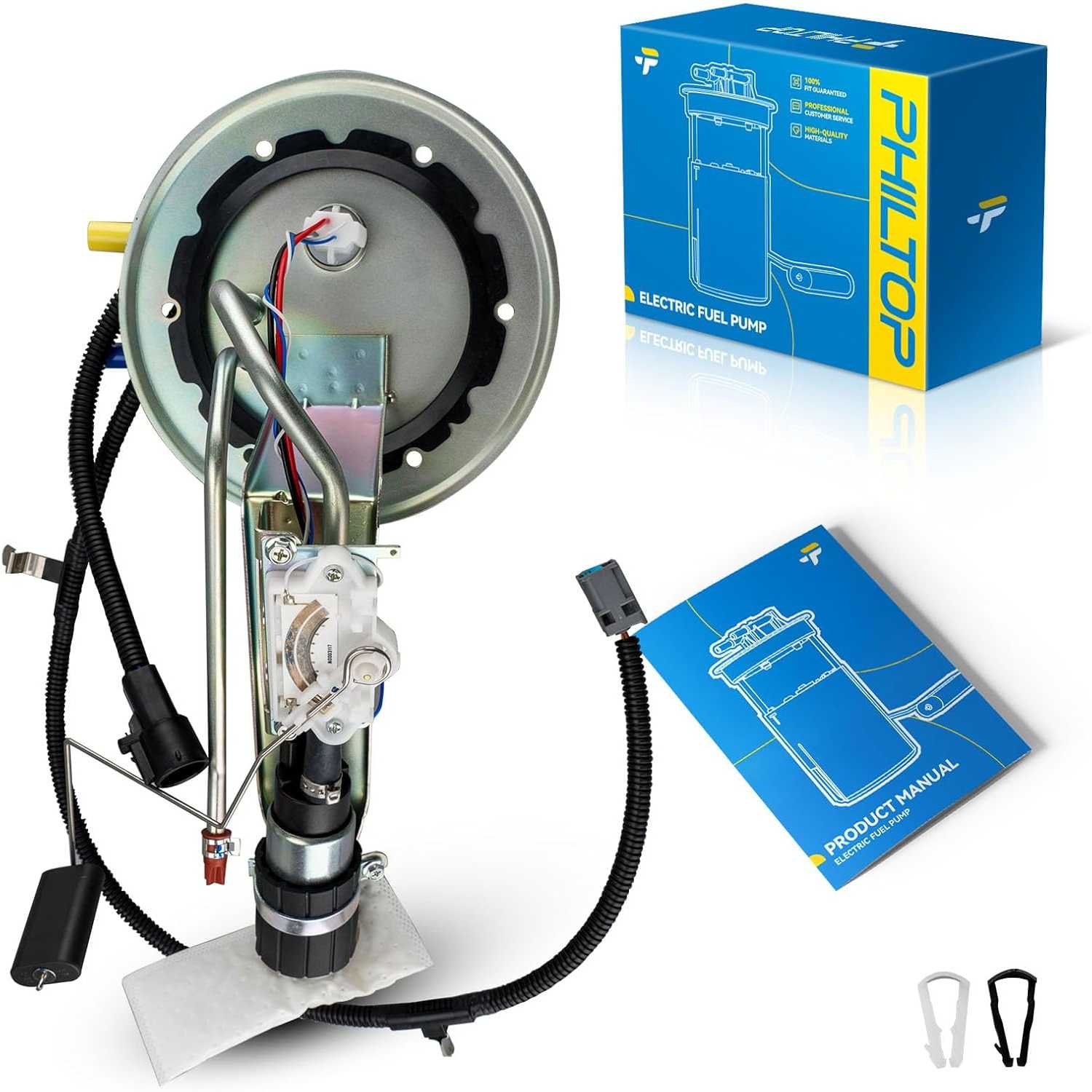

2011-2023 Dodge Durango 3.6L V6/5.7L V8 | Fuel Pump Assembly | OE#5145583AC/FG0855 - PHILTOP

2011-2023 Dodge Durango 3.6L V6/5.7L V8 | Fuel Pump Assembly | OE#5145583AC/FG0855 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7788FUP190RUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
990.0 Ω
Resistance Ohms Full
51.0 Ω
Average Flow Rating
38 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG0855
Warranty Period
2-Year
OE Number
5145583AC,5145583AB,RL145583AB,68304617AA,5145583AD,5145583AA
Part Number
FG0855,SP7053M,P77190M

Highlights

  • [Purchase Verification Reminder] : This complete fuel pump kit contains the fuel pump, pressure sensor, float and tank seal and is ready for direct replacement. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. You can refer to the fitment description on the product detail page or use the "Suncentautoconfirmedfit" in the upper left corner of the link to confirm.
  • [Adaptation] : This product is suitable for Cougar 2.0L 2.5L, XJ8 4.0L, MX-6 2.0L 2.5L, B3000 3.0L, B2500 2.5L, Town Car 4.6L, Navigator 5.4L, Continental 3.8L, Sportage 2.0L, XKR/XK8/XJR 4.0L, Tempo 2.3L/Grand Marquis 4.6L/Mountaineer 5.0L 4.0L/Mystique 2.0L 2.5L/Sable 2.5L/Sable 3.8L/Topaz 2.3L/Villager 3.0L 3.3L/Eclipse 2.0L/Montero 3.5L/Montero Sport 3.5L 3.0L 2.4L/Frontier 2.4L/Quest 3.3L/Sentra 1.8L, OE:1AMFP00091
  • [Made of high performance POM raw material]: All parts are strictly manufactured to meet or exceed OEM performance requirements in terms of manufacturing and materials. All plastic parts are made of imported high performance POM raw materials, and the module adopts the most mature fuel pump structure, which is ethanol resistant, more efficient and longer service life.
  • [Non-woven and nylon filter element for efficient filtration]. The filter element of fuel pump assembly is generally made of non-woven fabric and nylon. The advantage of non-woven fabric is that it is soft, breathable and absorbent, and it can filter tiny particles and impurities efficiently, and it can very filter out impurities and water in the oil with good filtration effect. Nylon is a material with high wear resistance, which can extend the life of electronic fuel pump assembly.
  • [worry-free purchase] : one year after purchase unlimited mileage package return. If you have any problems with the product during use, please feel free to let us know.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2016 - 20232011 - 20222011 - 20132017 - 202320182020 - 2023202320162014 - 20152019 - 20232018 - 20222011 - 2022202220222016 - 202320182018 - 202120232016 - 20202012 - 2022201620212018 - 2020202220182018 - 20212018 - 20202016 - 202020222011 - 2013202120212017 - 20192016 - 20222011 - 20212019 - 20212019 - 20212017 - 20192016 - 20222011 - 202220122017 - 20192016 - 20222014 - 2022202220222017 - 20192017 - 20222017 - 20222019 - 2020202220222022
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoDurangoGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand CherokeeGrand Cherokee WKGrand Cherokee WKGrand Cherokee WK
TrimCitadelCitadelCrewGTGTGT PlusGT PremiumLimitedLimitedPursuitPursuitR/TR/T Hemi OrangeR/T PlusSXTSXTSXT PlusSXT PlusSpecial ServiceSpecial Service75th Anniversary80th AnniversaryAltitudeAltitudeHigh AltitudeHigh AltitudeHigh AltitudeLaredoLaredoLaredoLaredo ELaredo XLimitedLimitedLimitedLimited XLimited XOverlandOverlandOverlandOverland SummitSummitSummitSummitSummit ReserveSummit ReserveTrailhawkTrailhawkTrailhawkUplandLaredo ELaredo XLimited
Engine3.6L V65.7L V85.7L V83.6L V65.7L V83.6L V63.6L V63.6L V65.7L V83.6L V65.7L V85.7L V85.7L V85.7L V83.6L V65.7L V83.6L V63.6L V63.6L V65.7L V83.6L V63.6L V63.6L V63.6L V63.0L V63.6L V65.7L V83.6L V63.6L V65.7L V83.6L V63.6L V63.0L V63.6L V65.7L V83.6L V65.7L V83.0L V63.6L V65.7L V85.7L V83.0L V63.6L V65.7L V83.6L V65.7L V83.0L V63.6L V65.7L V83.6L V63.6L V63.6L V63.6L V6
Note-----------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.
