Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5288FUP2884US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
180.0 Ω
Resistance Ohms Full
10.0 Ω
Average Flow Rating
27 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
73.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

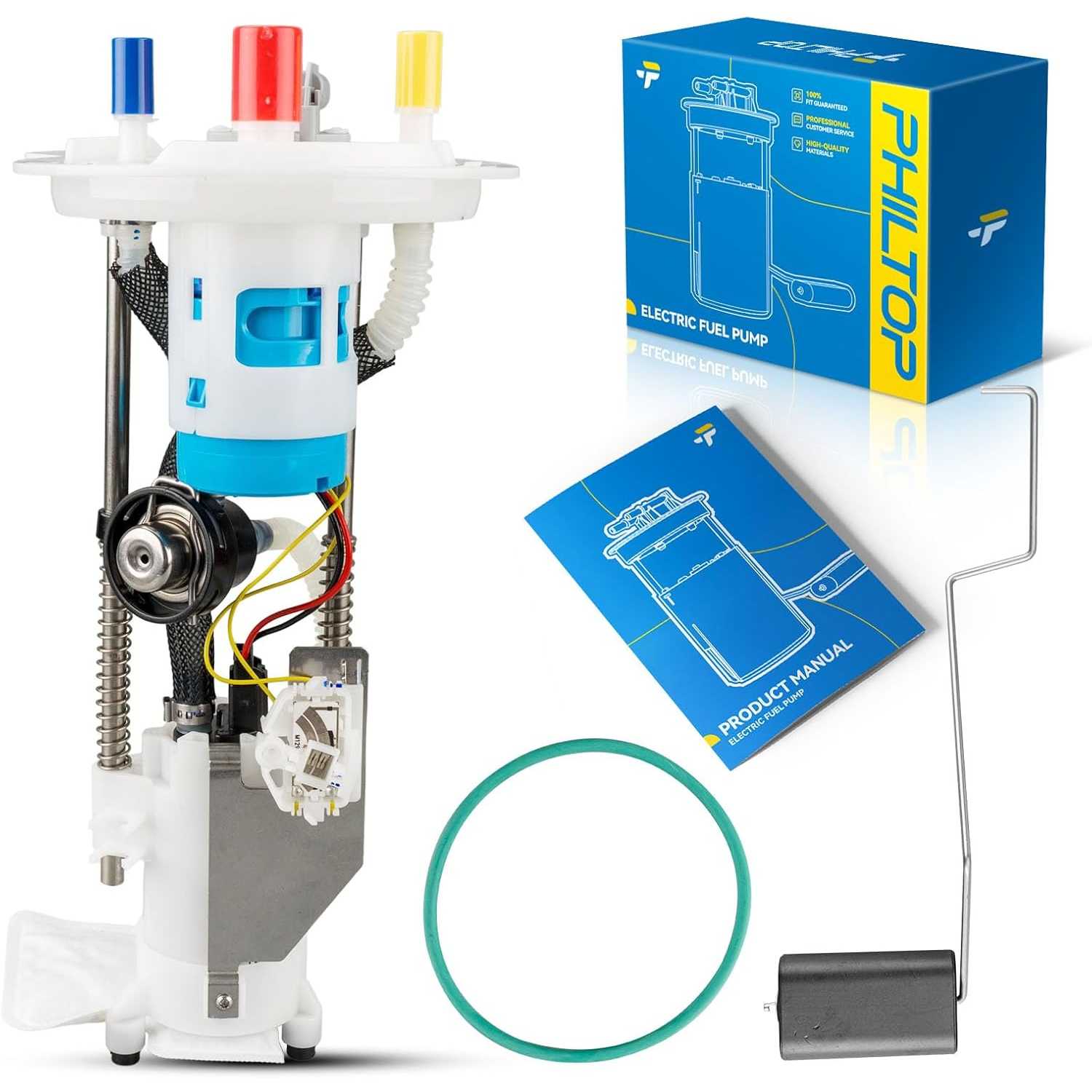

1x Fuel Pump Assembly - FG0879
Warranty Period
2-Year
OE Number
8L1Z9H307A,7L1Z9H307E,8L1Z9H307C,7L1Z9H307B,8L1Z9H307B
Part Number
SP2131M,FG0879,P76657M,5252650,USEP2476M,E2476M,PFS420,PFS369,TU288,EB476M,150273,PFS446,M3496144,DFG0879,4010617,PN3137,C0111M,F1487A,1234712,830204,D12111105TG,PFS457,TNKSP2131M,2920511

Highlights

  • Fitment: Compatible with [Ford] 2007-2008 Expedition(WheelBase:119.0), [Lincoln] 2007-2008 Navigator(WheelBase:119.0).
  • Reference Number: F1487A, SP2131M, FG0879, P76657M, E2476M, 8L1Z9H307A, 7L1Z9H307B, PFS446, 8L1Z9H307B, USEP2476M, PN3137, 5252650, PFS420, PFS369, 4010617, DFG0879, M3496144, TU288, EB476M, 150273, C0111M, 7L1Z9H307E, 2920511, 1234712, 830204, TNKSP2131M, PFS457, D12111105TG, 8L1Z9H307C.

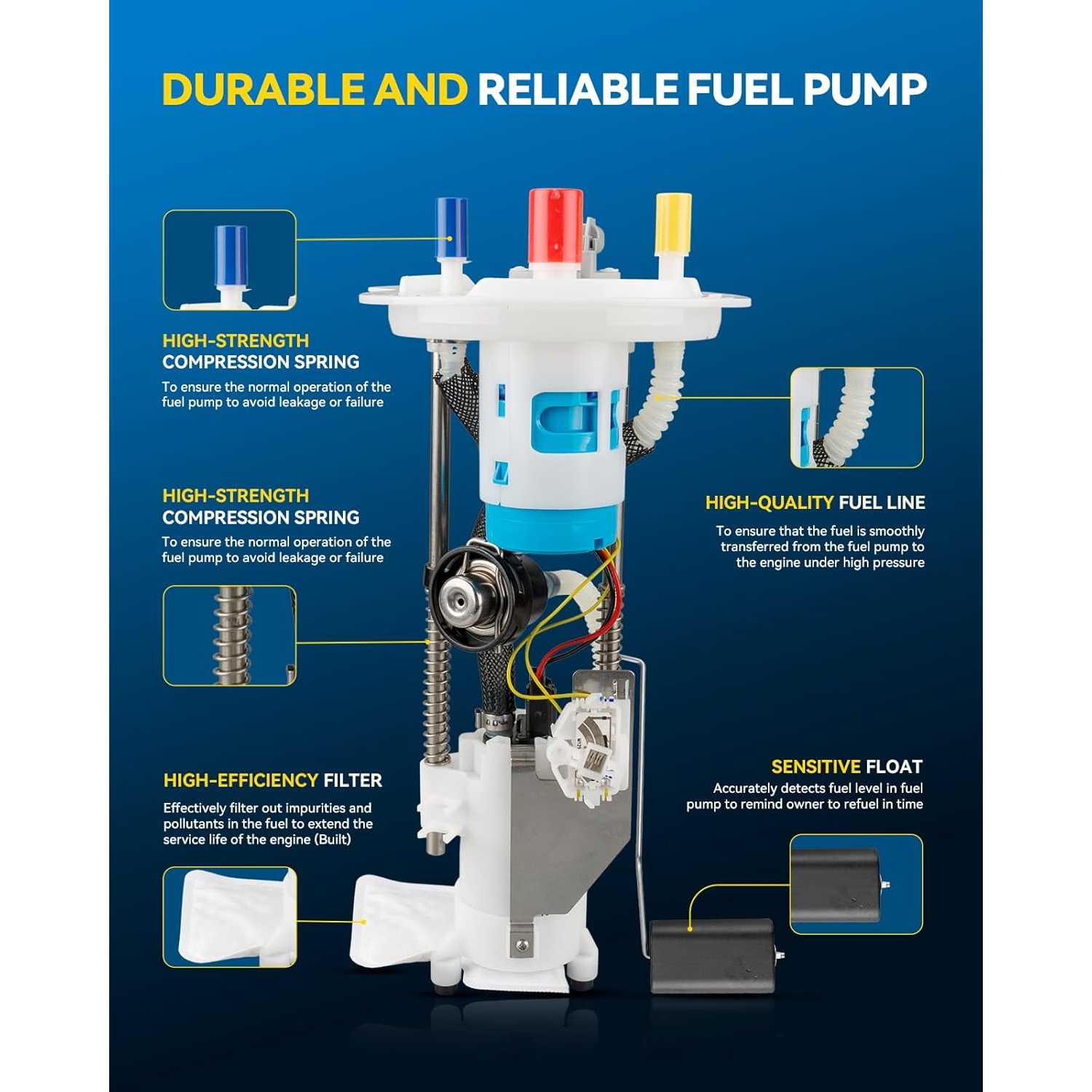

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 2008200820082007 - 20082007 - 2008200820072007
MakeFordFordFordFordFordLincolnLincolnLincoln
ModelExpeditionExpeditionExpeditionExpeditionExpeditionNavigatorNavigatorNavigator
TrimEddie BauerFunkmaster Flex EditionKing RanchLimitedXLTBaseLuxuryUltimate
Engine5.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V85.4L V8
Note--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Carlos sanchez

11/24/2023

Verified buyer

Gran producto fit perfect!!!👍🏻
