2005-2009 Dodge Dakota 3.7L | Fuel Pump Assembly | OE#68024546AA/P76484M - PHILTOP

2005-2009 Dodge Dakota 3.7L | Fuel Pump Assembly | OE#68024546AA/P76484M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9764FUP068EUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
220.0 Ω
Resistance Ohms Full
20.0 Ω
Average Flow Rating
29 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

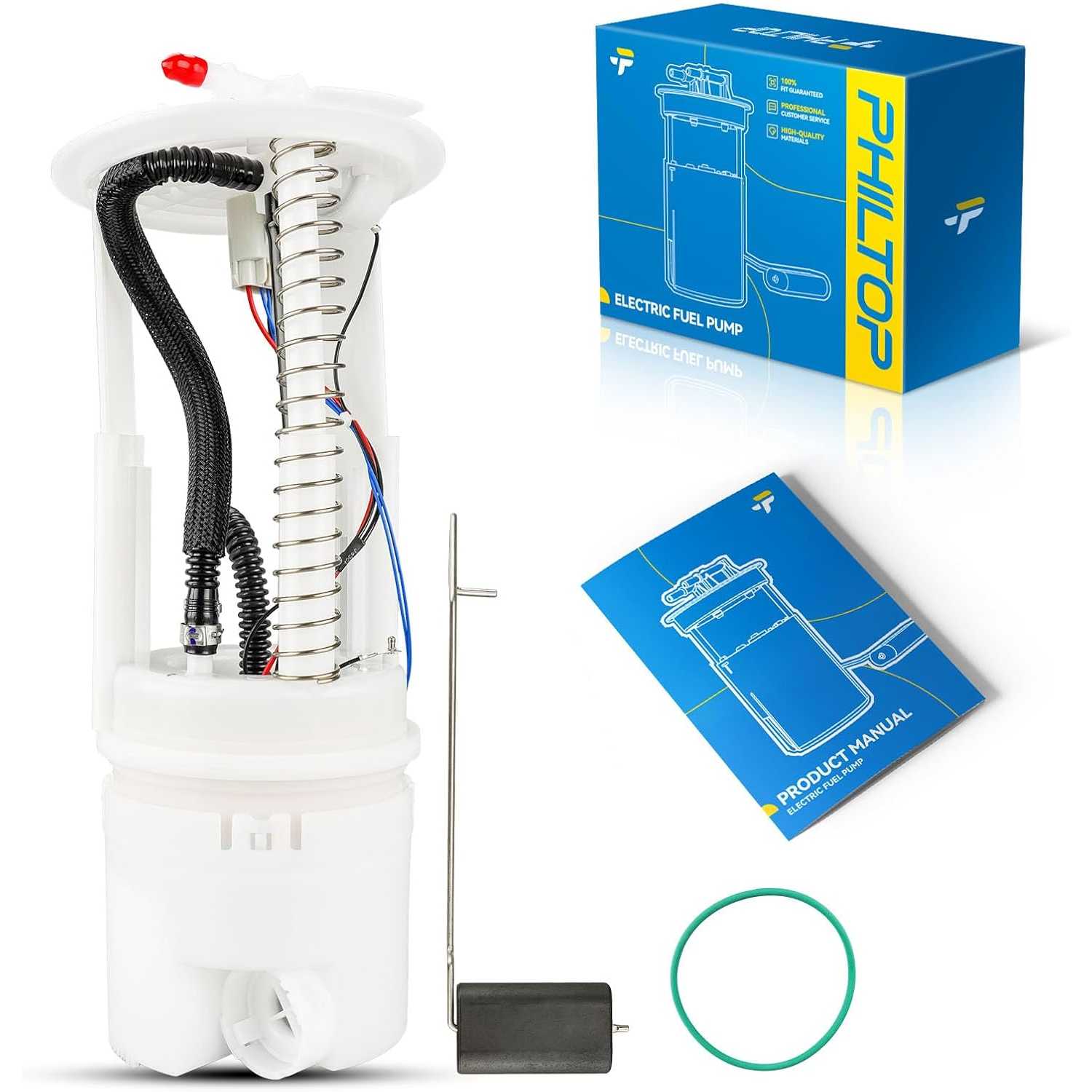

Items Included
1x Fuel Pump Assembly - FG0925
Warranty Period
2-Year
OE Number
68024546AA,5142218AD,RL024546AC,05142218AB,5142218AC,05142218AE,05142218AD,05142218AC,68024543AA,5142218AA,68024546AD,68024546AE,68024546AG,68024546AI,68024546AH,68024546AB,68024546AF,68024546AC,5142218AE,5142218AB
Part Number
P76484M,FG0925,SP7012M,USEP7198M,9533063,TU175

Highlights

  • Fitment: Compatible with [Dodge] 2005-2009 Dakota GAS, [Mitsubishi] 2006-2009 Raider.
  • Reference Number: 68024546AC, P76484M, 5142218AC, 5142218AE, 5142218AB, FG0925, 68024546AA, 05142218AE, 68024543AA, 05142218AC, 05142218AD, 5142218AA, 68024546AD, 68024546AE, 68024546AG, SP7012M, 68024546AB, TU175, 5142218AD, 68024546AH, USEP7198M, 9533063, 68024546AI, RL024546AC, 68024546AF, 05142218AB.

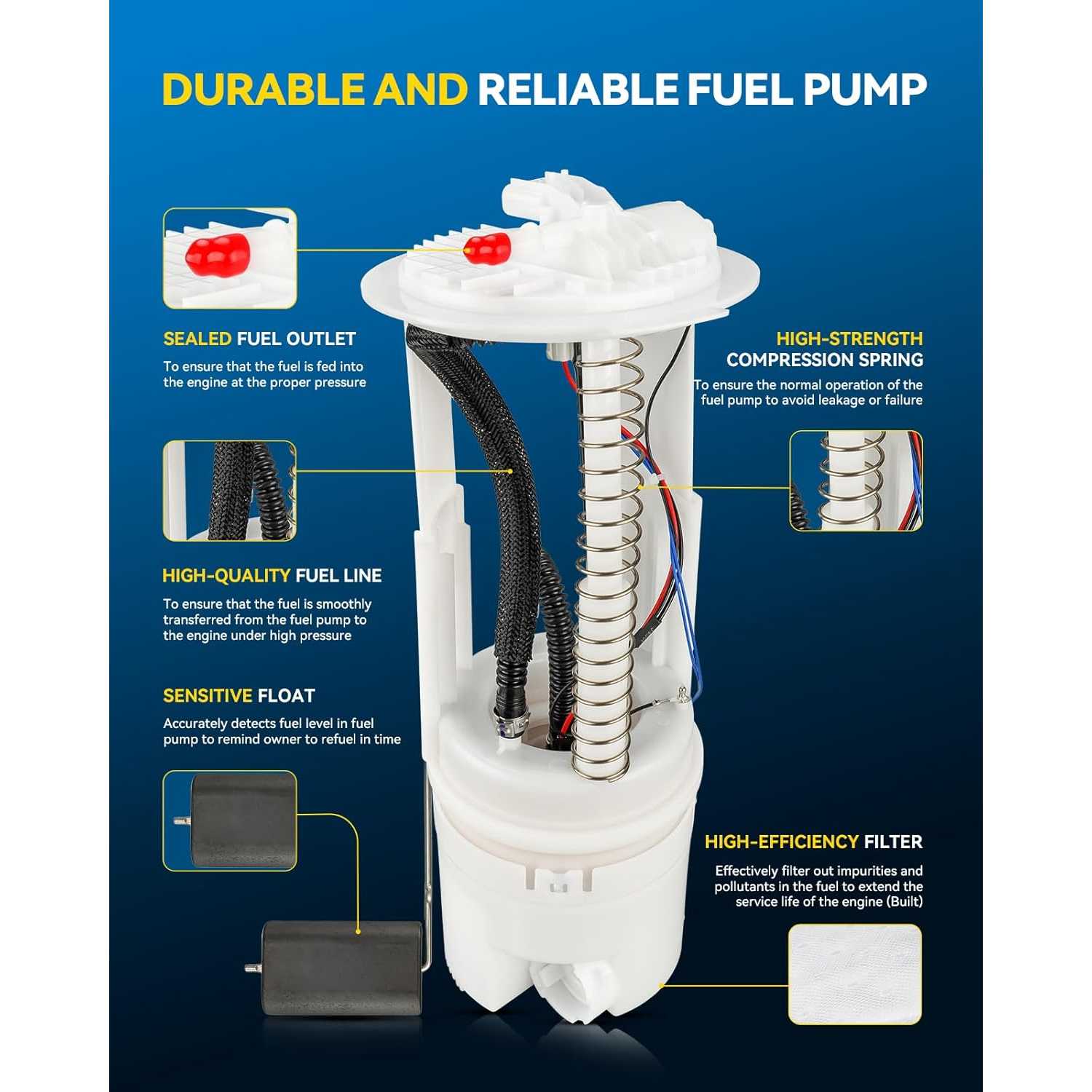

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20092005 - 200720092005 - 200720092005 - 20082005 - 20072005 - 20092005 - 2007200820052008200520082008 - 20092006 - 200720062006 - 2009200720072006
MakeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeDodgeMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishi
ModelDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaDakotaRaiderRaiderRaiderRaiderRaiderRaider
TrimBig HornLaramieLaramieLaramieLone StarSLTSLTSTSTSXTSportSportSportTRXTRX4DuroCrossDuroCrossLSLSSEXLS
Engine3.7L V63.7L V63.7L V64.7L V83.7L V63.7L V64.7L V83.7L V64.7L V83.7L V63.7L V63.7L V64.7L V83.7L V63.7L V63.7L V64.7L V83.7L V64.7L V84.7L V84.7L V8
Note---------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

gregory smith

05/17/2023

Verified buyer

Took care of the problem. No issues.
