2005-2007 Jeep Liberty 3.7L V6/2.4L L4 | Fuel Pump Assembly | OE#68011583AA/FG0929 - PHILTOP

2005-2007 Jeep Liberty 3.7L V6/2.4L L4 | Fuel Pump Assembly | OE#68011583AA/FG0929 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5345FUP295FUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
220.0 Ω
Resistance Ohms Full
20.0 Ω
Average Flow Rating
21 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
78.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

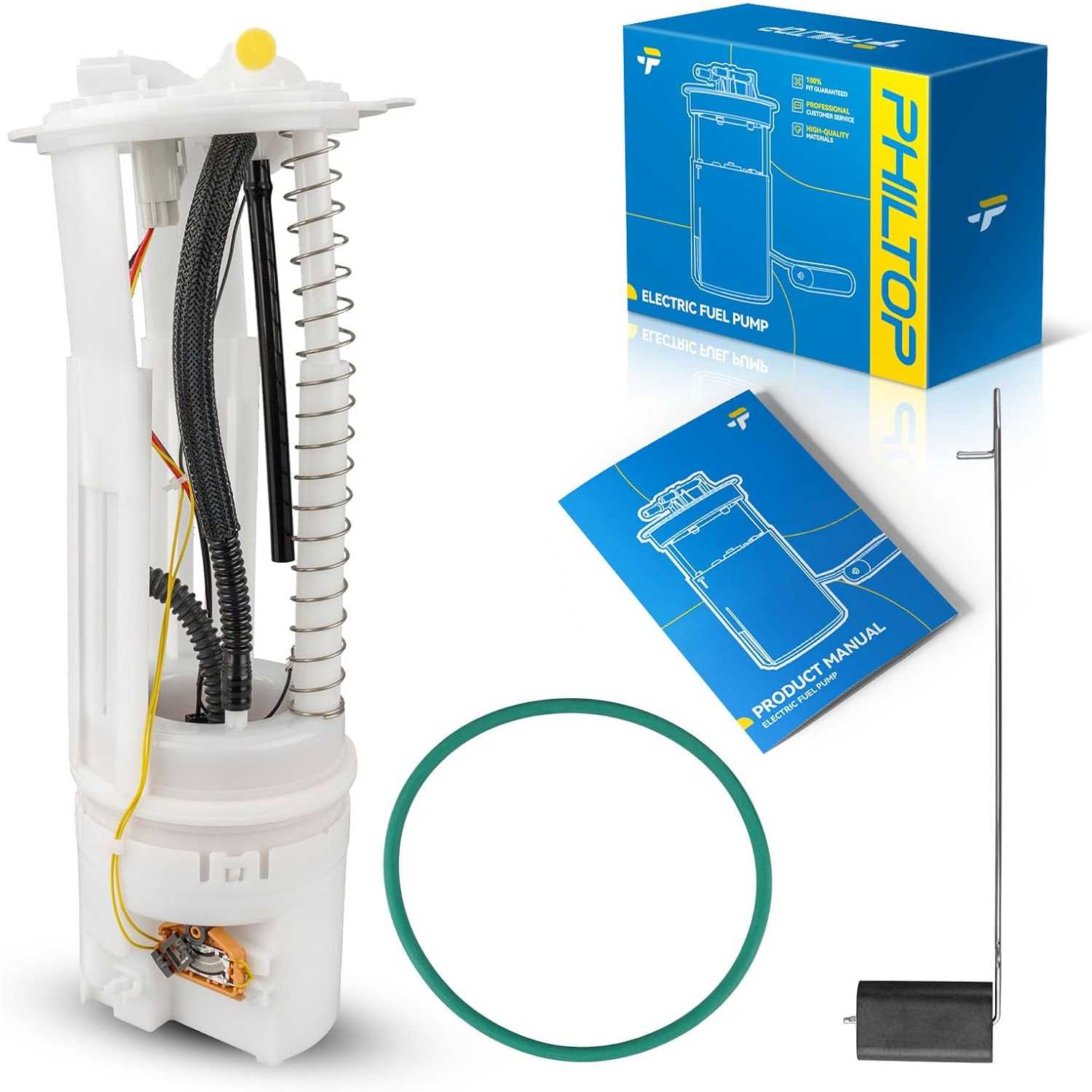

1x Fuel Pump Assembly - FG0929
Warranty Period
2-Year
OE Number
68011583AA,5140829AD,5140829AB,RL011583AC,5140829AC,68011583AG,68011583AF,68011583AH,68011583AB,RL011583AB,68011583AD,68011583AC,68011583AE,P2656M
Part Number
FG0929,P76100M,SP7009M,9533060,5202930,USEP7199M,E7199M,E7207,AFS1034P,RE1034P,TU170,P76211,4010517,EFG0929,M2316401,C0492M,PN3128,150124,F3100A,MO430,2920465,1234691,TNKSP7009M,402P7199M,D13111070TG

Highlights

  • Fitment: Compatible with [Jeep] 2005 Liberty 2.4L, 2005-2007 Liberty 3.7L.
  • Reference Number: P76100M, 68011583AC, 68011583AG, 68011583AE, 68011583AA, TU170, E7199M, 68011583AF, P76211, 4010517, EFG0929, M2316401, SP7009M, 5140829AD, 68011583AB, MO430, 9533060, USEP7199M, 5140829AB, RL011583AC, E7207, AFS1034P, RE1034P, C0492M, RL011583AB, 5202930, PN3128, 150124, 68011583AD, 68011583AH, F3100A, 5140829AC, FG0929, 2920465, 1234691, TNKSP7009M, 402P7199M, D13111070TG, P2656M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.

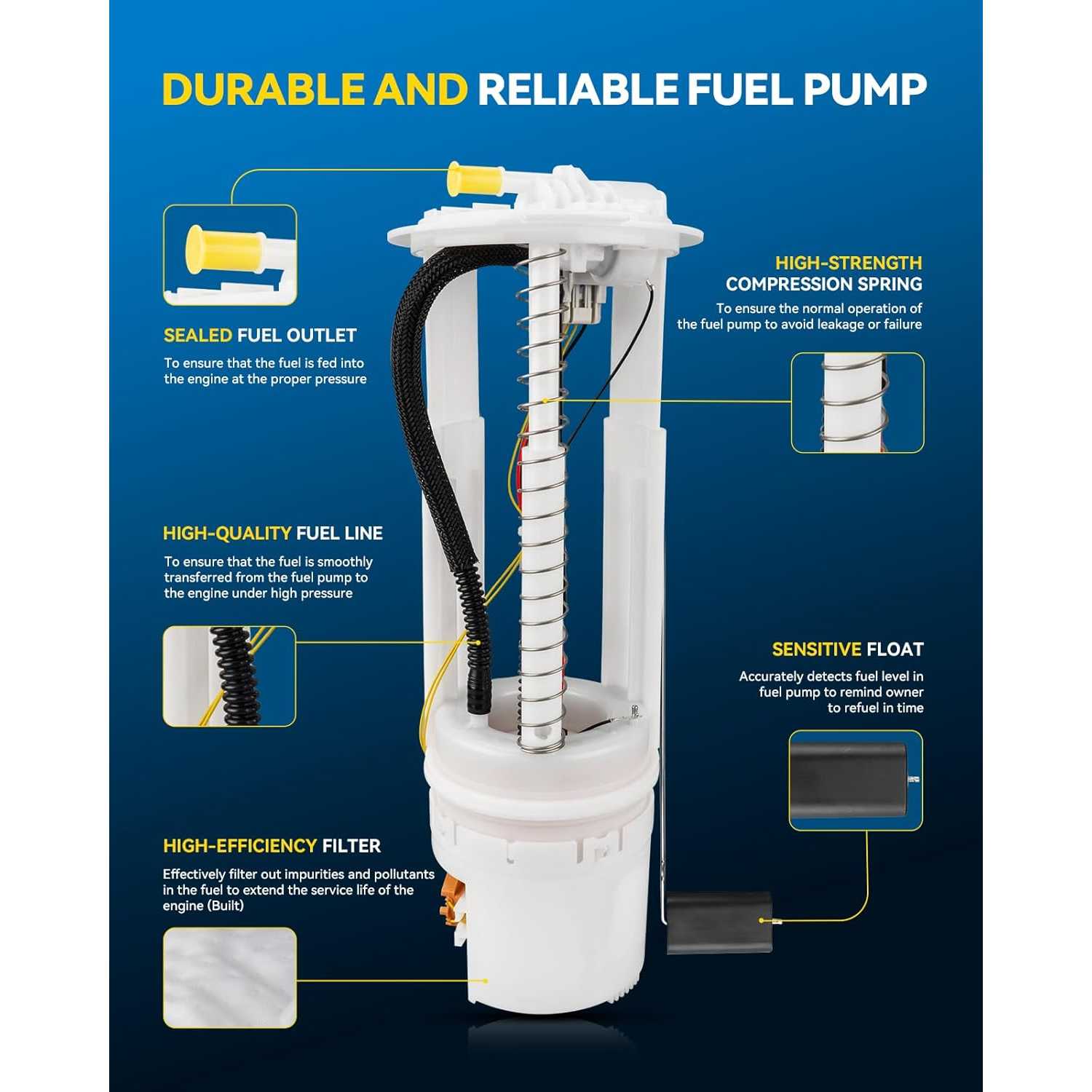

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20062005 - 20072005 - 2006200520052005 - 2007
MakeJeepJeepJeepJeepJeepJeep
ModelLibertyLibertyLibertyLibertyLibertyLiberty
Trim65th Anniversary EditionLimitedRenegadeRocky Mountain EditionSportSport
Engine3.7L V63.7L V63.7L V63.7L V62.4L L43.7L V6
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Customer

10/28/2024

Verified buyer

I put this product in my 2007 jeep liberty and it cranked right up. No problems since then Read more

Randall w larkin

10/02/2024

Verified buyer

Replacement, would you need first time ever doing it? And pressure is a little above factory specs, very happy.
