2007-2021 Toyota Tundra 5.7L V8 | Fuel Pump Assembly | OE#770200C081/FG0931 - PHILTOP

2007-2021 Toyota Tundra 5.7L V8 | Fuel Pump Assembly | OE#770200C081/FG0931 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3707FUP1721US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
412.0 Ω
Resistance Ohms Full
15.0 Ω
Average Flow Rating
21 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
78.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

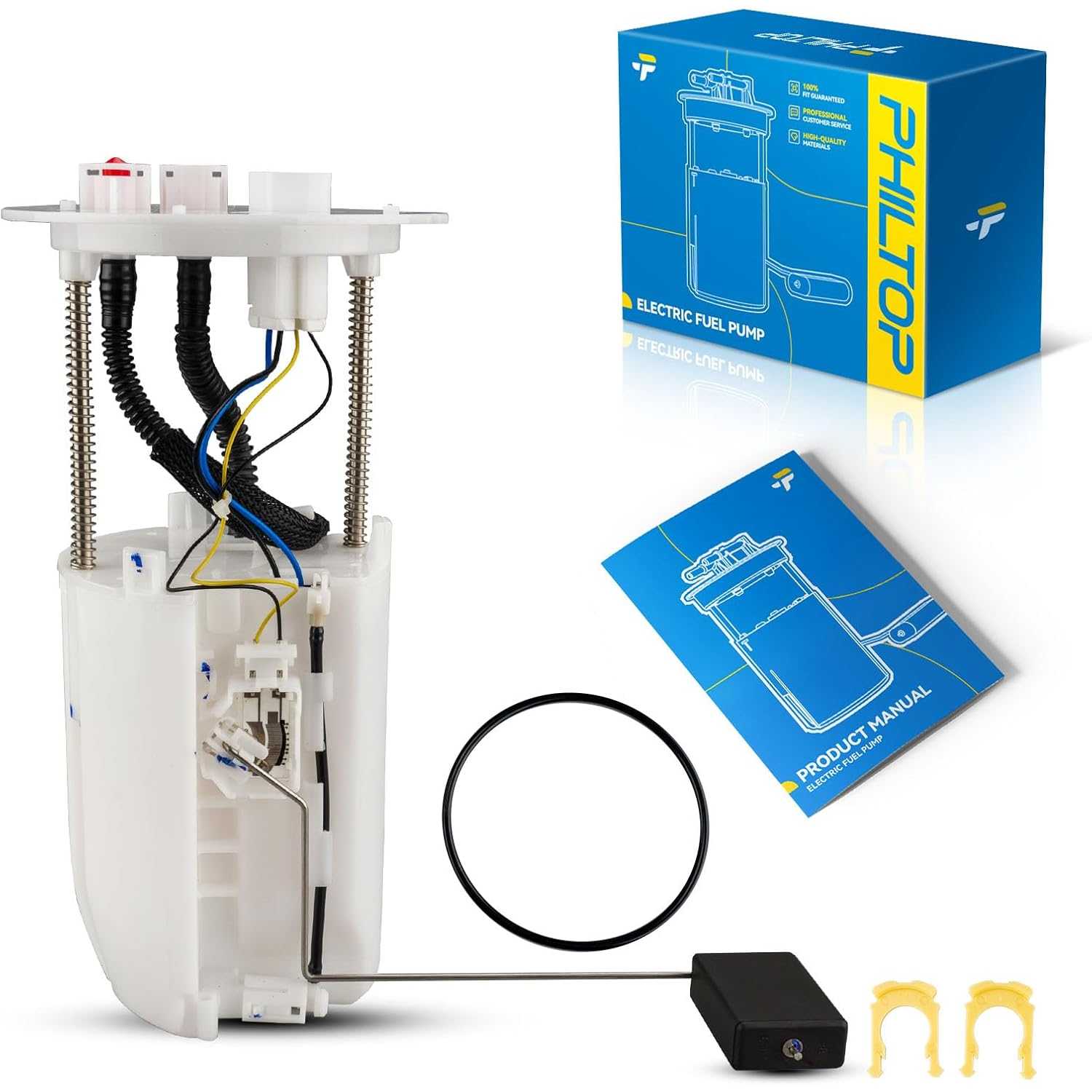

1x Fuel Pump Assembly - FG0931
Warranty Period
2-Year
OE Number
770200C081,770200C071,770200C072,770200C070,770200C080,833200C022,833200C080,833200C023,770200C160,833200C050,770200C082
Part Number
FG0931,SP9010M,P76713M,FG2147,USEP8869M,E8806M,E8789,SP1386,A30432,A30433,2920651,C0686M,PN3150,150337,4010660,DFG0931,C15112809TG,M2496393,1234746,M2521010,TNKSP9010M,A46604,DFG2147

Highlights

  • Fitment: Compatible with [Toyota] 2007-2021 Tundra 5.7L GAS(with 26 Gallon Tank), 2010-2019 Tundra 4.6L GAS, 2008-2019 Sequoia 5.7L GAS(To 11/2018), 2022 Sequoia 5.7L GAS, 2010-2012 Sequoia 4.6L GAS.
  • Reference Number: SP9010M, 150337, 4010660, 833200C022, 833200C080, 833200C023, 770200C081, 770200C160, P76713M, 833200C050, 770200C071, 770200C072, E8806M, 770200C070, DFG0931, USEP8869M, E8789, 770200C080, SP1386, M2521010, 2920651, C0686M, PN3150, C15112809TG, M2496393, 1234746, 770200C082, FG2147, A30432, FG0931, A30433, TNKSP9010M, A46604, DFG2147.

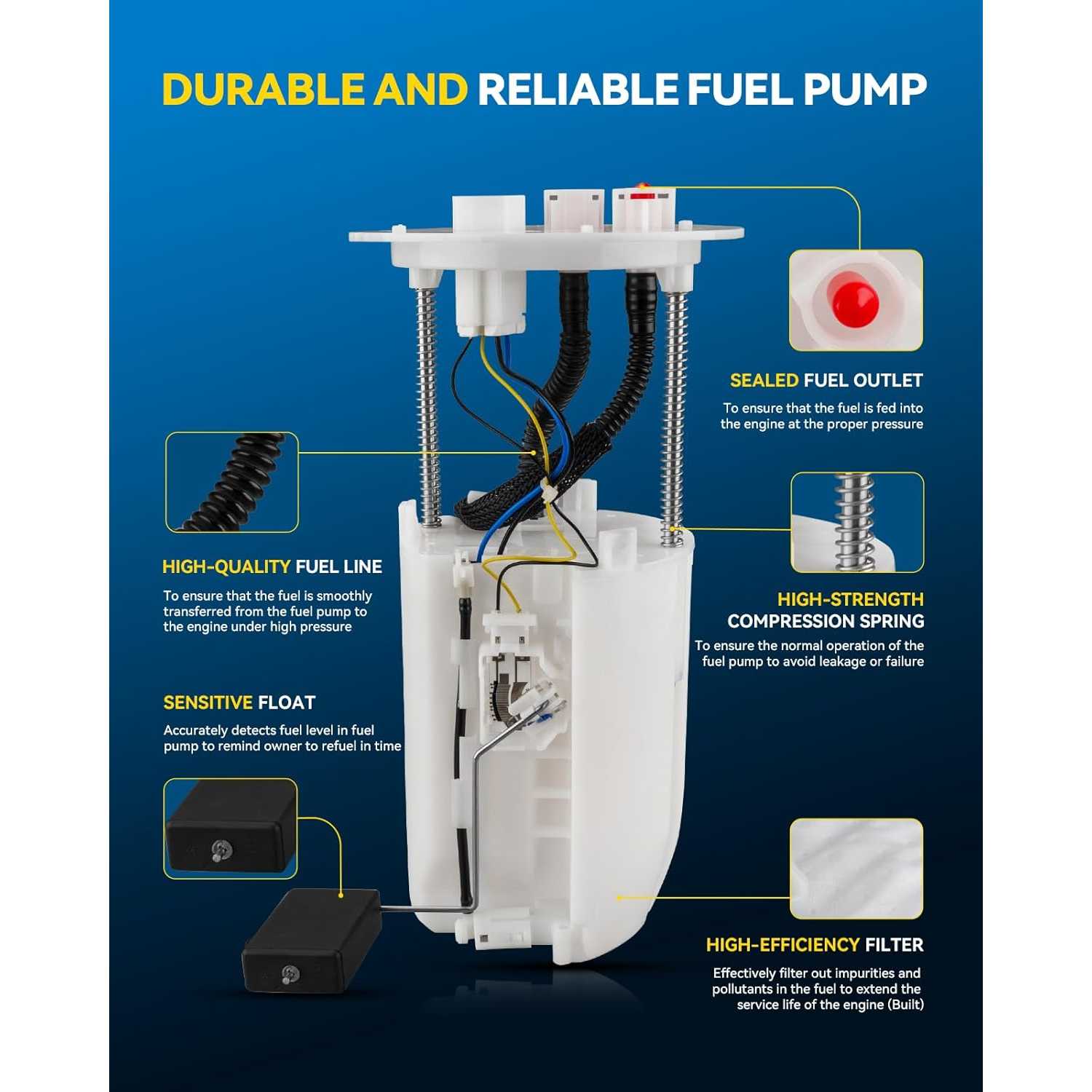

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20082009 - 20192022202220082009 - 201920222010 - 201220082009 - 2019202220222018 - 201920222014 - 20212010 - 20132007 - 201320102007 - 2021202120102010 - 20212014 - 20192014 - 20212010 - 20112014 - 20192007 - 20112014 - 20212015 - 20172019 - 20212021
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaSequoiaTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundraTundra
TrimLimitedLimitedLimitedNightshadePlatinumPlatinumPlatinumSR5SR5SR5SR5TRD ProTRD SportTRD Sport1794 EditionBaseBaseLimitedLimitedNightshadePlatinumPlatinumSRSRSR5SR5SR5SR5TRD ProTRD ProTrail
Engine5.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V84.6L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V85.7L V84.6L V85.7L V84.6L V85.7L V85.7L V84.6L V85.7L V84.6L V85.7L V84.6L V84.6L V85.7L V85.7L V85.7L V85.7L V85.7L V8
Note
To 11/2018;With 26 Gallon Tank
To 11/2018
--
To 11/2018;With 26 Gallon Tank
To 11/2018
-
To 11/2018
To 11/2018;With 26 Gallon Tank
To 11/2018
--
To 11/2018
-
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank
With 26 Gallon Tank

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

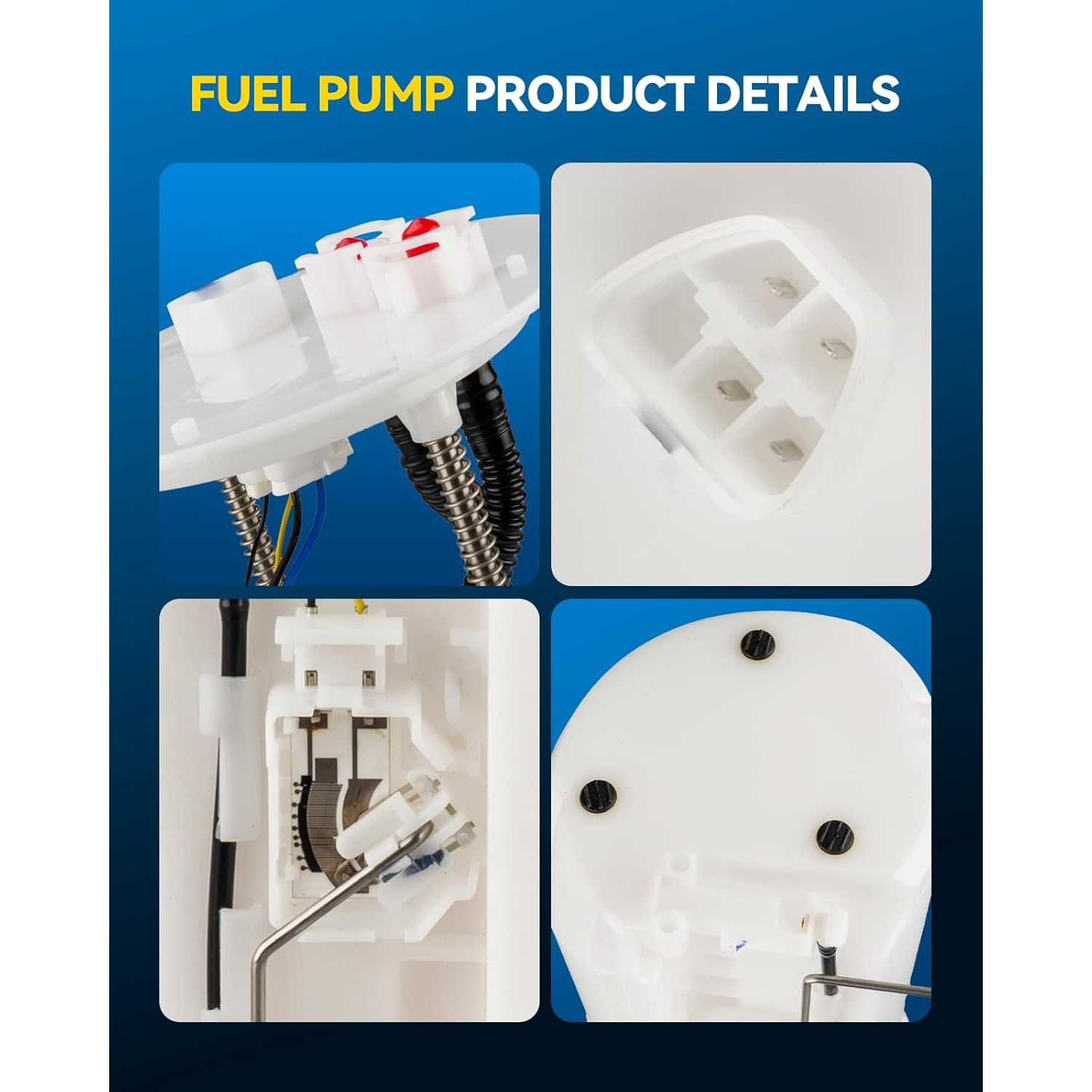

Electric Fuel PumpElectric Fuel Pump

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Customer

02/10/2026

Verified buyer

Easy install. Zero instructions, but I figured out connecting the float arm to it. It also worked like a champ, even though this did not solve my Tundra starting issues.

SMS

10/13/2023

Verified buyer

Used for Tundra 2008 and it works fine for now.
