1999-2004 Ford F-250 Super Duty 6.8L V10/5.4L V8 | Fuel Pump Assembly | OE#F81Z9H307EA/P75035M - PHILTOP

1999-2004 Ford F-250 Super Duty 6.8L V10/5.4L V8 | Fuel Pump Assembly | OE#F81Z9H307EA/P75035M - PHILTOP

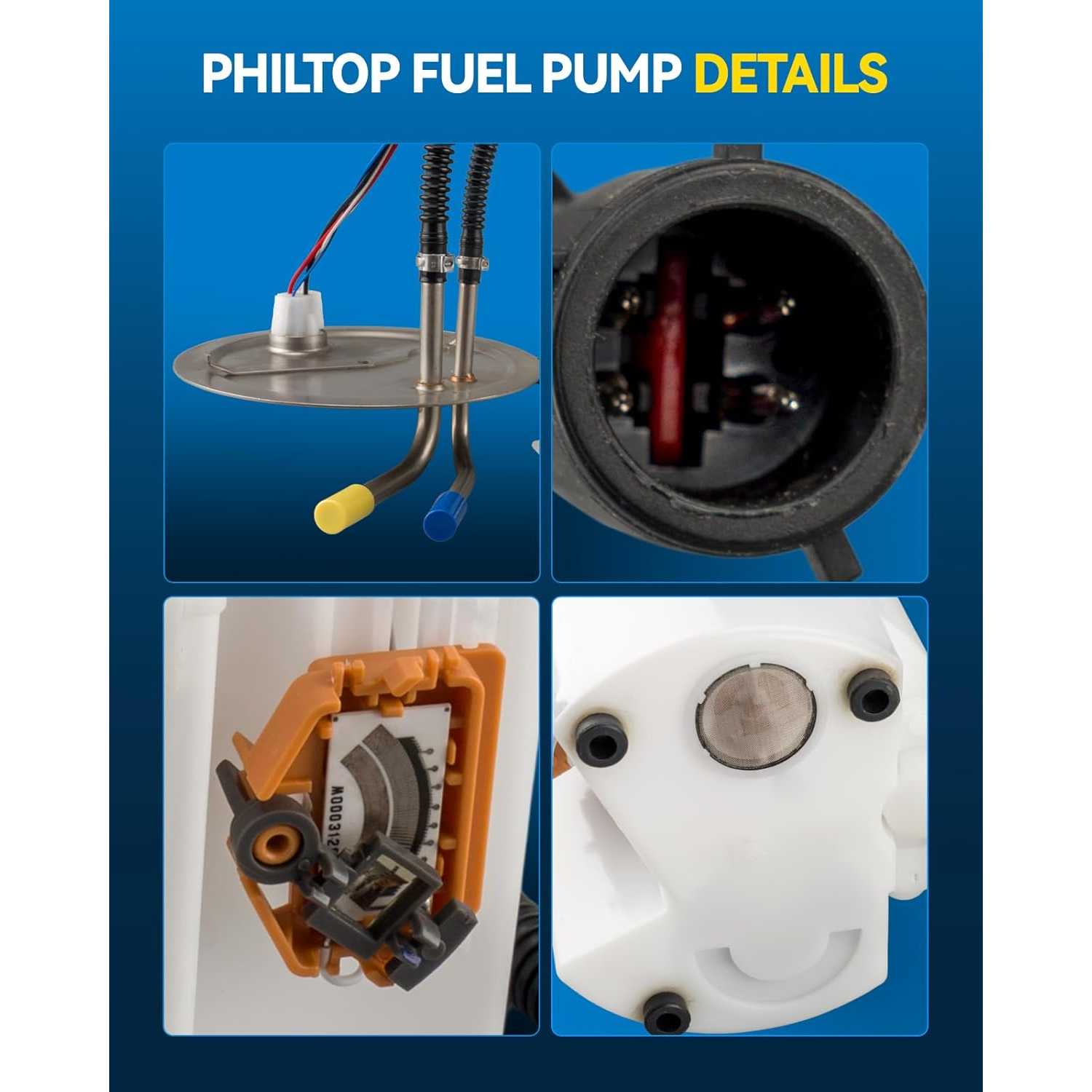

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6587FUP298ZUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
15.0 Ω
Resistance Ohms Full
160.0 Ω
Average Flow Rating
32 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
100.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

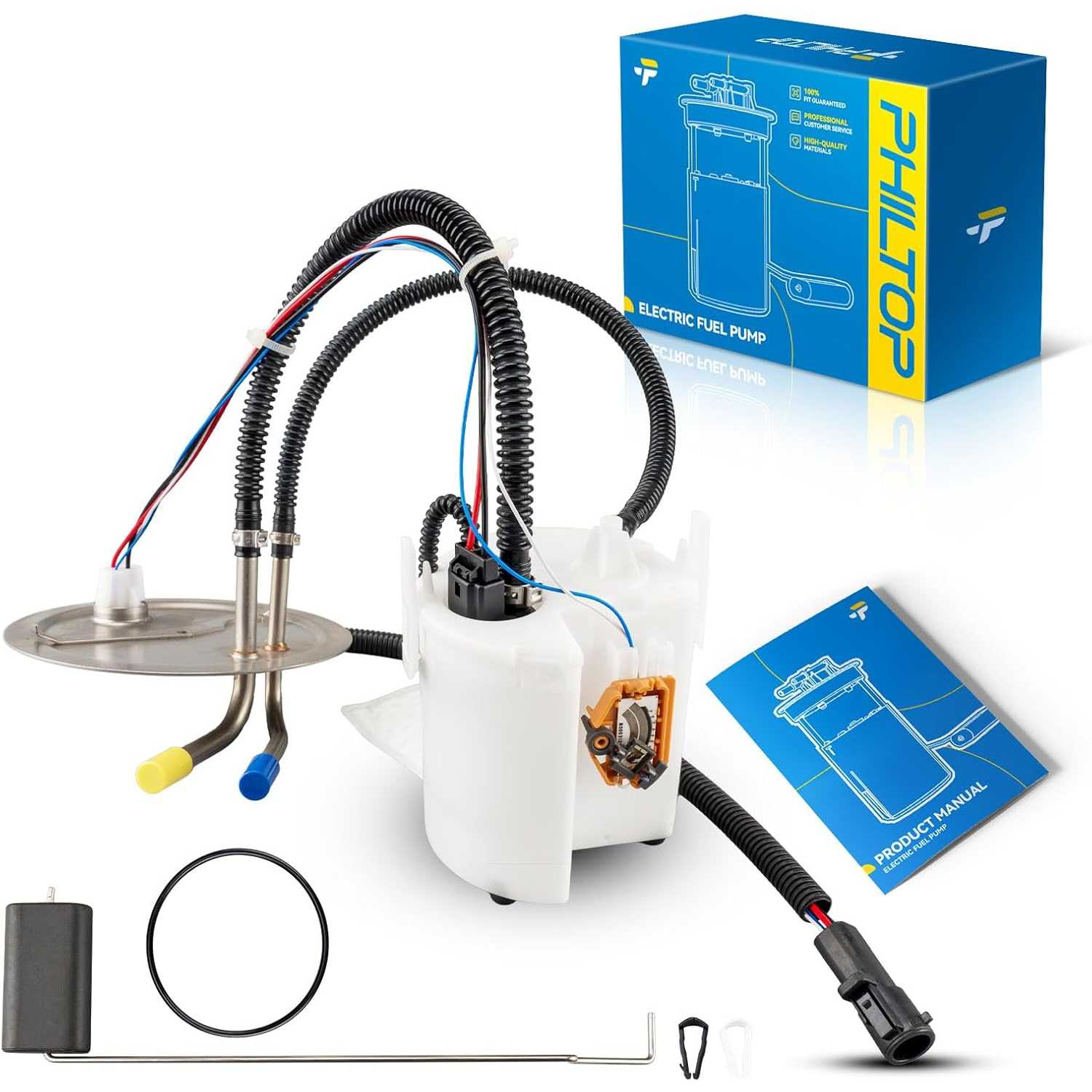

Items Included
1x Fuel Pump Assembly - FG0953
Warranty Period
2-Year
OE Number
F81Z9H307EA,P2561S,P2507M,F81Z9H307EF,3C3Z9H307EB,3C3Z9H307EC,F81Z9H307EE,3C3Z9H307EA
Part Number
P75035M,FG0953,SP2238M,5252110,USEP2238M,E2238M,E2318,PFS272,TU217,F1249A,A30077,E16040,SP1146,EP2097H,9534022,PFS70,DFG0953,9534019,9534017,M2510449,TU211,4010295,402P2238M,PN3116,150029,D12111066TG,C0027M,830241,237951,2920344,TNKSP2238M,RE0238S,AFS0238S

Highlights

  • Fitment: Compatible with Front For:, [Ford] 1999-2003 F-250 Super Duty 5.4/6.8L(WheelBase:142.0/156.0), 2004 F-250 Super Duty 6.8L(WheelBase:141.8), 1999-2003 F-350 Super Duty 5.4/6.8L Crew/Extended/Standard Cab(WheelBase:142.0/156.0), 2004 F-350 Super Duty 5.4/6.8L Crew/Extended/Standard Cab(WheelBase:141.8/156.2), (without California Emissions System;with Midship Tank).
  • Reference Number: PFS70, 9534019, 9534017, DFG0953, M2510449, 402P2238M, 150029, 3C3Z9H307EA, 3C3Z9H307EB, 3C3Z9H307EC, TU211, P75035M, FG0953, F81Z9H307EE, F81Z9H307EF, E2238M, PN3116, SP2238M, F81Z9H307EA, 4010295, E2318, PFS272, TU217, 5252110, USEP2238M, F1249A, P2561S, P2507M, A30077, E16040, SP1146, EP2097H, 9534022, 2920344, 237951, AFS0238S, RE0238S, 830241, TNKSP2238M, D12111066TG, C0027M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20041999 - 20031999 - 20041999 - 20031999 - 20041999 - 20031999 - 200420042003 - 20042003 - 20041999 - 20041999 - 20041999 - 20041999 - 20041999 - 20041999 - 2004
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFord
ModelF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-250 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super DutyF-350 Super Duty
TrimHarley-Davidson EditionLariatLariatXLXLXLTXLTHarley-Davidson EditionKing RanchKing RanchLariatLariatXLXLXLTXLT
Engine6.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V106.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V105.4L V86.8L V10
Note
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System
with Midship Tank;without California Emissions System

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump
