2008-2013 Nissan Rogue 2.5L L4 | Fuel Pump Assembly | OE#17040JM00A/FG1148 - PHILTOP

2008-2013 Nissan Rogue 2.5L L4 | Fuel Pump Assembly | OE#17040JM00A/FG1148 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

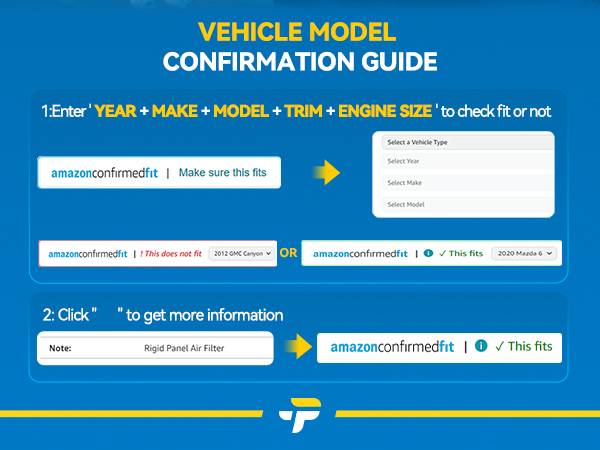

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2610FUP094ZUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

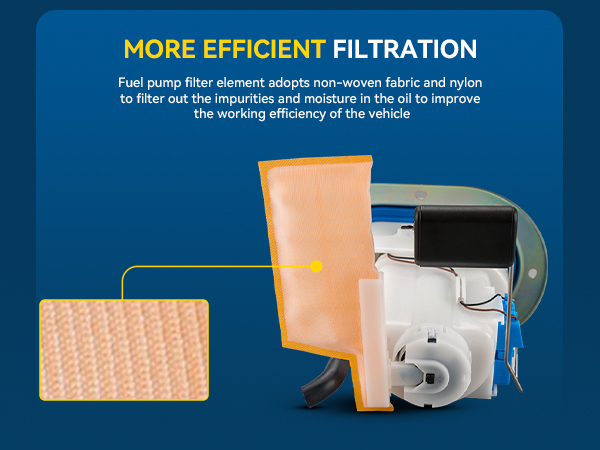

Strainer Included
Yes

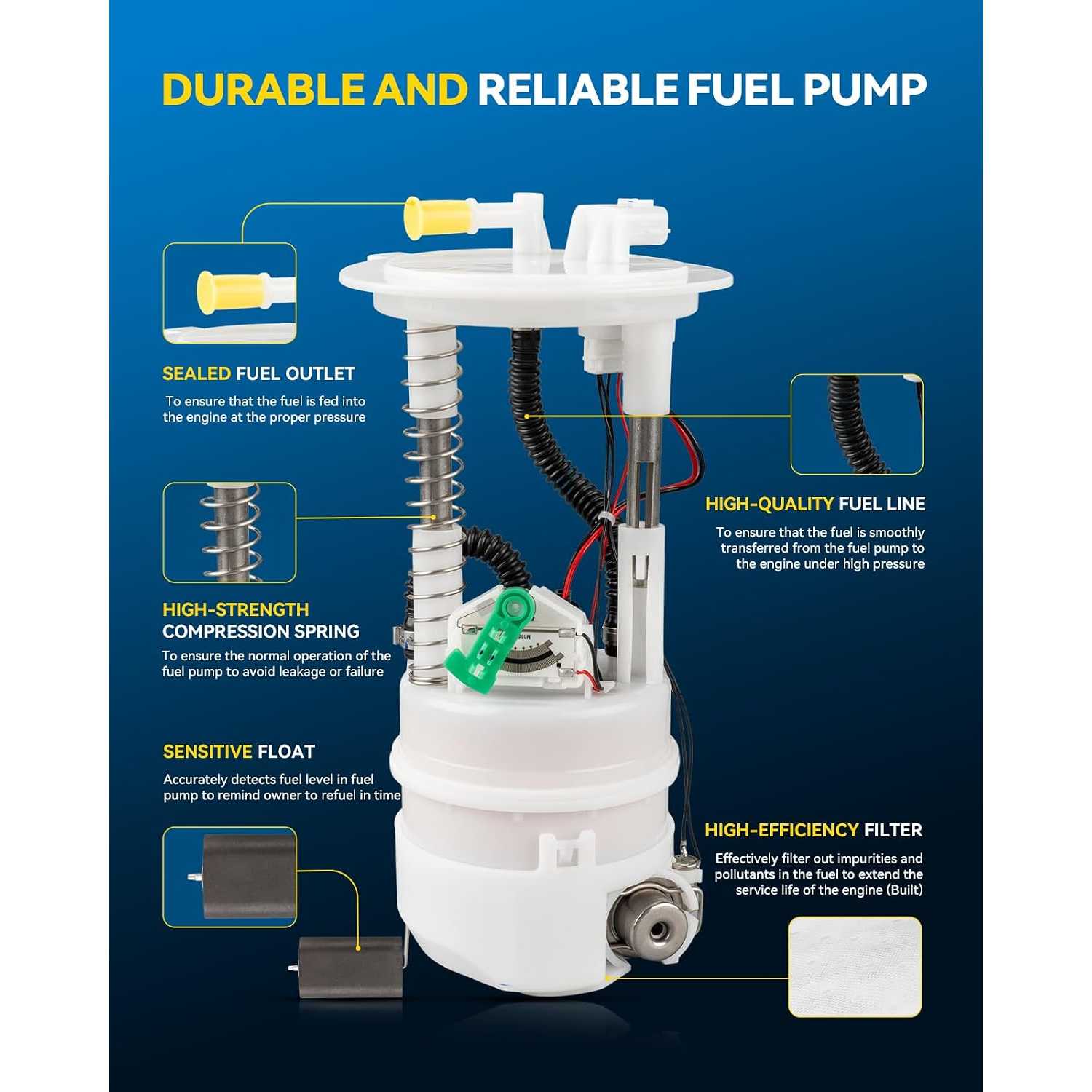

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
80.0 Ω
Resistance Ohms Full
5.0 Ω
Average Flow Rating
32 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1148
Warranty Period
2-Year
OE Number
17040JM00A,17040JM00D,17040JM00C,17040JM00B
Part Number
FG1148,P76890M,SP4108M,USEP8854M,CFG1148,4010696,TU322,A33218,M2521005,B14112070TG,C0700M,1234887,2920966,FP22075S,MO579,A46599,TNKSP4108M

Highlights

Product highlights are being verified.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20102008 - 201320112008 - 20102011 - 20132014 - 2015
MakeNissanNissanNissanNissanNissanNissan
ModelRogueRogueRogueRogueRogueRogue Select
TrimKromSS KromSLSVS
Engine2.5L L42.5L L42.5L L42.5L L42.5L L42.5L L4
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

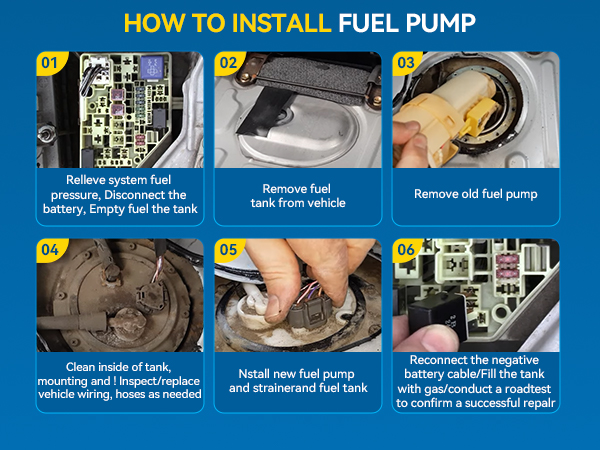

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

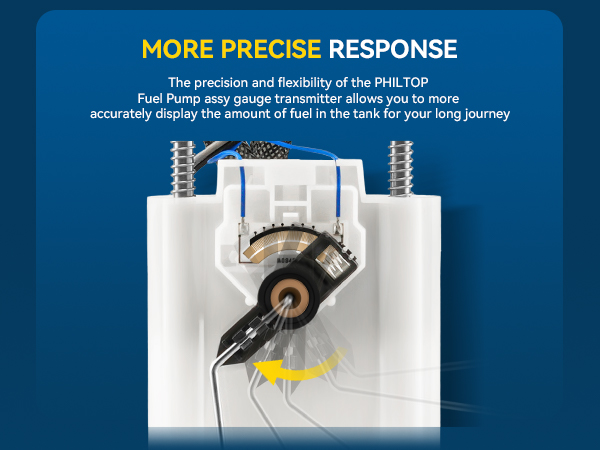

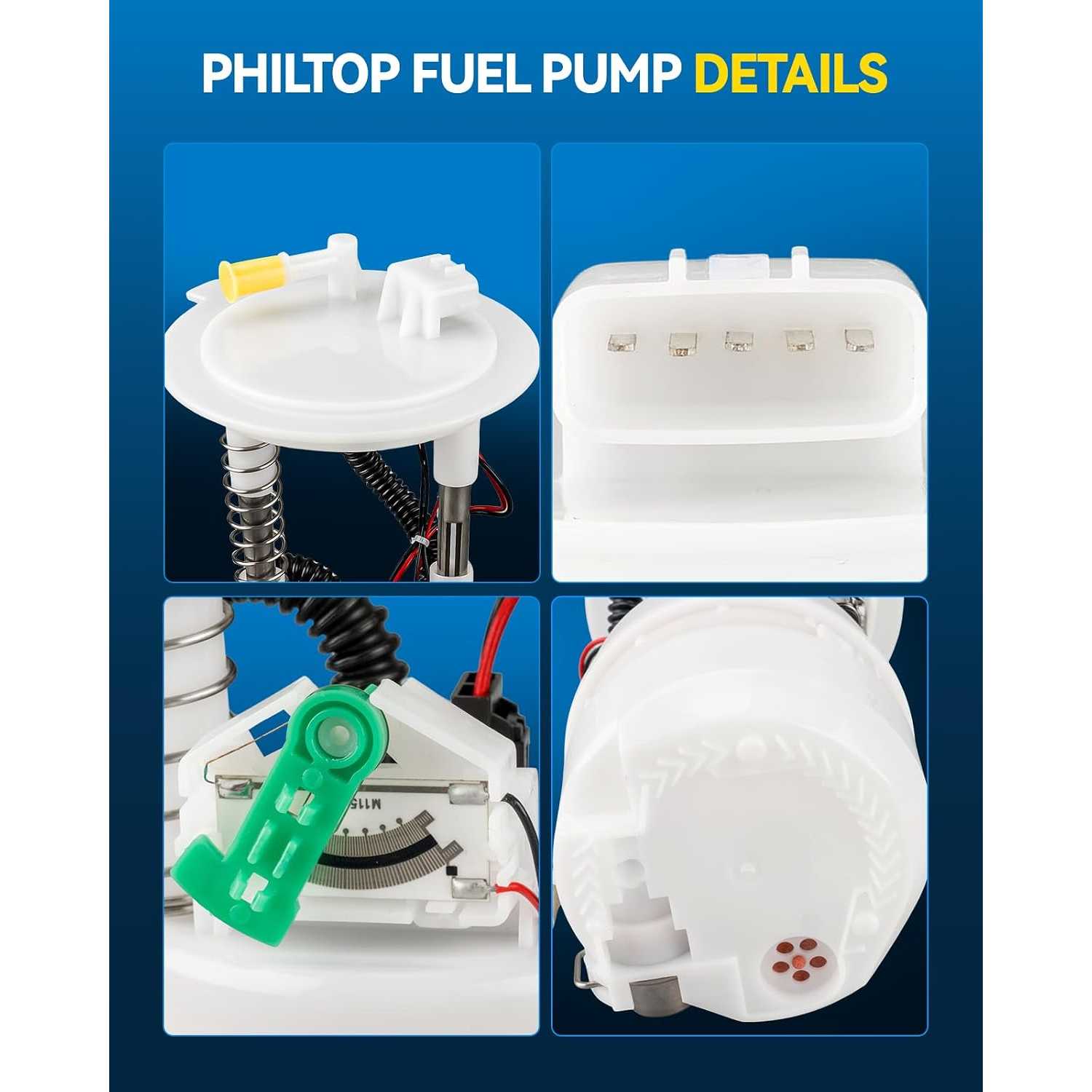

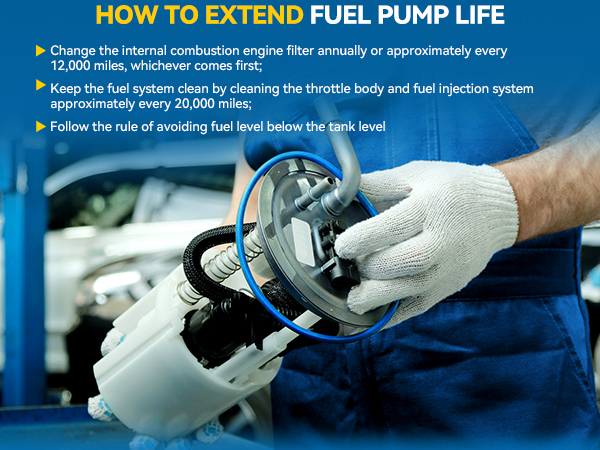

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Everth

11/14/2024

Verified buyer

Quedó perfecto Read more
