2008-2011 Toyota Camry 2.4L L4 | Fuel Pump Assembly | OE#7702006130/SP9044M - PHILTOP

2008-2011 Toyota Camry 2.4L L4 | Fuel Pump Assembly | OE#7702006130/SP9044M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6882FUP3080US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
410.0 Ω
Resistance Ohms Full
15.0 Ω
Average Flow Rating
18 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
94.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

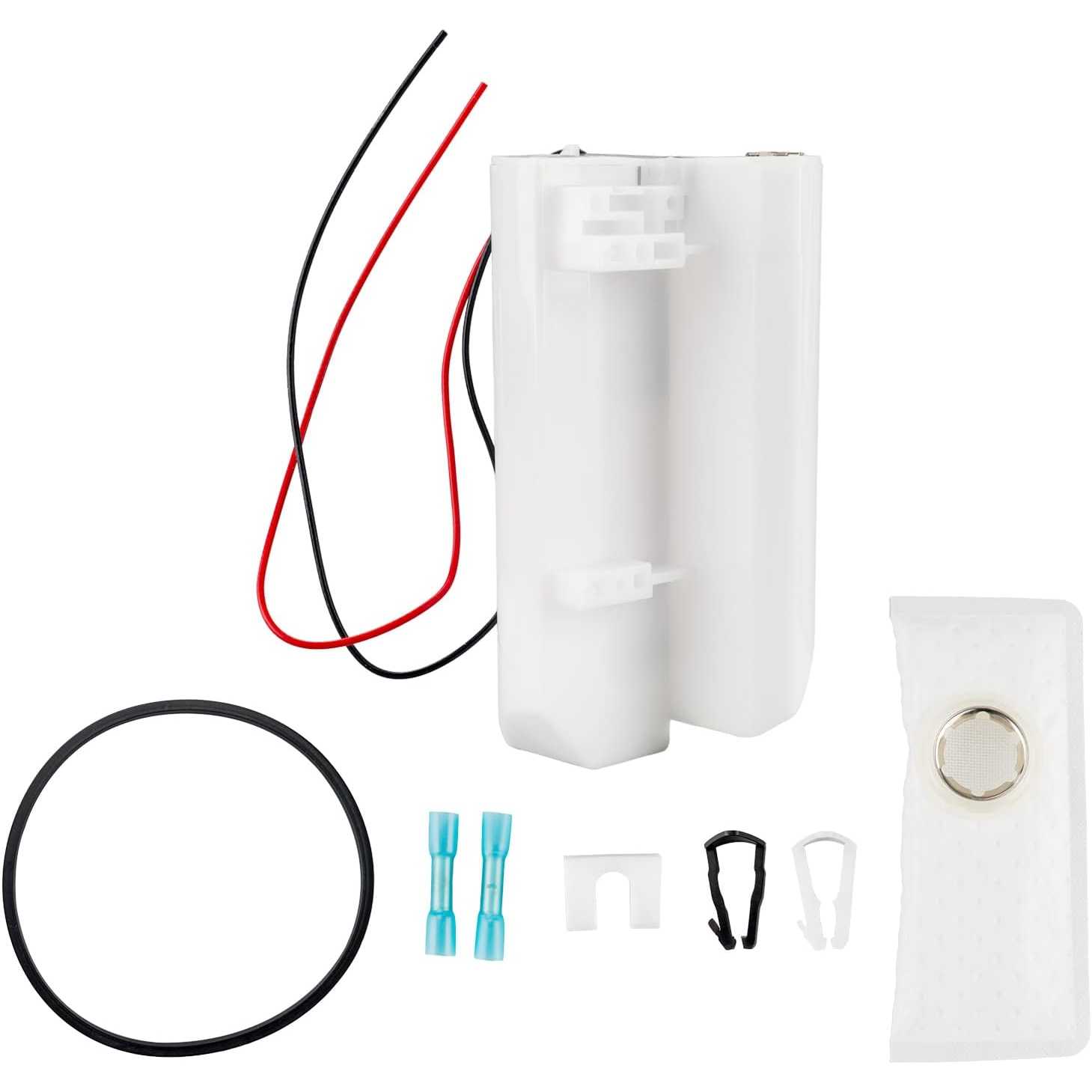

Items Included
1x Fuel Pump Assembly - FG1170
Warranty Period
2-Year
OE Number
7702006130,7702006131
Part Number
SP9044M,P76796M,FG1170,USEP8937M,P72189,A30457,A30270,DFG1170,4011593,2920767,B15111480TG,C0722M,A27154,M2521019,1234852,TNKSP9044M,2920756

Highlights

  • (Vehicle Fitment) Compatible with Ford F-150 1990–1996 (4.9L, 5.0L, 5.8L), F-250 1990–1996 (4.9L, 5.8L, 7.5L), F-250 HD 1997 (5.8L, 7.5L), and F-350 1990–1997 (4.9L, 5.8L, 7.5L). Engineered for a direct OE fit and reliable performance
  • (OEM Replacement) Replaces OEM part numbers: FG0199, E2064M, F6TZ-9A407-CA, F6TZ-9A407-CC, F4TZ-9A407-C, F4TZ-9A407-R, F0TZ-9A407-CA, FG0198, SP2007H, PFB-3, TU200, TU201, P74108. Meets or exceeds OE specifications
  • (Complete Assembly) This fuel pump module includes the fuel pump, sending unit, pressure sensor, float, and tank seal. Pre-assembled and ready for plug-and-play installation—no additional parts required
  • (Durable & Reliable) Built with high-performance POM plastic and corrosion-resistant materials. Designed for ethanol resistance and tested for over 3,500 hours of operation with less than 15% flow decay—ensuring long-lasting durability
  • (Easy Installation) No special tools needed. Please verify your vehicle’s year, make, and model before purchasing. Use the fitment guide on the product detail page or the “Suncentauto Confirmed Fit” tool to ensure proper compatibility

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20092010 - 201120082008 - 20092010 - 20112008 - 20092010 - 20112008 - 20092010 - 2011
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelCamryCamryCamryCamryCamryCamryCamryCamryCamry
TrimBaseBaseCELELESESEXLEXLE
Engine2.4L L42.5L L42.4L L42.4L L42.5L L42.4L L42.5L L42.4L L42.5L L4
Note
Except Japan Built;with California Emissions System
Except Japan Built;with California Emissions System
Except Japan Built;with California Emissions System
Except Japan Built;with California Emissions System
Except Japan Built;with California Emissions System
Except Japan Built;with California Emissions System
Except Japan Built;with California Emissions System
Except Japan Built;with California Emissions System
Except Japan Built;with California Emissions System

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.8/5

Based on 11 reviews

582%
418%
30%
20%
10%

Customer photos and videos

Katherine JohnsonKatherine Johnson

02/16/2026

Verified buyer

This fuel pump assembly is made of high quality materials and seems to match the Napa or OEM pumps exactly. The gasket fit the tank properly. The fuel gauge seemed a bit slow to respond at first, but after a little bit it is now responding normally. After 50 miles on the car, everything is working normally. Would recommend this part to anyone looking for a replacement fuel pump assembly for their Camry.

RoadcomandoRoadcomando

02/06/2026

Verified buyer

This pump is sold as a complete assembly which makes install easy. The components are made of high quality material and even included a new in tank filter . This pump fit perfectly with no surprises . Before installing I ALWAYS bench test the pump to avoid doing the work twice .
