2004-2009 Mazda 3 2.3L/2.0L | Fuel Pump Assembly | OE#LF661335XB/SP4052M - PHILTOP

2004-2009 Mazda 3 2.3L/2.0L | Fuel Pump Assembly | OE#LF661335XB/SP4052M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6111FUP039UUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Material
Metal, Plastic
Pump Structure
Turbine Impeller
Items Included

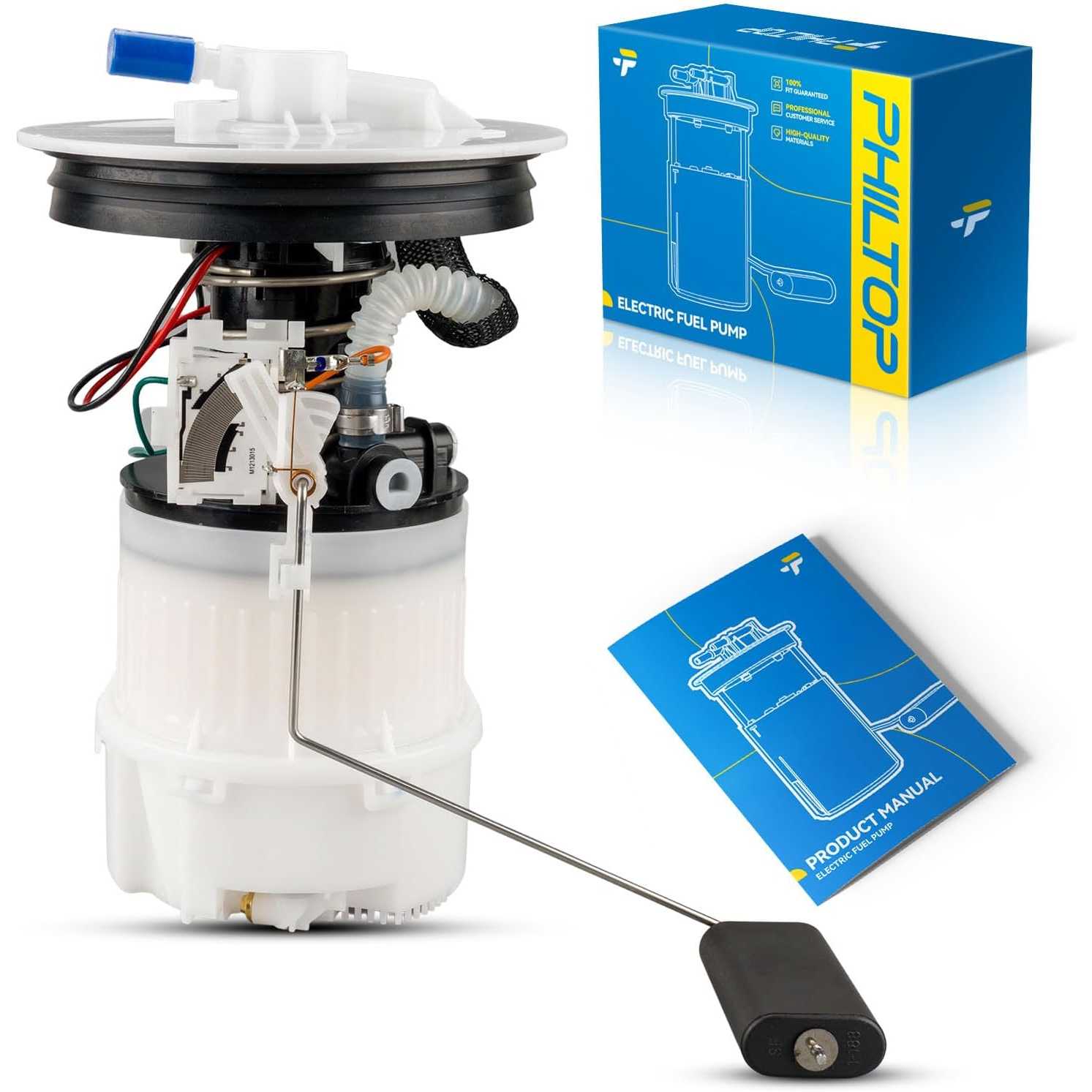

1x Fuel Pump Assembly - FG1249
Warranty Period
2-Year
OE Number
LF661335XB,LF661335XC,LF661335XF,LF661335XA,LF661335XD,LF661335XE,LF661335XG,LF661335X,3M519H307AV
Part Number
SP4052M,P76308M,FG1249,5452030,USEP8591M,E8591M,67269,67270,4010490,F4502A,CFG1249,150310,P76258M,2920602,1234801,M2425953,TNKSP4052M,B19112456TG,C0606M

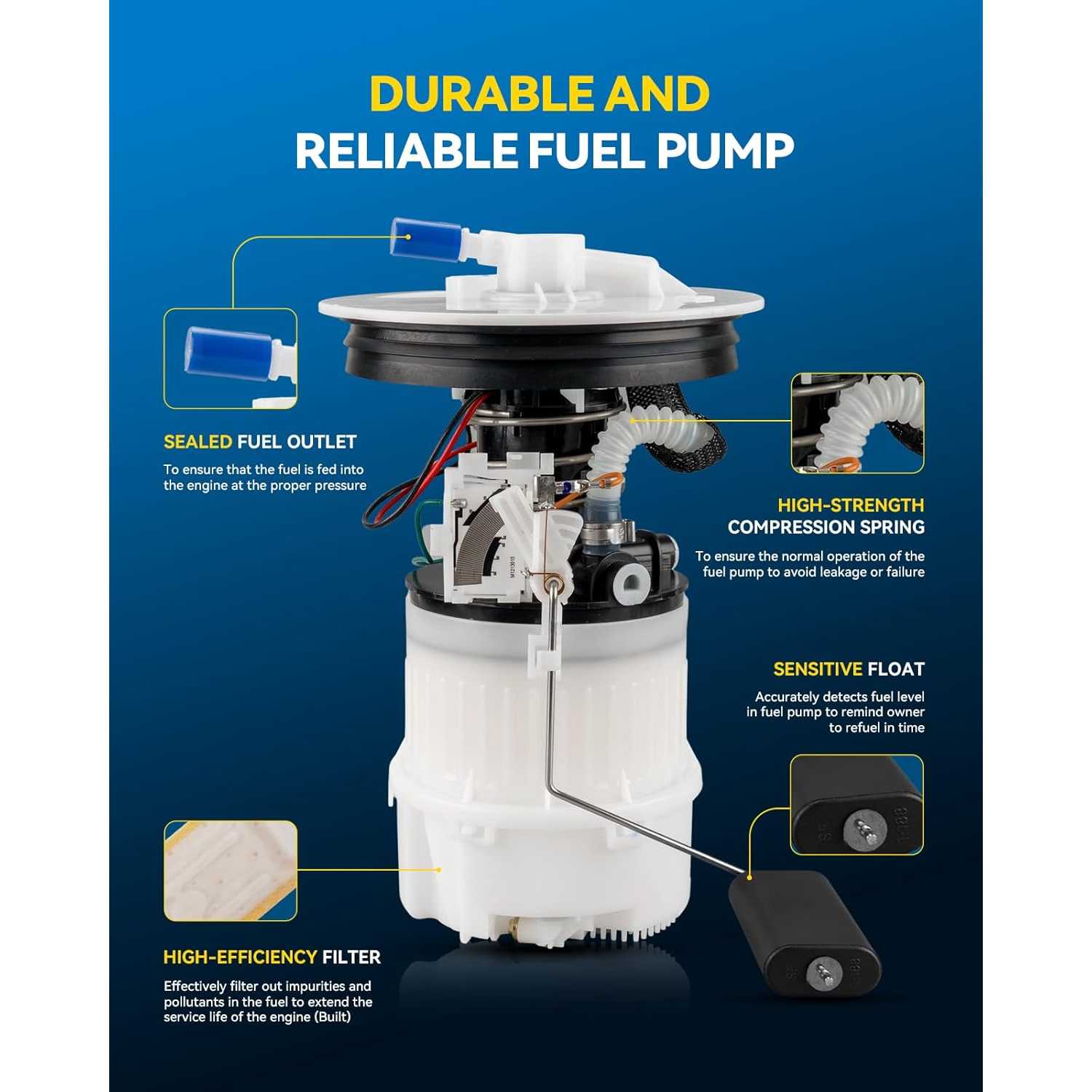

Highlights

  • Fitment: Compatible with [Mazda] 2004-2009 3 Naturally Aspirated, (with Plastic Cover;with Federal Emissions System).
  • Reference Number: LF661335XB, LF661335XC, USEP8591M, SP4052M, E8591M, P76308M, LF661335XE, FG1249, CFG1249, LF661335XF, 67269, LF661335XG, 67270, 5452030, 3M519H307AV, P76258M, LF661335X, 150310, 4010490, LF661335XA, F4502A, LF661335XD, 2920602, 1234801, M2425953, TNKSP4052M, B19112456TG, C0606M.
  • Related Parts: ① Fuel Pump, ② Strainer.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 200920052004 - 2009
MakeMazdaMazdaMazda
Model333
TrimSSP23i
Engine2.3L L42.3L L42.0L L4
Note
with Federal Emissions System;with Plastic Cover
with Federal Emissions System;with Plastic Cover
with Federal Emissions System;with Plastic Cover

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.

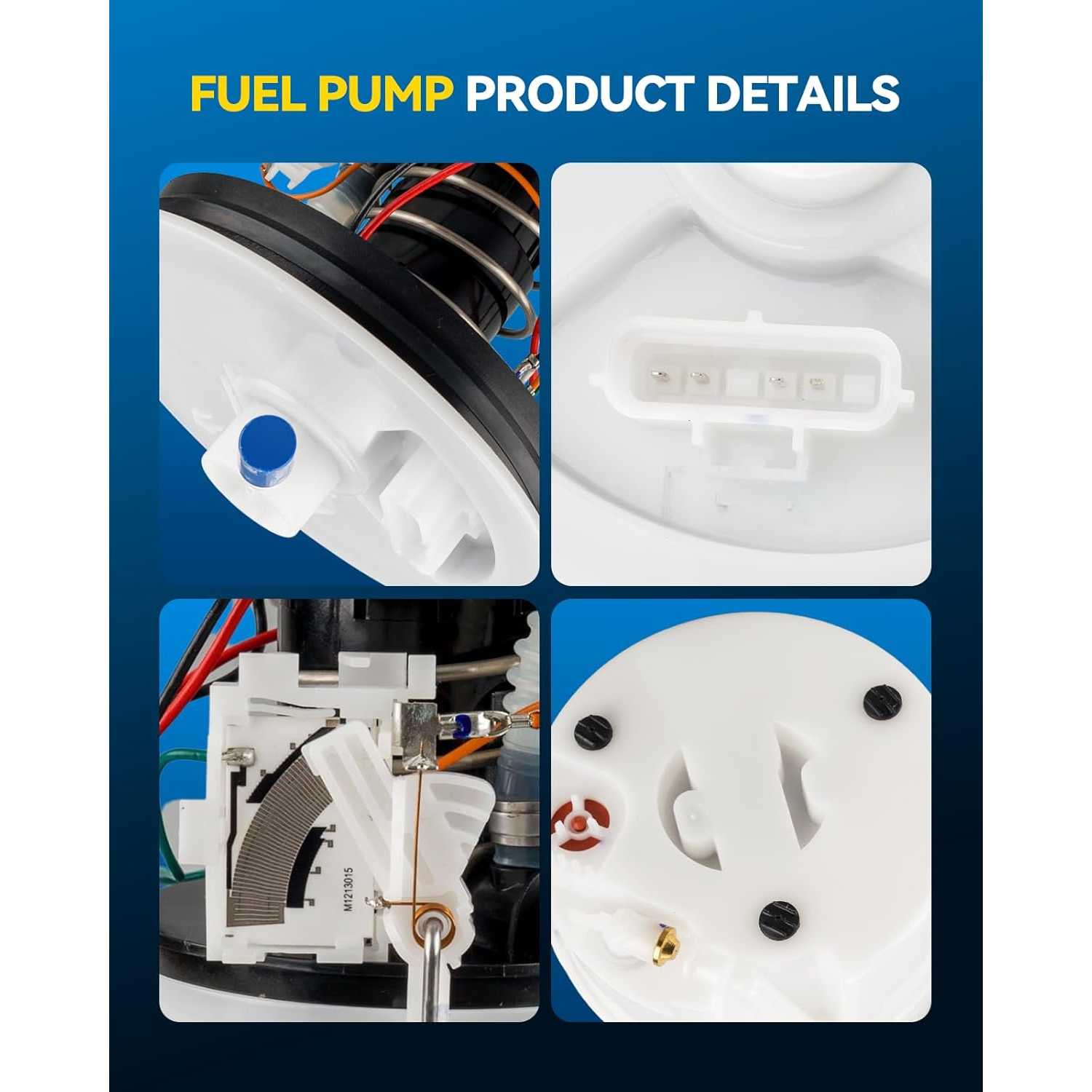

  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel Pumpfuel pump

Reviews

4.8/5

Based on 22 reviews

577%
423%
30%
20%
10%

Customer photos and videos

Maybel M.Maybel M.

02/22/2026

Verified buyer

The media could not be loaded. The PHILTOP electric fuel pump assembly for Mazda 3 (2004–2009) is an excellent replacement option. It fits properly and installs without complications, making it a smooth and straightforward repair. Once installed, the vehicle runs noticeably better, with stable fuel delivery and consistent performance. The construction feels solid and well made, giving confidence in its durability. The pump operates quietly and restores proper engine response, helping eliminate hesitation or starting issues. It performs just as expected from a quality replacement part. If you’re looking for a dependable and affordable fuel pump assembly compatible with Mazda 3 models from 2004 to 2009, this is a great choice that delivers reliable results.

Celeena DawsonCeleena Dawson

03/09/2026

Verified buyer

I’ll admit, when I saw the box on my porch, I was a little nervous. As you can see from the photos, the packaging took a serious hit during transit—there was even a puncture where part of the assembly was poking through the cardboard.However, upon unboxing, I was pleasantly surprised. Despite the rough ride, the fuel pump assembly itself was in perfect condition. No cracks in the plastic housing, the float arm wasn’t bent, and the electrical connectors were pristine.The PerformanceI installed this into my vehicle over the weekend, and it has been working flawlessly so far.* Fitment: Slid right into the tank without any struggling or modifications.* Noise Level: It’s whisper-quiet. You can hear it prime for a split second when you turn the key, then nothing but a smooth idle.* Fuel Gauge: The sending unit is accurate, which was my biggest concern with an aftermarket part.The Bottom LineIf you’re looking for a reliable replacement that won't break the bank, this is it. It’s a high-quality part that clearly knows how to take a punch (literally, given the box). Just give it a quick visual inspection when it arrives to make sure the shipping gremlins didn't get to it!Highly recommended for anyone looking to get their vehicle back on the road without the "dealership tax."
