2005-2009 Hyundai Tucson 2.7L | Fuel Pump Assembly | OE#1102E350/FG1262 - PHILTOP

2005-2009 Hyundai Tucson 2.7L | Fuel Pump Assembly | OE#1102E350/FG1262 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

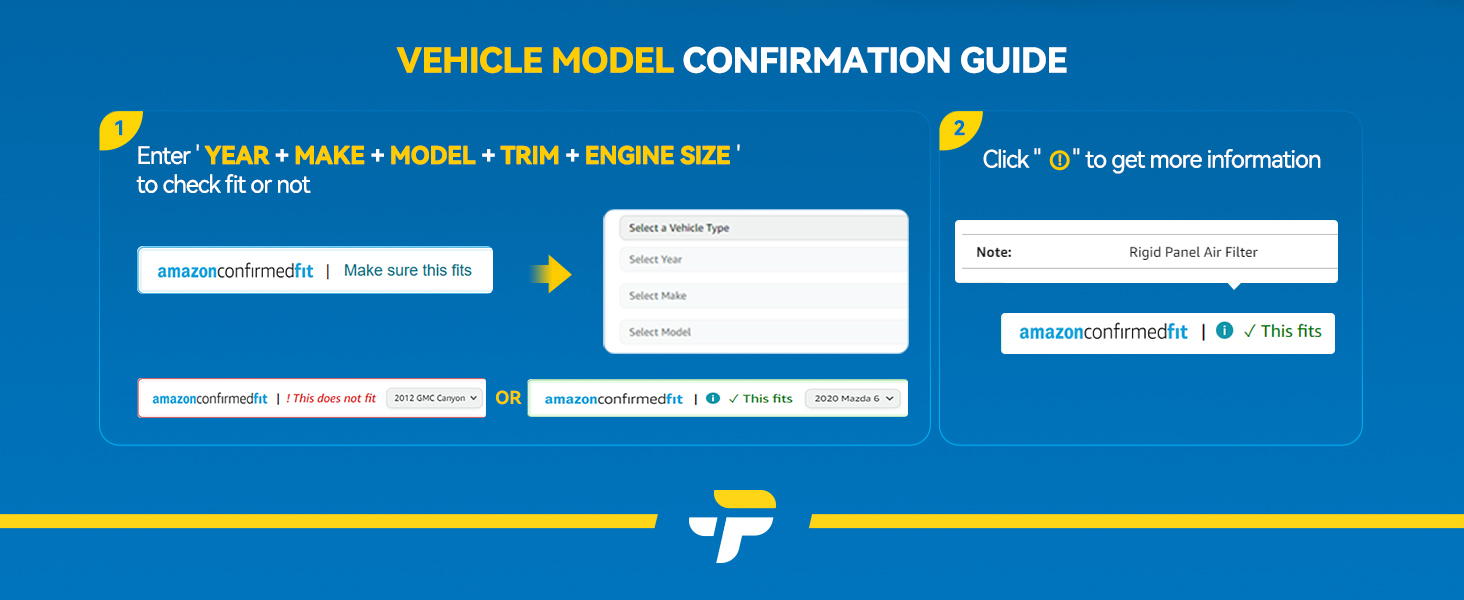

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2671FUP1332US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No

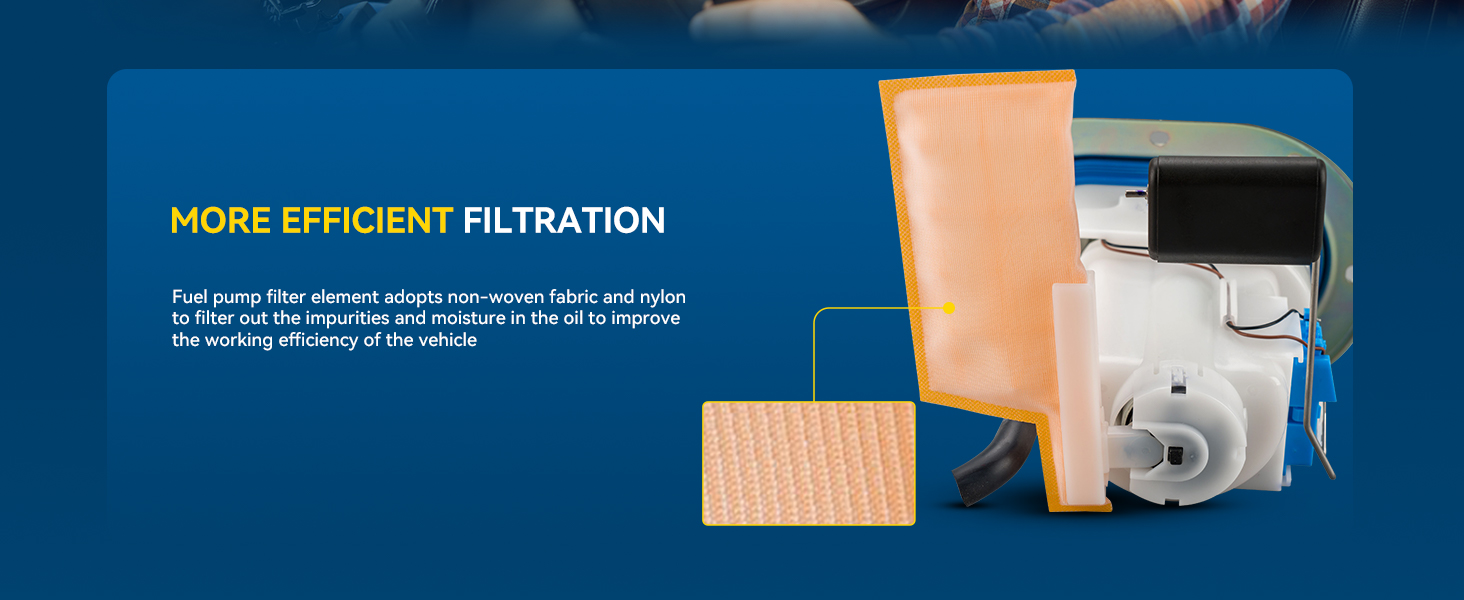

Strainer Included
Yes

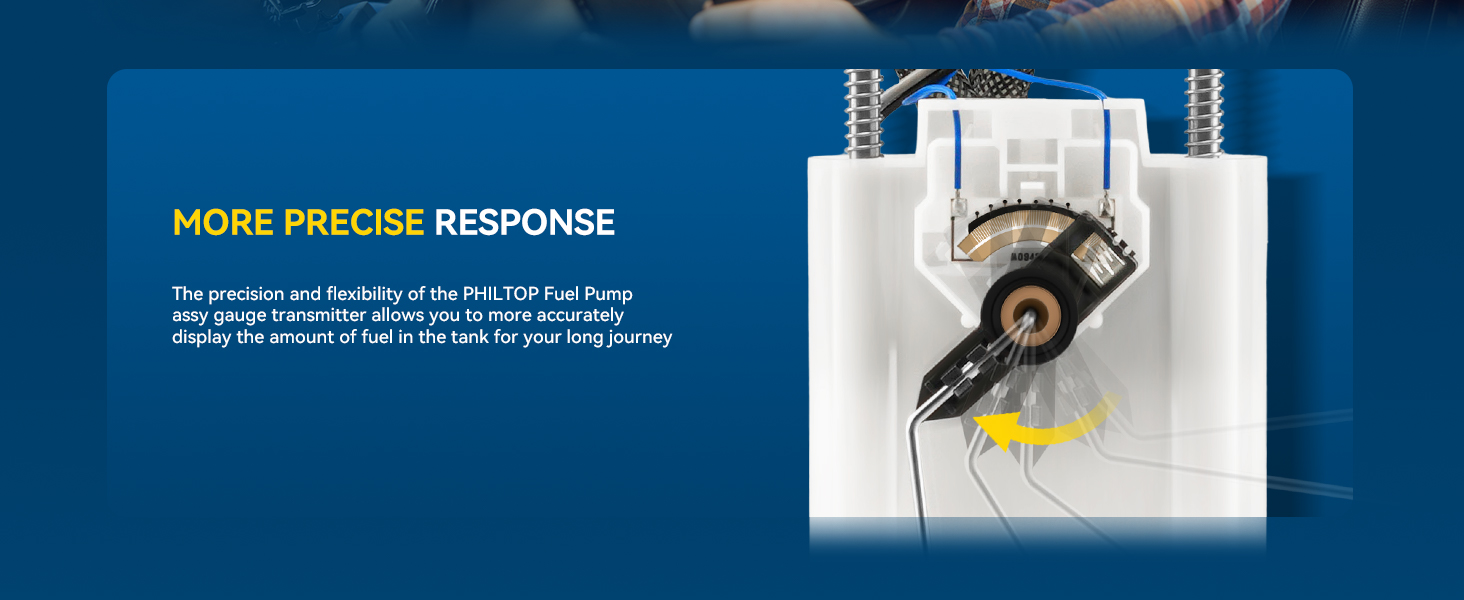

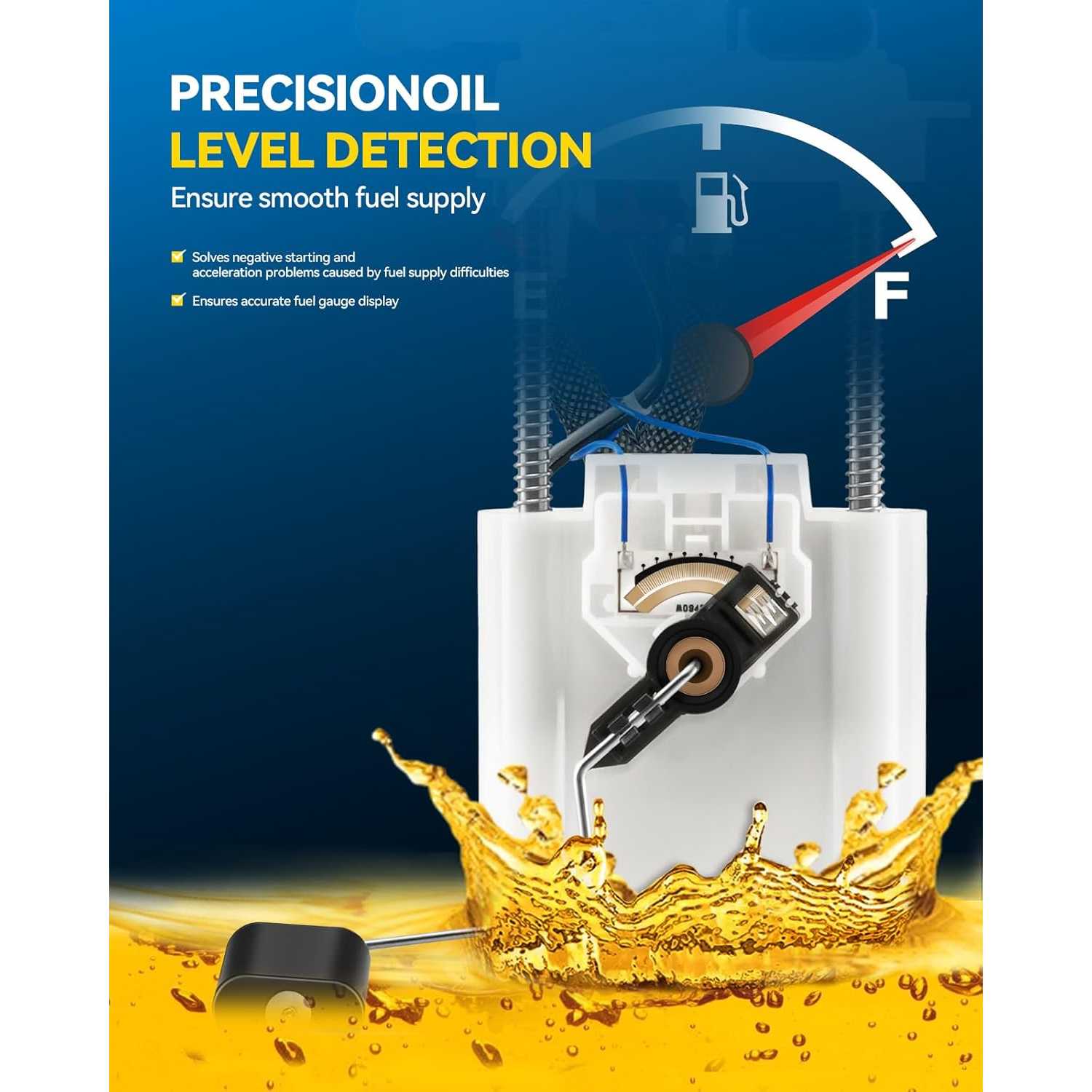

Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
104.0 Ω
Resistance Ohms Full
4.0 Ω
Average Flow Rating
50 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
80.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

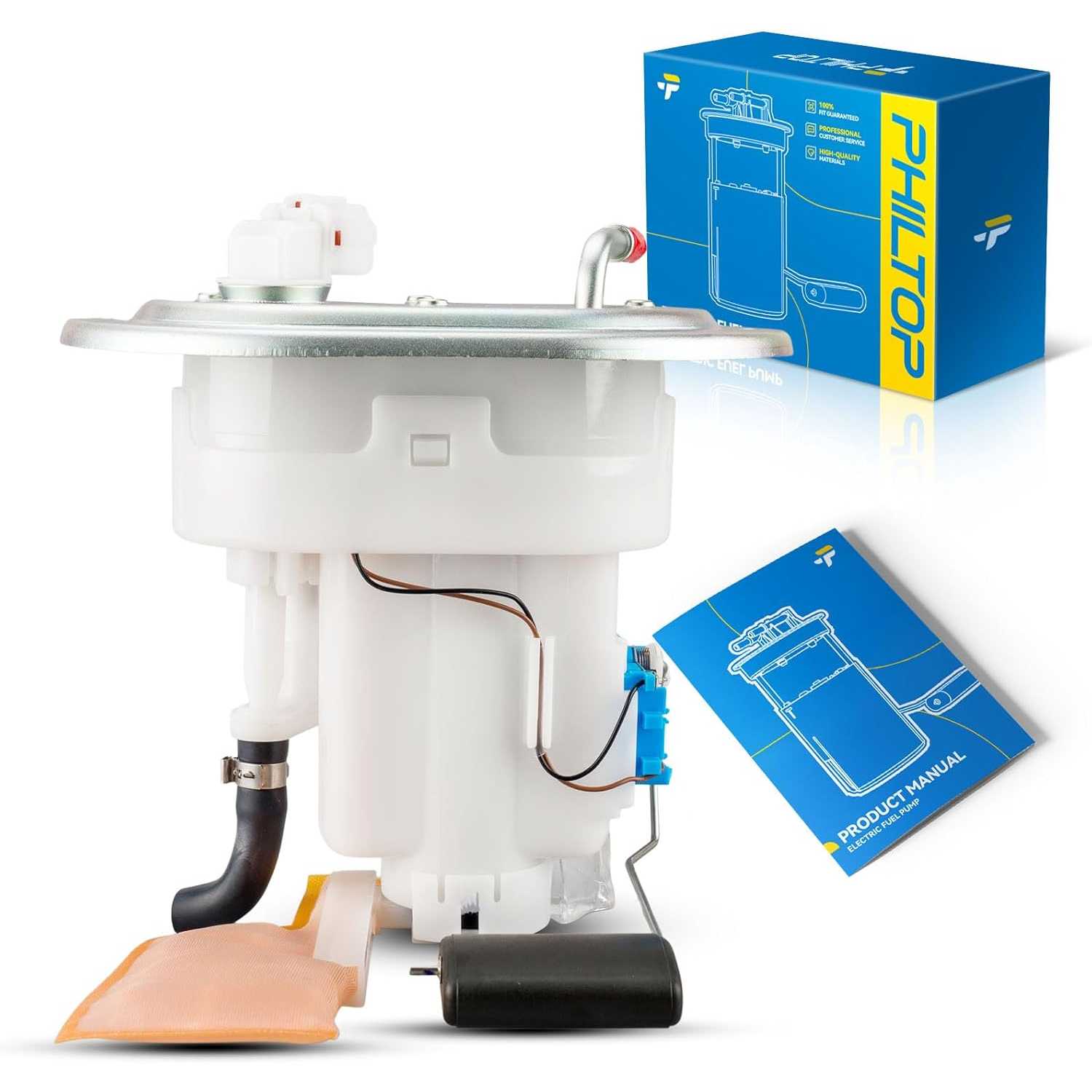

1x Fuel Pump Assembly - FG1262
Warranty Period
2-Year
OE Number
1102E450,1102E350,311102E351,311102E350,311102E450
Part Number
FG1262,SP3014M,P76533M,E8678M,E8677M,FG0796,CFG1262,4010542,USEP8678M,B17111359TG,C0648M,M2496363,1234907,2920155,TNKSP3014M

Highlights

  • Fitment: Compatible with [Kia] 2005-2010 Sportage 2.7L, [Hyundai] 2005-2009 Tucson 2.7L.
  • Reference Number: FG0796, E8678M, CFG1262, 4010542, E8677M, 311102E351, FG1262, SP3014M, 311102E350, 311102E450, P76533M, 1102E350, 1102E450, 2920155, 1234907, M2496363, TNKSP3014M, B17111359TG, USEP8678M, C0648M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.

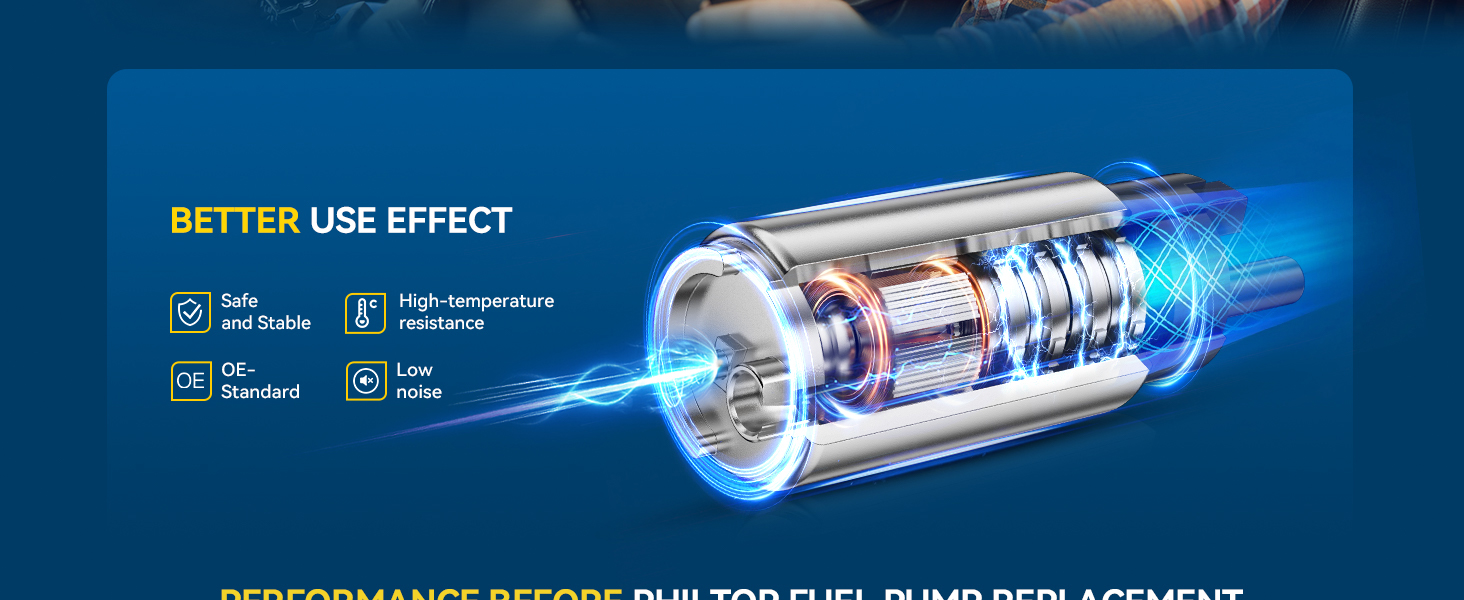

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 200620052006 - 20092007 - 20092005 - 20102005 - 2010
MakeHyundaiHyundaiHyundaiHyundaiKiaKia
ModelTucsonTucsonTucsonTucsonSportageSportage
TrimGLSLXLimitedSEEXLX
Engine2.7L V62.7L V62.7L V62.7L V62.7L V62.7L V6
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

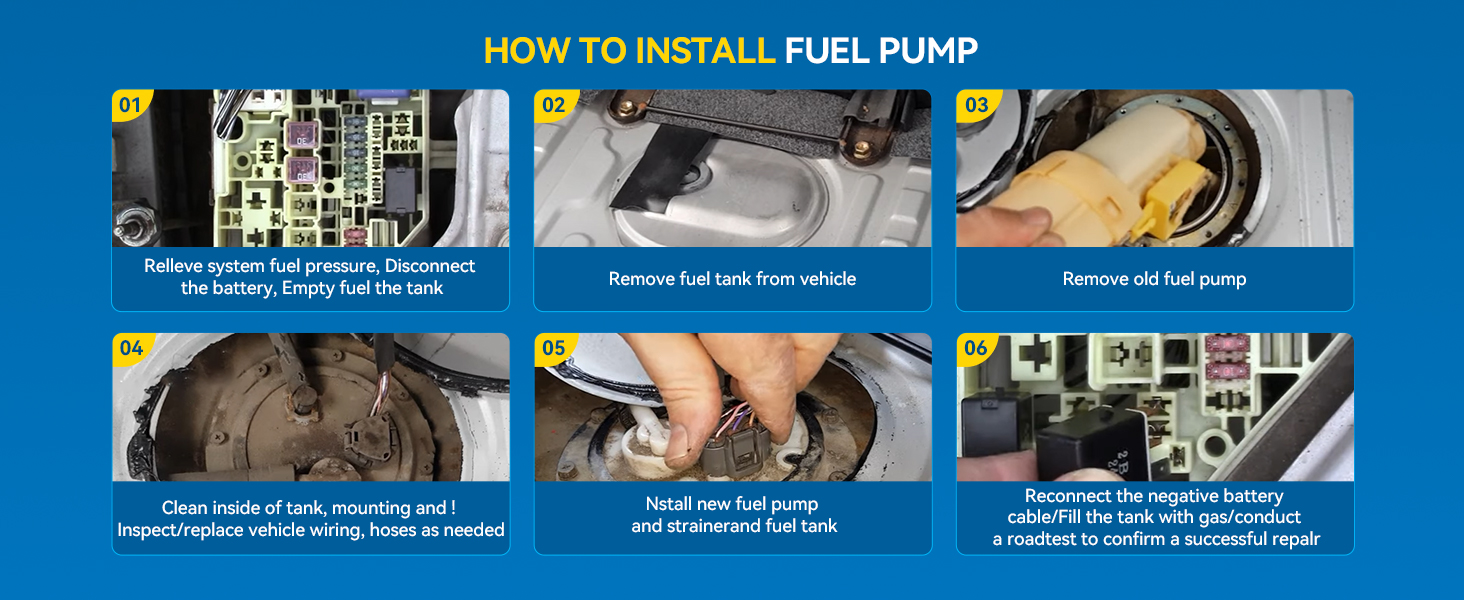

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

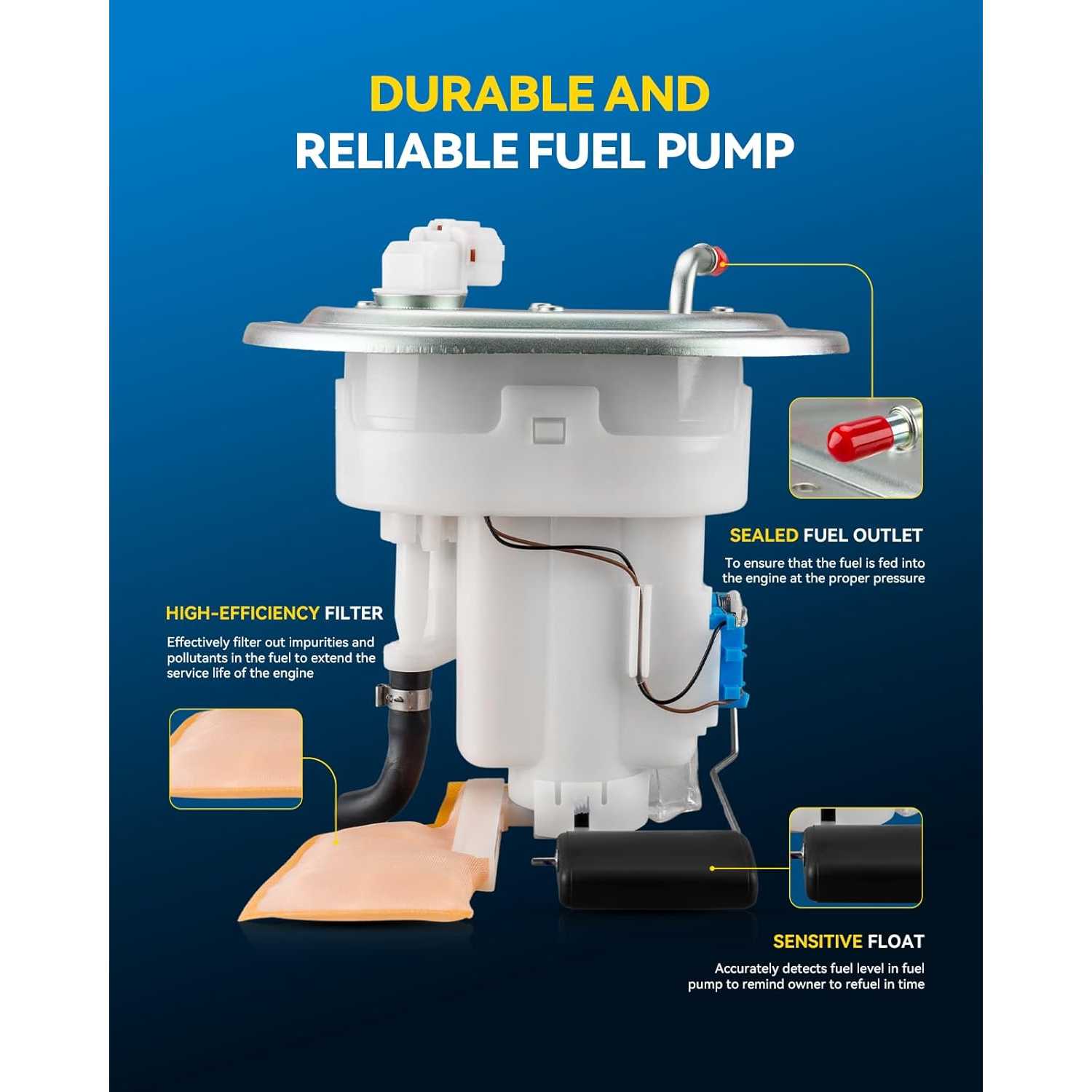

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 4 reviews

5100%
40%
30%
20%
10%

Buddy

02/19/2026

Verified buyer

Great replacement part at a great priceInstallation was a breeze hooked up and back on the road.

Francisco M.

12/27/2025

Verified buyer

Perfect fit for my car
