2009-2012 Ford Escape 2.5L/3.0L | Fuel Pump Assembly | OE#9L8Z9H307C/FG1318 - PHILTOP

2009-2012 Ford Escape 2.5L/3.0L | Fuel Pump Assembly | OE#9L8Z9H307C/FG1318 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1921FUP325UUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
180.0 Ω
Resistance Ohms Full
10.0 Ω
Average Flow Rating
20 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
60.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

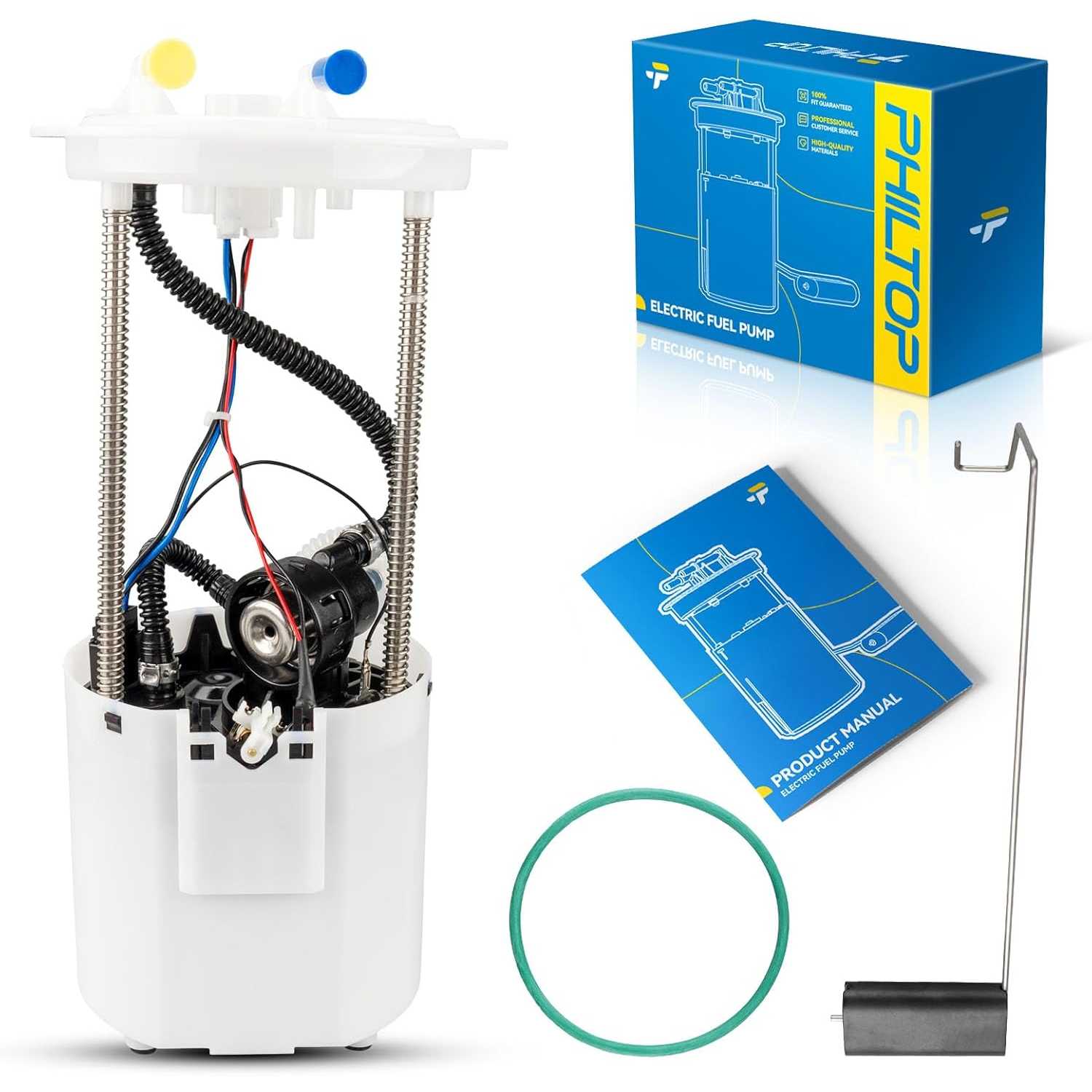

Items Included
1x Fuel Pump Assembly - FG1318
Warranty Period
2-Year
OE Number
9L8Z9H307C,ZZEB1335X,AL8Z9H307C,AM6Z9H307A,AL8Z9H307B
Part Number
FG1318,SP2392M,P76592M,USEP2529M

Highlights

  • Fitment: Compatible with [Ford] 2009 Escape GAS(From 08/03/2009), 2010 Escape(To 08/03/2009), 2011-2012 Escape FHEV/FLEX, [Mercury] 2009 Mariner GAS, 2010 Mariner(To 08/03/2009), 2011 Mariner FHEV/FLEX, [Mazda] 2010 Tribute FHEV.
  • Reference Number: USEP2529M, FG1318, AL8Z9H307C, AM6Z9H307A, SP2392M, P76592M, AL8Z9H307B, 9L8Z9H307C, ZZEB1335X.

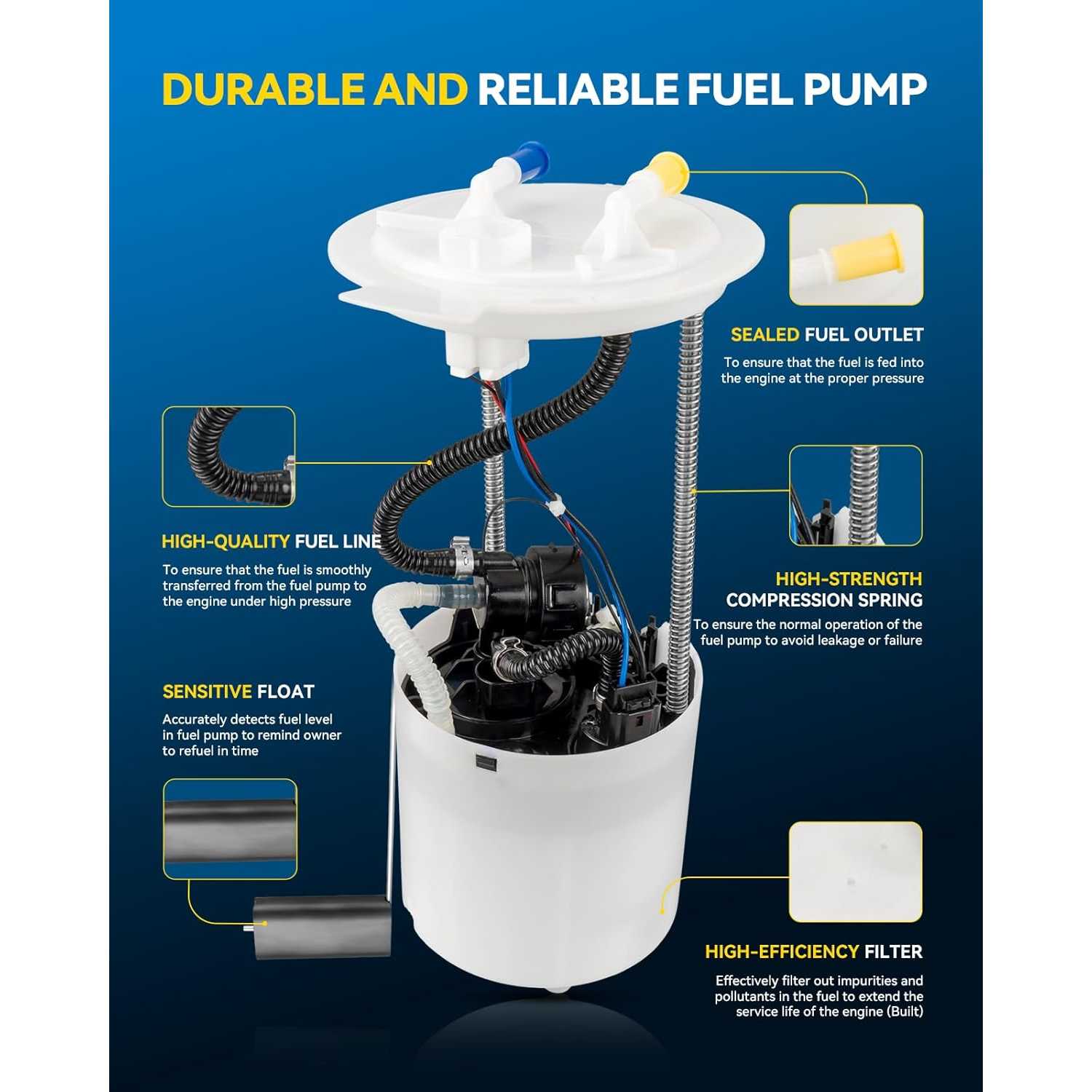

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20122009201020092010 - 20122010 - 2012200920102009201020092010 - 201220102010 - 20112009 - 20102009 - 20102011201020112009 - 20102009 - 20102011
MakeFordFordFordFordFordFordFordFordFordFordFordFordMazdaMazdaMercuryMercuryMercuryMercuryMercuryMercuryMercuryMercury
ModelEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeEscapeTributeTributeMarinerMarinerMarinerMarinerMarinerMarinerMarinerMariner
TrimHybridLimitedLimitedLimitedLimitedLimited HybridXLSXLSXLTXLTXLTXLTHybridSBaseBaseBaseHybridHybridPremierPremierPremier
Engine2.5L L42.5L L42.5L L43.0L V63.0L V62.5L L42.5L L42.5L L42.5L L42.5L L43.0L V63.0L V62.5L L43.0L V62.5L L43.0L V63.0L V62.5L L42.5L L42.5L L43.0L V63.0L V6
Note-
From 08/03/2009
-
From 08/03/2009
--
From 08/03/2009
-
From 08/03/2009
-
From 08/03/2009
---
From 08/03/2009
From 08/03/2009
-
From 08/03/2009
-
From 08/03/2009
From 08/03/2009
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 6 reviews

5100%
40%
30%
20%
10%

Gino

07/31/2026

Verified buyer

Easy install and has worked great since

Walter Dyer

12/03/2025

Verified buyer

Best service good product

FAQS

No FAQs have been added for this product yet.
