2009-2011 Ford Focus 2.0L L4 | Fuel Pump Assembly | OE#9S4Z9H307A/FG1327 - PHILTOP

2009-2011 Ford Focus 2.0L L4 | Fuel Pump Assembly | OE#9S4Z9H307A/FG1327 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1989FUP360LUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
180.0 Ω
Resistance Ohms Full
10.0 Ω
Average Flow Rating
20 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
78.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

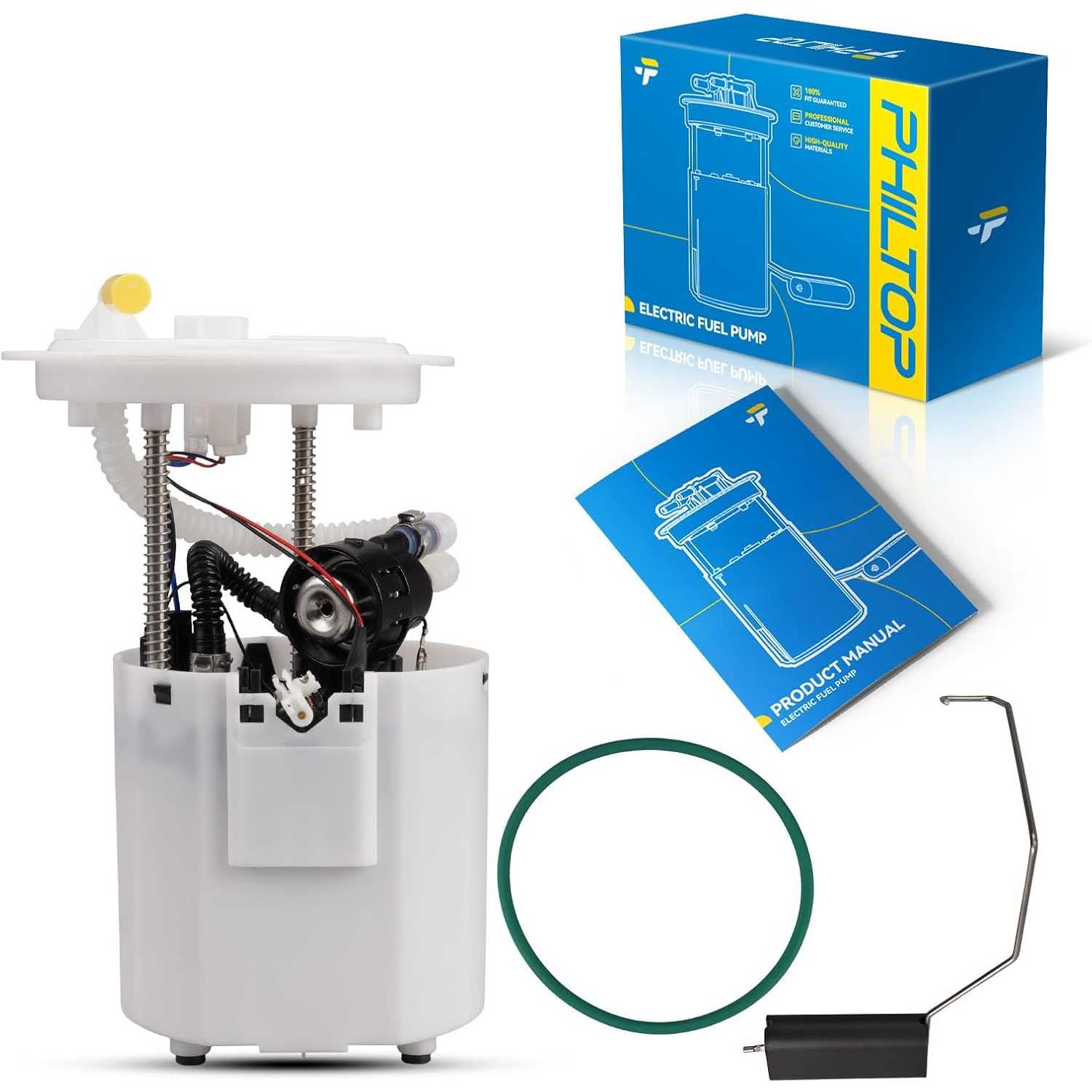

Items Included
1x Fuel Pump Assembly - FG1327
Warranty Period
2-Year
OE Number
9S4Z9H307A,AE8Z9H307G,AE8Z9H307C,AE8Z9A299B,AE8Z9A299A,AE8Z9H307A,AE8Z9H307AA,AE8Z9H307E,AE8Z9H307H
Part Number
FG1327,SP2115M,P76462M,SP2517M,P76891M,USEP2593M,5252325,USEP2525M

Highlights

  • Fitment: Compatible with [Ford] 2009-2011 Focus, 2011-2013 Fiesta.
  • Reference Number: AE8Z9H307C, USEP2593M, FG1327, SP2115M, P76462M, 9S4Z9H307A, SP2517M, USEP2525M, AE8Z9A299B, AE8Z9A299A, AE8Z9H307G, P76891M, 5252325, AE8Z9H307A, AE8Z9H307AA, AE8Z9H307E, AE8Z9H307H.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2011 - 20132011 - 20132011 - 20122011 - 201220132009 - 20112009 - 20112009 - 20112009 - 2011
MakeFordFordFordFordFordFordFordFordFord
ModelFiestaFiestaFiestaFiestaFiestaFocusFocusFocusFocus
TrimSSESELSESTitaniumSSESELSES
Engine1.6L L41.6L L41.6L L41.6L L41.6L L42.0L L42.0L L42.0L L42.0L L4
Note---------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Edwin

05/16/2026

Verified buyer

Buen precio y rápido el envio

FAQS

No FAQs have been added for this product yet.
