Carbon Commutator

Precision Ceramic Resistor

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9958FUP329YUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
200.0 Ω
Resistance Ohms Full
10.0 Ω
Average Flow Rating
45 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
49.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
1
Outlet Type
Hose
Pump Structure
Turbine Impeller
Items Included

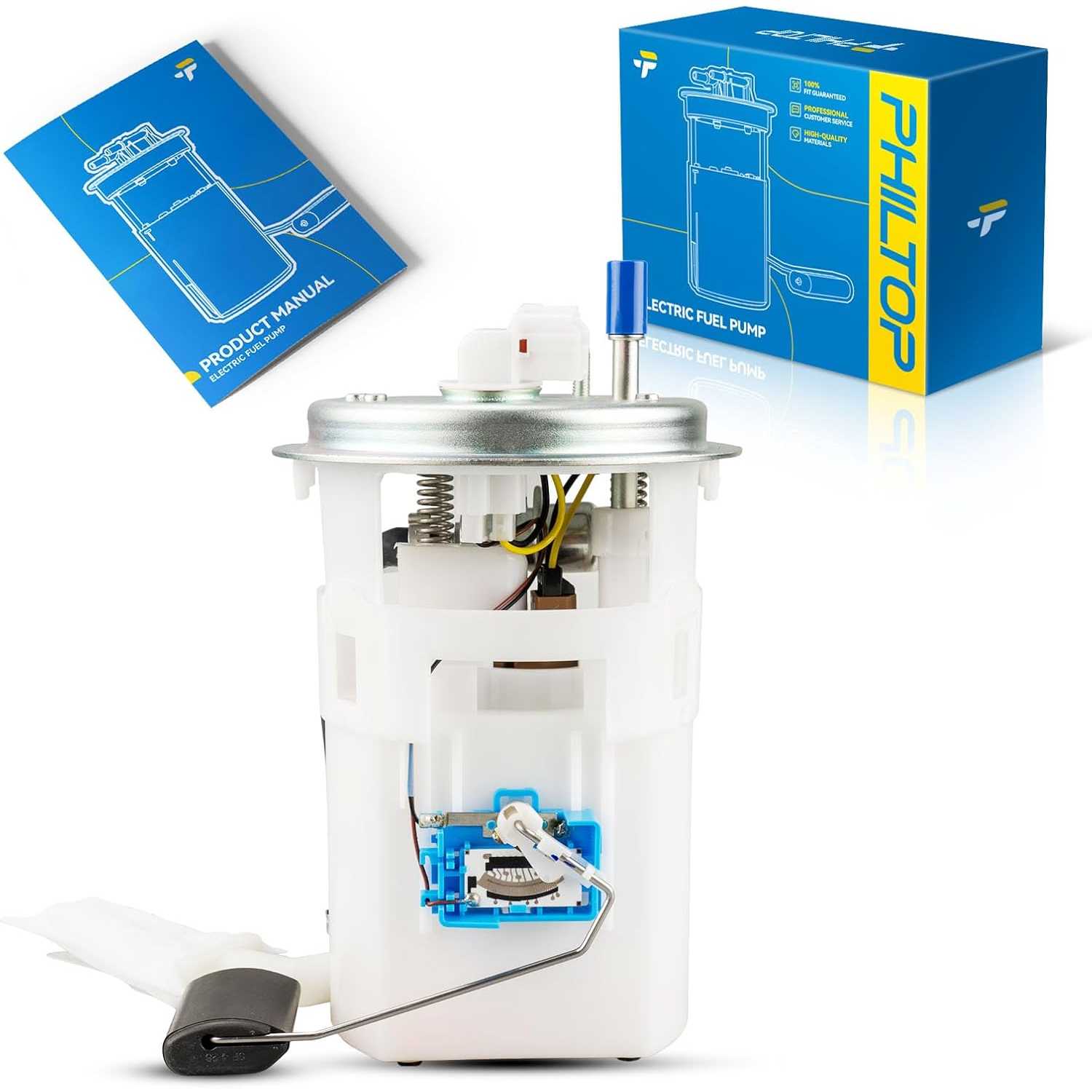

1x Fuel Pump Assembly - FG1347
Warranty Period
2-Year
OE Number
310902F500,311102F500
Part Number
SP3027M,P76143M,FG1347,USEP8728M

Highlights

  • Fitment: Compatible with [Kia] 2004-2006 Spectra 2.0L, 2005-2006 Spectra5.
  • Reference Number: SP3027M, P76143M, 310902F500, 311102F500, USEP8728M, FG1347.

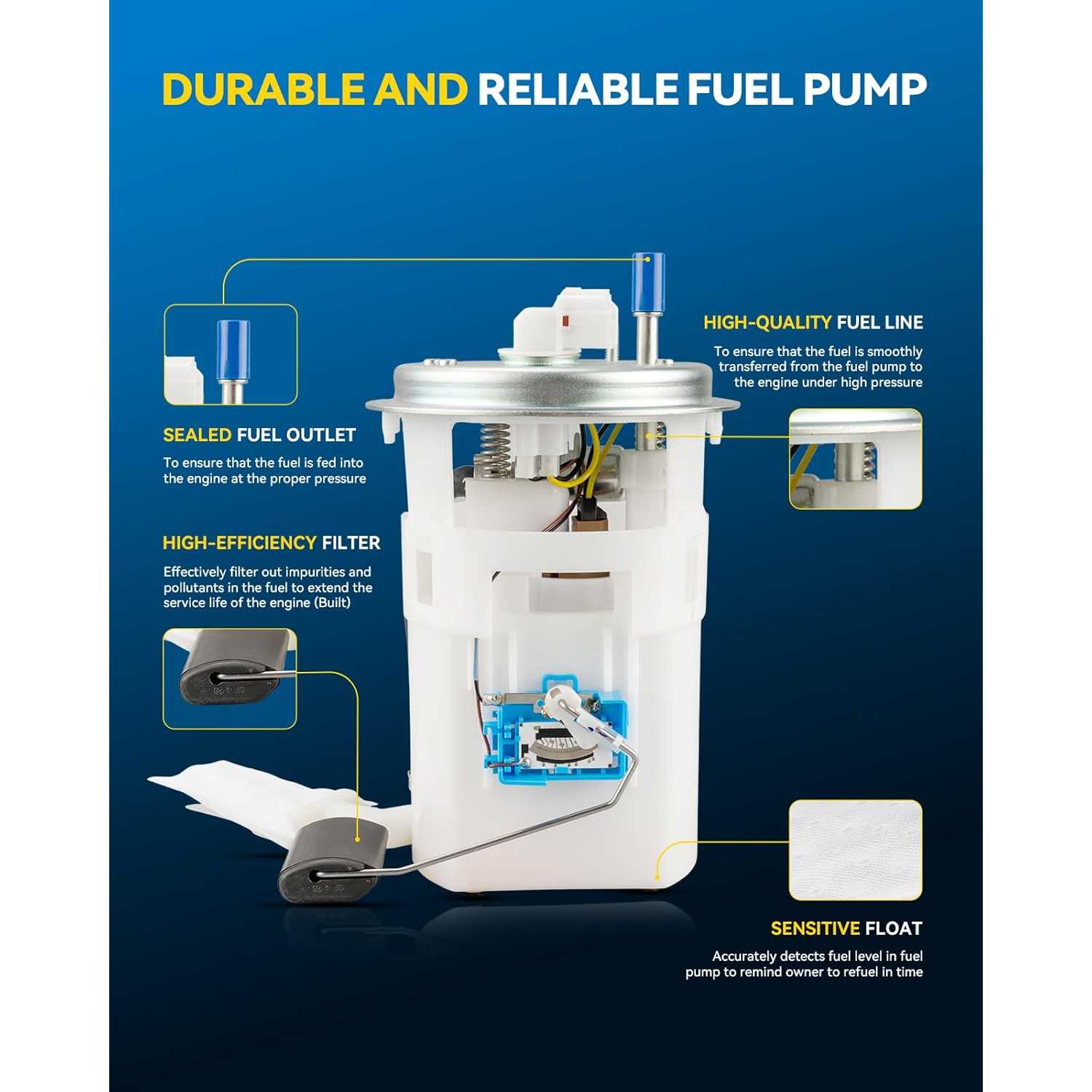

  • Related Parts: ① Fuel Pump, ② Strainer.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 20062004 - 20052005 - 20062005 - 2006
MakeKiaKiaKiaKia
ModelSpectraSpectraSpectraSpectra5
TrimEXLXSXBase
Engine2.0L L42.0L L42.0L L42.0L L4
Note----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

SUNSHINE STONE

06/18/2024

Verified buyer

It works perfectly for 2006 Spectra 2.0L

ray stone

06/18/2024

Verified buyer

It works perfectly for 2006 Spectra 2.0L
