Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5126FUP0675US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
250.0 Ω
Resistance Ohms Full
40.0 Ω
Average Flow Rating
20 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
78.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

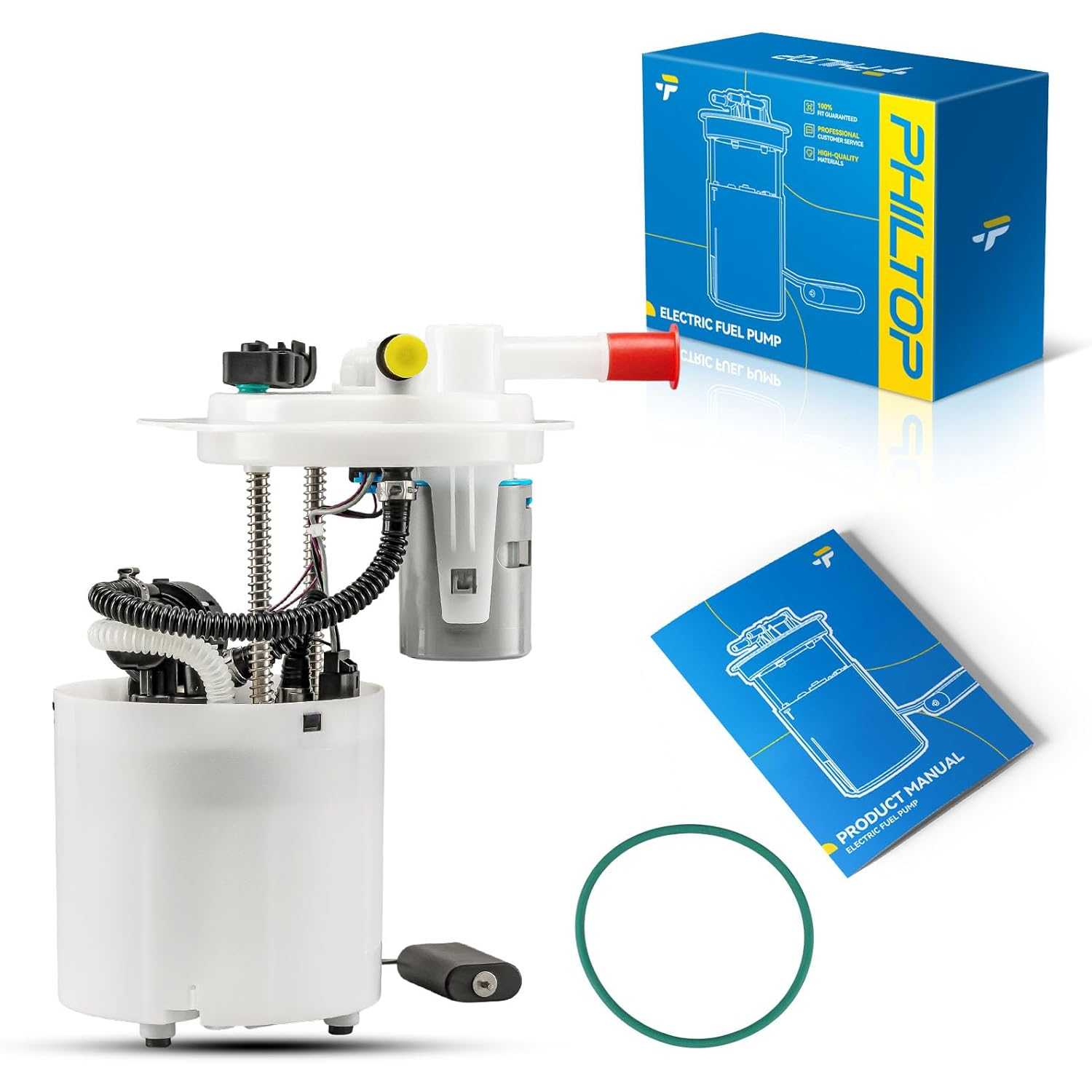

Items Included
1x Fuel Pump Assembly - FG1371
Warranty Period
2-Year
OE Number
22957143,19329336,19370465,19207494,19167429,22753589,19181841,23240487,15969626,84084766,22833390,22783658
Part Number
FG1371,P76830M,SP6657M,USEP3790M,EP1031,MU2209,F2701A,M10059,2920808,C0297M,M3520868,B11112423TG,1234702,PN3133,A46024,4010726,CFG1371,TNKSP6657M

Highlights

  • Fitment: Compatible with [Chevrolet] 2009-2017 Traverse, [GMC] 2009-2016 Acadia, 2017 Acadia Limited, [Buick] 2009-2017 Enclave, [Saturn] 2009-2010 Outlook.
  • Reference Number: M3520868, B11112423TG, 1234702, 4010726, 22783658, MU2209, 22957143, 19329336, 19370465, 19207494, 19167429, PN3133, 22753589, F2701A, 19181841, USEP3790M, 23240487, CFG1371, 15969626, FG1371, 84084766, P76830M, SP6657M, A46024, 22833390, M10059, EP1031, 2920808, C0297M, TNKSP6657M.
  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring, ④ Pressure Sensors.

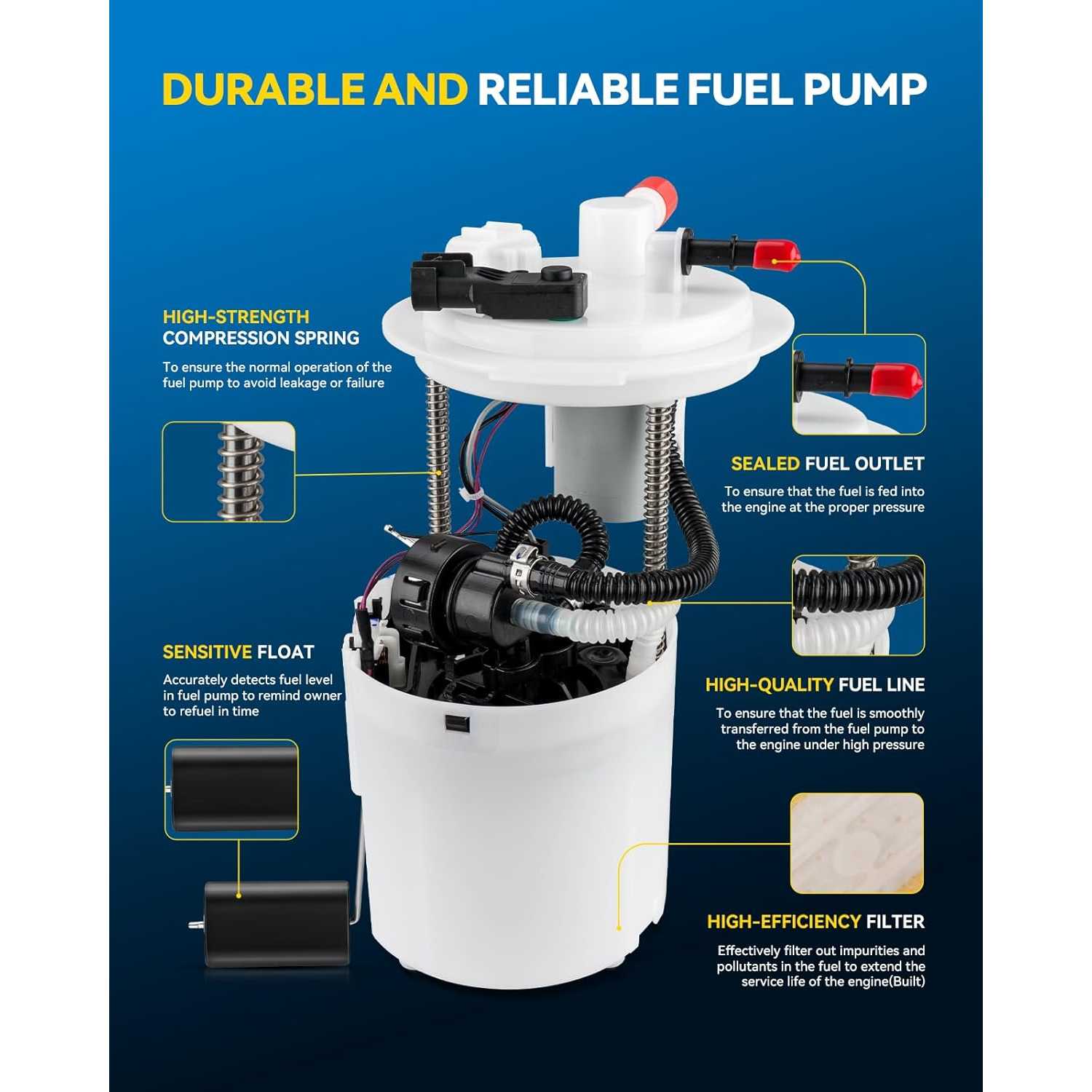

  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20132009 - 20112009 - 20112014 - 20172014 - 20172014 - 20172009 - 20172009 - 20172009 - 201620172011 - 20162010 - 201320162009 - 20162009 - 201620172009 - 20102009 - 2010
MakeBuickBuickBuickBuickBuickBuickChevroletChevroletChevroletChevroletGMCGMCGMCGMCGMCGMCSaturnSaturn
ModelEnclaveEnclaveEnclaveEnclaveEnclaveEnclaveTraverseTraverseTraverseTraverseAcadiaAcadiaAcadiaAcadiaAcadiaAcadia LimitedOutlookOutlook
TrimBaseCXCXLConvenienceLeatherPremiumLSLTLTZPremierDenaliSLSLSLESLTBaseXEXR
Engine3.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V63.6L V6
Note------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

erica

09/27/2024

Verified buyer

The product fit my truck perfectly it also cost way less than if I let the mechanic buy the part with labor and now My truck is functioning properly now because of it

FAQS

No FAQs have been added for this product yet.
