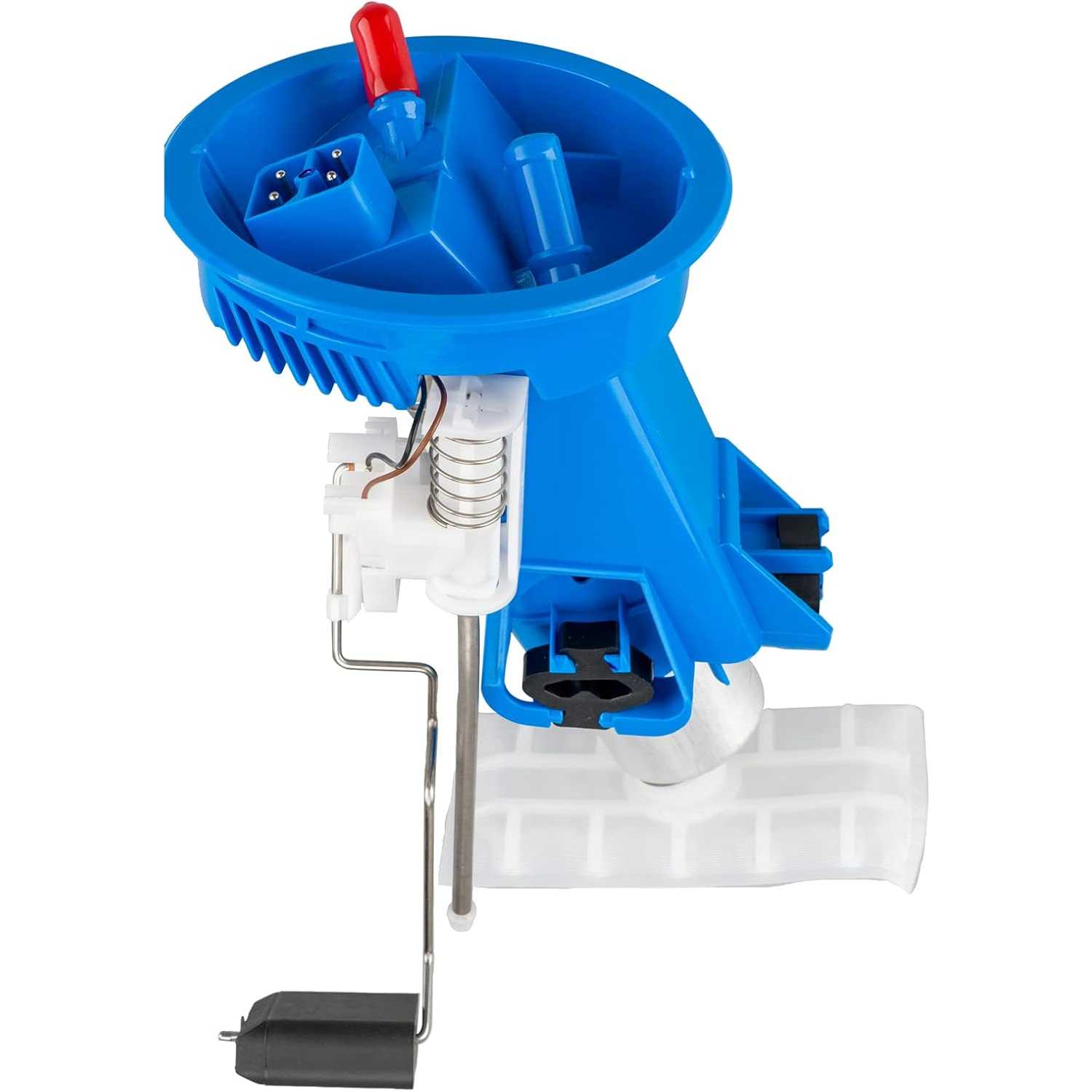

1998-1999 BMW 323i 2.5L | Fuel Pump Assembly | OE#16141182985/FG1402 - PHILTOP

1998-1999 BMW 323i 2.5L | Fuel Pump Assembly | OE#16141182985/FG1402 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2513FUP241SUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
No
Pressure Sensor Included
No
Strainer Included
Yes
Resistance Ohms Empty
10.0 Ω
Resistance Ohms Full
267.0 Ω
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Outlet Type
Hose
Pump Structure
Turbine Impeller
Items Included
1x Fuel Pump Assembly - FG1402
Warranty Period
2-Year
OE Number
16141182985,16141183139,16146758736
Part Number
FG1402,P77408S,E8233,E16132,AFS0734P,SP1237,DFG1402,A47144,C0477H

Highlights

  • Fitment: Compatible with [BMW] 1995-1998 318i(From 01/1995), 1996-1997 318is, 1998-1999 323i Convertible, 1998-1999 323is, 1995 325i, 325is(From 01/1995), 1996-1998 328i, 1999 328i Convertible, 1996-1999 328is, 1995-1999 M3(From 01/1995).
  • Reference Number: 16141182985, 16146758736, FG1402, 16141183139, E8233, E16132, DFG1402, AFS0734P, SP1237, P77408S, A47144, C0477H.
  • Related Parts: ① Fuel Pump, ② Strainer .
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year19951996 - 19981996 - 19971998 - 19991998 - 1999199519951996 - 19991996 - 199919951996 - 19991995
MakeBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMWBMW
Model318i318i318is323i323is325i325is328i328isM3M3M3
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseLightweight
Engine1.8L L41.9L L41.9L L42.5L L62.5L L62.5L L62.5L L62.8L L62.8L L63.0L L63.2L L63.0L L6
Note
From 01/1995
From 01/1995
---
From 01/1995
From 01/1995
--
From 01/1995
From 01/1995
From 01/1995

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

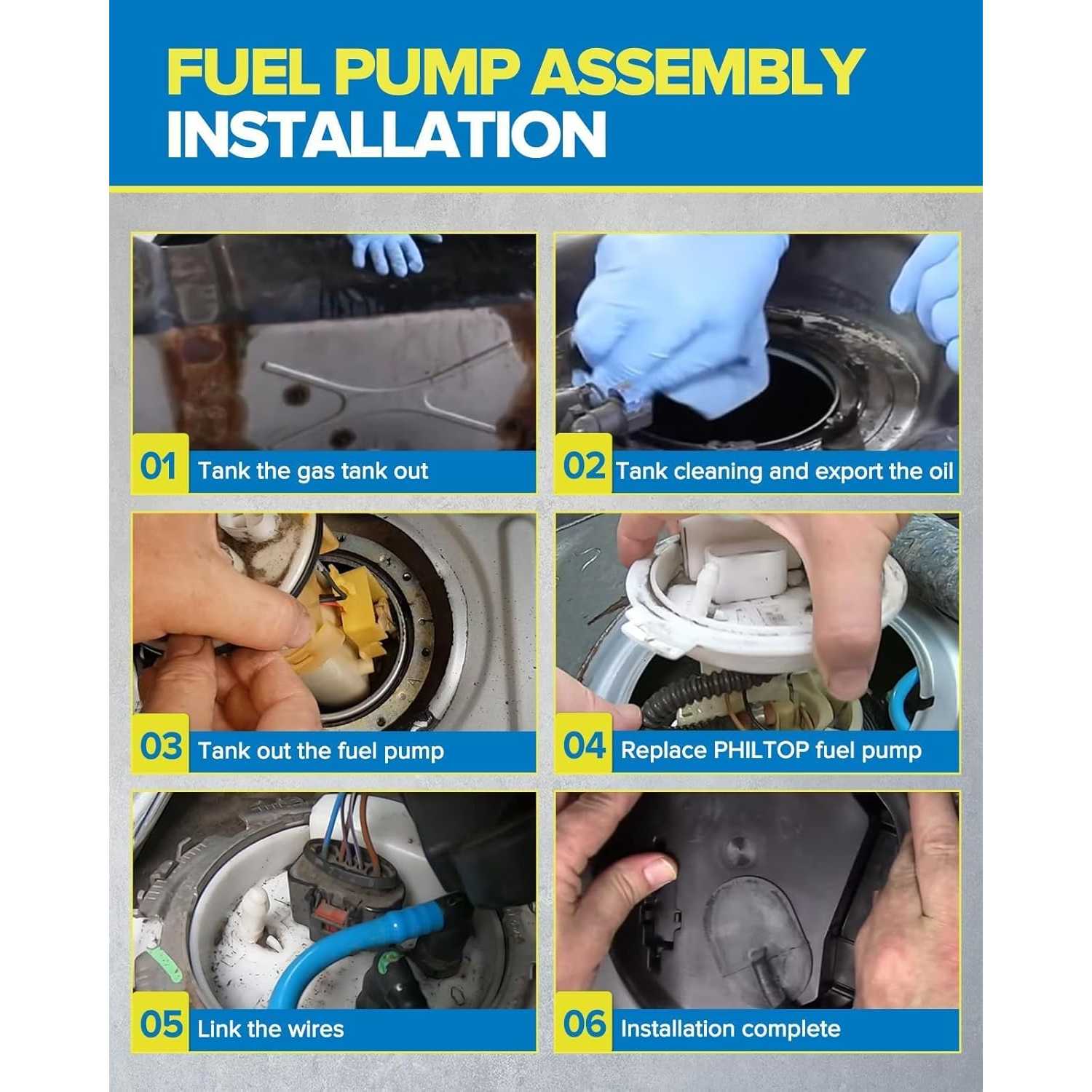

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

Customer

04/12/2026

Verified buyer

Works good

Jessie

07/27/2023

Verified buyer

Got my 92 328is up and running no problems
