2007-2017 Jeep Patriot 2.4L | Fuel Pump Assembly | OE#5183202AA/P76269M - PHILTOP

2007-2017 Jeep Patriot 2.4L | Fuel Pump Assembly | OE#5183202AA/P76269M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2526FUP338NUS

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
120.0 Ω
Resistance Ohms Full
13.0 Ω
Average Flow Rating
26 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
109.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
1
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

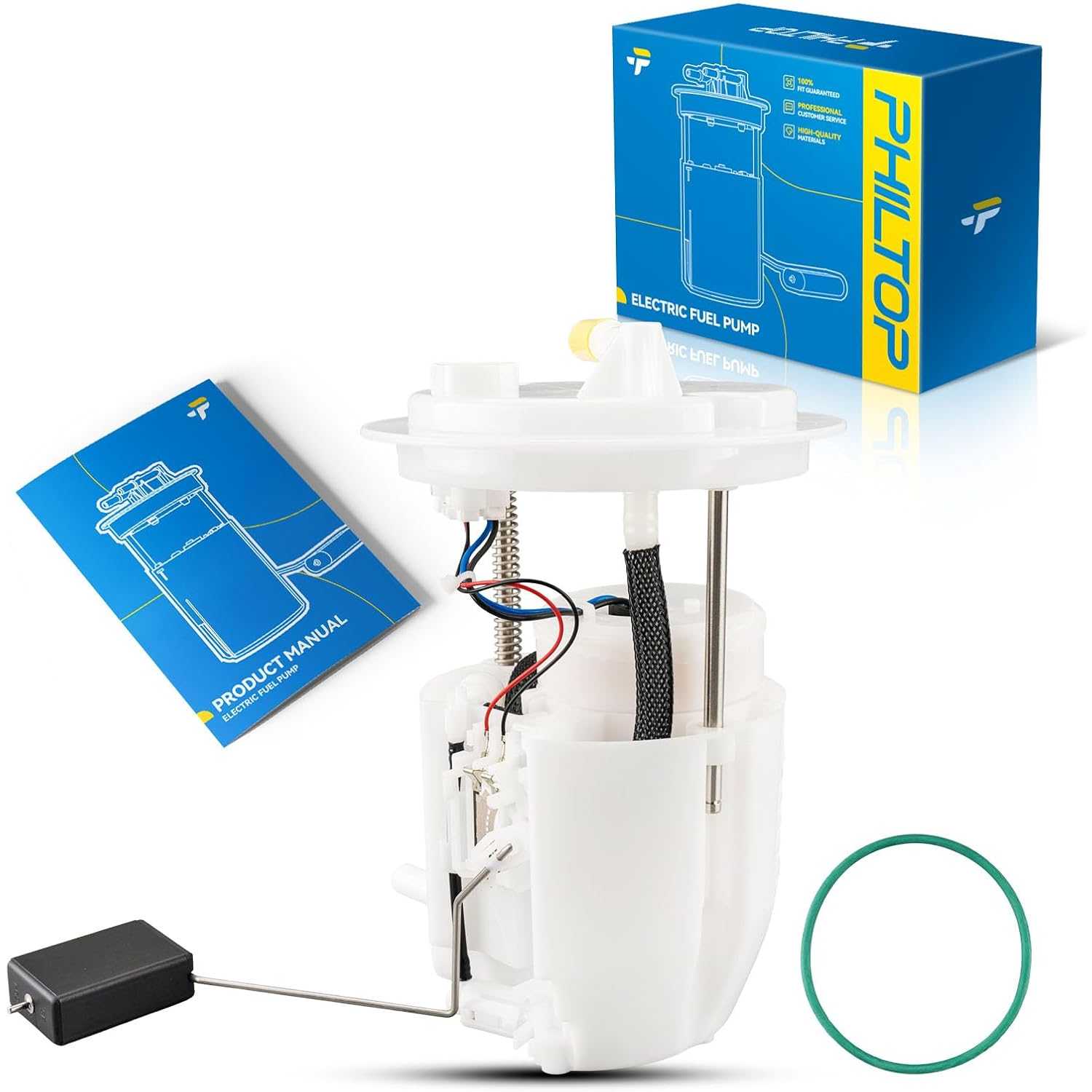

Items Included
1x Fuel Pump Assembly - FG1536
Warranty Period
2-Year
OE Number
5183202AA,5183202AB,5183202AE,5183202AD,RL183202AB,5183202AF,5183202AC,P658M
Part Number
P76269M,SP7020M,FG1536,5202740,USEP7218M,116GE

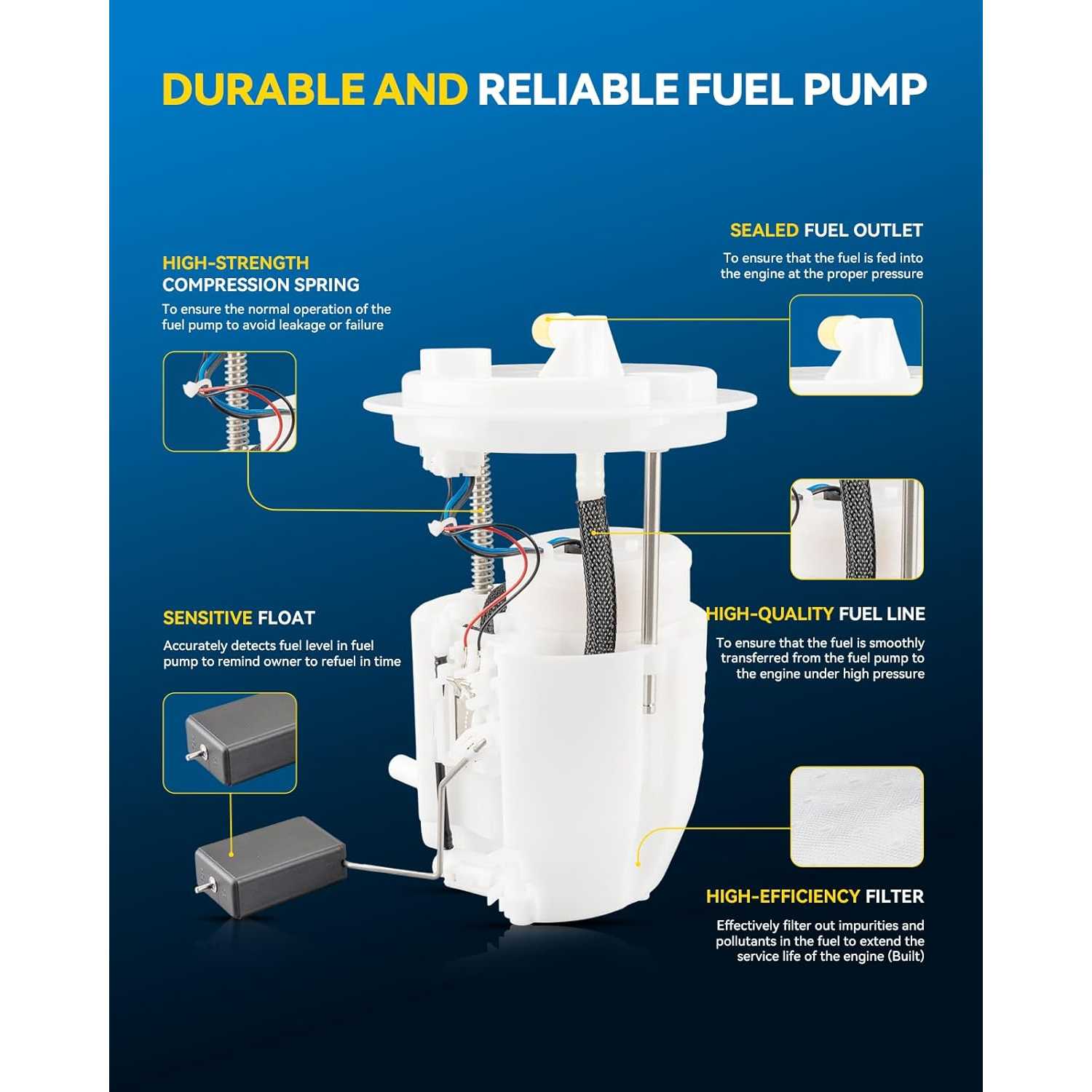

Highlights

  • (Direct Fit) - Direct replacement for worn fuel pump assembly, suitable for the following models: Civic 2012-2015 1.8L, ILX 2013-2015 2.4L, 2.0L
  • (OEM Number)--PHILTOP fuel pump meets OE standard, interchangeable with the following numbers: FG1536, 116GE, 4010655, 5183 202AC, 5183202AE, 520-2740, 67749, CFG1536, E7218M, P76269M, SP7020M
  • (Premium Quality & Service)--One year hassle-free return and exchange. All plastic parts are made of imported high performance POM raw materials, and the module adopts the most mature fuel pump structure, which is ethanol resistant, more efficient and longer service life.
  • (Product Advantage)--PHILTOP fuel pumps generate noise as low as 48dB during operation and can operate stably in different media (e.g. gasoline, diesel, alcohol). The anti-electromagnetic interference level of fuel pump products reaches level 3. At the same time philtop fuel pump made 3500 hours life test, the test results show that the flow decay is less than 15%, so its long life is also a major advantage.
  • (Easy to install)--No need to buy other accessories, can be installed directly. Please confirm the year/make/model of the vehicle you are purchasing before purchasing. You can refer to the fitment description on the product detail page or use the "Suncentautoconfirmedfit" in the upper left corner of the link to confirm.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 200820162015201120152011 - 20172007 - 20152007 - 20102012 - 201720162011 - 201720112007 - 20102012 - 20152007 - 2017
MakeDodgeJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeepJeep
ModelCaliberCompassCompassCompassCompassCompassCompassCompassCompassPatriotPatriotPatriotPatriotPatriotPatriot
TrimR/T75th AnniversaryAltitudeBaseHigh AltitudeLatitudeLimitedSportSport75th AnniversaryLatitudeLatitude XLimitedLimitedSport
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note---------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

Sherly

10/14/2026

Verified buyer

Great price worked great

Kelly

06/02/2024

Verified buyer

Replaced my faulty fuel pump with the Philto pump on my 2016 Jeep Patriot. Installation was easy and it fit perfectly into my tank. It looks exactly like my old Pump. I drive a lot during the week from state to state and I’ve put about 2500 miles on this pump. So far it works perfectly and hope it continues to stay that way for many years to come.
