2011-2012 Chevrolet Cruze 1.8L | Fuel Pump Assembly | OE#19421048/FG1739 - PHILTOP

2011-2012 Chevrolet Cruze 1.8L | Fuel Pump Assembly | OE#19421048/FG1739 - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Pressure Sensor Included

4.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6559FUP1935US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
Yes
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
250.0 Ω
Resistance Ohms Full
40.0 Ω
Average Flow Rating
35 GPH
In Tank or External
In Tank
Lock Ring Included
No
Material
Metal, Plastic
Maximum Pressure
85.0 PSI
Outlet Outside Diameter
0.375 in
Outlet Quantity
2
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller
Items Included

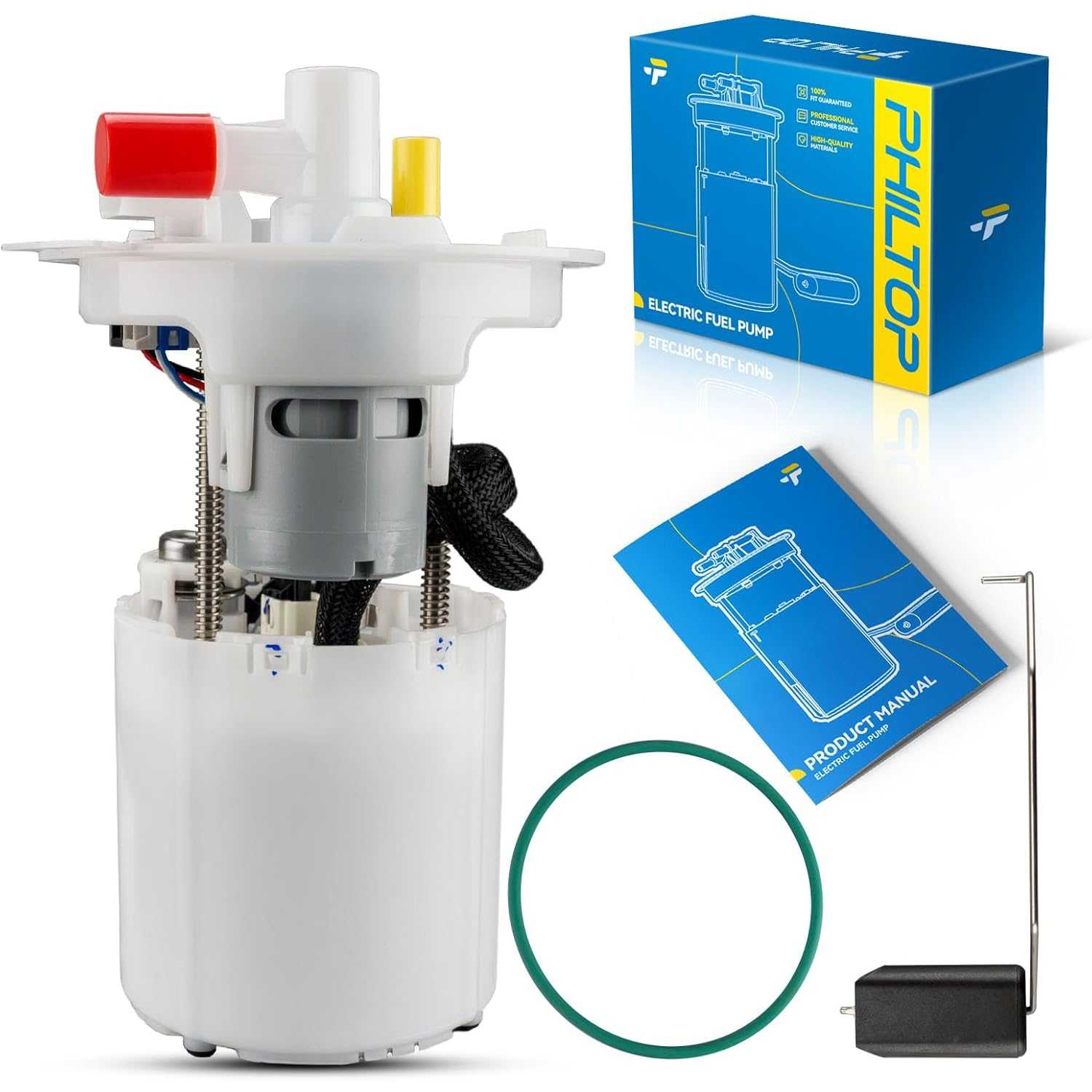

1x Fuel Pump Assembly - FG1739
Warranty Period
2-Year
OE Number
19421048,13504673,13580701
Part Number
FG1739,P77102M,M100042,DFG1739,2920885,M635737,B11111666TG

Highlights

  • Fitment: Compatible with [Chevrolet] 2011-2012 Cruze 1.8L, [Buick] 2012-2013 Verano 2.4L.
  • Reference Number: 13580701, FG1739, P77102M, 19421048, M100042, DFG1739, 13504673, 2920885, M635737, B11111666TG.

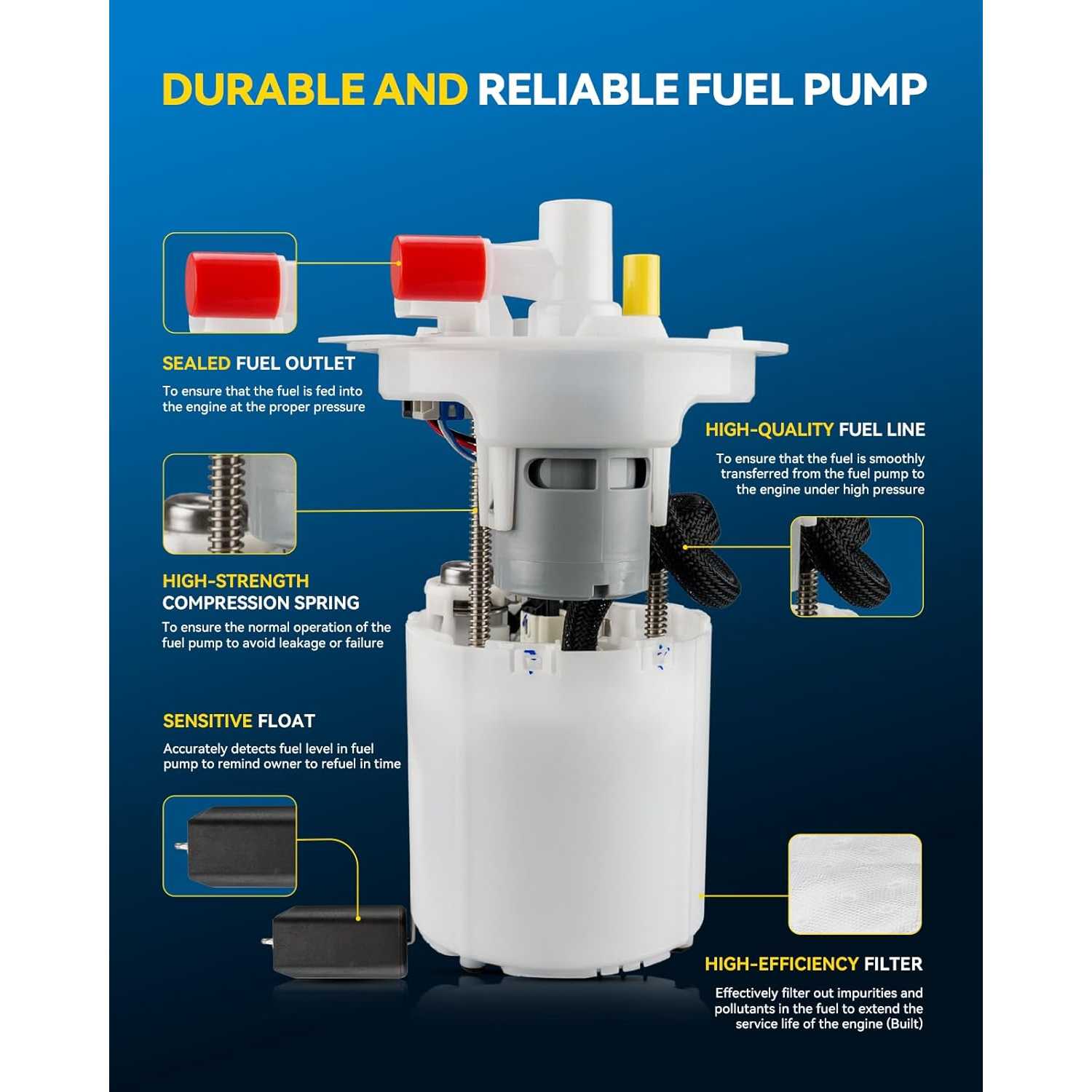

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring, ④ Pressure Sensors.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20132012 - 20132012 - 20132011 - 2012
MakeBuickBuickBuickChevrolet
ModelVeranoVeranoVeranoCruze
TrimBaseConvenienceLeatherLS
Engine2.4L L42.4L L42.4L L41.8L L4
Note----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.0/5

Based on 1 review

50%
4100%
30%
20%
10%

L

06/19/2024

Verified buyer

Good pump

FAQS

No FAQs have been added for this product yet.
