2013-2018 Nissan Altima 2.5L | Fuel Pump Assembly | OE#170404RA0C/SP4090M - PHILTOP

2013-2018 Nissan Altima 2.5L | Fuel Pump Assembly | OE#170404RA0C/SP4090M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

5.0

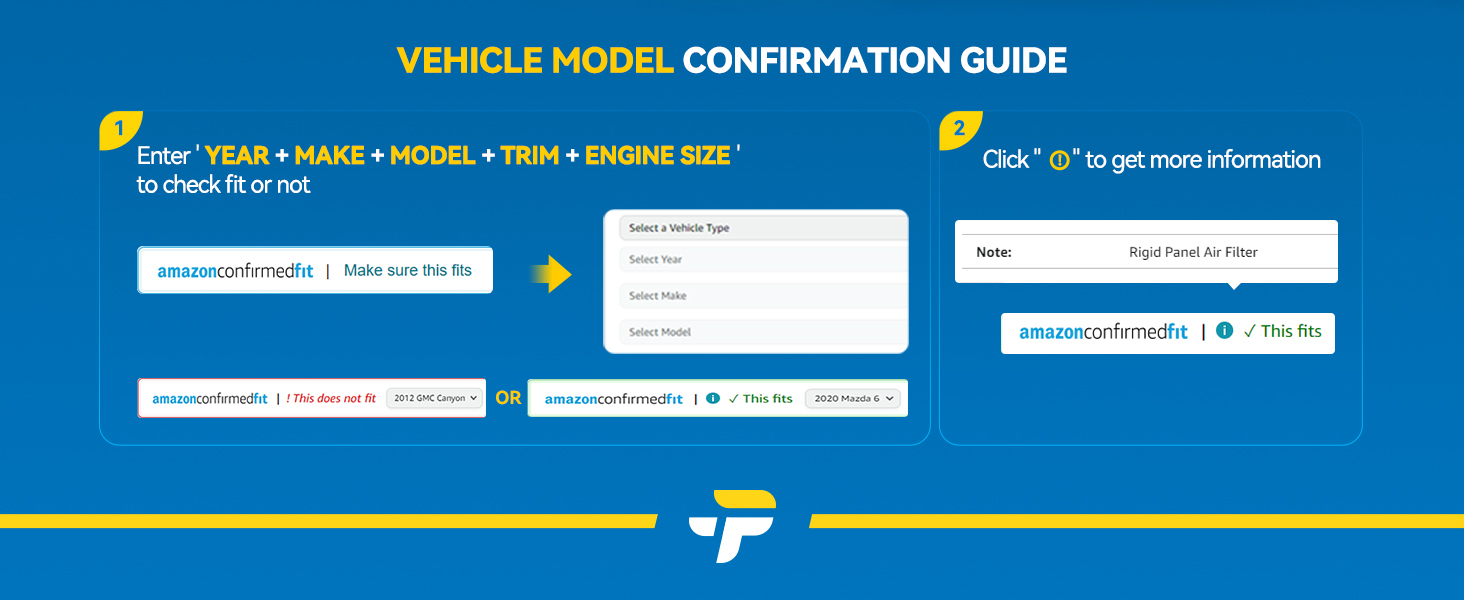

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6366FUP3582US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Material
Metal, Plastic

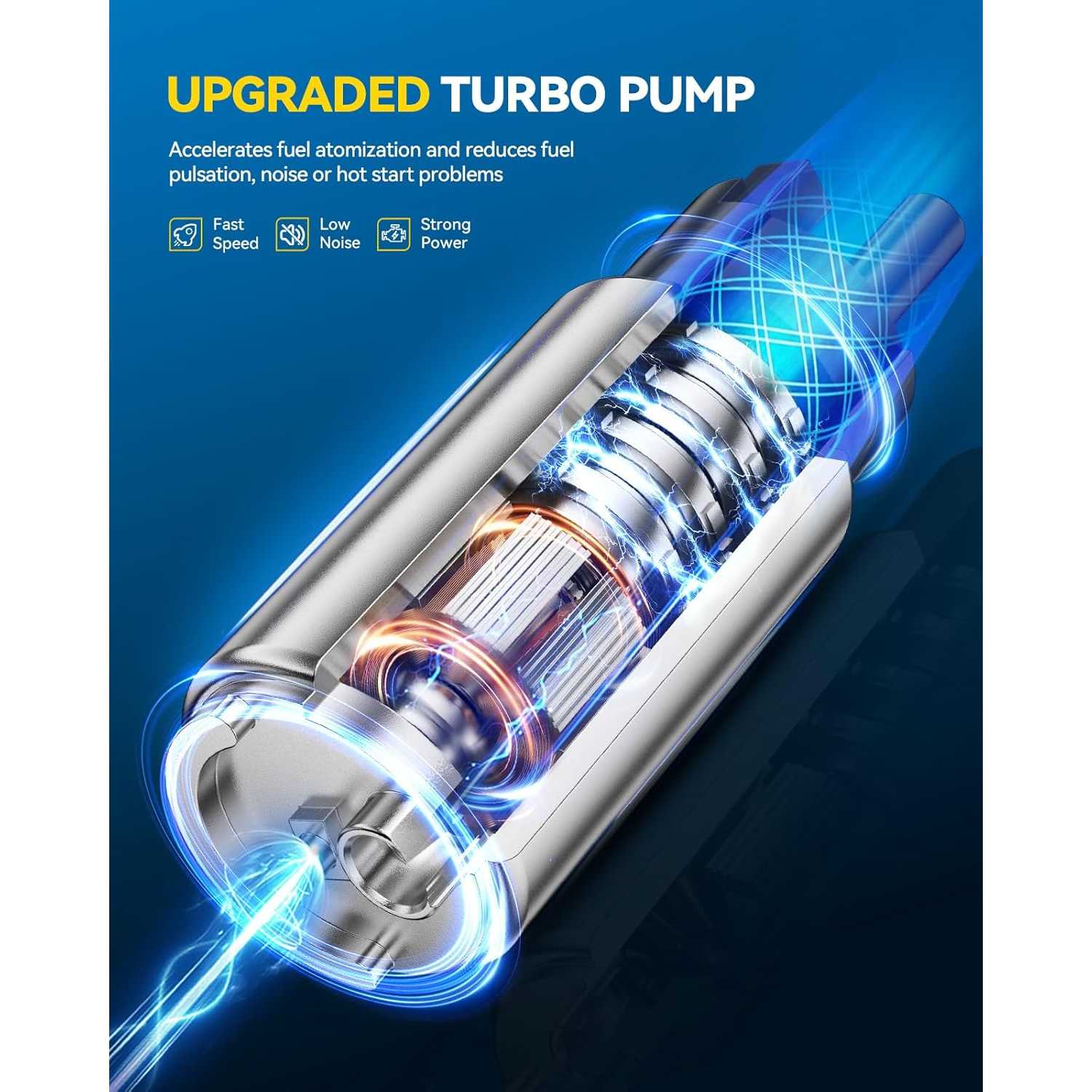

Pump Structure
Turbine Impeller

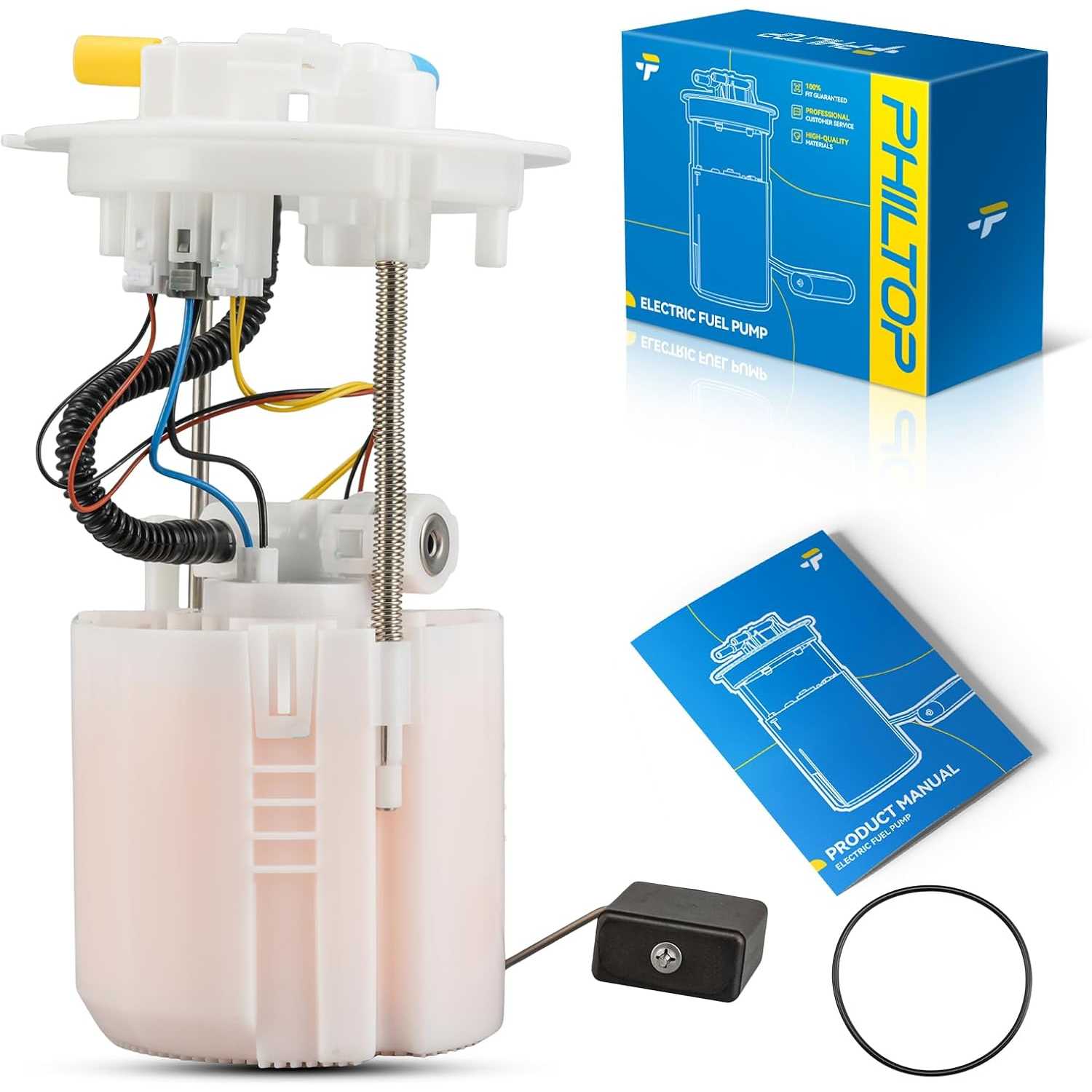

Items Included
1x Fuel Pump Assembly - FG1772
Warranty Period
2-Year
OE Number
170404RA0C,170404RA0B,170403TA0C,170403TA0A,170403TA0B,170403TA0D
Part Number
SP4090M,P77017M,FG1772,USEP9183M

Highlights

  • Fitment: Compatible with [Nissan] 2013 Altima 3.5L Coupe, 2013-2018 Altima 2.5/3.5L Sedan, 2016-2023 Maxima.
  • Reference Number: SP4090M, 170404RA0C, P77017M, 170403TA0C, 170403TA0A, FG1772, 170403TA0B, 170404RA0B, 170403TA0D, USEP9183M.
  • Related Parts: ① Fuel Pump, ② Strainer.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2013 - 20172013 - 20182013 - 20152013 - 20182013 - 20182016 - 20182016 - 20172013 - 20182013 - 201520212016 - 202320202016 - 20202016 - 20202016 - 20232016 - 2023
MakeNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissanNissan
ModelAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaAltimaMaximaMaximaMaximaMaximaMaximaMaximaMaxima
TrimBaseSSSLSLSRSRSVSV40th Anniversary EditionPlatinumPlatinum ReserveSSLSRSV
Engine2.5L L42.5L L43.5L V62.5L L43.5L V62.5L L43.5L V62.5L L43.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V6
Note----------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

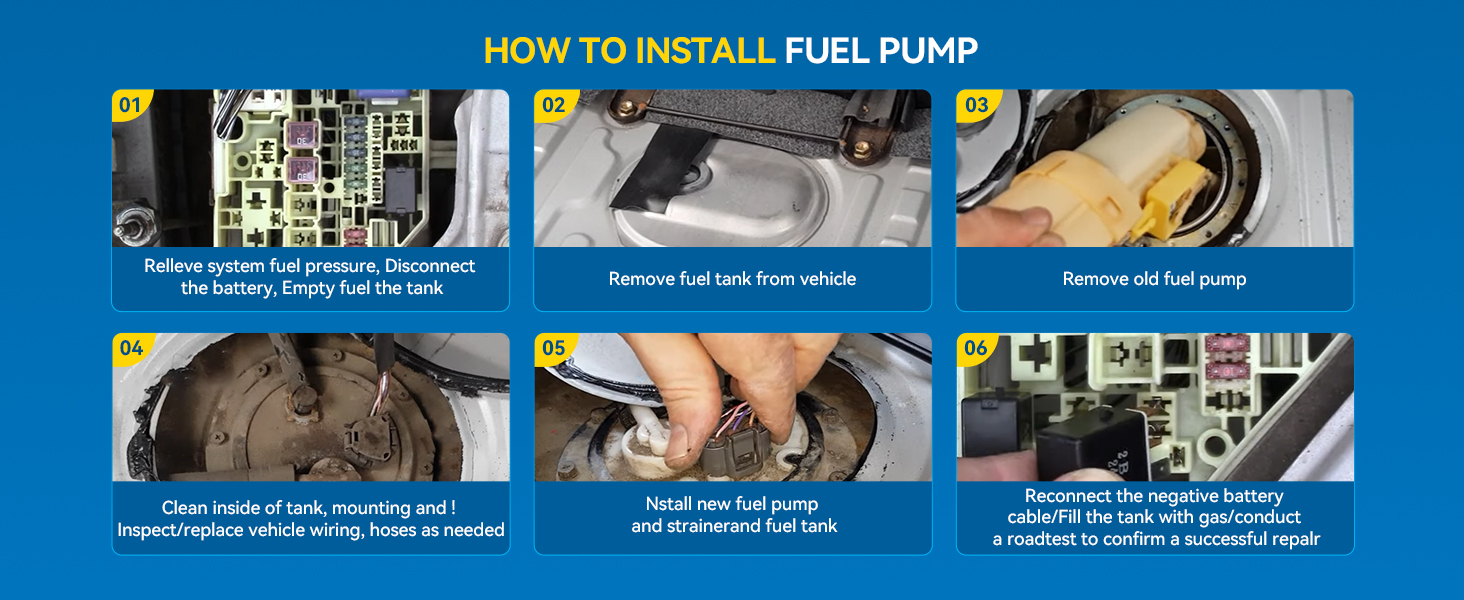

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.

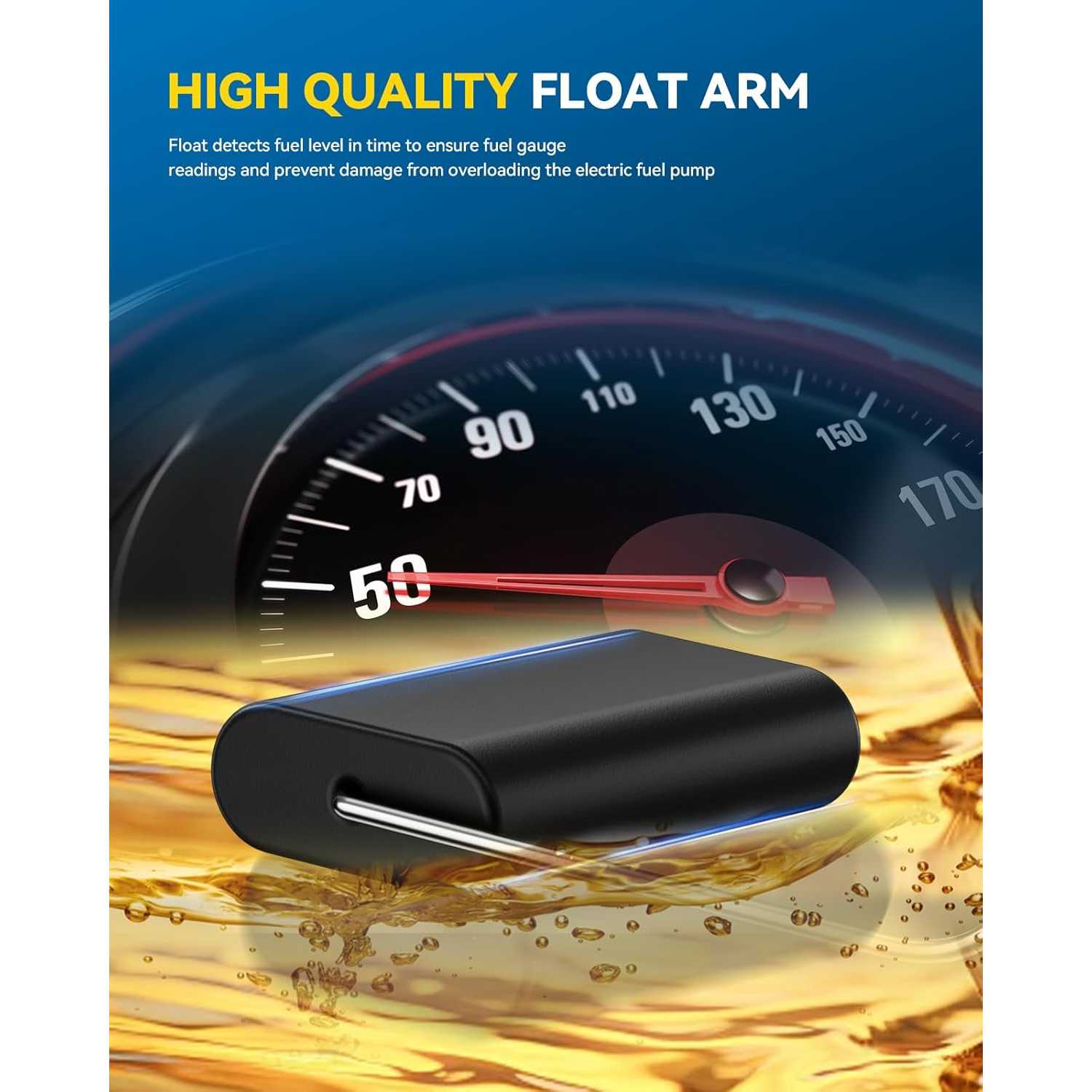

  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

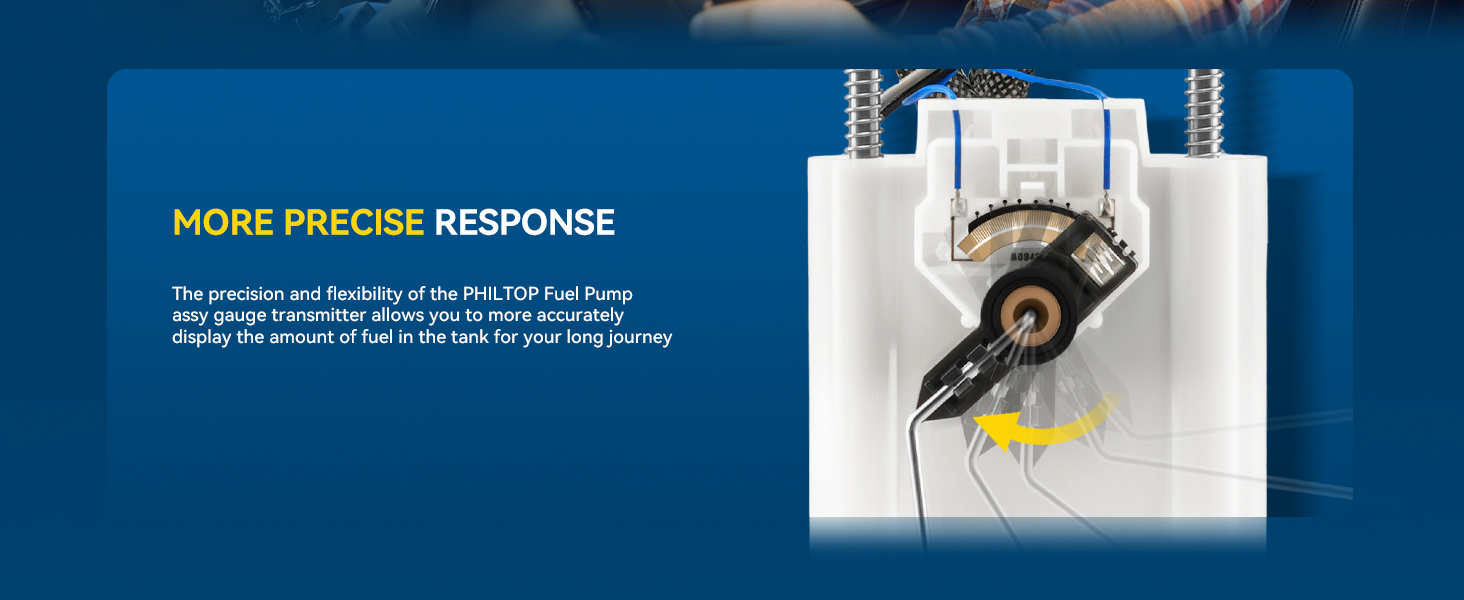

Electric Fuel PumpElectric Fuel Pump

Reviews

5.0/5

Based on 4 reviews

5100%
40%
30%
20%
10%

Jacob padilla

04/29/2025

Verified buyer

Installed this on my 2014 Altima, and works perfect, seems just as good as the manufacturer for a fraction of the price.

Al

11/06/2024

Verified buyer

Quick easy installation perfect fit great seller communication. Read more
