2001-2002 Hyundai Santa Fe 2.4L/2.7L | Fuel Pump Assembly | OE#3111226055/SP3053M - PHILTOP

2001-2002 Hyundai Santa Fe 2.4L/2.7L | Fuel Pump Assembly | OE#3111226055/SP3053M - PHILTOP

Carbon Commutator

Precision Ceramic Resistor

Seal Included

4.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6827FUP1734US

Specifications

Brand
PHILTOP
Gasket or Seal Included
Yes
Pressure Sensor Included
No
Strainer Included
Yes
Fuel Level Sender Assembly Included
Yes
Resistance Ohms Empty
75.5 Ω
Resistance Ohms Full
1.5 Ω
Average Flow Rating
37 GPH
In Tank or External
In Tank
Lock Ring Included
Yes
Material
Metal, Plastic
Maximum Pressure
51.0 PSI
Outlet Outside Diameter
0.313 in
Outlet Quantity
3
Outlet Type
Quick Connect
Pump Structure
Turbine Impeller

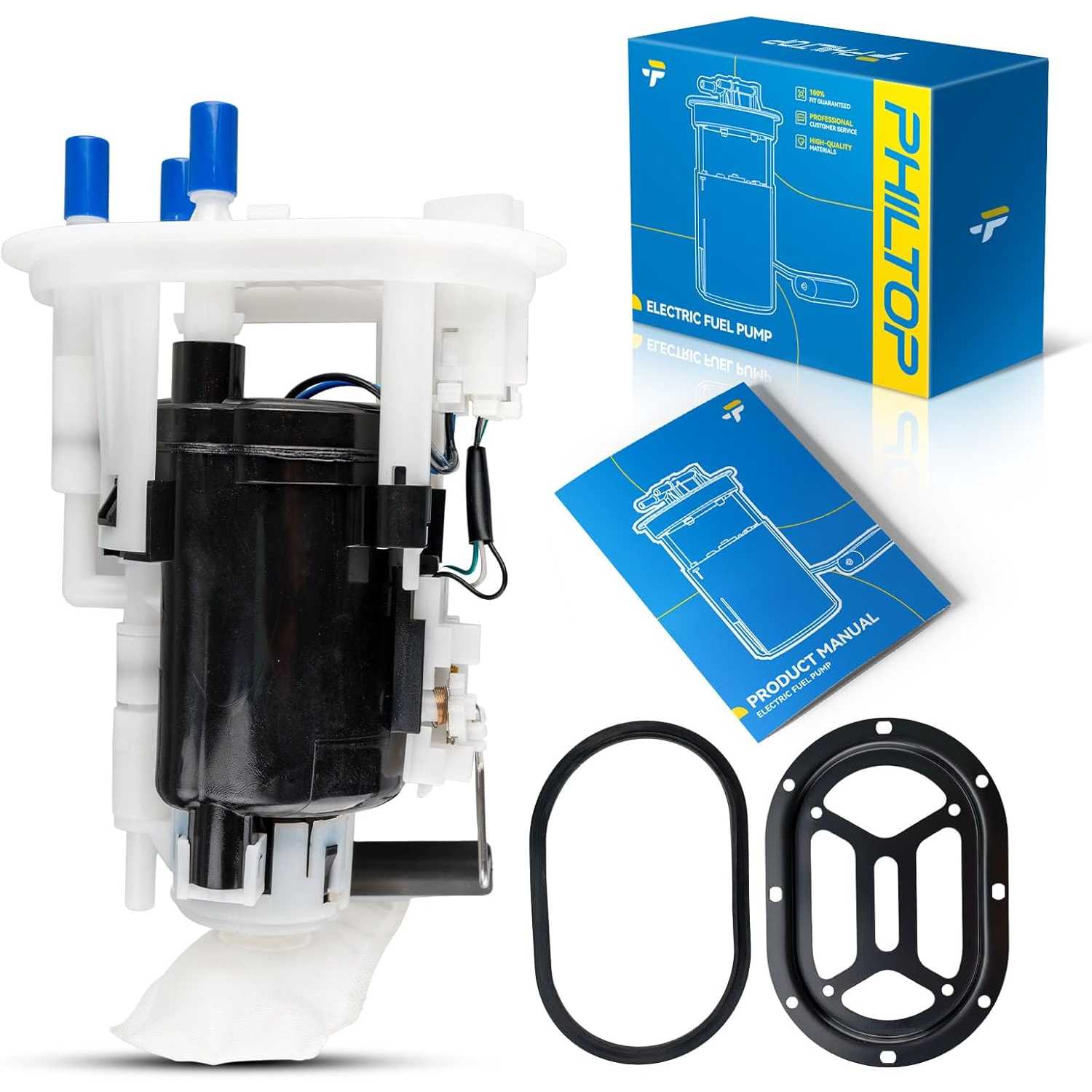

Items Included
1x Fuel Pump Assembly - FG1930
Warranty Period
2-Year
OE Number
3111226055,3111226050,3111026500,3111026500DS
Part Number
SP3053M,FG1930,P77347M,E16014,67919,P76183,CFG1930,4011368,A46639,A47083,TNKSP3053M,C0968M,E9346M

Highlights

  • Fitment: Compatible with [Hyundai] 2001-2002 Santa Fe.
  • Reference Number: 67919, P76183, E16014, SP3053M, CFG1930, 3111026500, FG1930, P77347M, 3111026500DS, 3111226055, 3111226050, 4011368, A46639, A47083, TNKSP3053M, C0968M, E9346M.

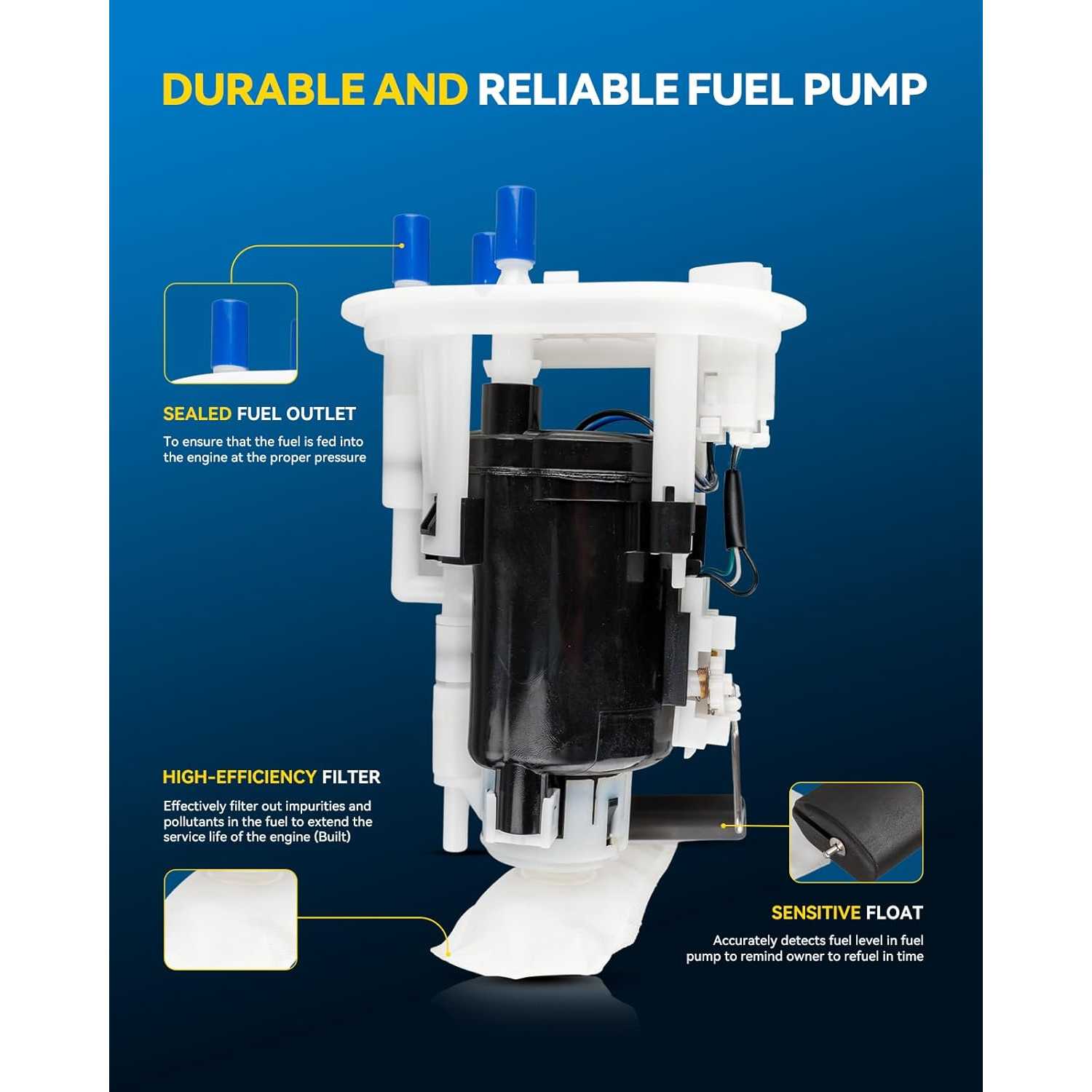

  • Related Parts: ① Fuel Pump, ② Strainer, ③ Seal Ring.
  • 20% Improved Fuel Delivery Efficiency: The commutator is made of carbon material, achieving an all-round performance leap compared with traditional copper commutators; it features superior electrical performance, shorter arc duration, stable current transmission, reduced motor energy consumption, and enhanced fuel delivery efficiency.
  • Superior Durability: The contacts are made of gold-palladium alloy with a melting point of up to 1450℃, featuring stable electrical conductivity, excellent corrosion resistance and wear resistance, and can achieve 1 million contact cycles without obvious damage.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002200120012001 - 20022001 - 2002
MakeHyundaiHyundaiHyundaiHyundaiHyundai
ModelSanta FeSanta FeSanta FeSanta FeSanta Fe
TrimBaseGLGLGLSLX
Engine2.4L L42.4L L42.7L V62.7L V62.7L V6
Note-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the fuel-pump sound at key-on and test the fuse, relay, power supply and ground.
  • Check fuel pressure before confirming that the pump requires replacement.
  • Compare the connector, fuel ports, mounting points and fuel-level sensor with the original unit.
  • Work in a well-ventilated area away from flames, sparks and smoking.
  • Relieve fuel-system pressure and disconnect the negative battery cable.
  • Confirm that a new fuel-pump sealing ring is available.

Installation Steps

  • Step-1: Relieve fuel pressure and clean the area around the tank opening.
  • Step-2: Label and disconnect the fuel lines and electrical connector.
  • Step-3: Remove the retaining ring using the correct tool—never strike it with a steel tool.
  • Step-4: Carefully lift out the old module without damaging the float arm.
  • Step-5: Discard the old sealing ring and install a new one.
  • Step-6: Install the new module in the correct orientation and secure the retaining ring.
  • Step-7: Reconnect the fuel lines and electrical connector, ensuring every clip is locked.

After Installation

  • Cycle the ignition ON two or three times without starting to prime the fuel system.
  • Start the engine and inspect every connection for leakage or fuel odor.
  • Verify fuel pressure and fuel-gauge operation.
  • Stop the engine immediately if a leak or strong gasoline odor is detected.
  • Avoid regularly operating the vehicle with a very low fuel level, which may overheat the pump.

Product Description

Electric Fuel PumpElectric Fuel Pump

Reviews

4.0/5

Based on 1 review

50%
4100%
30%
20%
10%

Fabricio Gomez

12/11/2023

Verified buyer

Funcionó bien Hyundai Santa Fe 2001
