PHILTOP Front Control Arms for CR-V 2002-2006 Suspension Kit

PHILTOP Front Control Arms for CR-V 2002-2006 Suspension Kit

Ball Joint Included

Corrosion Resistant

Deformation Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7691CAK0189US

Specifications

Brand
PHILTOP
Items Included

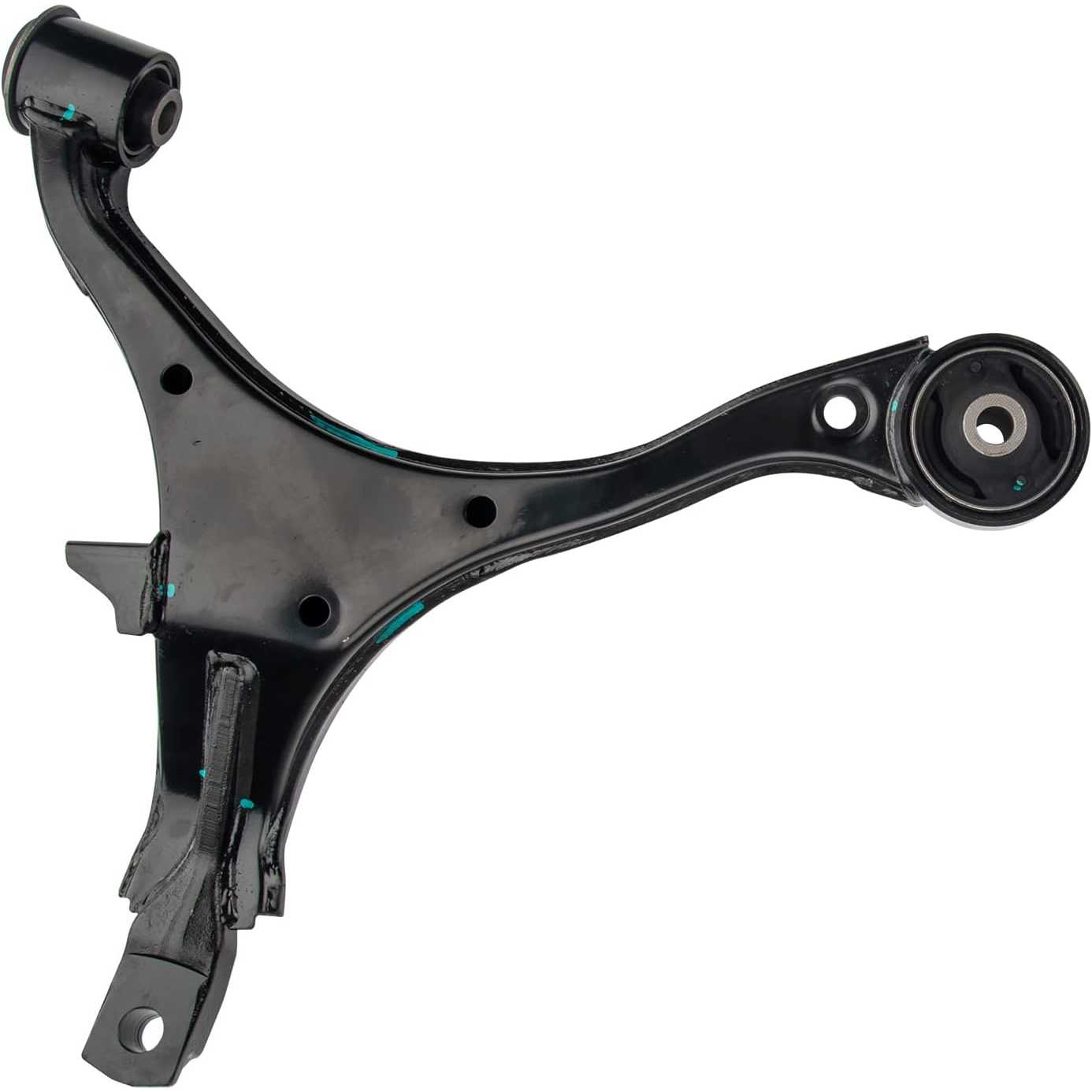

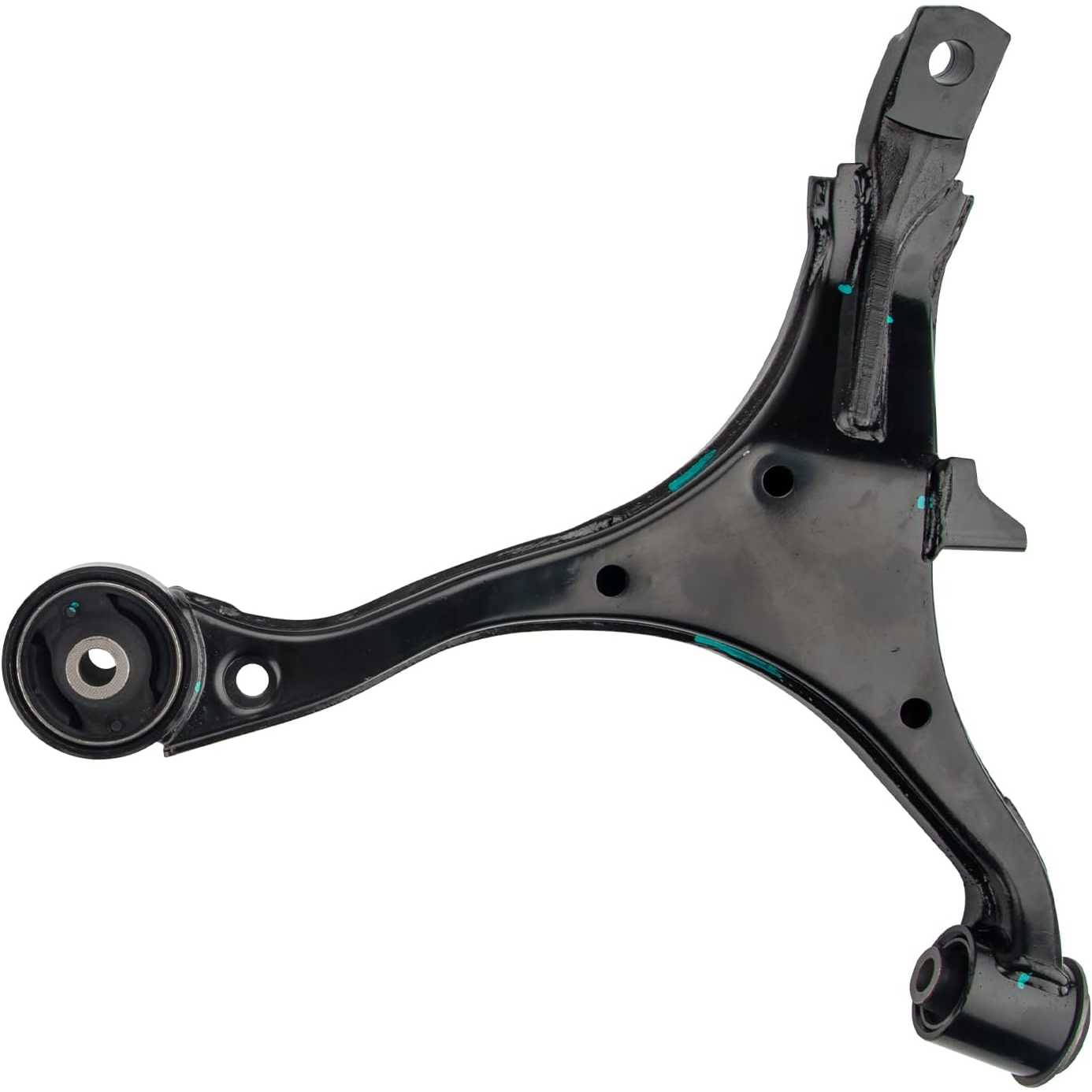

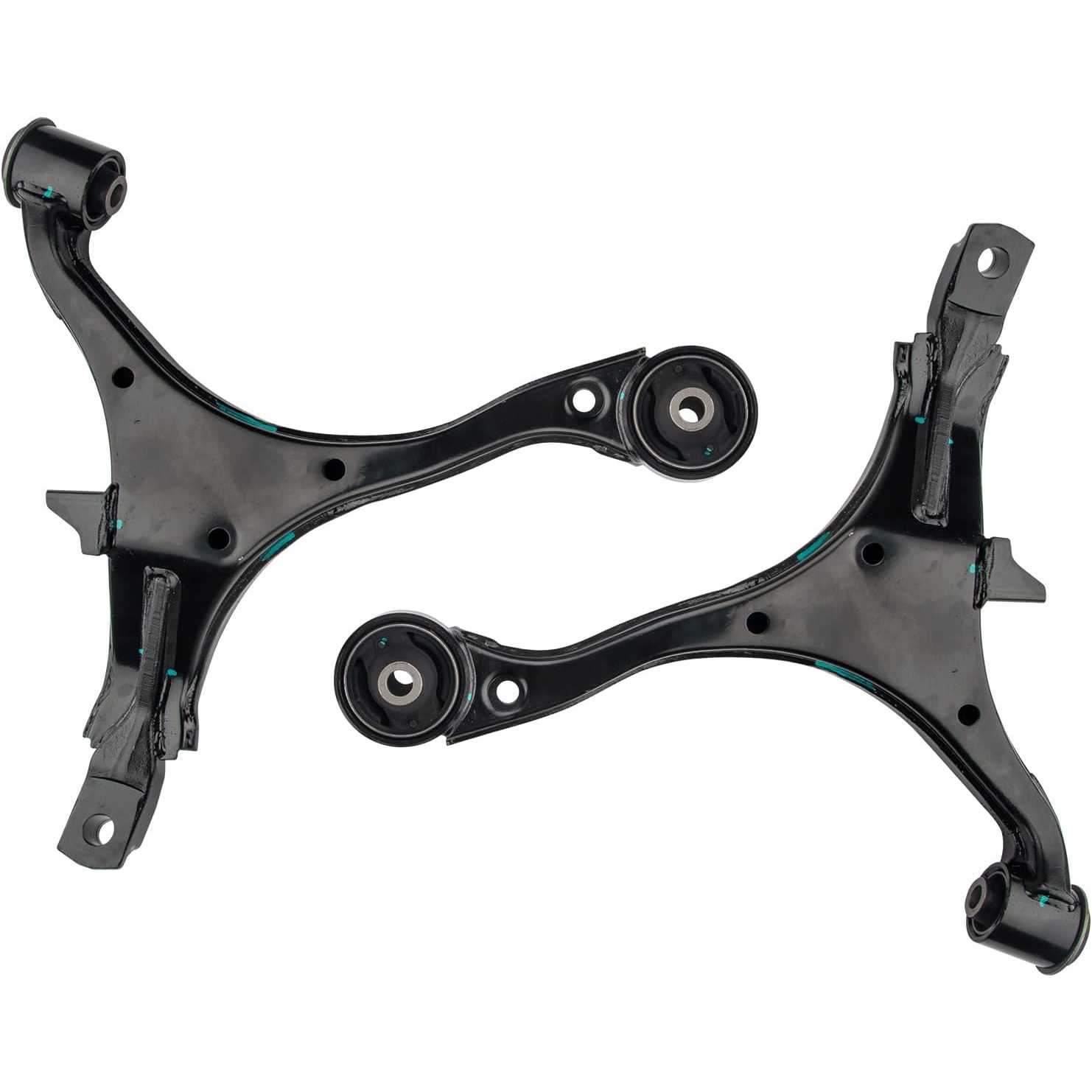

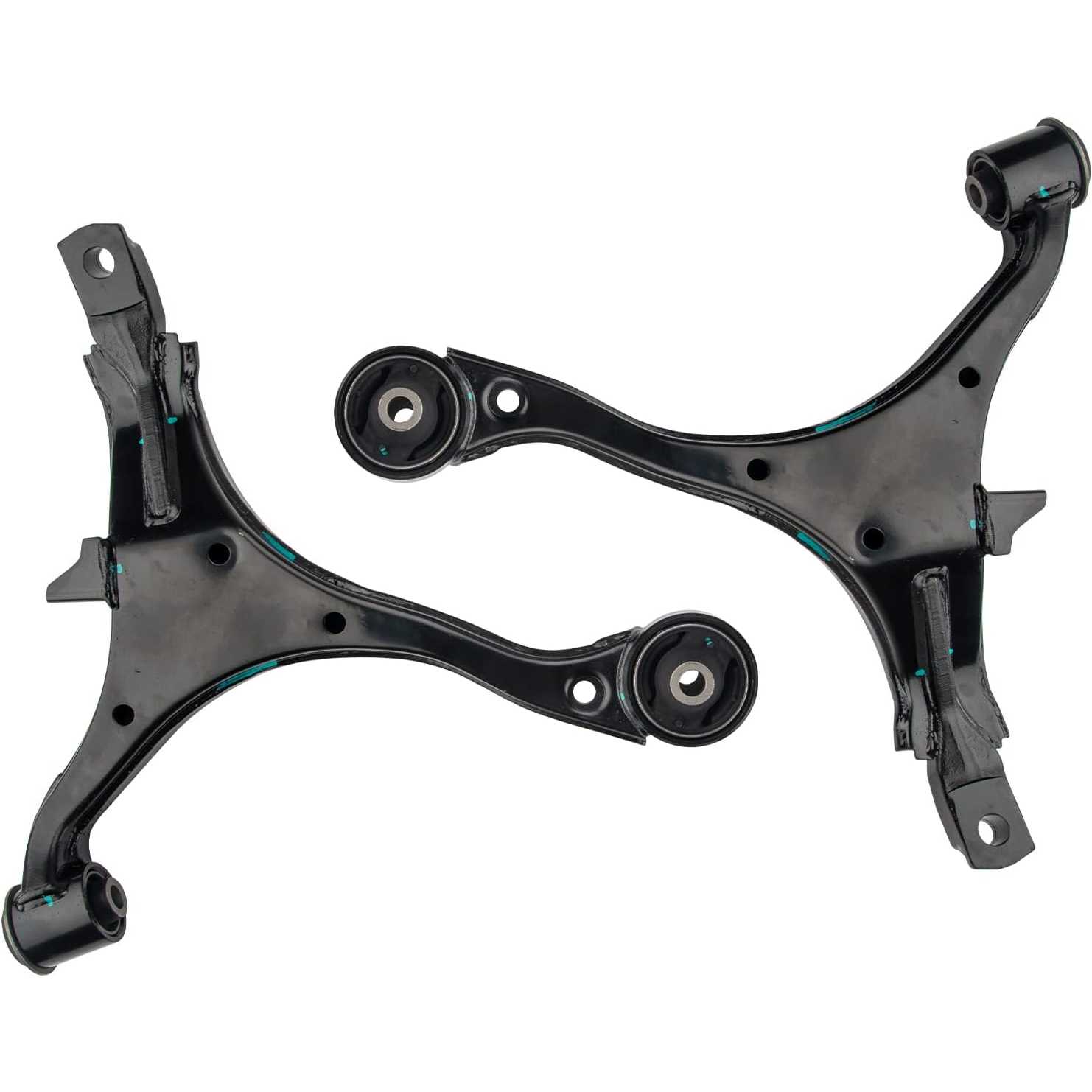

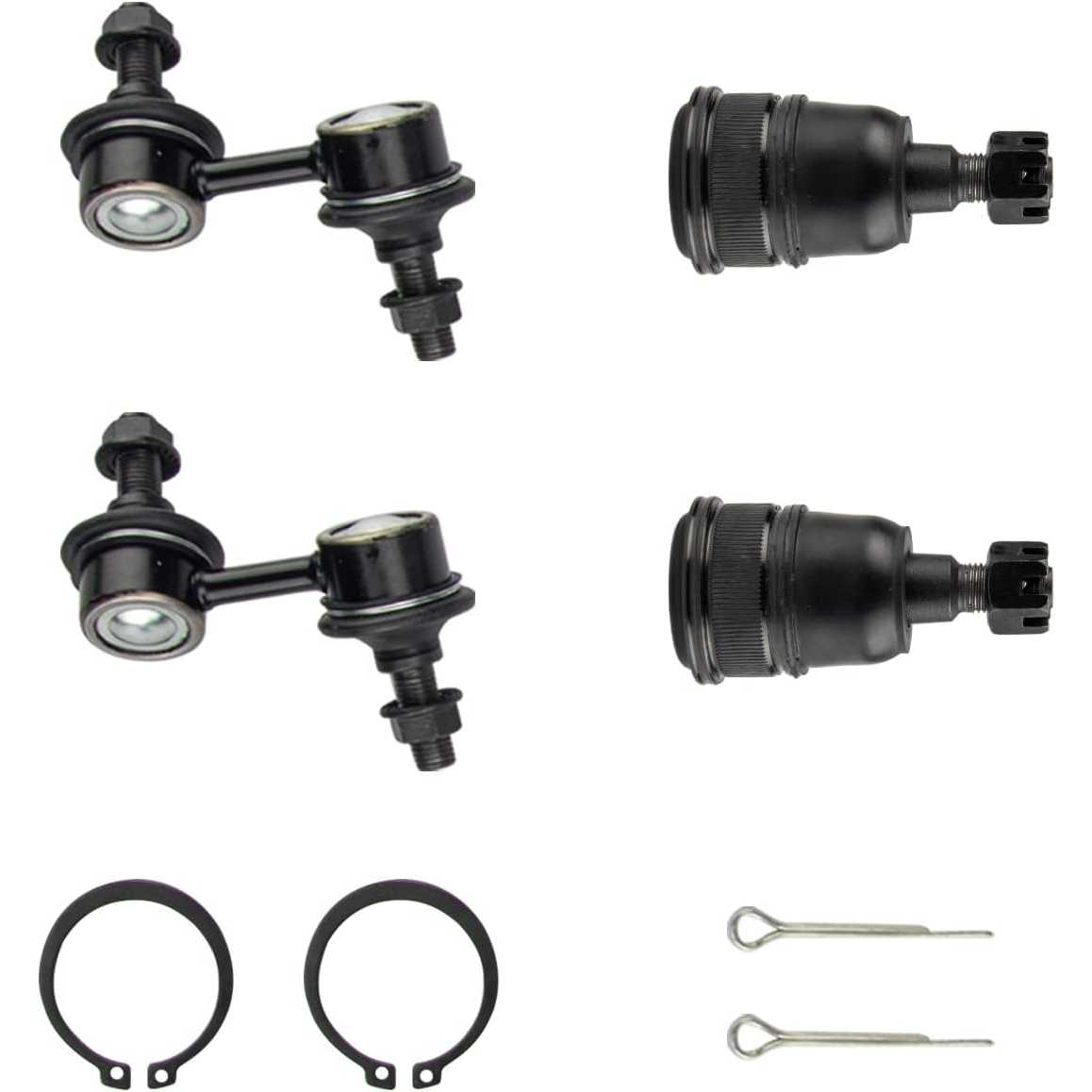

1x Front Right Lower Control Arm - K640399 1x Front Left Lower Control Arm - K640400 2x Front Lower Ball Joints - K80223 1x Front Left Sway Bar End Link - K90454 1x Front Right Sway Bar End Link - K90455
Quantity
6
Position
Front Lower
Surface Finish
Chrome
Material
Steel
Warranty Period
2-Year
OE Number
51321S5A003,51350S9AA02,51320S5A003,51360S9AA02,51321SCVA91,51320SCVA91,51210S9A982,51220S9A982,51215S9A982,51210S9A020,51215S9A020
Part Number
K90455,K90454,K80223,RK640400,RK640399,MK90454,MK90455,MK80223,TC1302,TC2717,K500004,GK80223,HNG618,BJ59355,JBJ921,GK90455

Highlights

  • Fitment: PHILTOP Front Control Arms for CR-V 2002-2006.

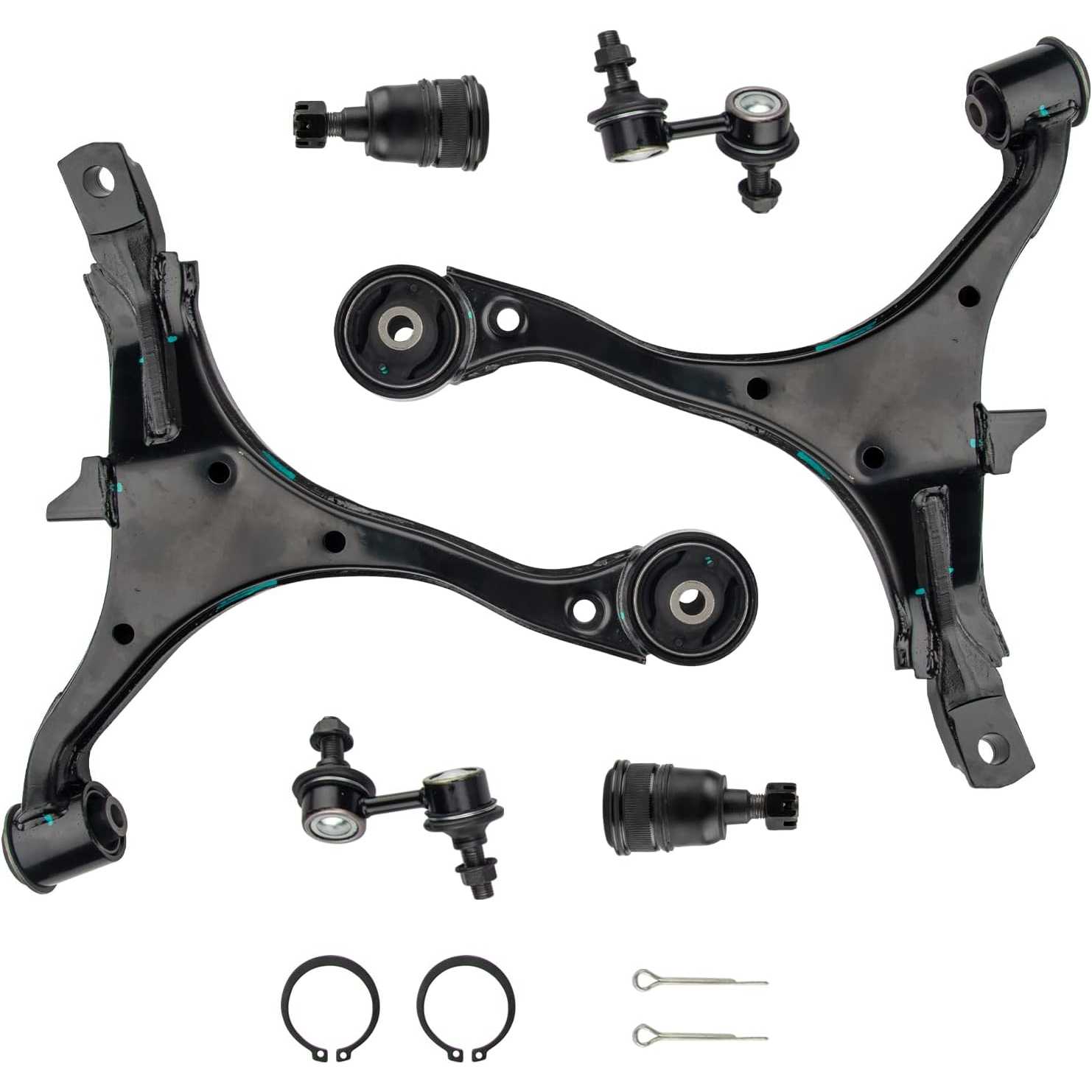

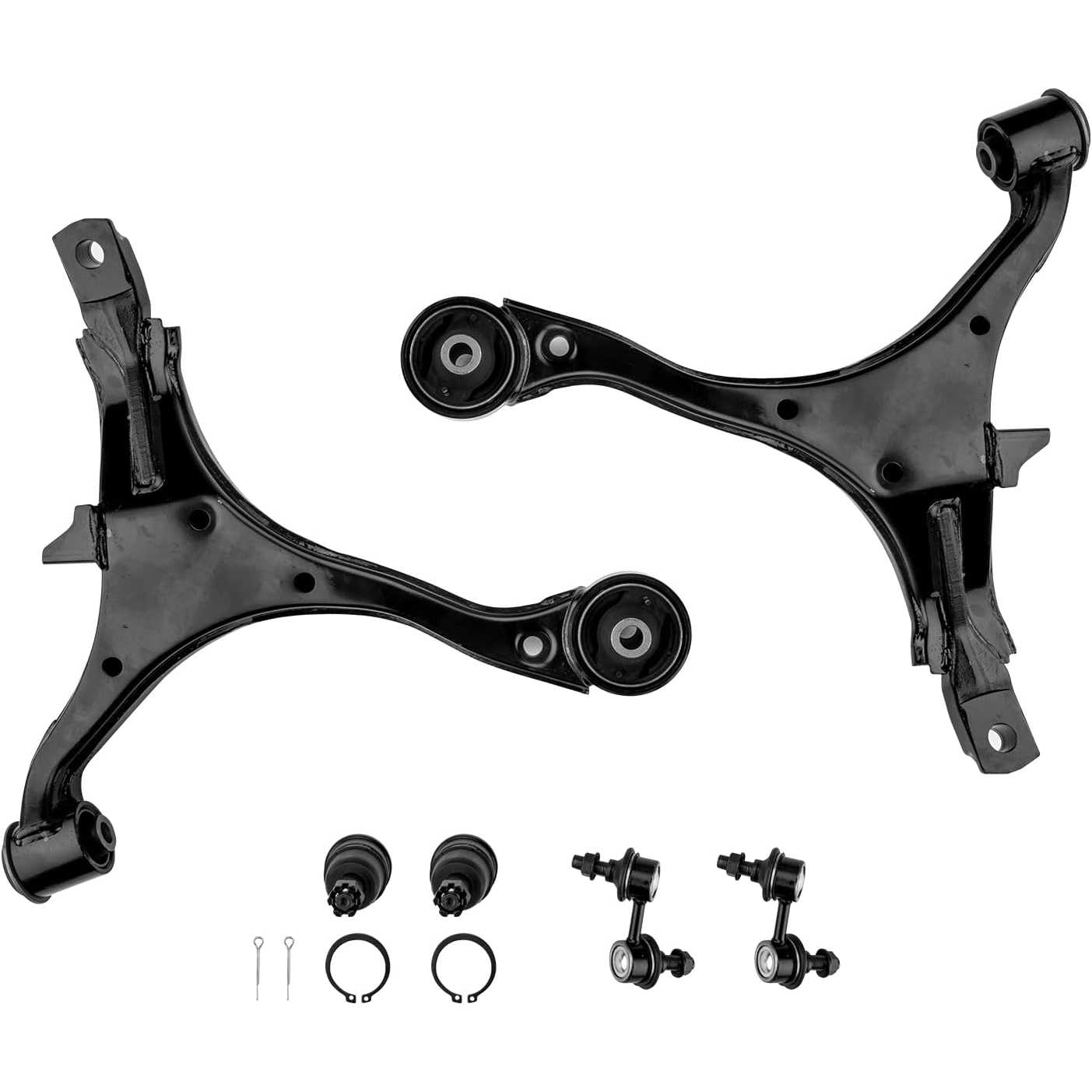

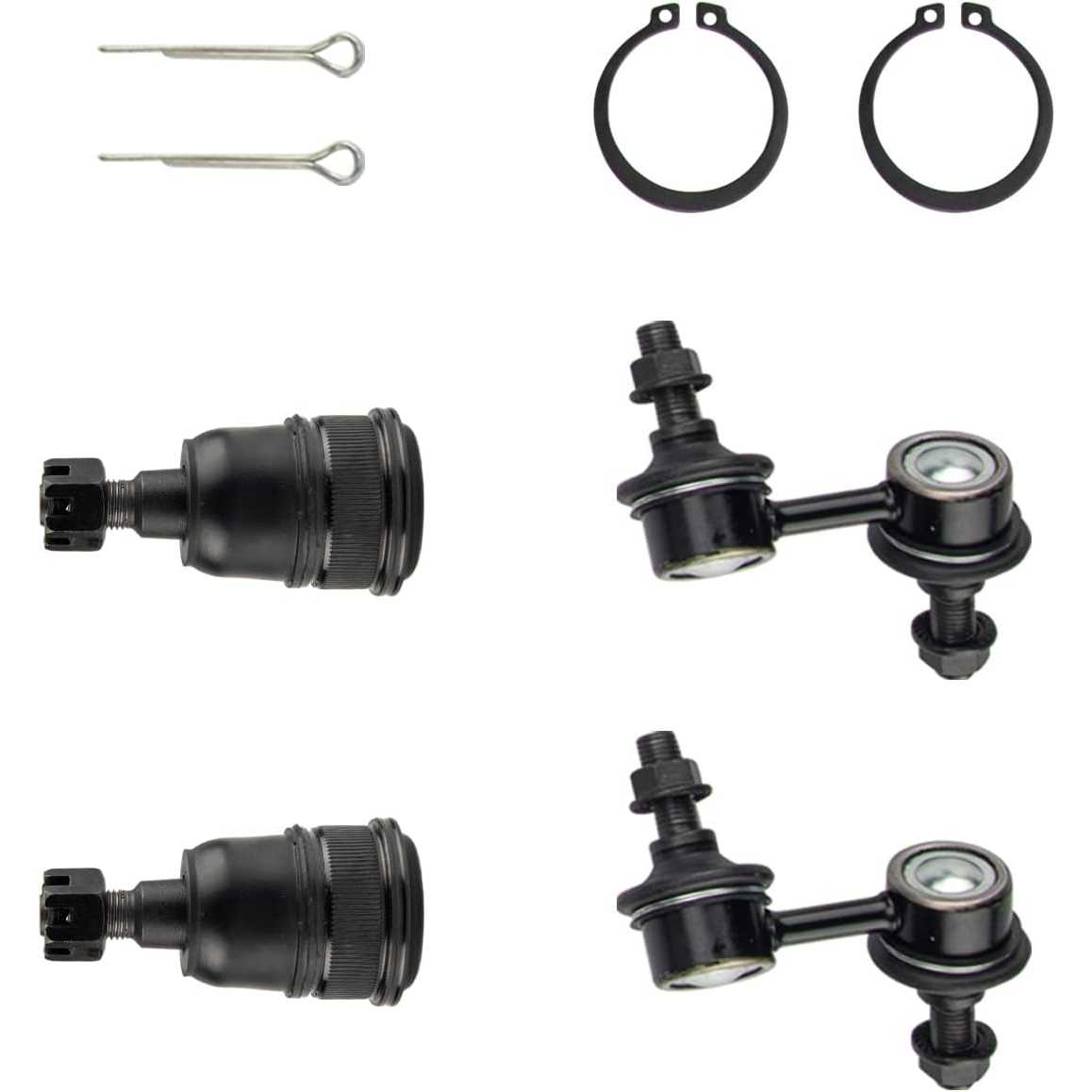

  • Package Contents: 1x Front Right Lower Control Arm - K640399; 1x Front Left Lower Control Arm - K640400; 2x Front Lower Ball Joints - K80223; 1x Front Left Sway Bar End Link - K90454; 1x Front Right Sway Bar End Link - K90455.
  • Tips: Please check that the control arm is suitable for your vehicle by "Suncentautoconfirmedfit" before purchasing.
  • Long Service Life: Designed to handle severe impacts and repetitive loads through heat-treatment.Coatings to studs inhibit corrosion to promote a long service life.
  • Easy to install: Excellent product design and manufacturing technology make PHILTOP control arms better fit your car and make your installation fast and simple.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002 - 20062002 - 20062005 - 2006
MakeHondaHondaHonda
ModelCR-VCR-VCR-V
TrimEXLXSE
Engine2.4L L42.4L L42.4L L4
Note---

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the installation side, mounting points and ball-joint configuration.
  • Inspect the new control arm, bushings, ball joint and dust boot for damage.
  • Check the steering linkage, stabilizer link and related suspension components for looseness or wear.
  • Support the vehicle with approved jack stands and support the steering knuckle to protect the brake hose and ABS wiring.
  • Replacing control arms in left/right pairs is recommended when both sides have similar mileage or wear.

Installation Steps

  • Step-1: Raise and support the vehicle, then remove the wheel.
  • Step-2: Support the steering knuckle and disconnect the stabilizer link or related components as required.
  • Step-3: Separate the ball joint using the correct puller—do not strike or pry it aggressively.
  • Step-4: Remove the mounting bolts and old control arm, then clean the mounting points.
  • Step-5: Position the new arm and hand-start all fasteners.
  • Step-6: Connect the ball joint and stabilizer link, replacing any single-use nuts or bolts.
  • Step-7: Return the suspension to normal ride height before tightening the control-arm pivot bolts to specification.

After Installation

  • Confirm all fasteners and locking components are secure.
  • Check that the wheel rotates freely without interference.
  • Perform a short, low-speed road test and check for noise, pulling or unstable steering.
  • A professional four-wheel alignment is required after installation.
  • Recheck the installation after the first 50–100 km.

Product Video

Product Description

Philtop Contron Arms Kitfeature of control arms

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Hl

05/03/2026

Verified buyer

Buena calidad

Jennifer_Auto_324

10/30/2025

This kit completely fixed the clunking noise I was hearing in my front end. The ride is so much smoother now, and I feel way more confident driving. It's like I have a new car!

FAQS

Fitment depends on your car's year, model, and sometimes whether it is 2WD or 4WD. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm.

We stand behind our chassis components with a 3-Year Limited Warranty for your safety and peace of mind. Scroll to the "Warranty & Support" section at the bottom of the page for full details.

We offer both individual arms and complete suspension kits. Please check the "Package Includes" or "Quantity" section to see if you are ordering a single Driver/Passenger side arm or a full multi-piece kit.
