PHILTOP Front Control Arms for Outlander 2007-2013, Lancer 2008-2017 Suspension Kit

PHILTOP Front Control Arms for Outlander 2007-2013, Lancer 2008-2017 Suspension Kit

Ball Joint Included

Corrosion Resistant

Deformation Resistant

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2544CAK1369US

Specifications

Brand
PHILTOP
Items Included

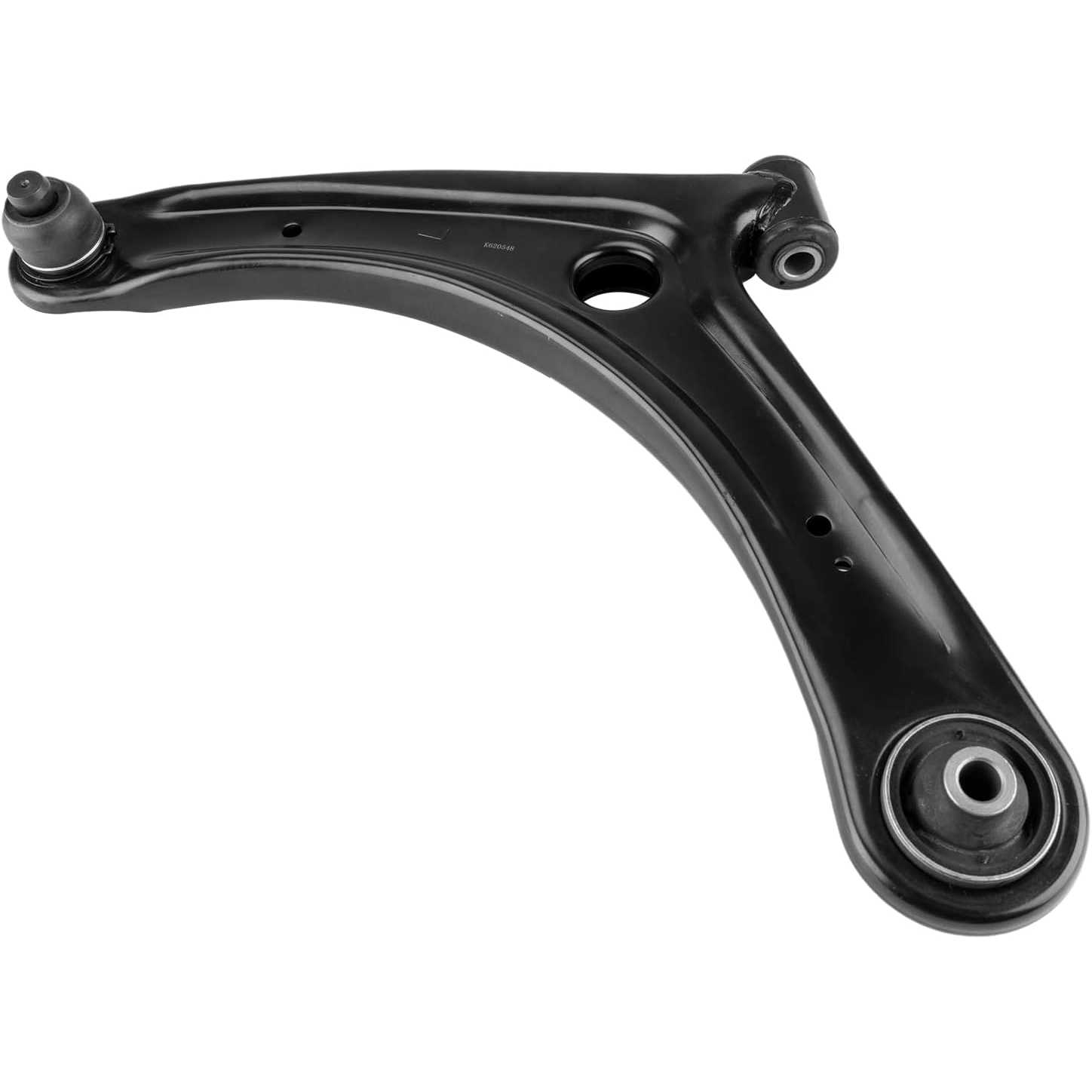

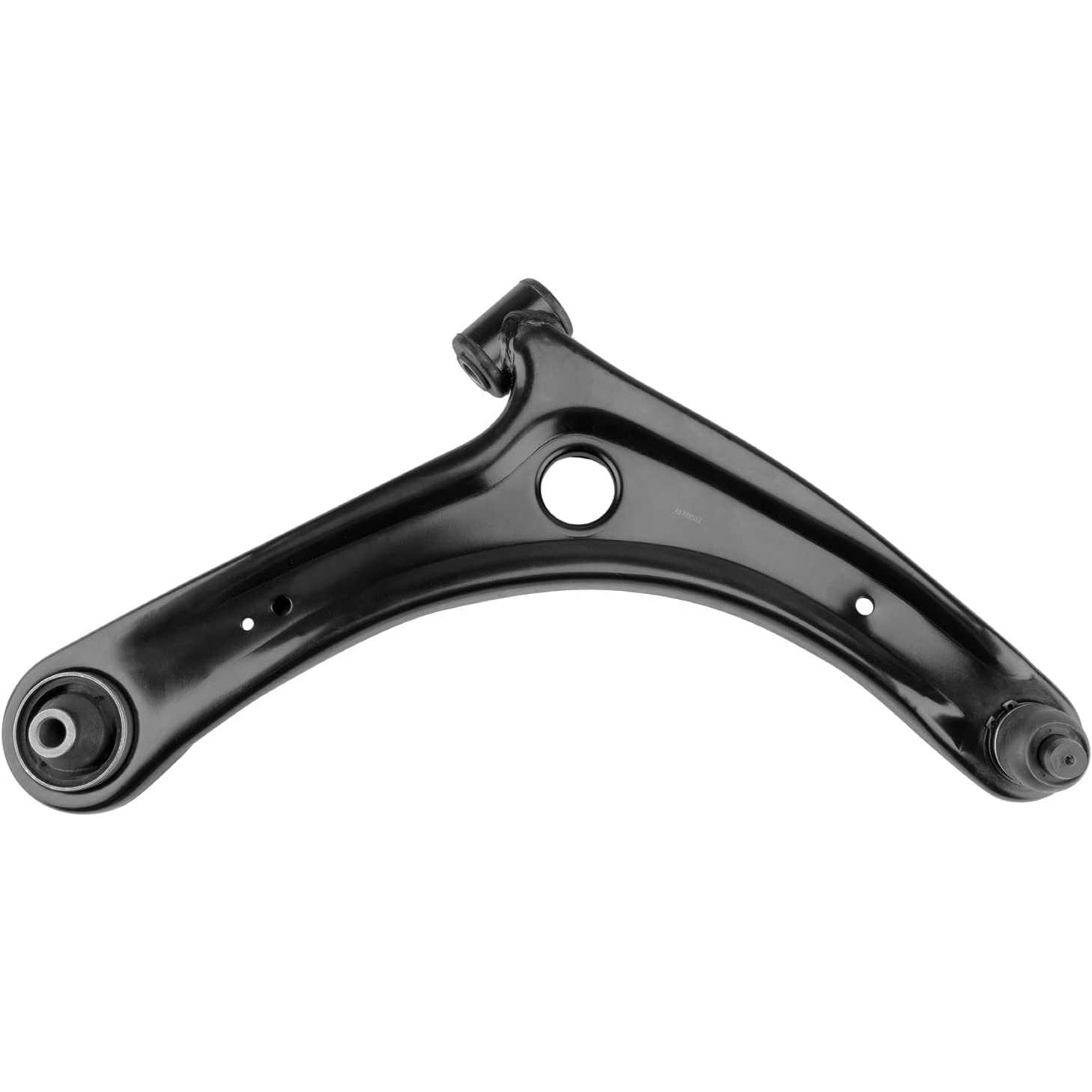

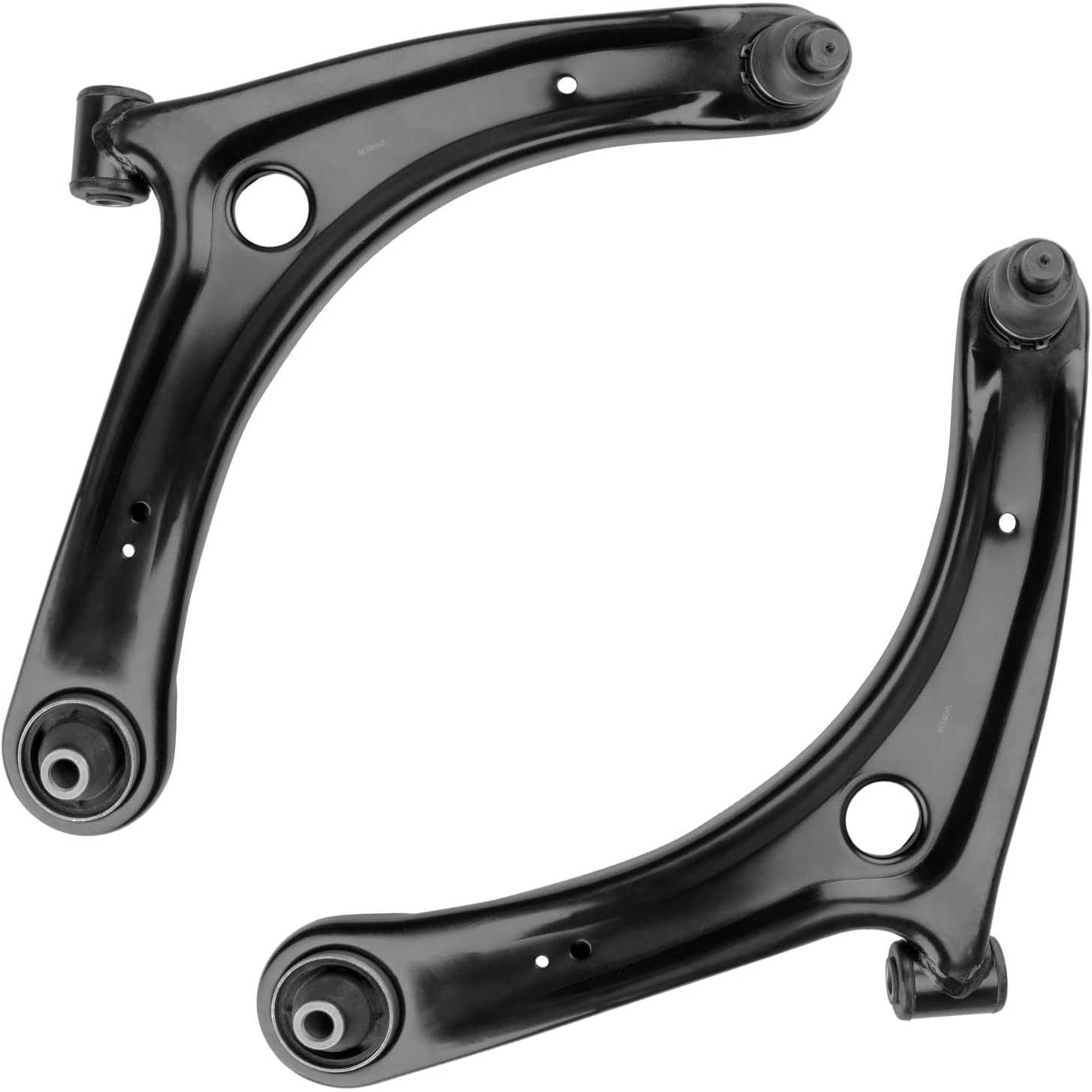

1x Front Left Lower Control Arm and Ball Joint Assembly - RK620548 1x Front Right Lower Control Arm and Ball Joint Assembly - RK620549 2x Outer Tie Rod End - ES800471 2x Inner Outer Tie Rod End - EV800638 2x Front Stabilizer Bar Link - K80258
Quantity
8
Position
Front Lower
Surface Finish
Chrome
Material
Steel
Warranty Period
2-Year
OE Number
3812F1,4013A009,4013A010,4013A282,4013A281,4013A428,4013A427,4422A018,4422A012,4422A052,4013A279,4013A280,4013A218,4013A430,4013A217,4013A429,4422A002,4013A483,4013A482
Part Number
K80258,ES800471,EV800638,RK620549,RK620548,TA2620,TI67070XL,TI67130,1018133,GS80725,JAR256

Highlights

  • Fitment: PHILTOP Front Control Arms for Outlander 2007-2013, Lancer 2008-2017.

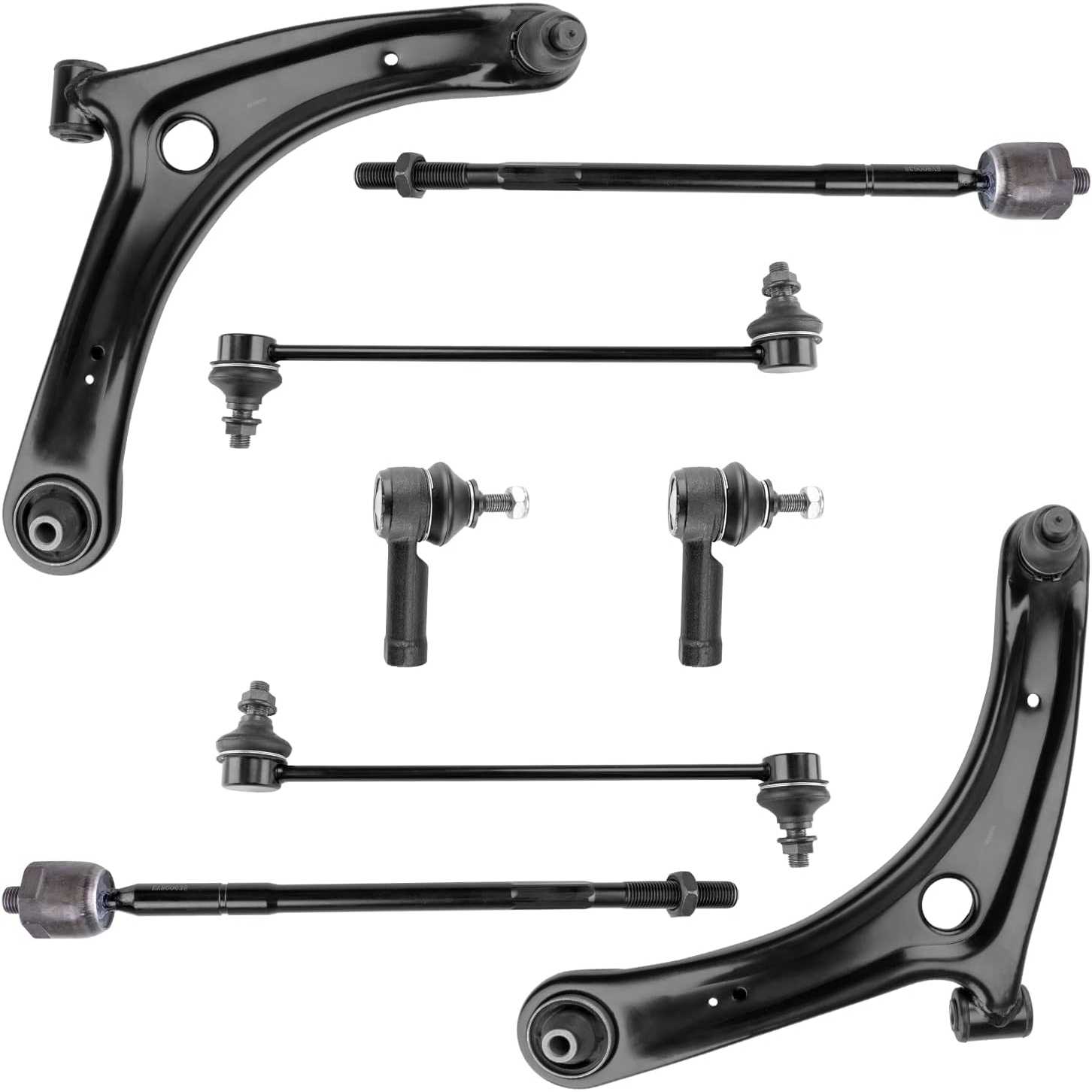

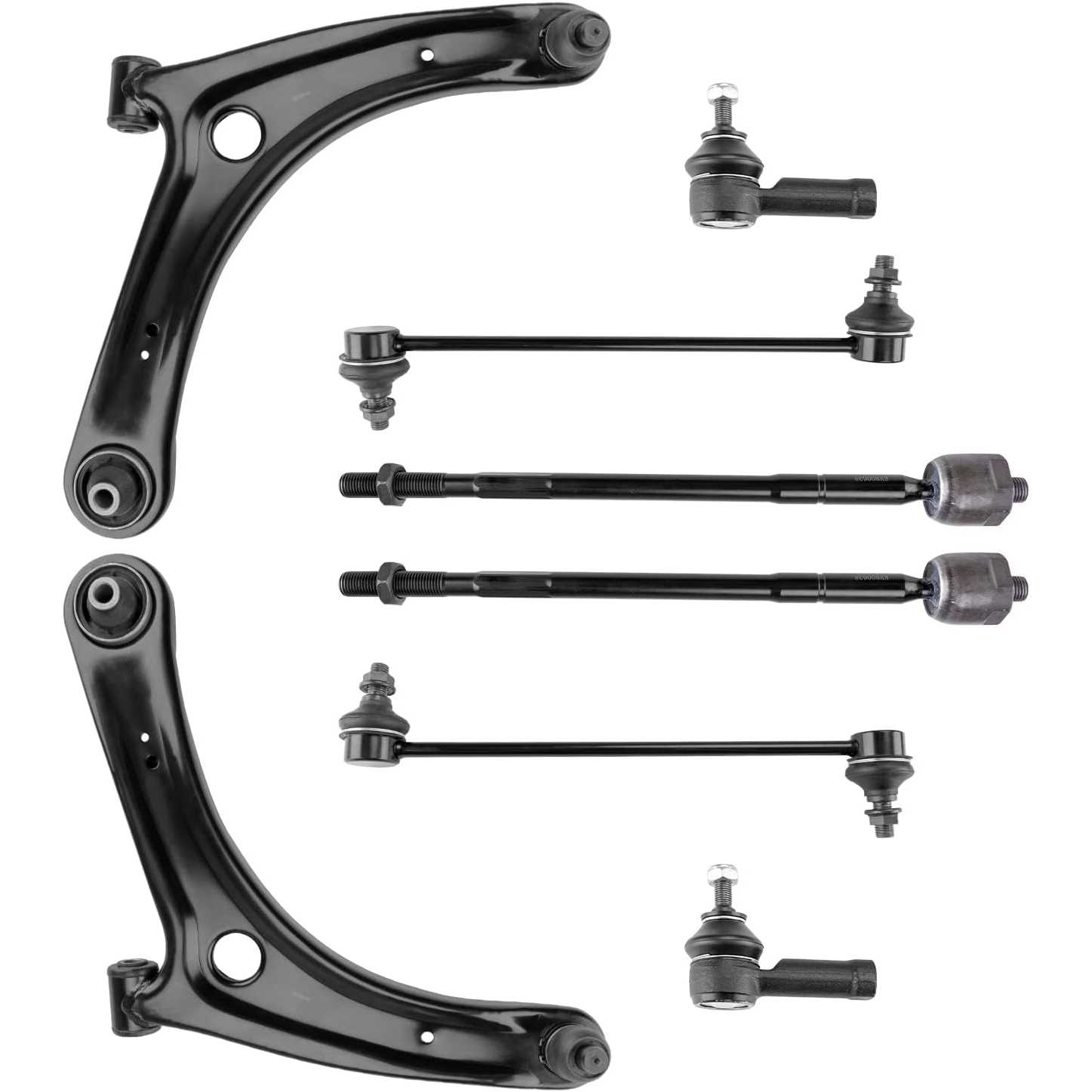

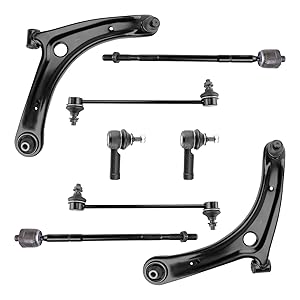

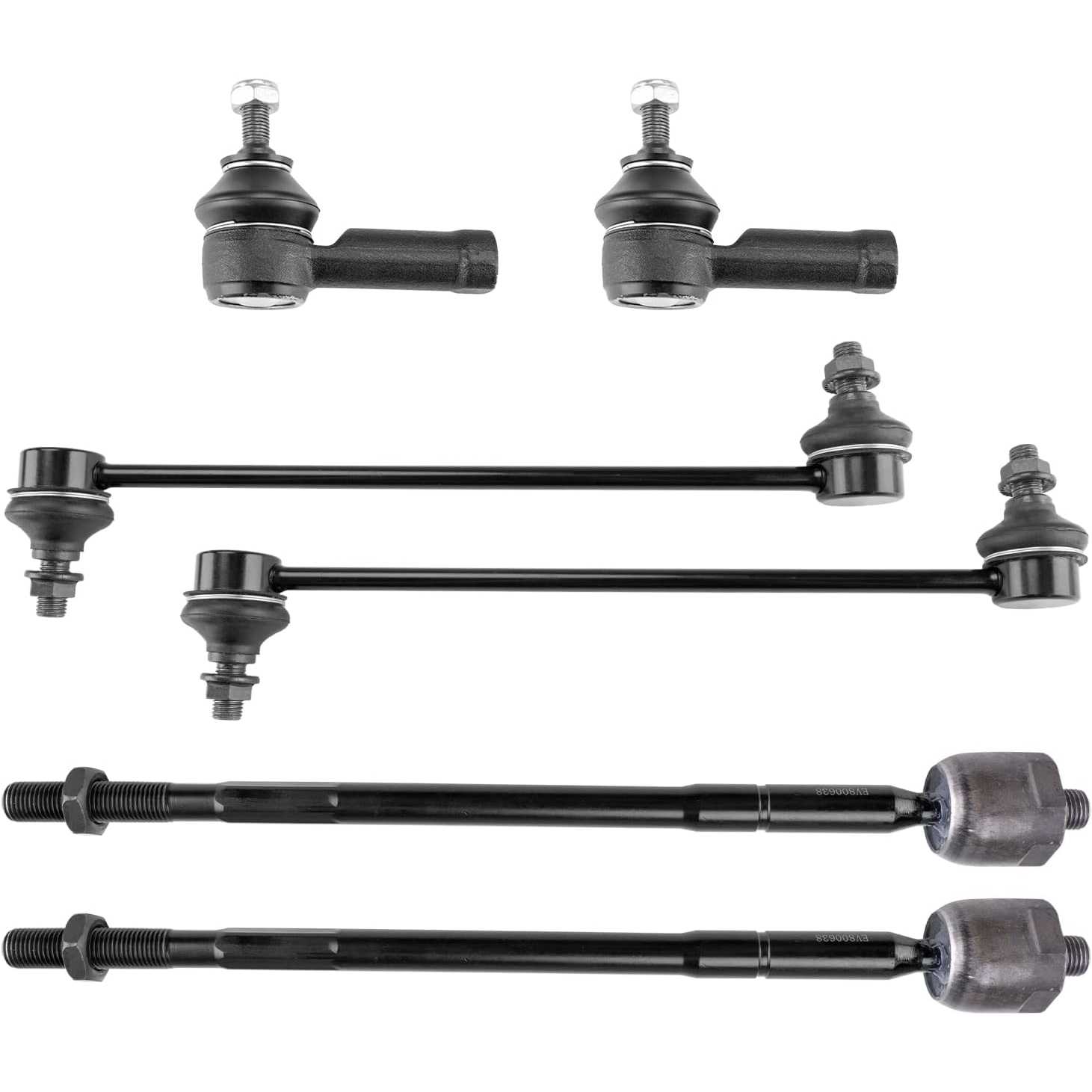

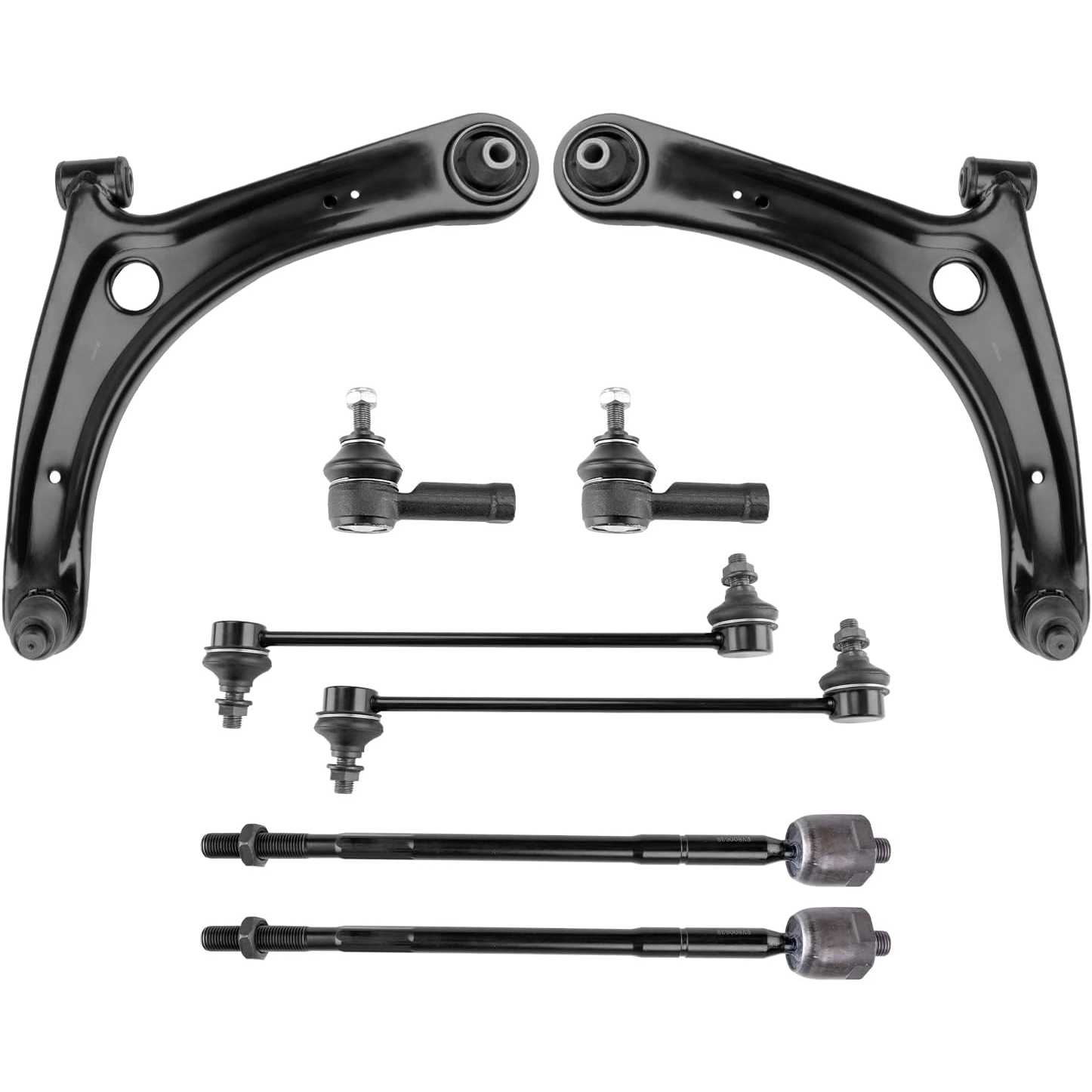

  • Package Contents: 2x Front Lower Control Arms with Ball Joints - K620548; 2x Front Inner Tie Rods - EV800638; 2x Front Outer Tie Rods - ES800471; 2x Front Sway Bar Links - K80258.
  • Tips: Please check that the control arm is suitable for your vehicle by "Suncentautoconfirmedfit" before purchasing.
  • Long Service Life: Designed to handle severe impacts and repetitive loads through heat-treatment.Coatings to studs inhibit corrosion to promote a long service life.
  • Easy to install: Excellent product design and manufacturing technology make PHILTOP control arms better fit your car and make your installation fast and simple.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2009 - 20132009 - 20172016 - 20172012 - 20142012 - 20162012 - 20142009 - 201120102009 - 201320102012 - 20162008 - 201720072010 - 20172007 - 20082008 - 20172016 - 20172007 - 2011
MakeMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishiMitsubishi
ModelLancerLancerLancerLancerLancerLancerLancerLancerLancerLancerLancerOutlanderOutlanderOutlanderOutlanderOutlanderOutlanderOutlander
TrimDEESESES SportbackGTGT SportbackGTSGTS SportbackRalliartRalliart SportbackSEESESGTLSSESELXLS
Engine2.0L L42.0L L42.4L L42.0L L42.4L L42.4L L42.4L L42.4L L42.0L L42.0L L42.4L L42.4L L43.0L V63.0L V63.0L V62.4L L42.4L L43.0L V6
Note------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the installation side, mounting points and ball-joint configuration.
  • Inspect the new control arm, bushings, ball joint and dust boot for damage.
  • Check the steering linkage, stabilizer link and related suspension components for looseness or wear.
  • Support the vehicle with approved jack stands and support the steering knuckle to protect the brake hose and ABS wiring.
  • Replacing control arms in left/right pairs is recommended when both sides have similar mileage or wear.

Installation Steps

  • Step-1: Raise and support the vehicle, then remove the wheel.
  • Step-2: Support the steering knuckle and disconnect the stabilizer link or related components as required.
  • Step-3: Separate the ball joint using the correct puller—do not strike or pry it aggressively.
  • Step-4: Remove the mounting bolts and old control arm, then clean the mounting points.
  • Step-5: Position the new arm and hand-start all fasteners.
  • Step-6: Connect the ball joint and stabilizer link, replacing any single-use nuts or bolts.
  • Step-7: Return the suspension to normal ride height before tightening the control-arm pivot bolts to specification.

After Installation

  • Confirm all fasteners and locking components are secure.
  • Check that the wheel rotates freely without interference.
  • Perform a short, low-speed road test and check for noise, pulling or unstable steering.
  • A professional four-wheel alignment is required after installation.
  • Recheck the installation after the first 50–100 km.

Product Video

Product Description

12

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

This smells so bad I don't even want it in my house! One of the toys looks dirty and the other one wasn't even connected. The worst part is definitely the smell.

01/05/2024

Verified buyer

Had them on for a couple weeks now. No complaints yet. Will update if there is. Quality seems great

Brad Cass

12/19/2023

Verified buyer

They look good and fit perfectly

FAQS

Fitment depends on your car's year, model, and sometimes whether it is 2WD or 4WD. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm.

We stand behind our chassis components with a 3-Year Limited Warranty for your safety and peace of mind. Scroll to the "Warranty & Support" section at the bottom of the page for full details.

We offer both individual arms and complete suspension kits. Please check the "Package Includes" or "Quantity" section to see if you are ordering a single Driver/Passenger side arm or a full multi-piece kit.
