1997-2010 Chevrolet Malibu 2.2L/2.4L/3.1L/3.5L | Front Driver Side & Passenger Side CV Axle Shaft | 661243 - PHILTOP

1997-2010 Chevrolet Malibu 2.2L/2.4L/3.1L/3.5L | Front Driver Side & Passenger Side CV Axle Shaft | 661243 - PHILTOP

Front

Built to Last

4.9

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7746SHA782PUS

Specifications

Brand
PHILTOP
Position
Front
ABS Ring Included
Yes
Quantity
2
Input Shaft Spline Count
34
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
30
Items Included

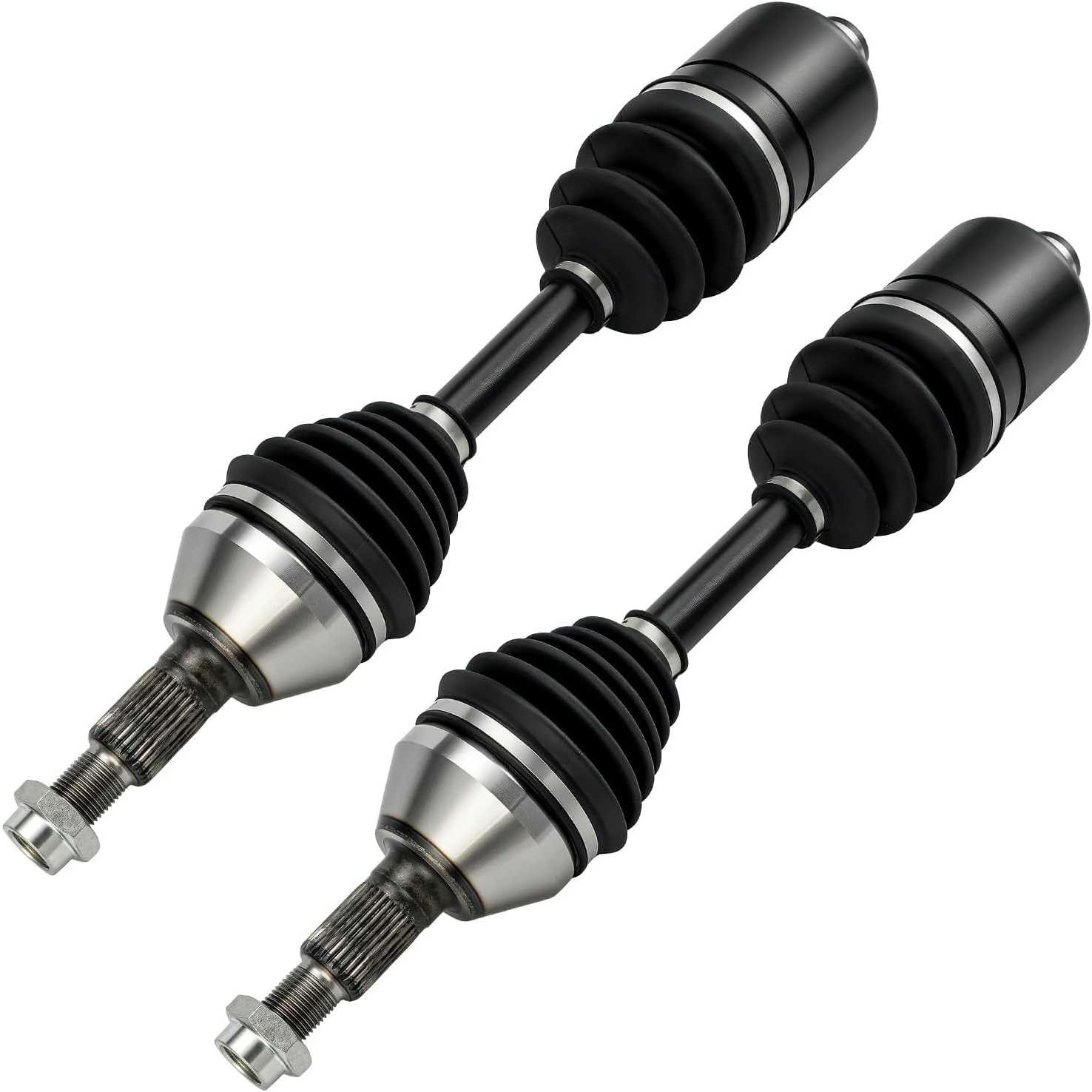

2x Front Cv Axle Shaft - 661243
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
661243

Highlights

  • Fitment: Front Axle Shaft for 1997-1999 Malibu 2.4L(4-speed), 2008-2010 Malibu 2.4L(4-speed), 1997-2003 Malibu 3.1L(4-speed), 2004-2008 Malibu 2.2L(4-speed), 2004-2010 Malibu 3.5L(4-speed), 2009-2009 Malibu 3.5L(6-speed), 2004-2005 Classic, 2005-2010 G6 3.5L(4-speed), 2006-2010 G6 2.4L(4-speed), 1999-2005 Grand Am(Automatic), 1999-2004 Alero(Automatic), 1997-1999 Cutlass, 2007-2008 Aura 2.4/3.5L, 2009-2009 Aura FHEV.
  • Reference Number: 26059860, 661243, 10379128, 10379129, 25844557.
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV axles. The high quality materials and excellent performance of our half shafts provide reliable support for your vehicle!

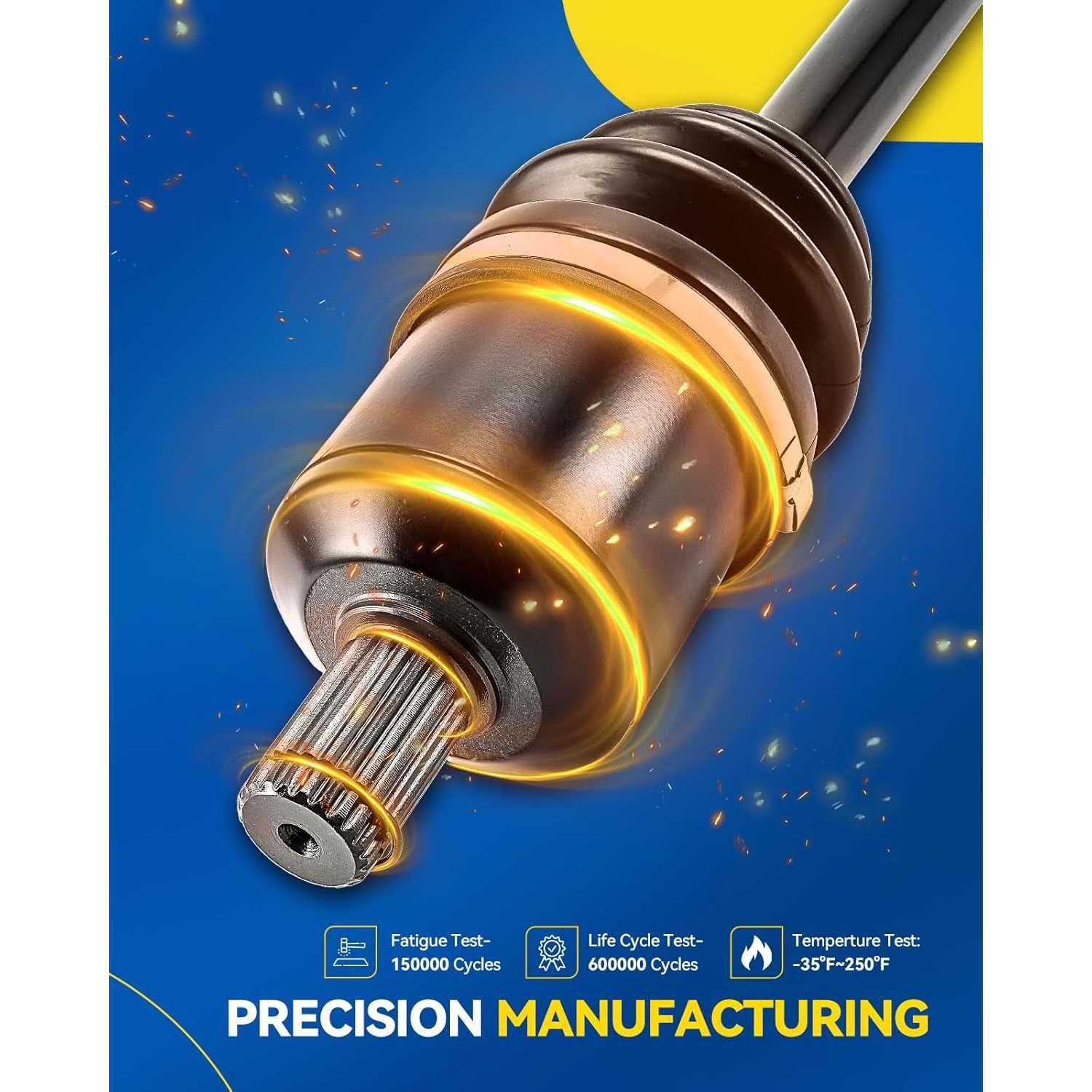

  • High Quality: Half shafts are 100% ground to improve ball path and surface finish and extend product life.CV shafts are normalised to ensure stability in subsequent machining.
  • Function: Half shafts for equal speed power transmission and wheel steering through pendulum angle.CV axles are designed in strict accordance with OE standards, with 100% inspection of key mating dimensions.

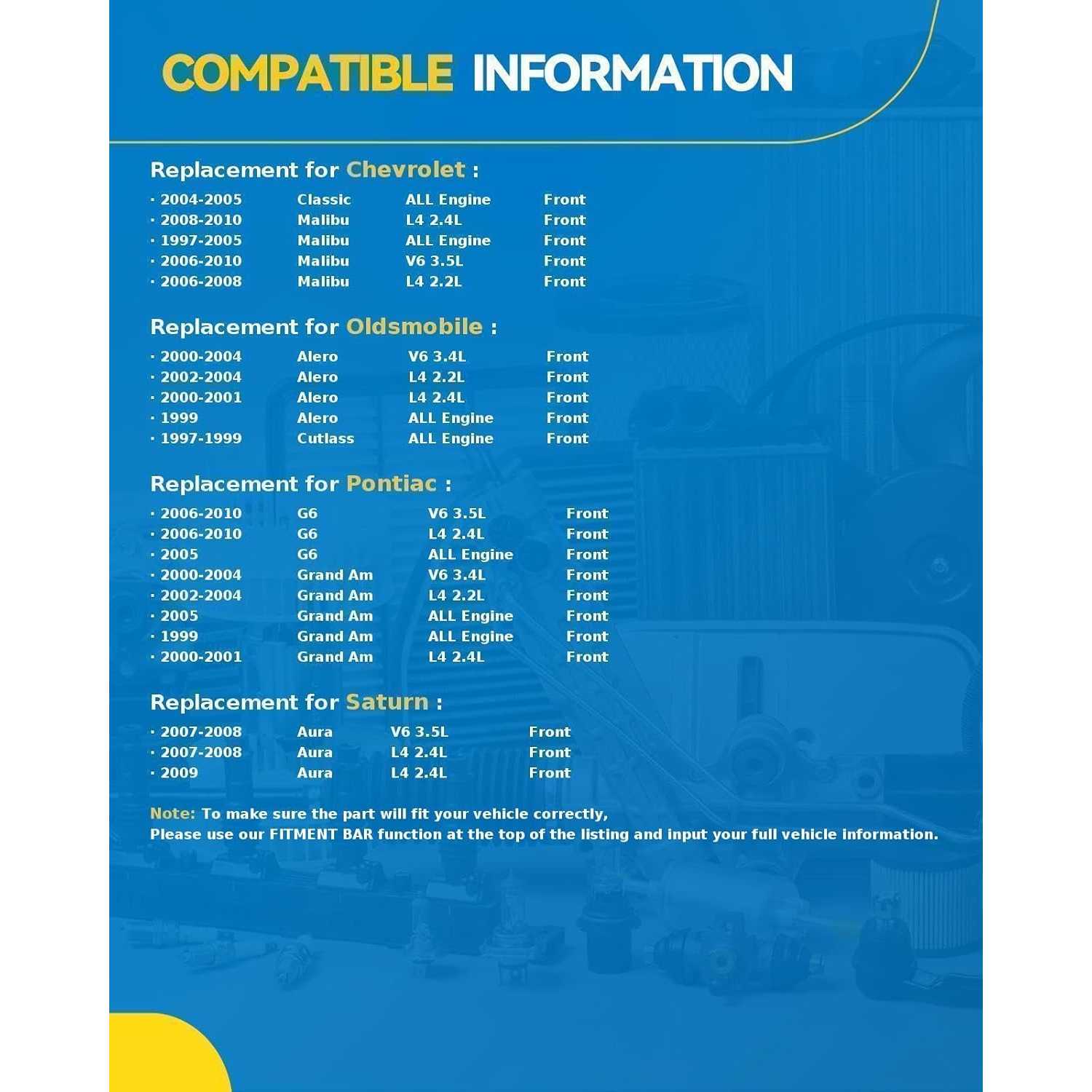

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2004 - 200520042004 - 20051997 - 19991997 - 20032008200820082008 - 20102006 - 20072008 - 20101997 - 20032004 - 20102006 - 20072008 - 20092004 - 200720092006 - 200720042004 - 20072004 - 20072006 - 20072002 - 20041999 - 20011999 - 20042002 - 20031999 - 20011999 - 20042002 - 20041999 - 20012000 - 20021997 - 199819991997 - 19992006 - 20102005 - 20102005 - 201019991999 - 20052000 - 20052002 - 20051999 - 20011999 - 20052002 - 20042000 - 20012000 - 2004200020002003 - 20042007 - 2008200920082007 - 2008
MakeChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletChevroletOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobileOldsmobilePontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacPontiacSaturnSaturnSaturnSaturn
ModelClassicClassicMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuMalibuAleroAleroAleroAleroAleroAleroAleroAleroAleroCutlassCutlassCutlassG6G6G6Grand AmGrand AmGrand AmGrand AmGrand AmGrand AmGrand AmGrand AmGrand AmGrand AmGrand AmGrand AmAuraAuraAuraAura
TrimBaseLSBaseBaseBaseClassic LSClassic LSClassic LTHybridLSLSLSLSLTLTLTLTLTZMaxxMaxx LSMaxx LTMaxx LTZGLGLGLGLSGLSGLSGXGXGXBaseGLGLSBaseBaseGTGTGTGT1SESESESE1SE1SE1SE2SE2SE2Green LineHybridXEXE
Engine2.2L L42.2L L42.2L L42.4L L43.1L V62.2L L43.5L V63.5L V62.4L L42.2L L42.4L L43.1L V63.5L V62.2L L42.4L L43.5L V63.5L V63.5L V63.5L V63.5L V63.5L V63.5L V62.2L L42.4L L43.4L V62.2L L42.4L L43.4L V62.2L L42.4L L43.4L V63.1L V63.1L V63.1L V62.4L L43.5L V63.5L V62.4L L43.4L V63.4L V62.2L L42.4L L43.4L V62.2L L42.4L L43.4L V62.4L L43.4L V63.4L V62.4L L42.4L L42.4L L43.5L V6
Note-----------------------------------------------------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.9/5

Based on 14 reviews

593%
47%
30%
20%
10%

Customer

07/29/2026

Verified buyer

perfect fix - no surprise

Carlos eduardo aguilera arreaza

06/27/2026

Verified buyer

Todo exclusivo

FAQS

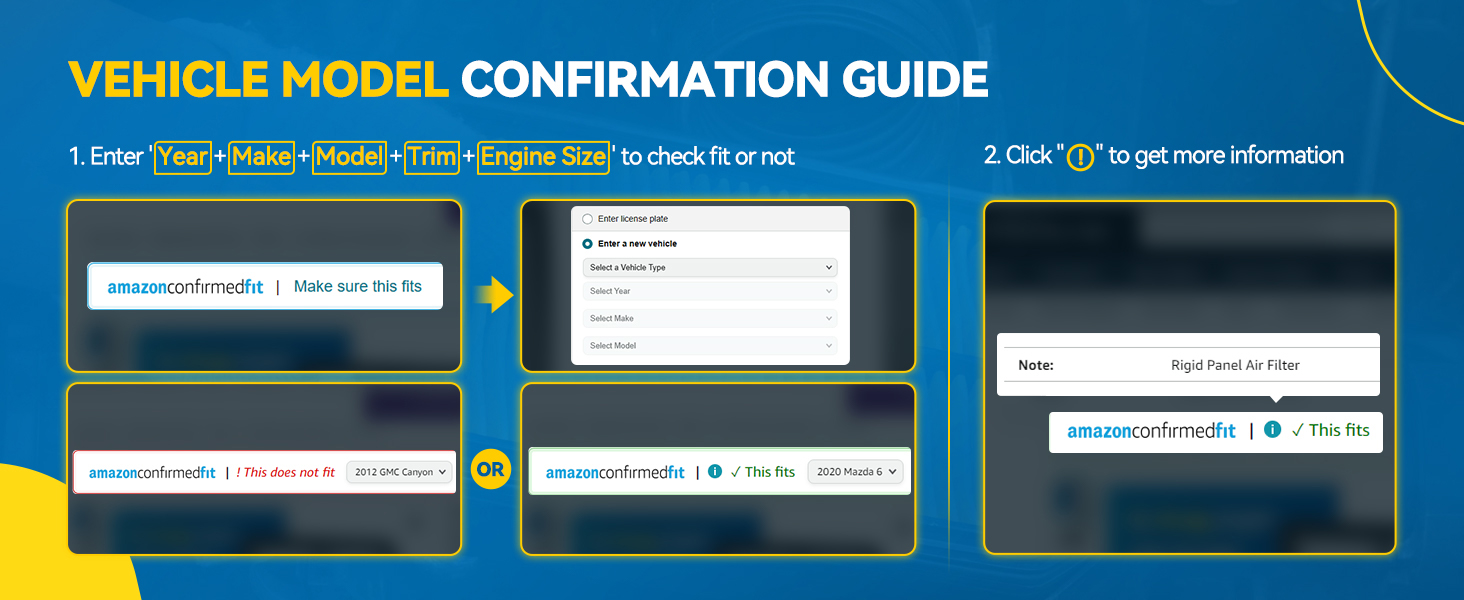

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
