2003-2010 Porsche Cayenne 3.2L | Front Driver Side & Passenger Side CV Axle Shaft | 667320 - PHILTOP

2003-2010 Porsche Cayenne 3.2L | Front Driver Side & Passenger Side CV Axle Shaft | 667320 - PHILTOP

Front Left or Right

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2245SHA6570US

Specifications

Brand
PHILTOP
Position
Front Left or Right
ABS Ring Included
No
Quantity
1

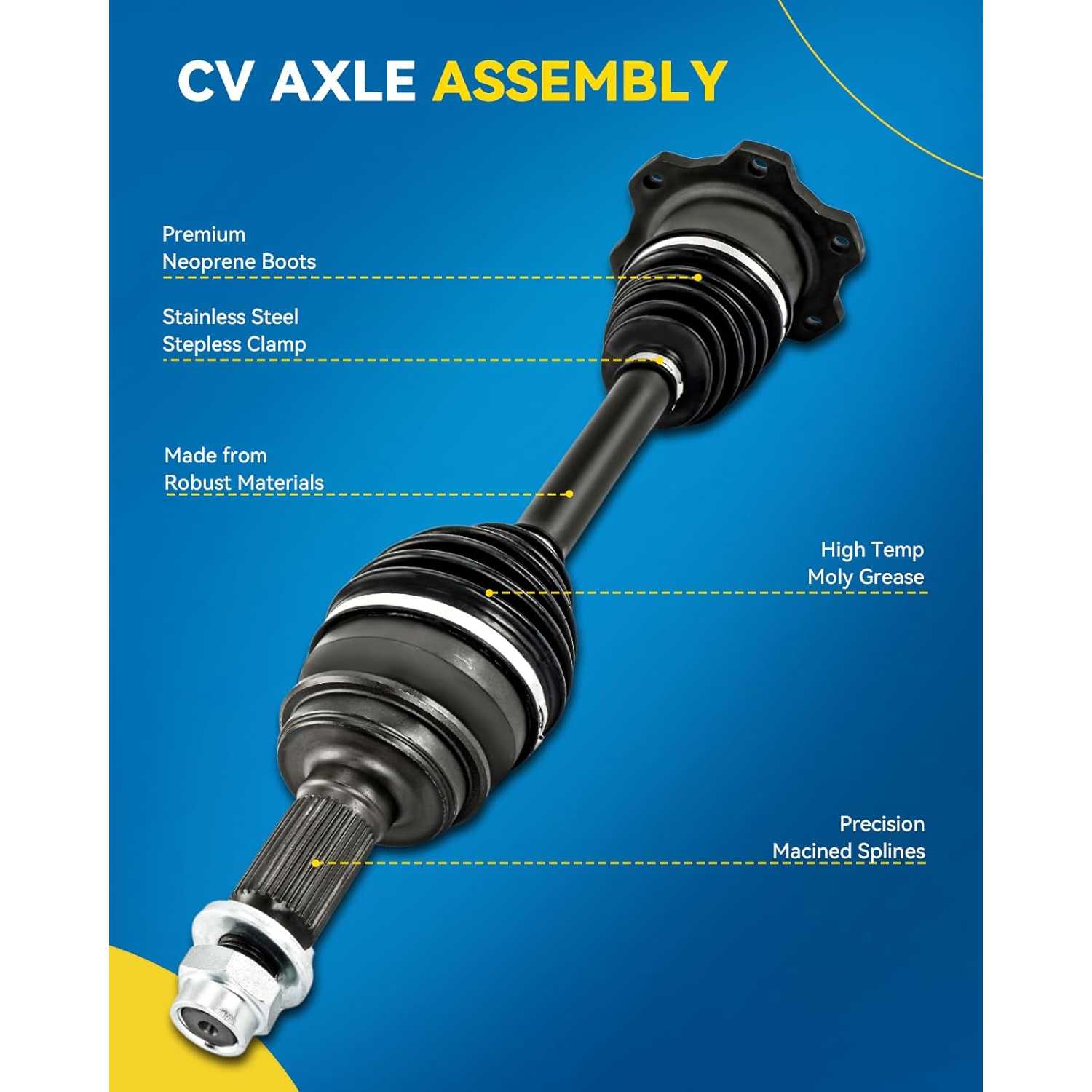

Material
SAE 1055 Steel and Chloroprene Rubber

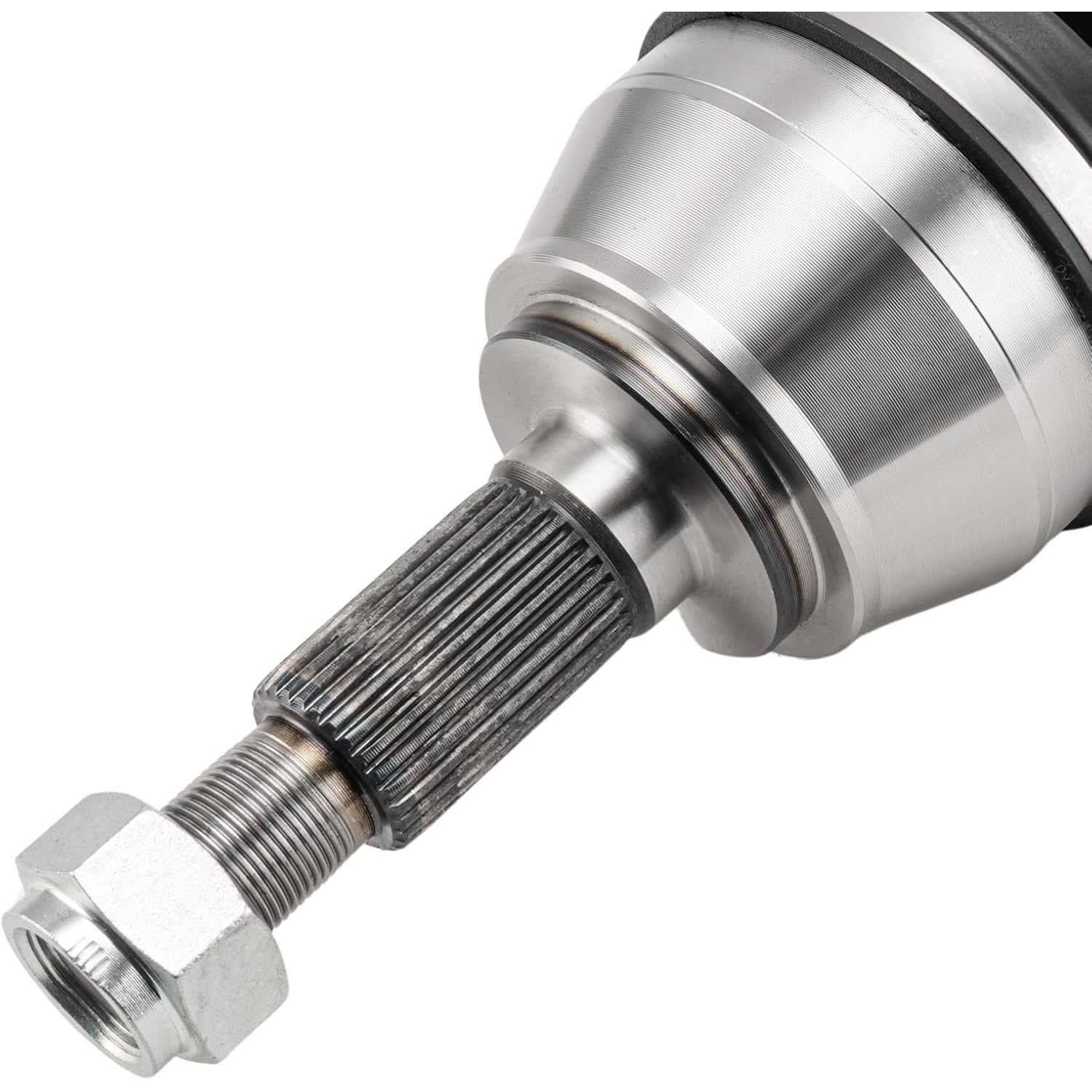

Output Shaft Spline Count
30
Items Included

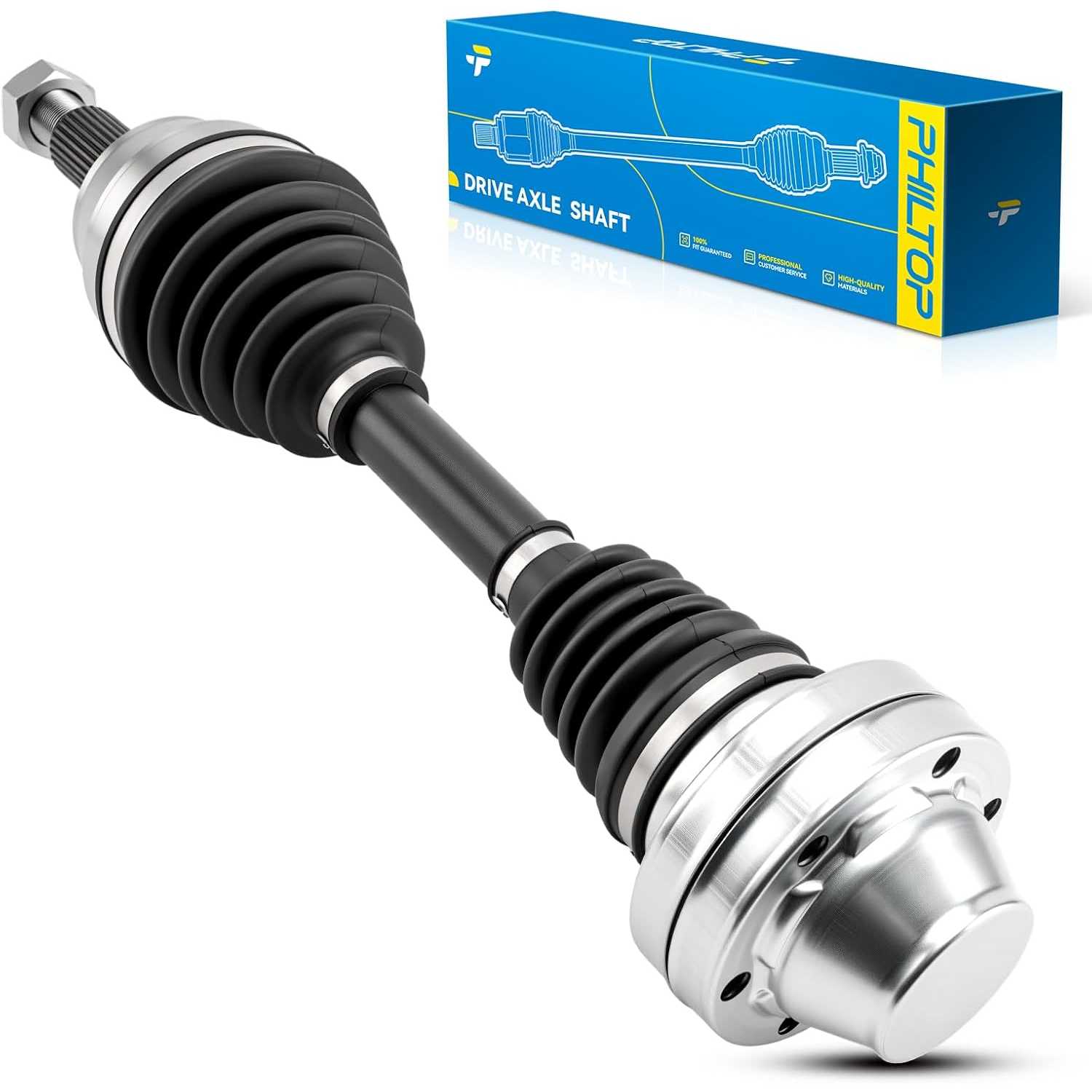

1x Front Left or Right Cv Axle Shaft - 66-7320
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
667320

Highlights

  • Vehicle Fitment: Front 66-7320 Axle Shaft for 2007-2010 Q7, 2003-2010 Cayenne, 2004-2006 Touareg 3.2L, 2006-2006 Touareg 4.2L, 2007-2008 Touareg 3.6L, 2008-2008 Touareg 5.0L, 2009-2010 Touareg.
  • CV Joint OE Number: APCVA933, NCV23908,Compatible with Volkswagen/Audi/Porsche, 7L0407271E, 7L0407271C, 7L0407271F, 95534903810, 667320,7L0407271A, 66-7320.

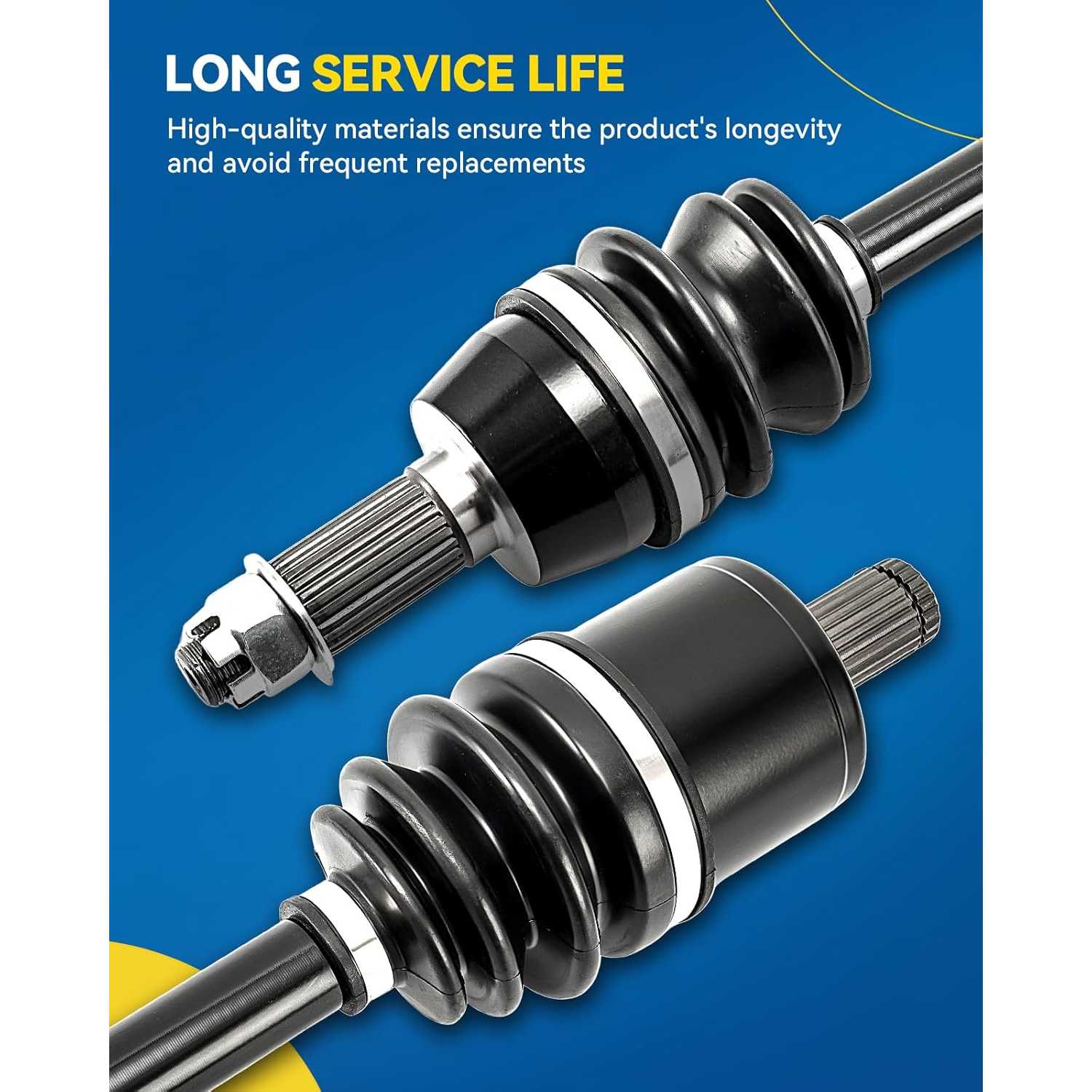

  • High Quality: Half shafts are normalized to ensure product stability.The cv shafts are also ground to improve the ball path and ball surface finish to prolong the product life.

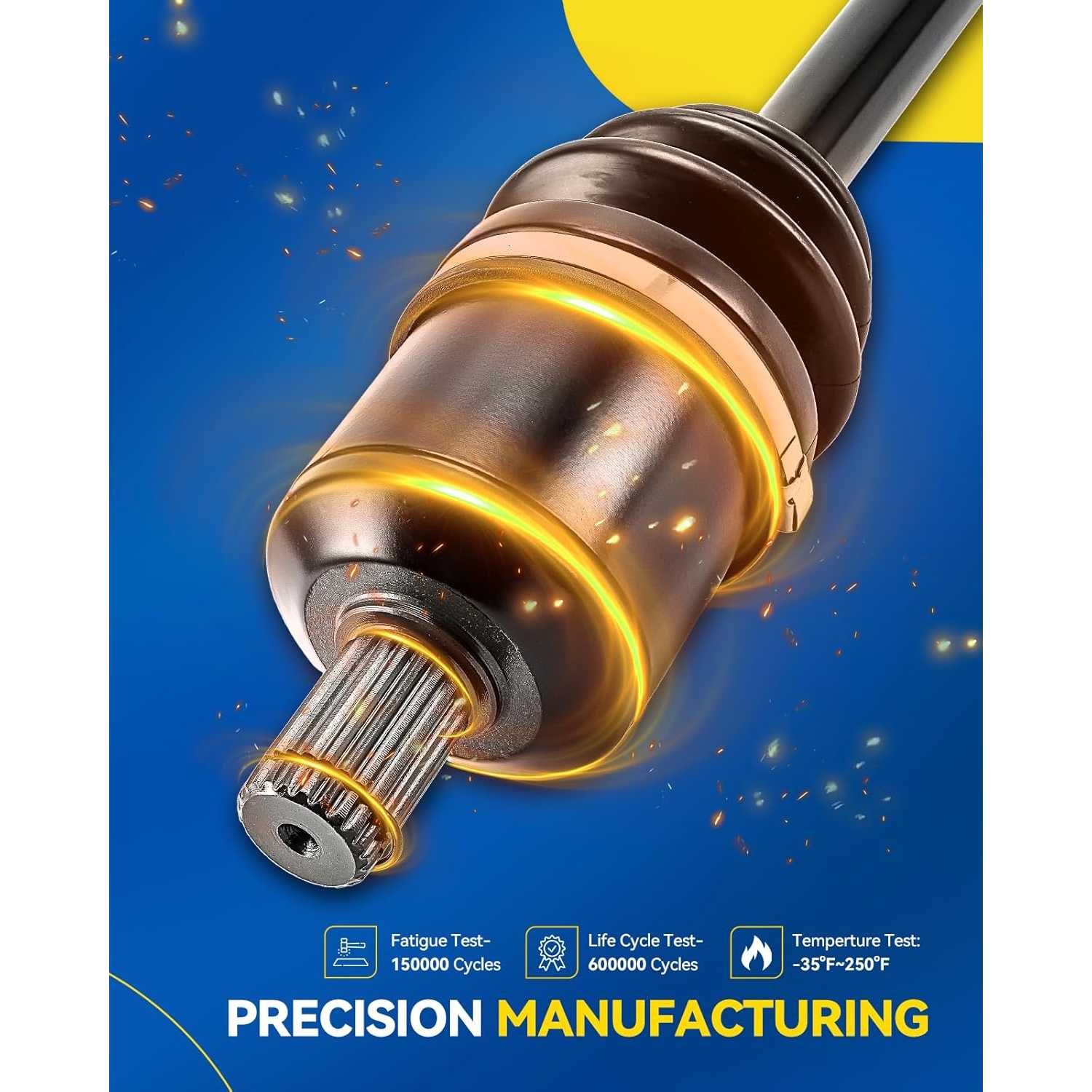

  • Factory Testing: All cv axle shafts undergo a triple factory inspection as a means of confirming product accuracy.Our Axle shafts remain in great condition under extreme conditions.

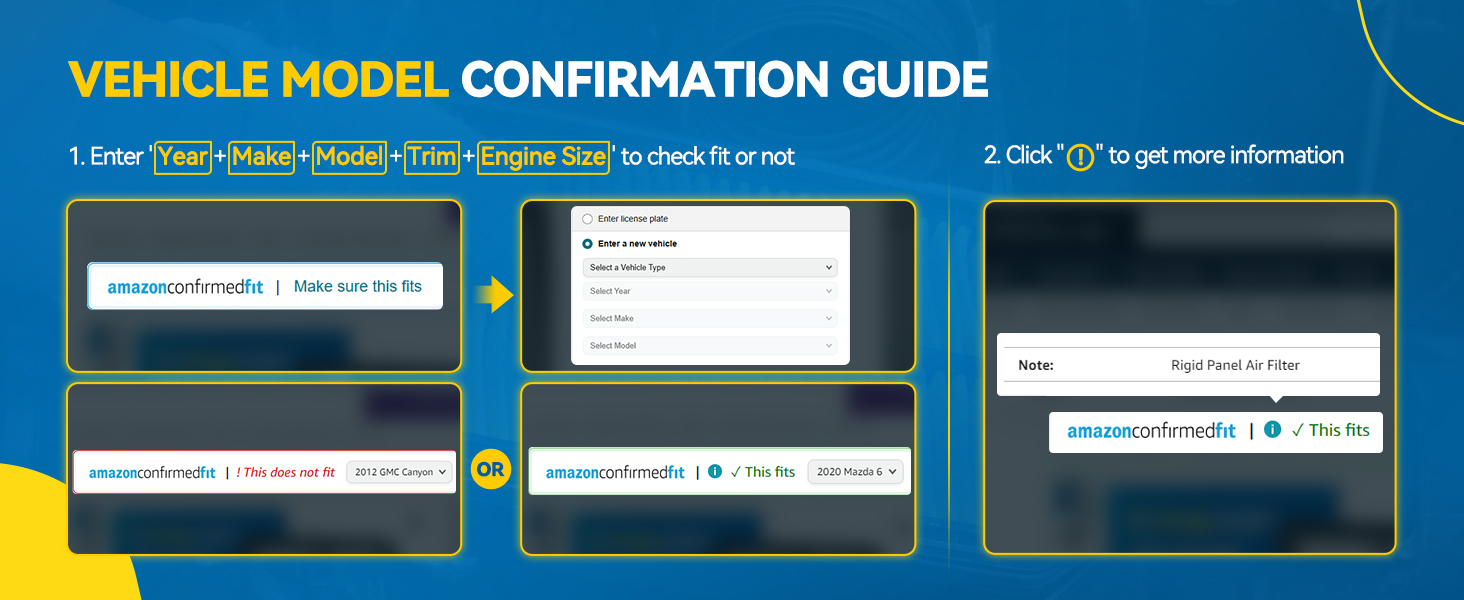

  • Purchase Verification: Before purchasing, please confirm that the cv axle will fit your vehicle by entering 'Year-Make-Model' through the Suncentauto adapter.

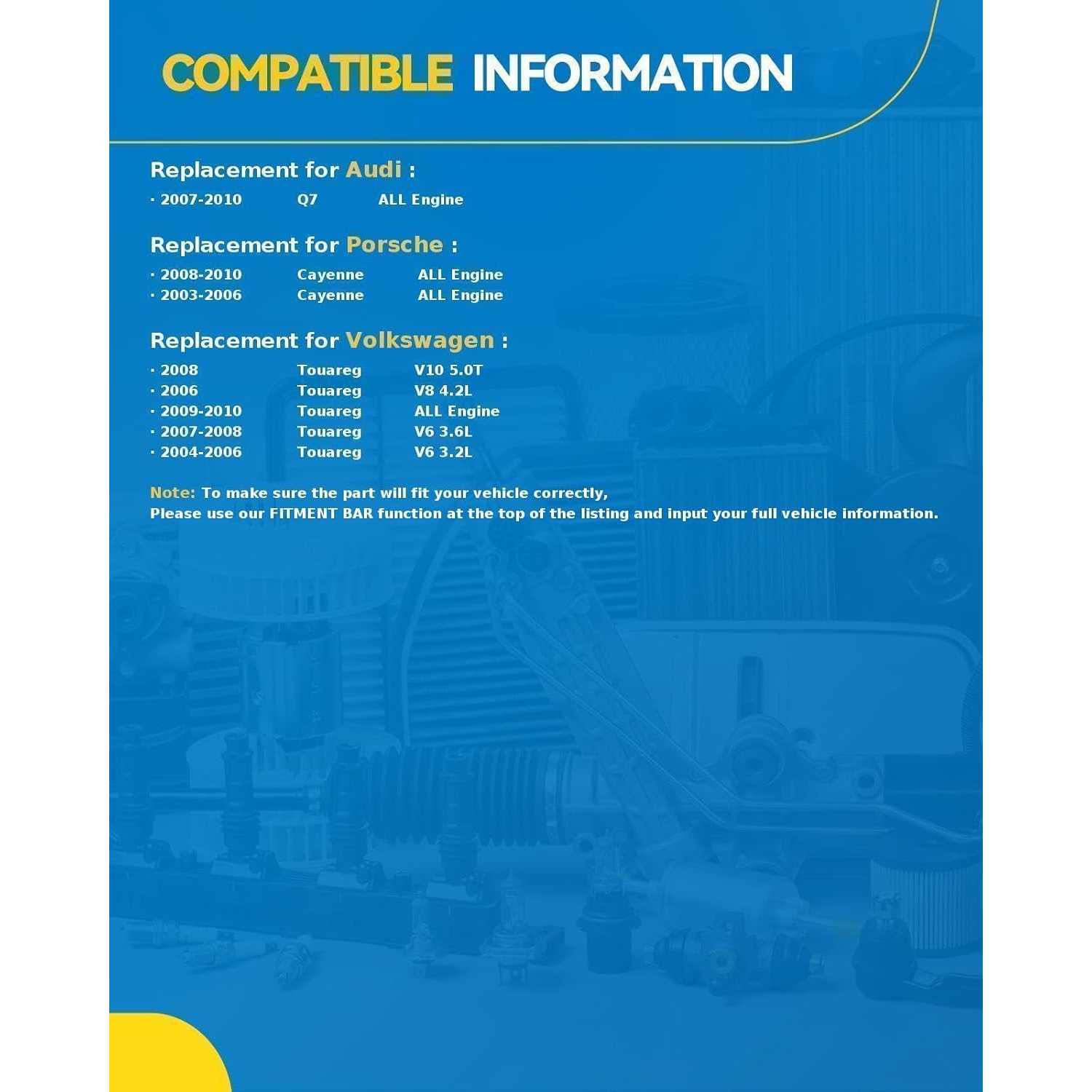

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 201020072007 - 20102007 - 200920102009 - 20102004 - 20062008 - 20102008 - 20102003 - 20062008 - 201020102003 - 20062008 - 201020062009 - 2010200520062007 - 2009200620092009 - 2010200820042010
MakeAudiAudiAudiAudiAudiAudiPorschePorschePorschePorschePorschePorschePorschePorschePorschePorscheVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelQ7Q7Q7Q7Q7Q7CayenneCayenneCayenneCayenneCayenneCayenneCayenneCayenneCayenneCayenneTouaregTouaregTouaregTouaregTouaregTouaregTouaregTouaregTouareg
TrimBaseBasePremiumPremiumPrestigeTDIBaseBaseGTSSSS TranssyberiaTurboTurboTurbo STurbo SBaseBaseBaseBaseBaseTDITDIV6VR6
Engine3.6L V64.2L V83.6L V64.2L V84.2L V83.0L V63.2L V63.6L V64.8L V84.5L V84.8L V84.8L V84.5L V84.8L V84.5L V84.8L V83.2L V63.2L V63.6L V64.2L V84.2L V83.0L V65.0L V103.2L V63.6L V6
Note-----------------
From Chassis # 7L-6-090-001
-
From Chassis # 7L-6-090-001
-----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

Patrick morford

04/11/2026

Verified buyer

So far so good been on for about 3000 miles and seems to be holding up fine

Jason_Trucks_449

11/18/2025

Quick delivery and it fit my Cayenne perfectly. Installation was a breeze, no issues whatsoever. Very pleased with this purchase and the price.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
