Front

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9077SHA447RUS

Specifications

Brand
PHILTOP
Position
Front
ABS Ring Included
No
Quantity
2

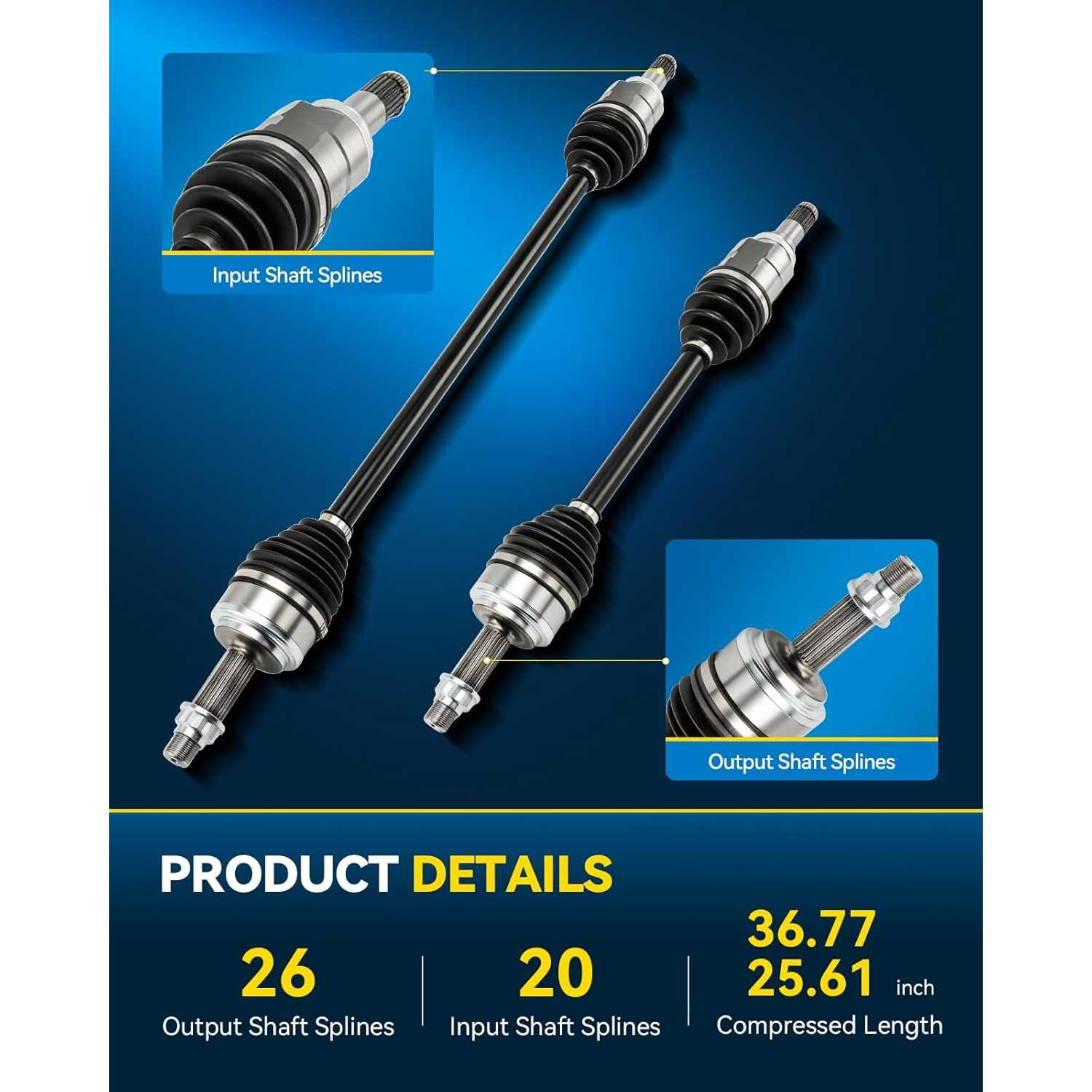

Input Shaft Spline Count
20
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included

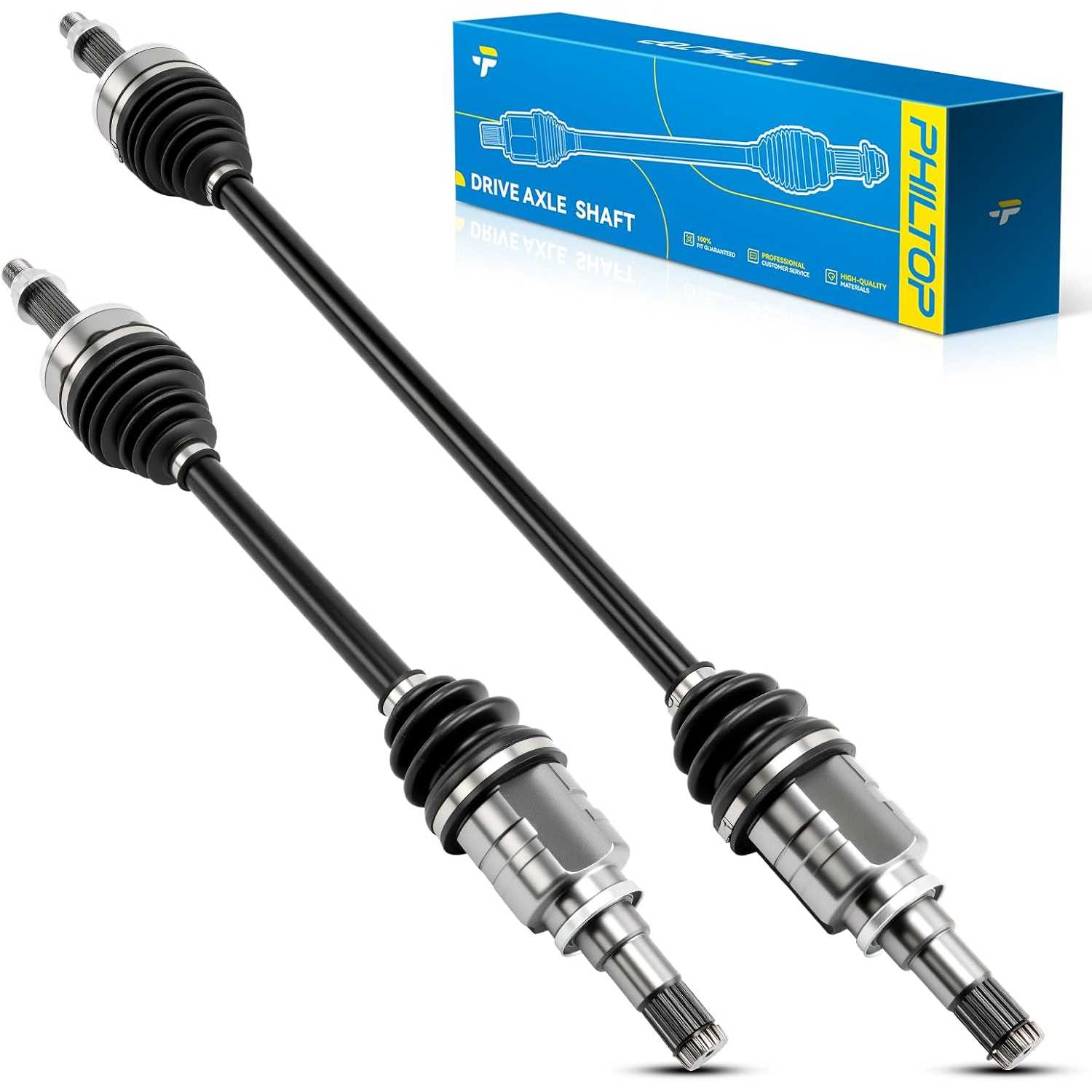

1x Front Cv Axle Shaft - NCV69192 1x Front Cv Axle Shaft - NCV69193
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
NCV69192,NCV69193

Highlights

  • Vehicle Fitment: Front NCV69192 NCV69193 Axle Shaft for 2020-2021 Corolla L/LE/XLE, Except Japan Built Vehicle.
  • CV Joint OE Number: 4341002A30,APCVA2838, NCV69192,NCV69193, 4342002E70.

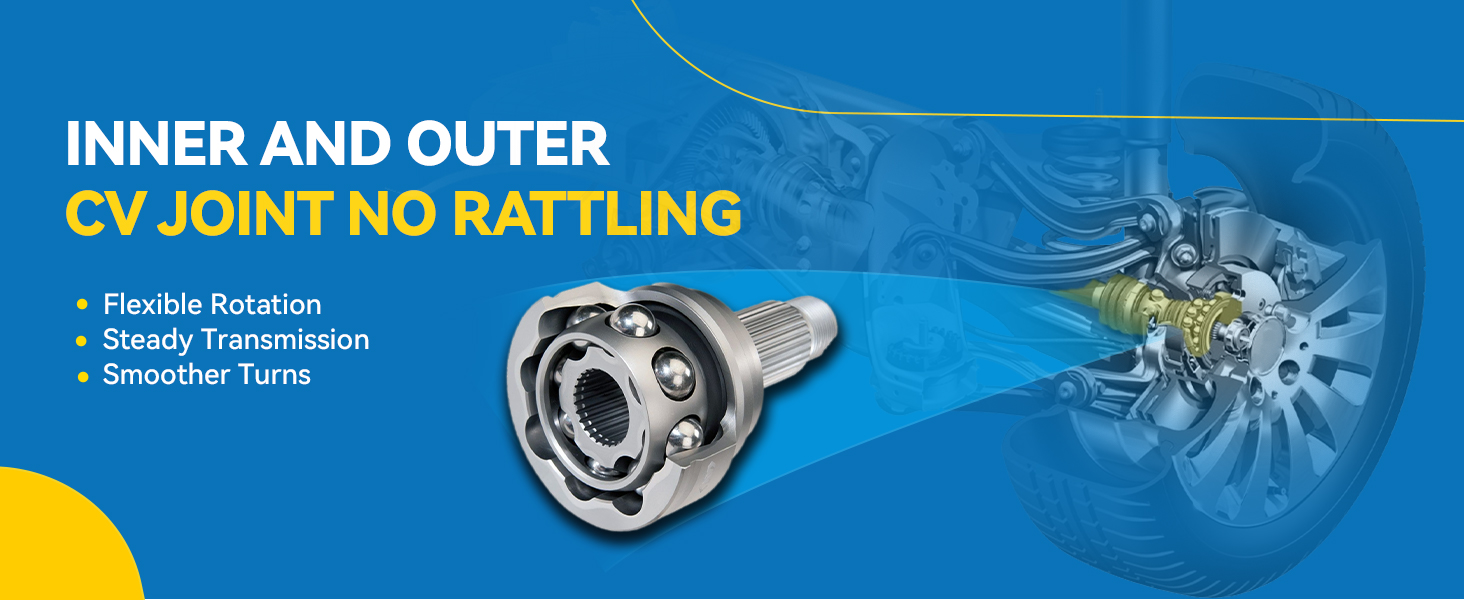

  • High Quality: Half shafts are normalized to ensure product stability.The cv shafts are also ground to improve the ball path and ball surface finish to prolong the product life.
  • Factory Testing: All cv axle shafts undergo a triple factory inspection as a means of confirming product accuracy.Our Axle shafts remain in great condition under extreme conditions.

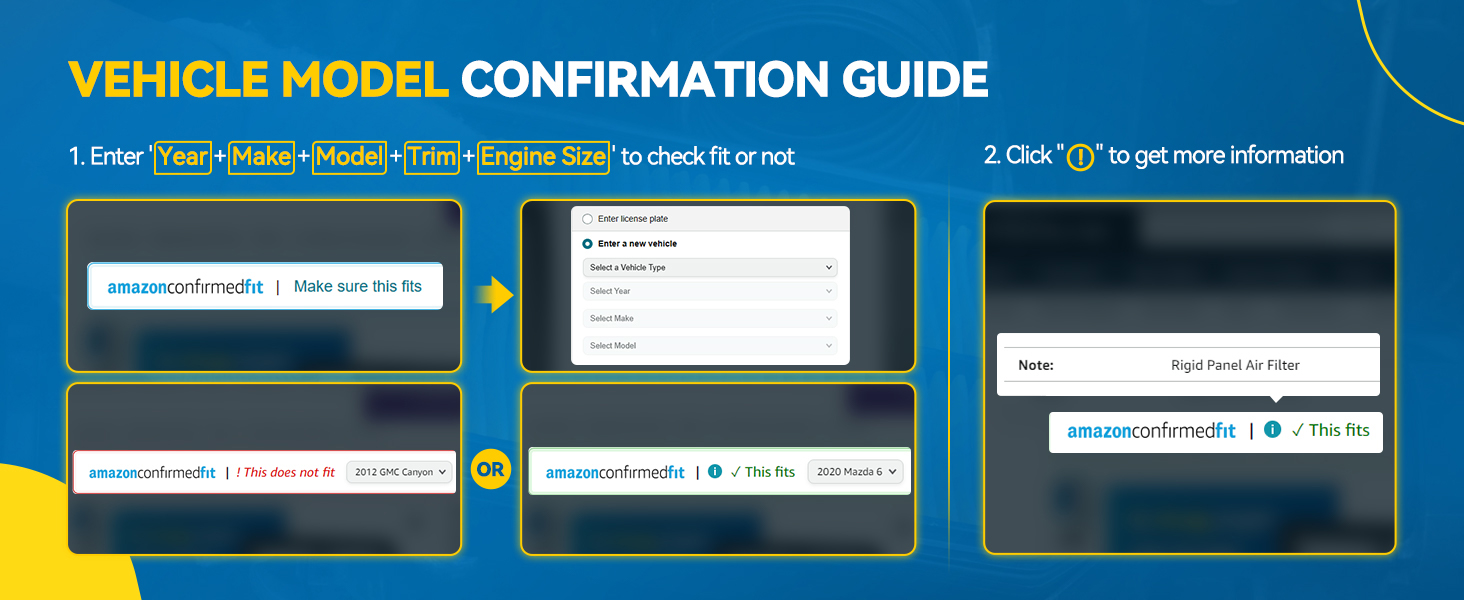

  • Purchase Verification: Before purchasing, please confirm that the cv axle will fit your vehicle by entering 'Year-Make-Model' through the Suncentauto adapter.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2020 - 20212020 - 20212020 - 2021
MakeToyotaToyotaToyota
ModelCorollaCorollaCorolla
TrimLLEXLE
Engine1.8L L41.8L L41.8L L4
Note-
Exc. Japan Built Vehicle;To 04/2021
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Rob_HomeGarage_740

03/03/2026

Super easy to get these installed on my Corolla. They arrived quicker than I expected, which was a huge relief. My car rides like new again!

Emma_DailyCommute_19

04/17/2026

The quality on these is really impressive, especially for the price. They feel solid and well-made. Definitely a great value for keeping my Corolla running smooth.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
