1998-2000 Mazda B4000 4.0L | Front Driver Side & Passenger Side CV Axle | 662147 - PHILTOP

1998-2000 Mazda B4000 4.0L | Front Driver Side & Passenger Side CV Axle | 662147 - PHILTOP

Front

Built to Last

4.3

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4484SHA402TUS

Specifications

Brand
PHILTOP
Position
Front
ABS Ring Included
No
Quantity
2
Input Shaft Spline Count
27
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
27
Items Included

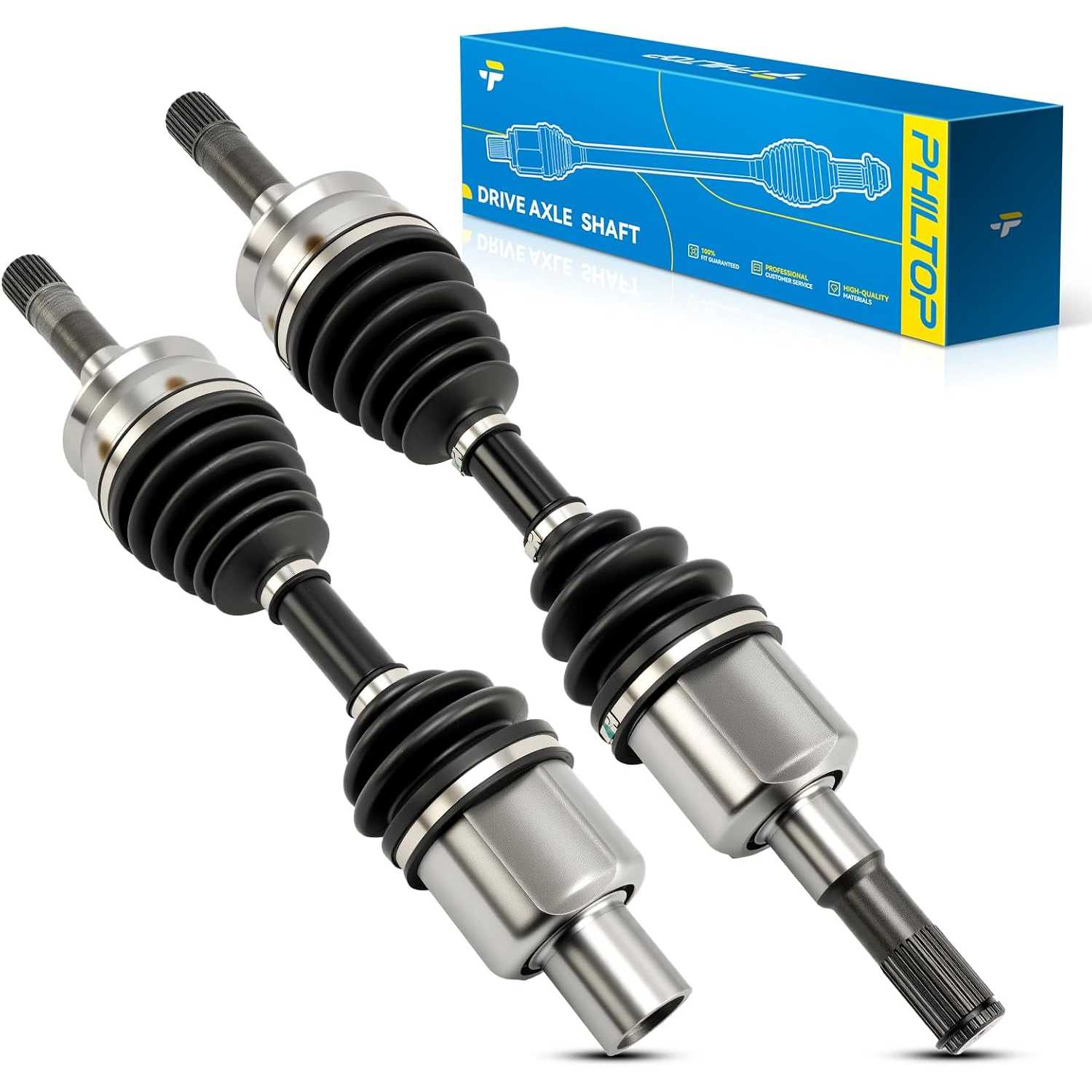

1x Front Cv Axle Shaft - 66-2147 1x Front Cv Axle Shaft - 66-2148
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
662147,662148

Highlights

  • Compatible Vehicles: 66-2147 66-2148 Front Axles for 1996-2000 Ranger 4WD, 1998-2000 B4000 4WD, 1998-2000 B3000 4WD.

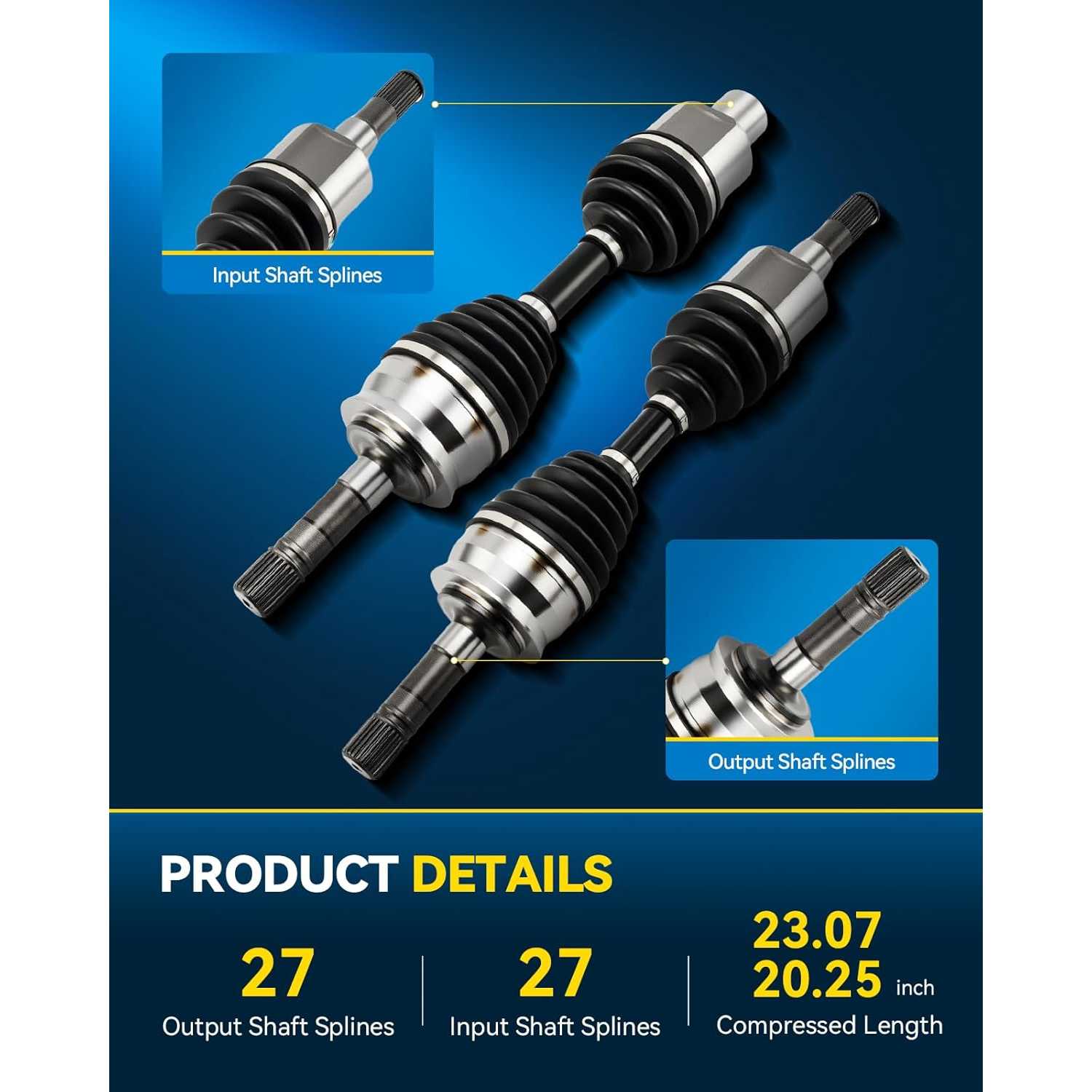

  • Specifications: Axle Nut Included: Yes, ABS Ring Included: No, Input Shaft Spline Count: 27, Output Shaft Spline Count: 27, Compressed Length: 23.07/20.25 inch, Position: Front.
  • Safe Driving: The drive shaft's superb ball cage design minimises transmission angle loss, ensuring efficient power transfer. The new drive shaft contributes to enhanced driving stability.
  • Long Service Life: The drive shaft surfaces undergo heat treatment for enhanced wear and corrosion resistance, ensuring suitability for demanding road conditions and climatic environments. The chloroprene dust covers on the cv axle shafts effectively prevent fluid leakage.
  • OE Standard: The new automotive half-shaft threads and splines undergo precision rolling for seamless direct replacement. Each cv axle shaft is rigorously tested to original equipment manufacturer standards, ensuring vehicle compatibility and product reliability.

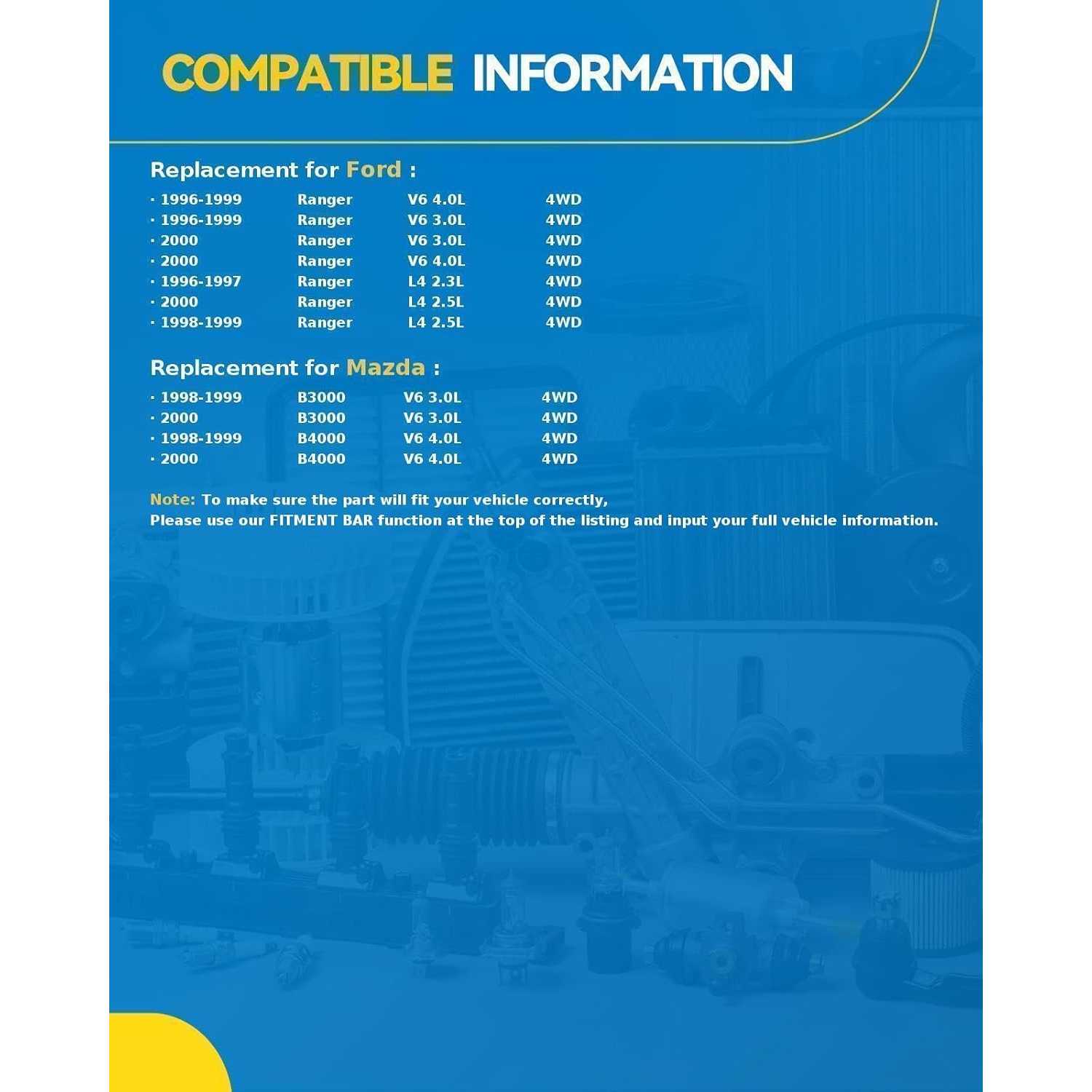

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1996 - 19971996 - 19971996 - 199719981996 - 19981996 - 19981997199719971996 - 19971998 - 20001996 - 200019961998 - 20001996 - 19971998 - 20001996 - 20001996 - 20001998 - 1999200019981998 - 199920002000
MakeFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordFordMazdaMazdaMazdaMazdaMazdaMazda
ModelRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerRangerB3000B3000B3000B4000B4000B4000
TrimSTXSTXSplashSplashSplashSplashSportSportSportXLXLXLXLXLXLTXLTXLTXLTSESESXSESETroy Lee
Engine3.0L V64.0L V62.3L L42.5L L43.0L V64.0L V62.3L L43.0L V64.0L V62.3L L42.5L L43.0L V64.0L V64.0L V62.3L L42.5L L43.0L V64.0L V63.0L V63.0L V63.0L V64.0L V64.0L V64.0L V6
Note-------------------
w/ Pulse Vacuum Hub Locks
--
w/ Pulse Vacuum Hub Locks
w/ Pulse Vacuum Hub Locks

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

Reviews

4.3/5

Based on 4 reviews

550%
425%
325%
20%
10%

Dr. DWC

10/11/2026

Verified buyer

I operate an independent auto repair garage and frequently work on older four-wheel-drive light trucks. A customer brought in a 1999 Ford Ranger 4x4 with torn outer constant velocity joint boots that had slung grease inside the wheel wheels and developed loud clicking noises when making sharp turns in four-wheel drive. Given the age and mileage on the original factory half-shafts, replacing both front CV axle assemblies was the most reliable repair approach. I ordered this PHILTOP front CV axle pair, part numbers 66-2147 and 66-2148.The replacement process on this Ranger platform requires pulling the front wheels, brake calipers, rotors, and tie-rod ends, then unbolting the upper ball joint to swing the steering knuckle outward. Both axle assemblies matched the length and spline counts of the factory Ford shafts. The inner splines slid into the front differential housing smoothly and the circlips clicked into place with positive retention. The outer stub shafts slipped through the wheel hub bearings without binding, and the axle retaining nuts threaded on cleanly to factory torque specifications.The construction of the axles appears solid. The neoprene boots feel thick and pliable, which should help them resist cracking from cold weather, road debris, and off-road trail use. The stainless steel boot clamps are crimped tight around the joint housings with no grease seepage around the seals. The joints articulate freely by hand through their full range of movement without rough spots or excess mechanical play in the internal bearings.After reassembling the front suspension, I performed an extensive road test in both two-wheel drive and four-wheel drive high. The popping and clicking sounds during low-speed parking lot turns are completely gone. On the highway at 65 miles per hour, the drivetrain runs smoothly with no vibrations felt in the steering wheel or floor pan. These replacement CV axles provide a dependable solution for keeping these older Ranger and Mazda B-Series trucks on the road at a sensible price point.

DIY_Karen_963

11/17/2025

Quick delivery and installation was a breeze. Everything lined up perfectly. My truck is driving so much smoother now. Highly recommend these.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
