Front

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
6475SHA395KUS

Specifications

Brand
PHILTOP
Position
Front
ABS Ring Included
No
Quantity
2
Input Shaft Spline Count
27
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
30
Items Included

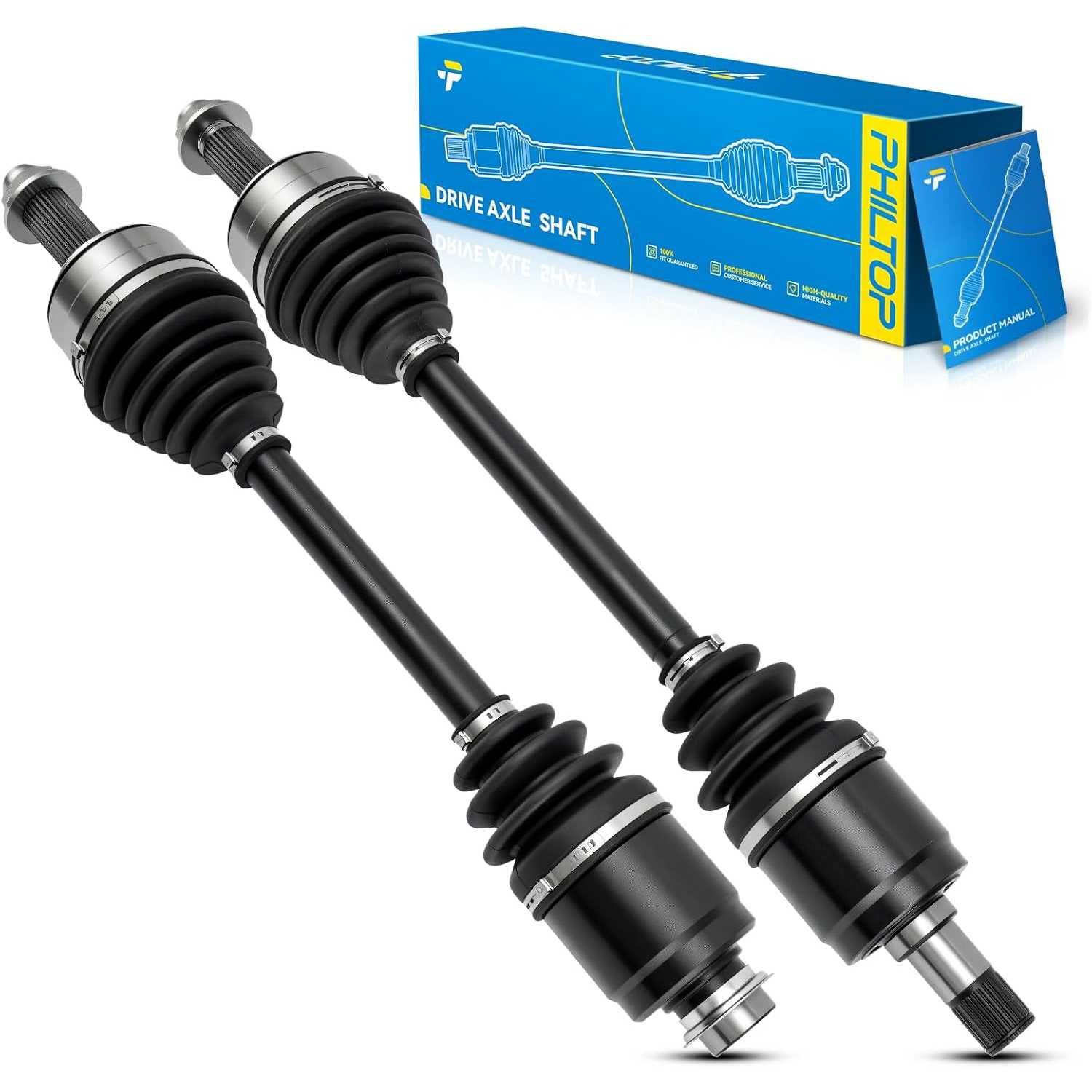

1x Front Cv Axle Shaft - 66-4255 1x Front Cv Axle Shaft - 66-4254
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
664255,664254

Highlights

  • VEHICLE FIT: Front CV Axle Shafts compatible with 2008-2012 Honda Accord
  • Reference Numbers: 664255,664254,44305TA1A00,44306TA1A00 cv axle shaft
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV Axle Shaft. Premium materials and excellent performance provide dependable support for your daily driving needs.

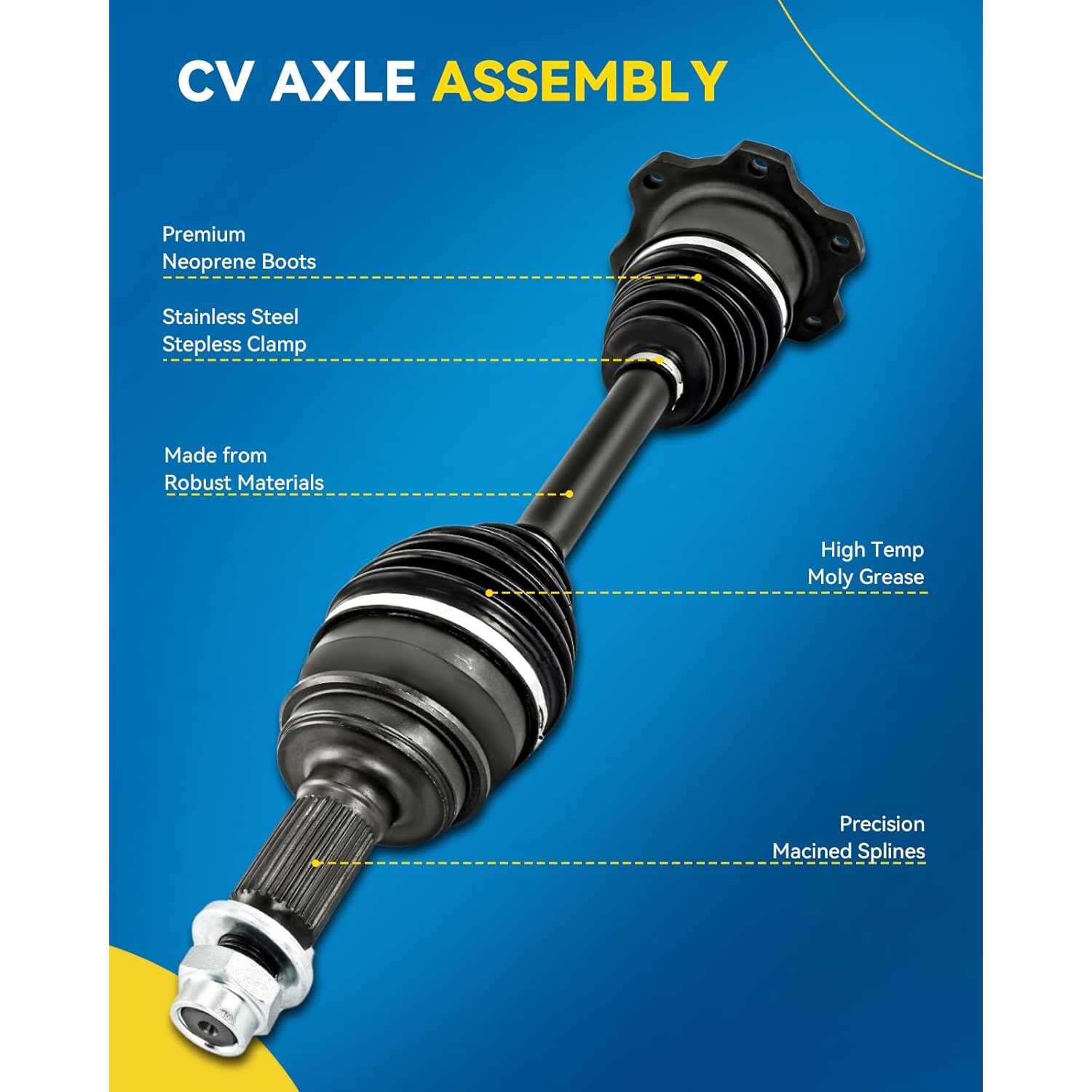

  • Superior Quality Build:Half shafts normalized & one-piece treated for extended service life. Heat-treated components resist wear, corrosion, and impact damage.

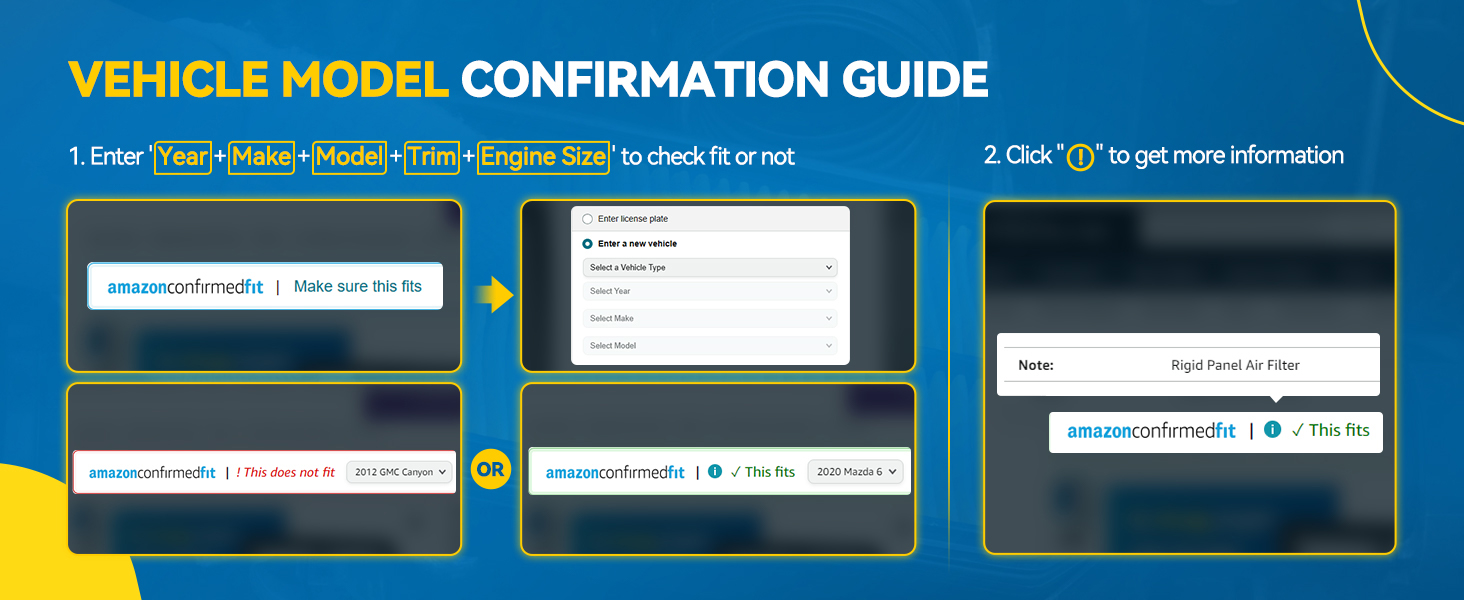

  • Purchase Verification: Before ordering this CV Axle Shaft Assembly, check the compatibility list on the details page or use Suncentauto's fitment filter by entering your Year-Make-Model.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2008 - 20122008 - 2012
MakeHondaHonda
ModelAccordAccord
TrimEXEX-L
Engine3.5L V63.5L V6
Note--

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.

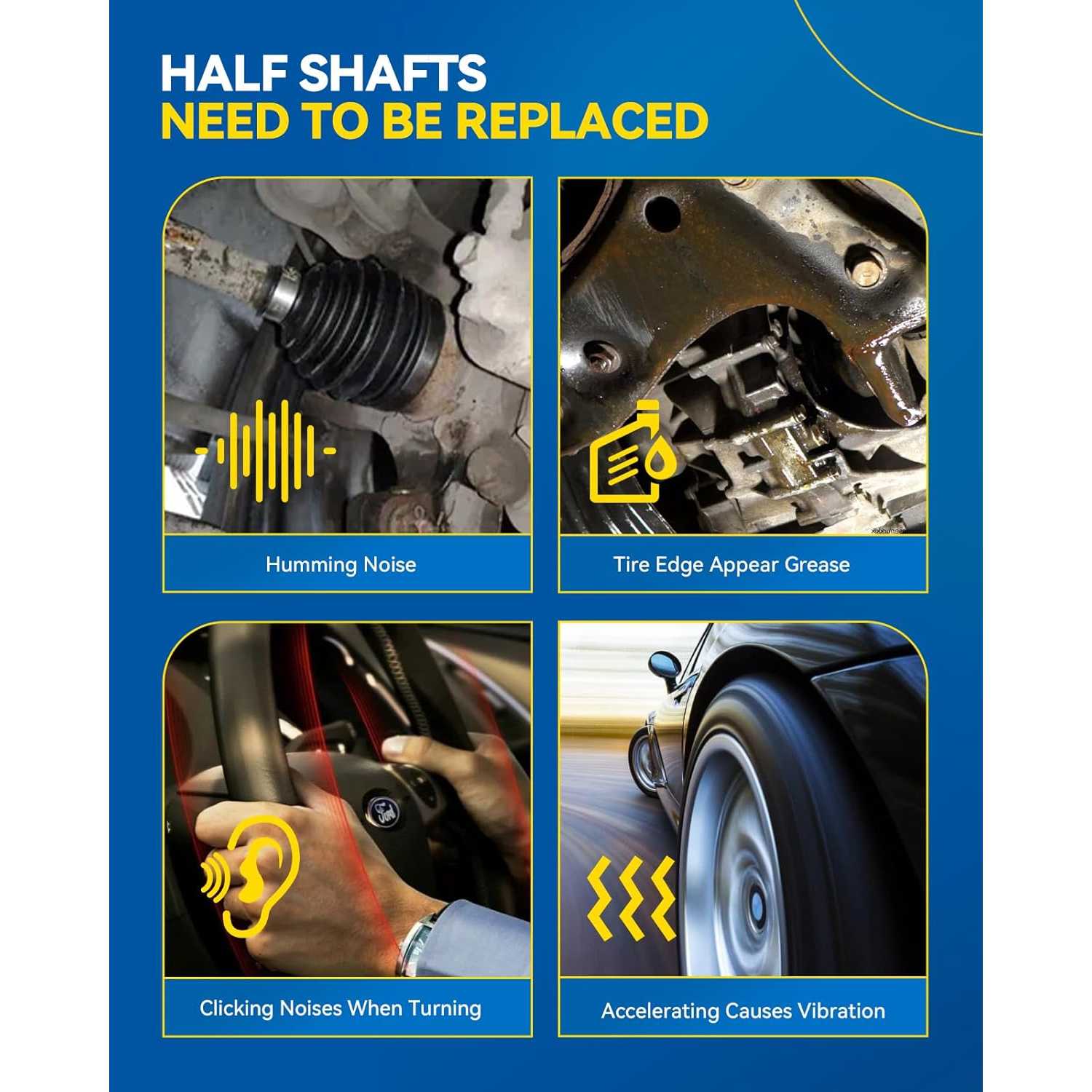

  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

13

Reviews

4.6/5

Based on 8 reviews

575%
413%
313%
20%
10%

Dr. DWC

10/11/2026

Verified buyer

I work as an auto technician and frequently service eighth-generation Honda Accords. A customer brought in a 2010 Accord with noticeable front-end vibration under moderate acceleration between forty and sixty miles per hour. Inspection on the lift showed torn inner rubber boots on both front drive axles, with dried grease and significant play inside the tripod joints. I installed this PHILTOP pair of front CV axle assemblies, part numbers 66-4254 and 66-4255, to resolve the issue.Removing the old axles involves popping the lower ball joints and swinging the steering knuckles aside. The splines on both new axles matched the factory Honda specifications precisely. The driver-side axle seated directly into the transaxle case, and the retaining C-clip engaged with a firm snap. The passenger-side shaft slotted through the intermediate half-shaft carrier bearing without resistance. Both outer splines slid into the wheel hubs easily, and the supplied axle nuts torqued down and staked into the shaft keyways cleanly.The build quality of these assemblies is solid. The neoprene boots are heavy-duty and secured with tight stainless steel bands that keep the grease sealed. The internal joints rotate smoothly without tight spots or excessive radial lash. The ABS tone rings and sealing surfaces lined up with the factory knuckle sensors without triggering any warning indicators.During the post-installation road test, the acceleration vibration vanished completely. The car drives quietly under heavy throttle, and turning tight circles in parking lots produced zero clicking or binding noises. Cruising at highway speeds is smooth and steady. These axles restored original driving dynamics to the vehicle without the high price of dealership replacements.

Jordan Tillman

11/10/2024

Verified buyer

Perfect!!!!!There are no problems. Read more

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
