PHILTOP Front CV Axle Shaft Assembly for 2009-2023 Kawasaki KAF620 Mule 4010 4x4, 2000-2002 Kawasaki KAF950 Mule 2510 Diesel Axl

PHILTOP Front CV Axle Shaft Assembly for 2009-2023 Kawasaki KAF620 Mule 4010 4x4, 2000-2002 Kawasaki KAF950 Mule 2510 Diesel Axl

Front Left or Right

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1364SHA2247US

Specifications

Brand
PHILTOP
Position
Front Left or Right
ABS Ring Included
No
Quantity
1

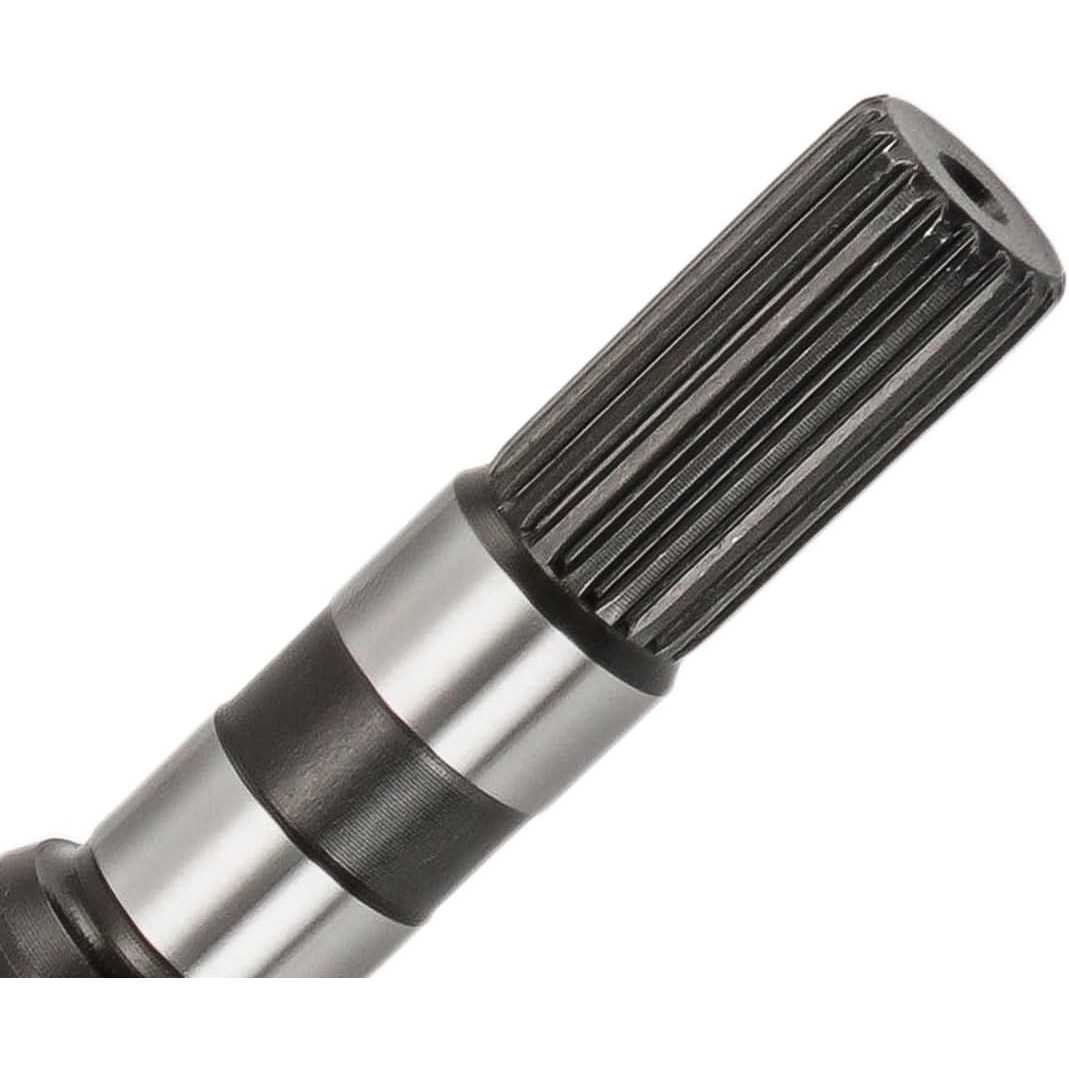

Input Shaft Spline Count
19

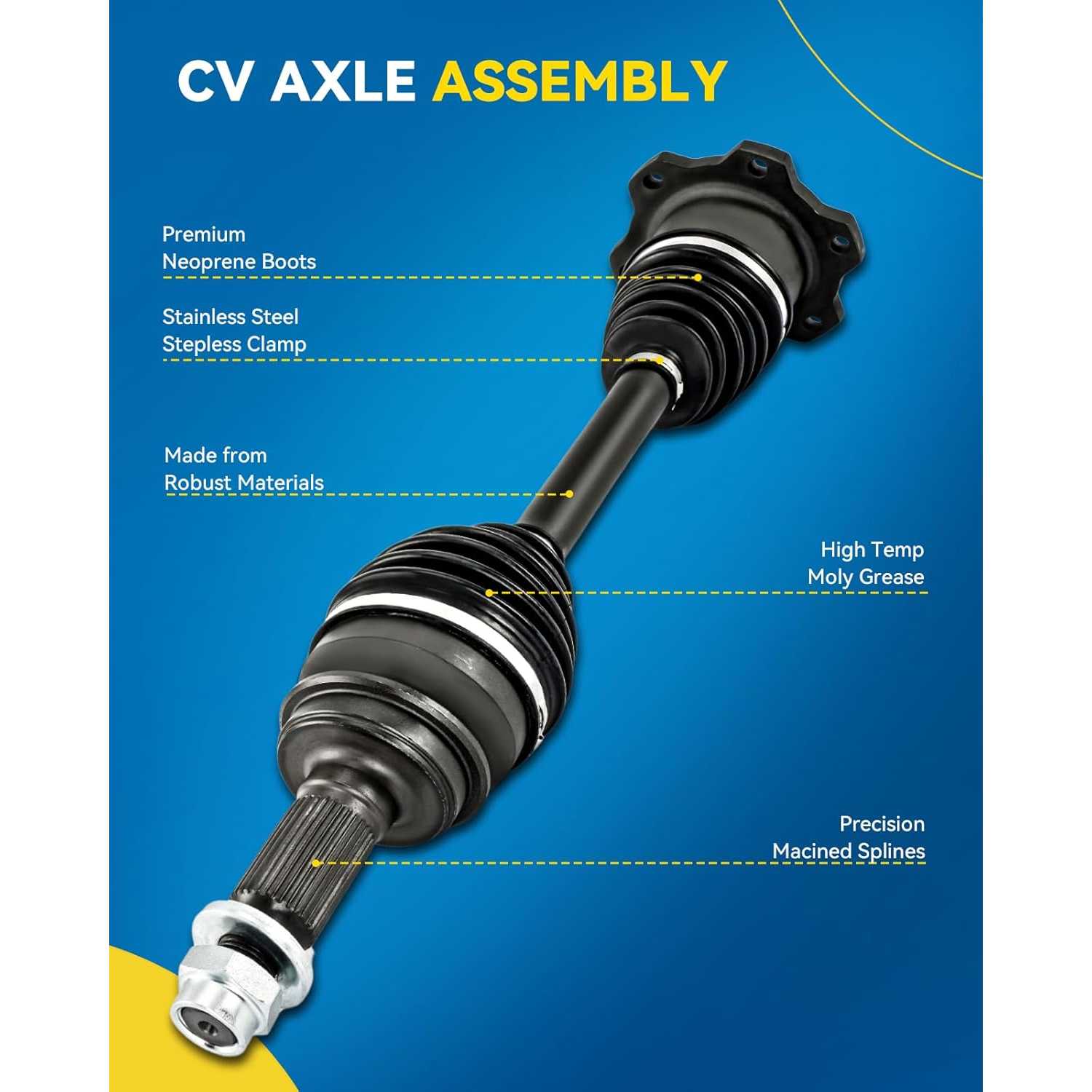

Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
24

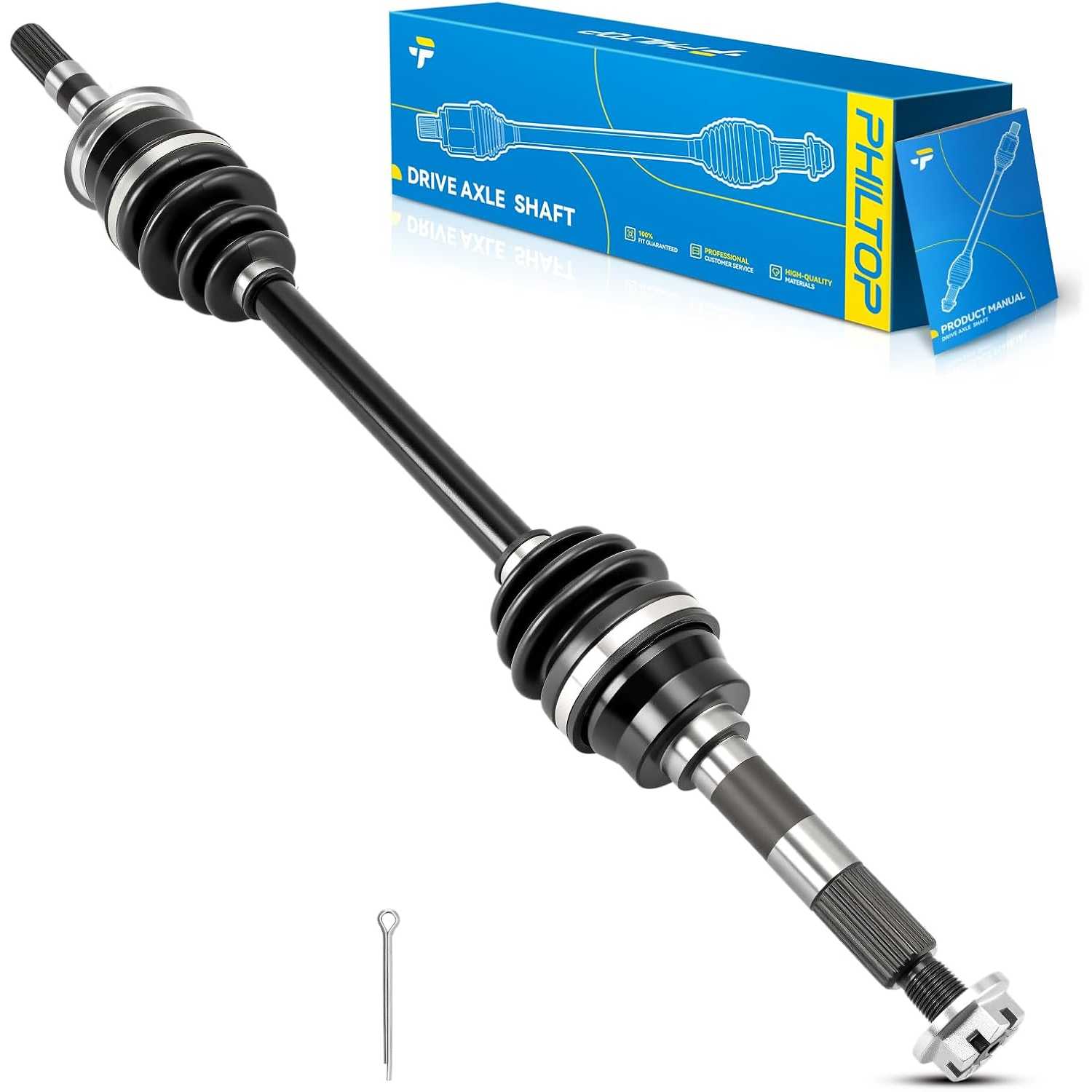

Items Included
1x Front Left or Right Cv Axle Shaft
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
KAW7001

Highlights

  • VEHICLE FIT: Front CV Axle Shafts compatible with 2009-2023 Kawasaki KAF620 Mule 4010 4x4, 2009-2023 Kawasaki KAF620 Mule 4010 Trans 4x4, 2001-2008 Kawasaki KAF620 Mule 3010 4x4, 2005-2008 Kawasaki KAF620 Mule 3010 Trans 4x4, 2009-2013 Kawasaki KAF950 Mule 4010 Diesel 4x4, 2009-2013 Kawasaki KAF950 Mule 4010 Trans 4x4 Diesel, 1993, 1995, 1997-2000 Kawasaki KAF620 Mule 2510 4x4, 2007-2008 Kawasaki KAF950 Mule 3010 Trans 4x4 Diesel, 2000-2002 Kawasaki KAF950 Mule 2510 Diesel
  • Reference Numbers: 592660034,4105011,391581102,KAW7001,8130103,02141637,PAXL5004 cv axle shaft
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV Axle Shaft. Premium materials and excellent performance provide dependable support for your daily driving needs.

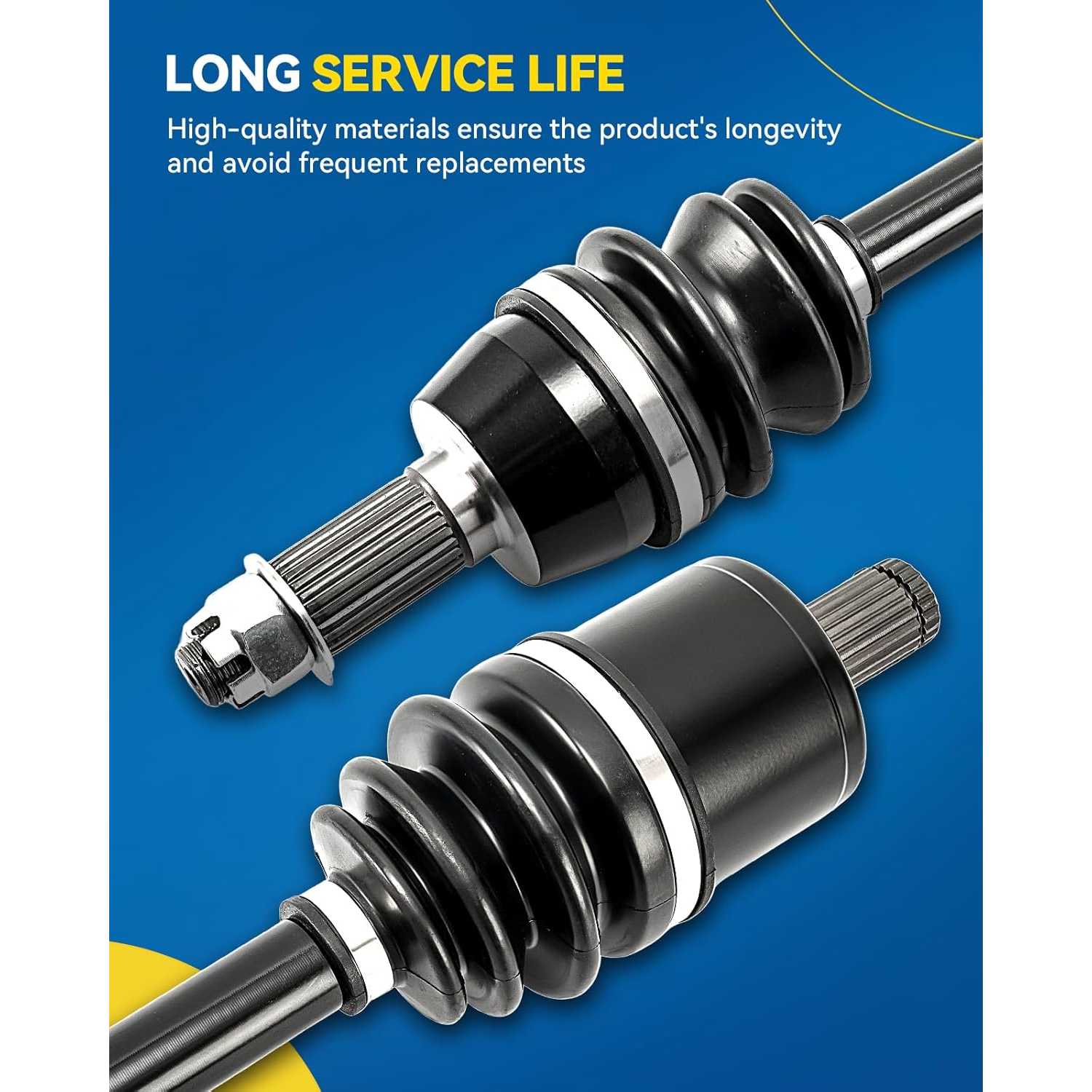

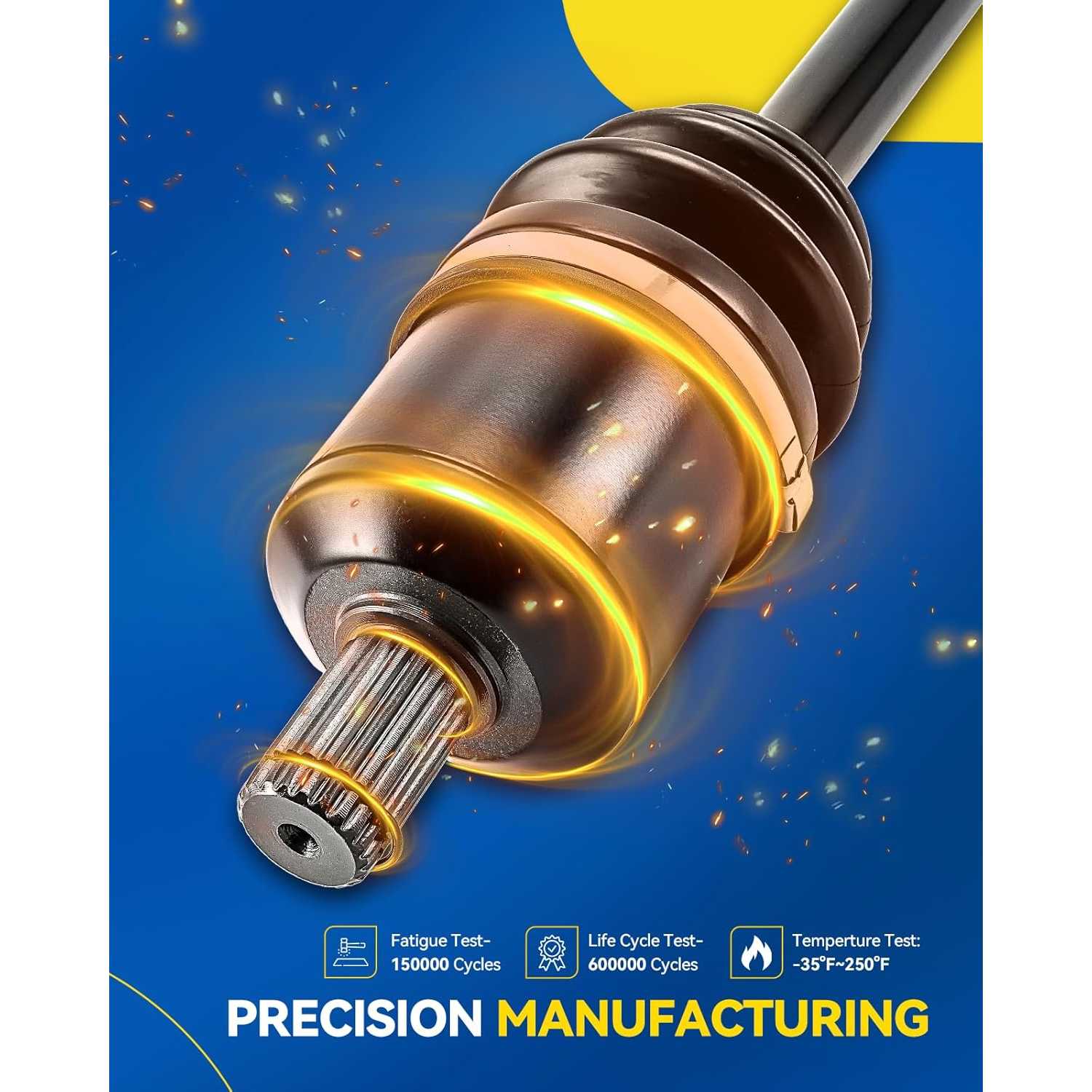

  • Superior Quality Build:Half shafts normalized & one-piece treated for extended service life. Heat-treated components resist wear, corrosion, and impact damage.

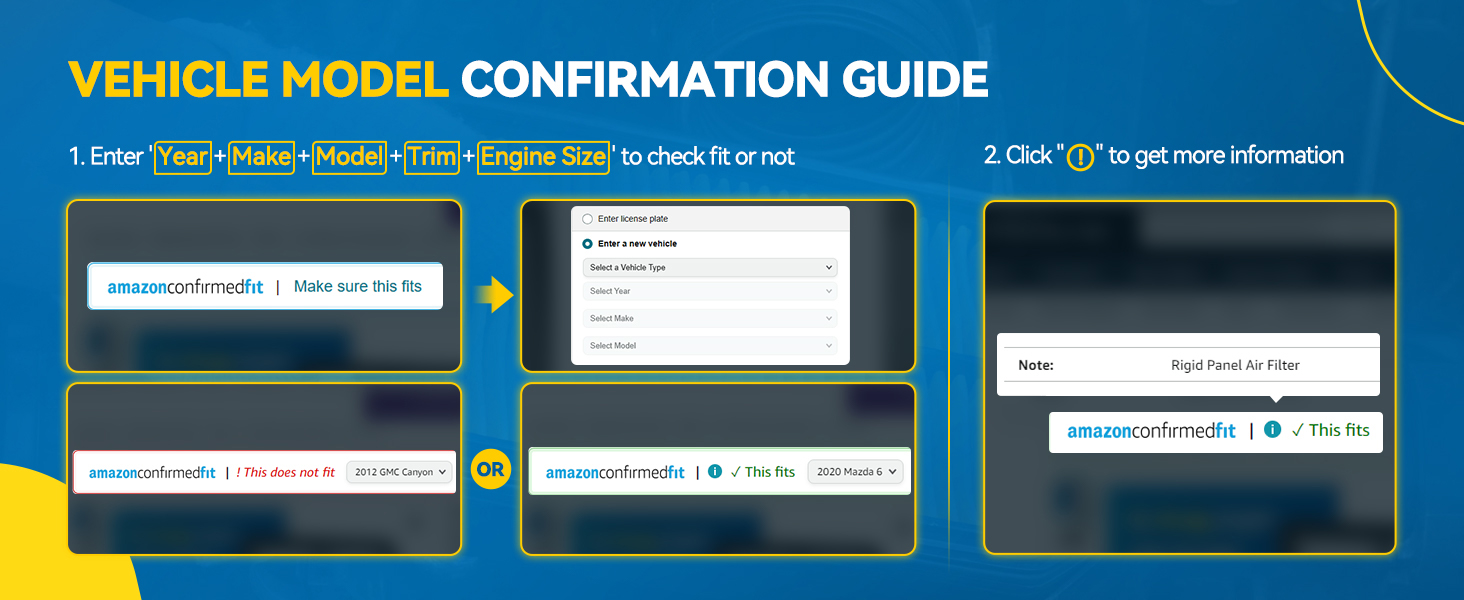

  • Purchase Verification: Before ordering this CV Axle Shaft Assembly, check the compatibility list on the details page or use Suncentauto's fitment filter by entering your Year-Make-Model.

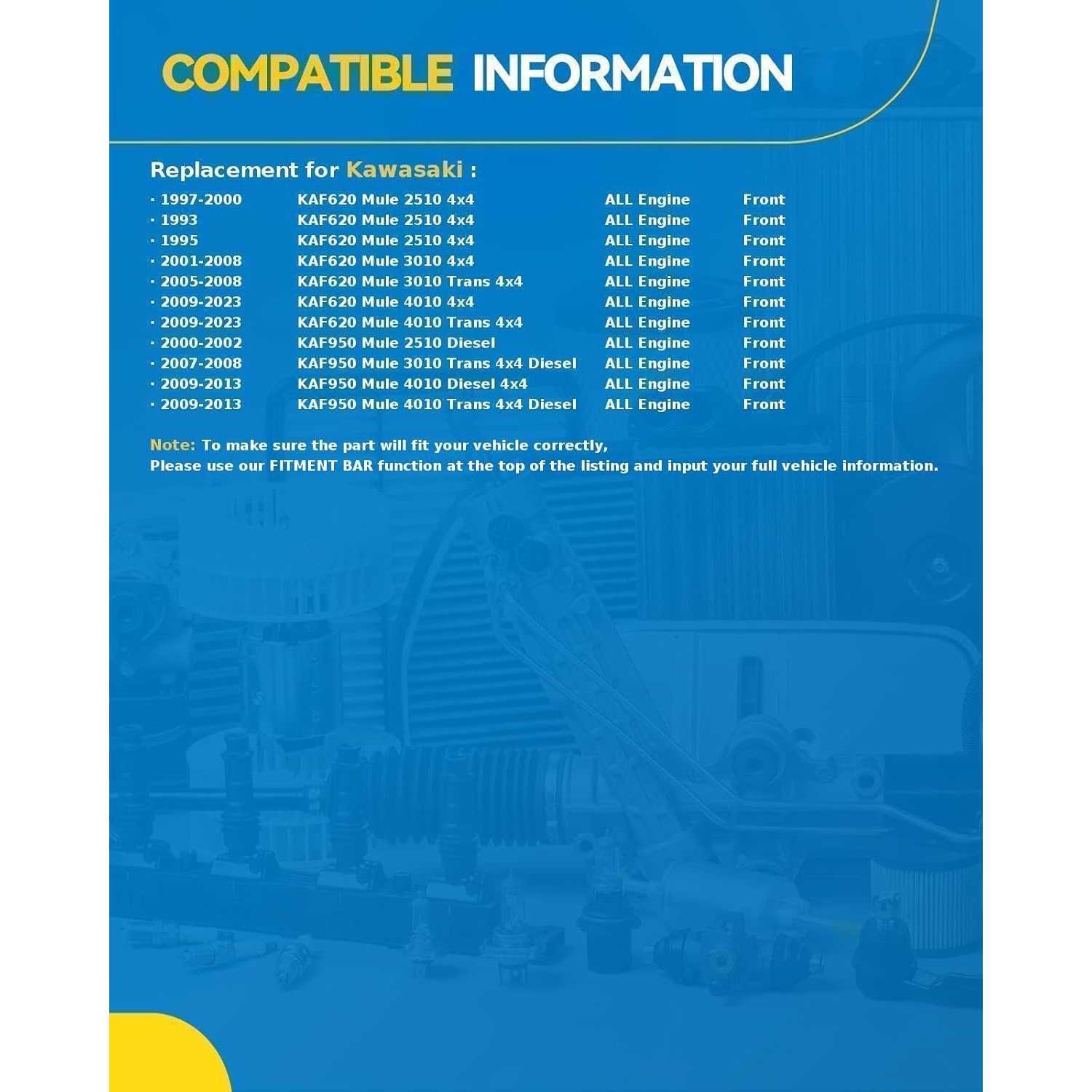

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year199319951997 - 20002001 - 20082005 - 20082009 - 20232009 - 20232000 - 20022007 - 20082009 - 20132009 - 2013
MakeKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasakiKawasaki
ModelKAF620 Mule 2510 4x4KAF620 Mule 2510 4x4KAF620 Mule 2510 4x4KAF620 Mule 3010 4x4KAF620 Mule 3010 Trans 4x4KAF620 Mule 4010 4x4KAF620 Mule 4010 Trans 4x4KAF950 Mule 2510 DieselKAF950 Mule 3010 Trans 4x4 DieselKAF950 Mule 4010 Diesel 4x4KAF950 Mule 4010 Trans 4x4 Diesel
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine-----------
Note
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

13

Reviews

4.6/5

Based on 5 reviews

560%
440%
30%
20%
10%

DaveTheMechanic_293

02/22/2026

Nice heavy-duty feel to these axles. They seem very well put together and offer great value. My Mule feels much more robust now.

Ashley_RoadTrip_329

01/16/2026

This fixed the clicking noise my Mule was making when I turned. Now it's quiet and drives great. I'm really impressed with how well it performs.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
