2006-2011 Hyundai Accent 1.6L | Front Shock Absorber w/Spring | OE#546501G100/172298 - PHILTOP

2006-2011 Hyundai Accent 1.6L | Front Shock Absorber w/Spring | OE#546501G100/172298 - PHILTOP

Front

Complete Strut & Coil Spring Assembly

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1799SAA11WUUS

Specifications

Brand
PHILTOP
Items Included

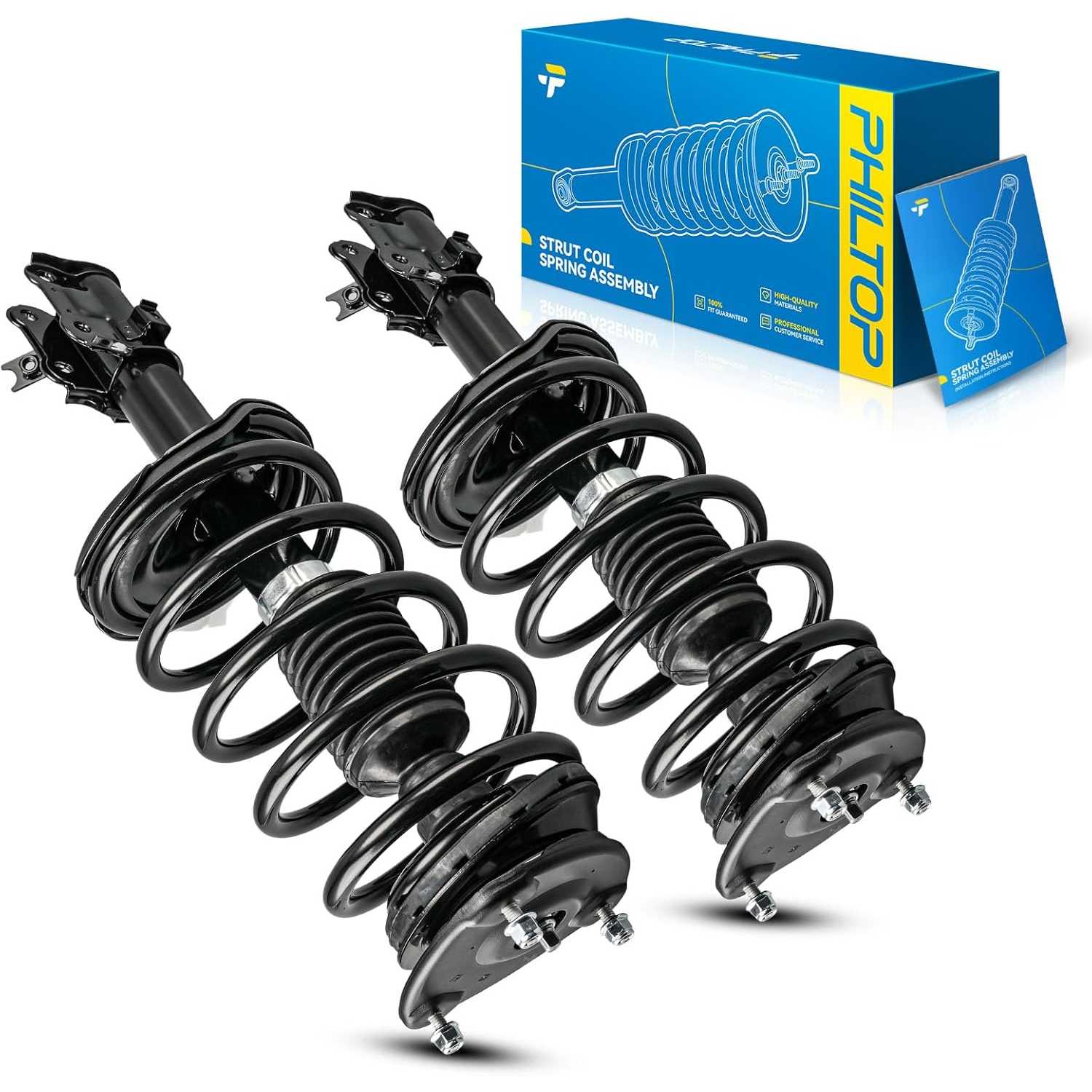

1x Front Right Complete Strut Assembly - 172297 1x Front Left Complete Strut Assembly - 172298
Color
Black
Steel Tube Material
Mild Steel(ST37 Equivalent)
Bump Stop Included
Polyurethane

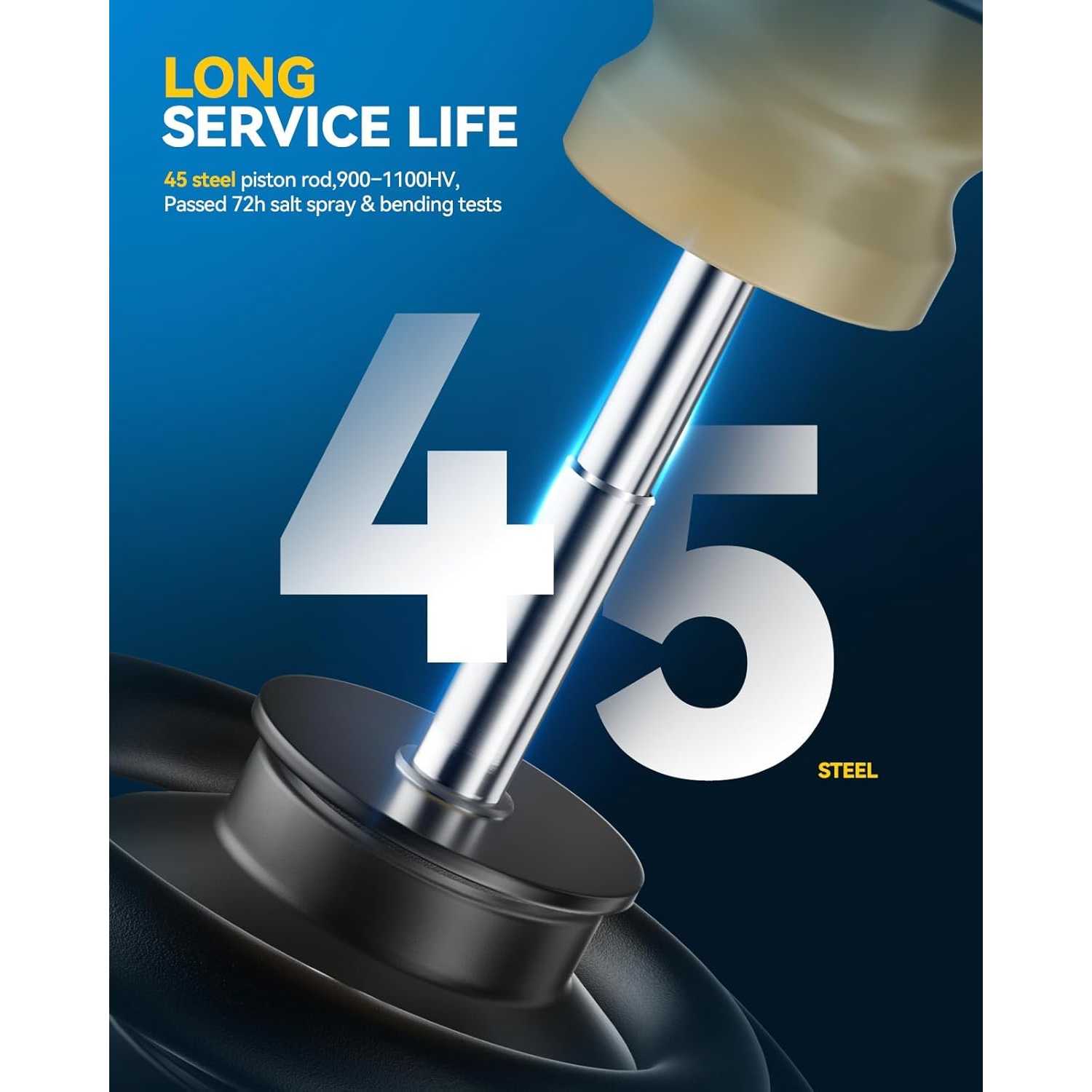

Piston Rod Material
SAE 1045 Steel
Type
Complete Strut & Coil Spring Assembly
Quantity
2
Position
Front

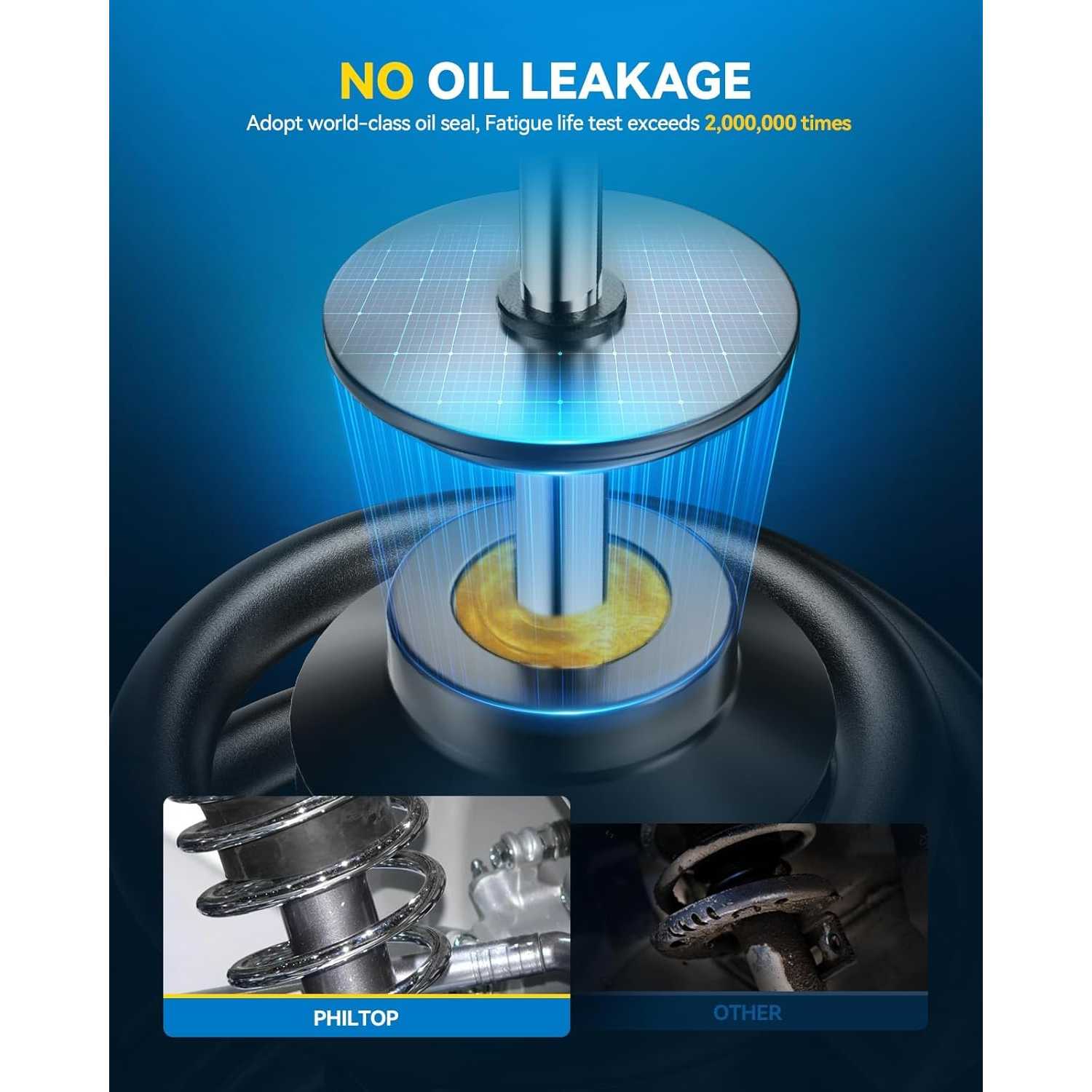

Oil Seal Material
Nitrile Rubber
Warranty Period
2-Year
OE Number
546501G100,546601G100,546601E200
Part Number
172298,172297,182298,182297,SR4501,SR4500,92140280,33KA1110,33KA1111,2701524523,2701524522

Highlights

  • Shocks and Struts OE Number: 546501G100,SR4501,546601G100,546601E200,SR4500,172298,172297,33KA1110,33KA1111,92140280,182298,182297,2701524523,2701524522.
  • Vehicle compatibility: The PHILTOP Front Left and Front Right Strut Shocks Assembly is compatible withHyundai 2006-2011 Accent,Kia 2006-2011 Rio,.
  • High-Grade Material Construction: The strut assembly is manufactured using advanced alloy steel with an electrophoretic surface treatment. This design enhances corrosion resistance and wear resistance, ensuring extended service reliability and maintaining superior suspension performance for vehicles in extreme environments.
  • FUNCTION: PHILTOP struts deliver superior damping performance, efficiently absorbing energy from uneven road surfaces to ensure a smooth, stable ride. They maintain consistent tire-road contact, enhancing driving safety and reducing driver fatigue. Engineered for durability and precision, these premium shock absorbers provide a comfortable yet responsive driving experience.
  • Kits includes:1x Front Right Complete Strut Assembly - 172297 1x Front Left Complete Strut Assembly - 172298.

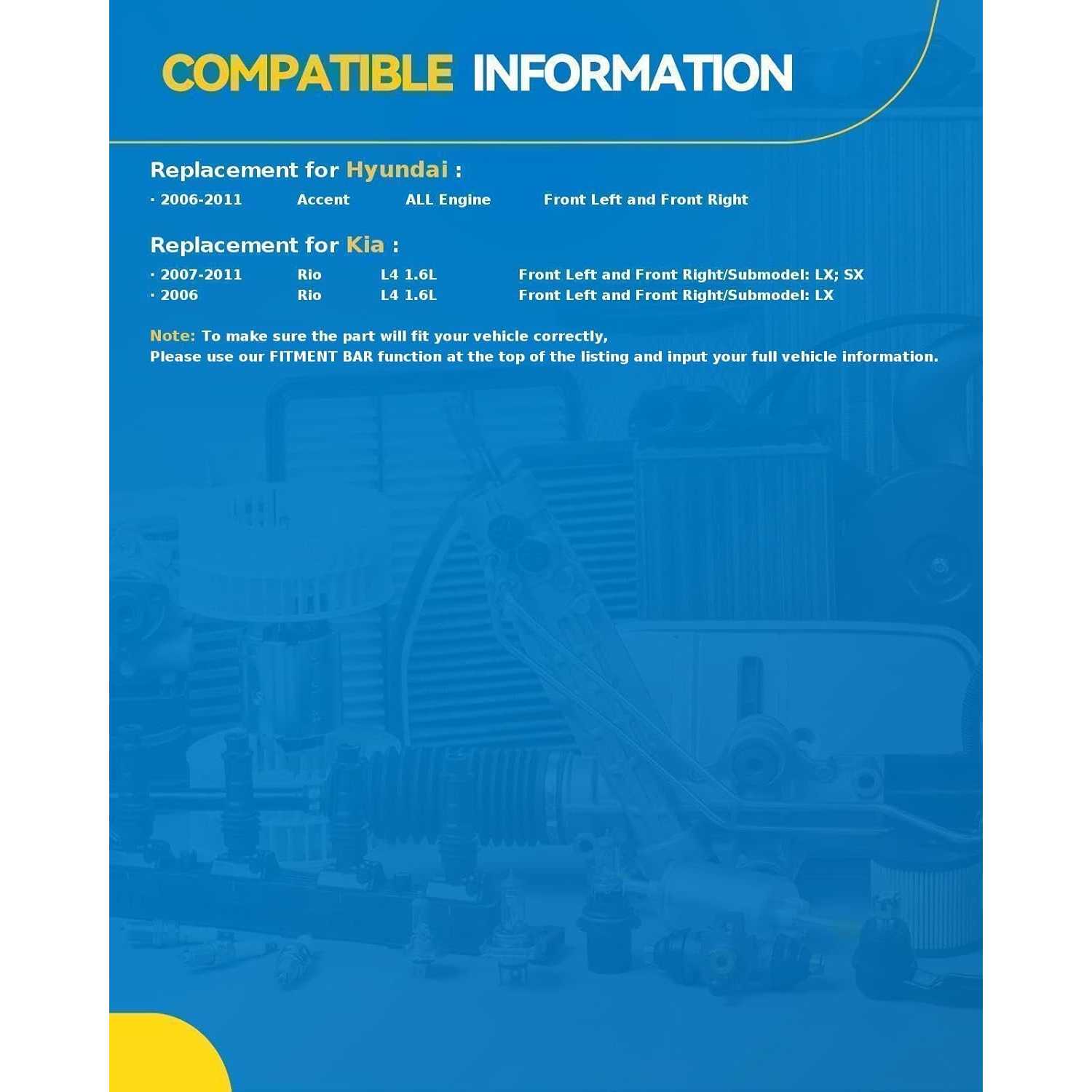

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year201020112006 - 20112007 - 20112007 - 20112006 - 20112007 - 2011
MakeHyundaiHyundaiHyundaiHyundaiHyundaiKiaKia
ModelAccentAccentAccentAccentAccentRioRio
TrimBlueGLGLSGSSELXSX
Engine1.6L L41.6L L41.6L L41.6L L41.6L L41.6L L41.6L L4
Note
Replaces Part 182297/182298;Recommended OE Application -Specific Replacement
Replaces Part 182297/182298;Recommended OE Application -Specific Replacement
Replaces Part 182297/182298;Recommended OE Application -Specific Replacement
Replaces Part 182297/182298;Recommended OE Application -Specific Replacement
Replaces Part 182297/182298;Recommended OE Application -Specific Replacement
Replaces Part 182297/182298;Recommended OE Application -Specific Replacement
Replaces Part 182297/182298;Recommended OE Application -Specific Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Purchase & Installation Notice

  • Confirm the vehicle year, model, suspension type, installation position and part number before ordering.
  • For a complete strut assembly, replacing only individual accessories is not recommended. Mixing worn and new springs, mounts, bearings, dust boots or bump stops may cause noise, uneven ride height and repeated labor costs. Replace the complete assembly when these components are worn or damaged.
  • For balanced damping and handling, inspect both sides of the same axle and replace them as a pair when necessary.

Installation Steps

  • Step-1: Secure the Vehicle: Park on level ground, raise and support the vehicle with approved jack stands, then remove the wheel.
  • Step-2: Disconnect Related Components: Detach the stabilizer link, brake-hose bracket and ABS wiring as required. Support the steering knuckle to prevent pulling on hoses or wires.
  • Step-3: Remove the Old Unit: Remove the lower and upper mounting hardware, support the assembly and carefully remove it.
  • Step-4: Install the New Unit: Confirm the correct side and orientation, position the new assembly and hand-start all fasteners. If spring transfer is required, use a professional spring compressor. Never loosen the center nut with the spring under tension.
  • Step-5: Reconnect and Torque: Reinstall all brackets, links, hoses and wiring. Ensure nothing is twisted or stretched, then tighten all fasteners to the vehicle manufacturer’s specified torque. Do not grip or damage the polished piston rod.
  • Step-6: Reinstall and Align: Reinstall the wheel, lower the vehicle, complete the final torque check and perform a professional wheel alignment.

Product Description

11

Reviews

5.0/5

Based on 2 reviews

5100%
40%
30%
20%
10%

Brad_AutoParts_88

03/02/2026

These arrived very quickly and were a breeze to install. Everything lined up perfectly, no problems at all. Great value.

RickFixIt_910

10/22/2025

My Accent rides so much smoother and feels more stable now. It's like driving a new car again. Big difference over the old worn-out parts.

FAQS

Fitment depends on your car's year, model, and engine type. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind our suspension quality with a 3-Year Limited Warranty against leaks and structural failure. Scroll to the "Warranty & Support" section at the bottom of the page for full details.

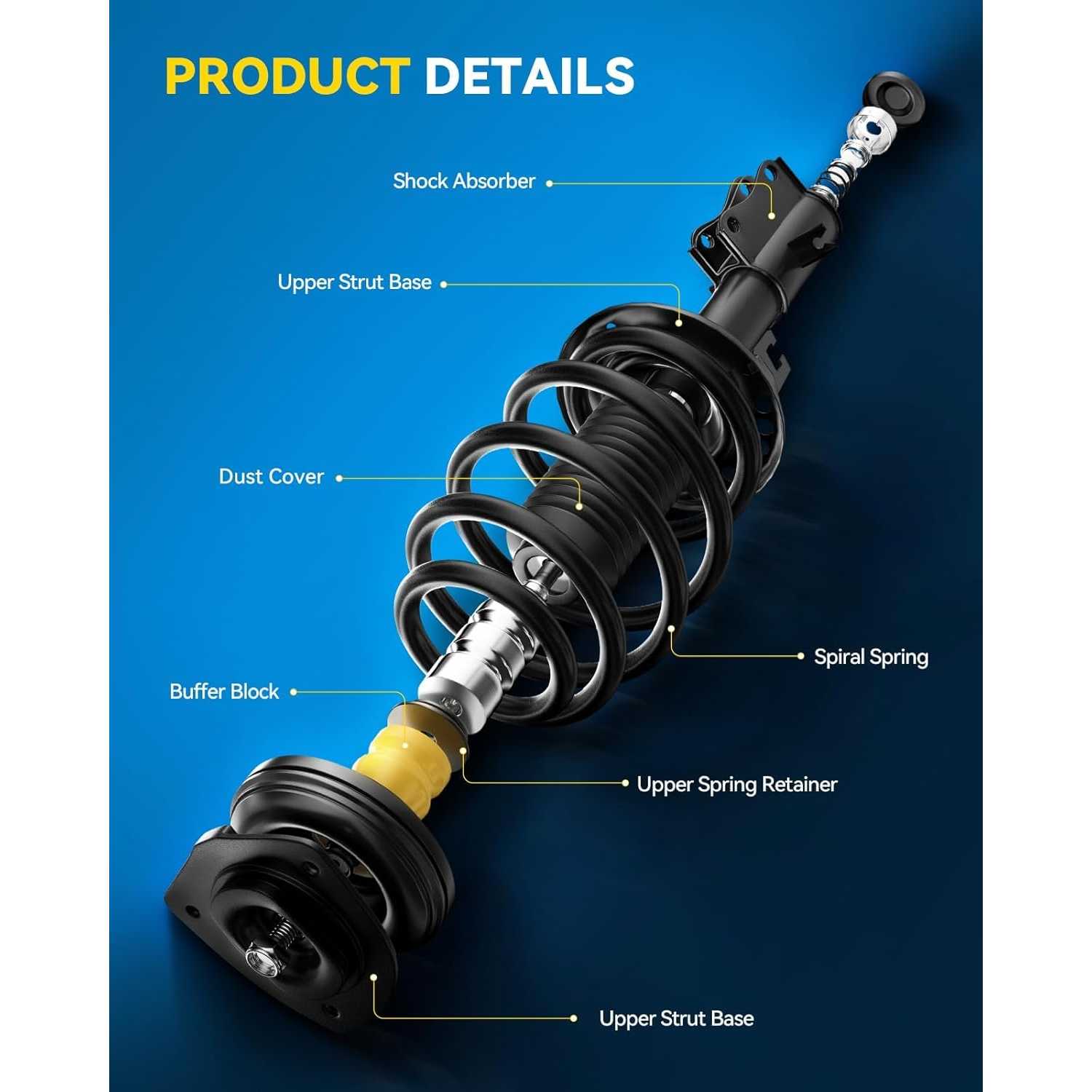

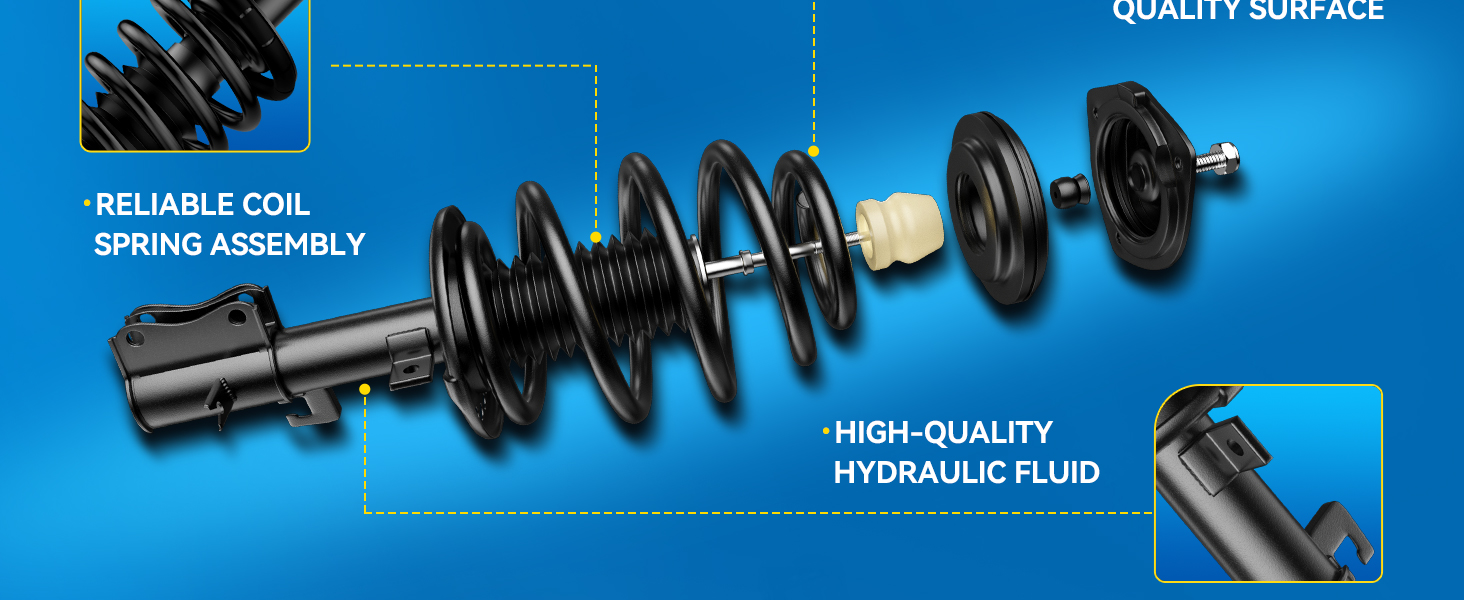

Yes, our Quick-Strut units include the strut, coil spring, strut mount, boot, and bumper pre-assembled. Review our product photos to see the fully integrated unit ready for bolt-on installation.
