2016-2017 Can-Am Maverick Max 1000R | Front Driver Side & Passenger Side ATV/UTV Compatible CV Axle 28.57in | CAN7015 - PHILTOP

2016-2017 Can-Am Maverick Max 1000R | Front Driver Side & Passenger Side ATV/UTV Compatible CV Axle 28.57in | CAN7015 - PHILTOP

Front Left*2

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
5268SHA250PUS

Specifications

Brand
PHILTOP
Position
Front Left*2
ABS Ring Included
No
Quantity
2
Material
SAE 1055 Steel and Chloroprene Rubber
Items Included
2x Front Left*2 Cv Axle Shaft
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
CAN7015

Highlights

  • Cv Axle Fitment: Front Left CV Joint for 2013-2016 Maverick 1000R, 2014-2015 Maverick Max 1000R, 2015-2017 Maverick Max 1000R Turbo X ds, 2015-2016 Maverick Max 1000R X ds, Maverick 1000R X ds/Turbo X ds, 2016-2017 Maverick Max 1000R DPS/Turbo X rs, Maverick 1000R DPS, 2015-2015 Maverick Max 1000R X rs DPS, Maverick 1000R X rs DPS, 2017-2017 Maverick Max 1000R Turbo, Maverick 1000R Turbo, 2016-2016 Maverick 1000R Turbo X rs.
  • Reference Number: CAN7015,8130036,AX7115,02141588,705401235,PAXL3011,PAXL3011HD,4102005,CAN6015HD,ATVCA8117

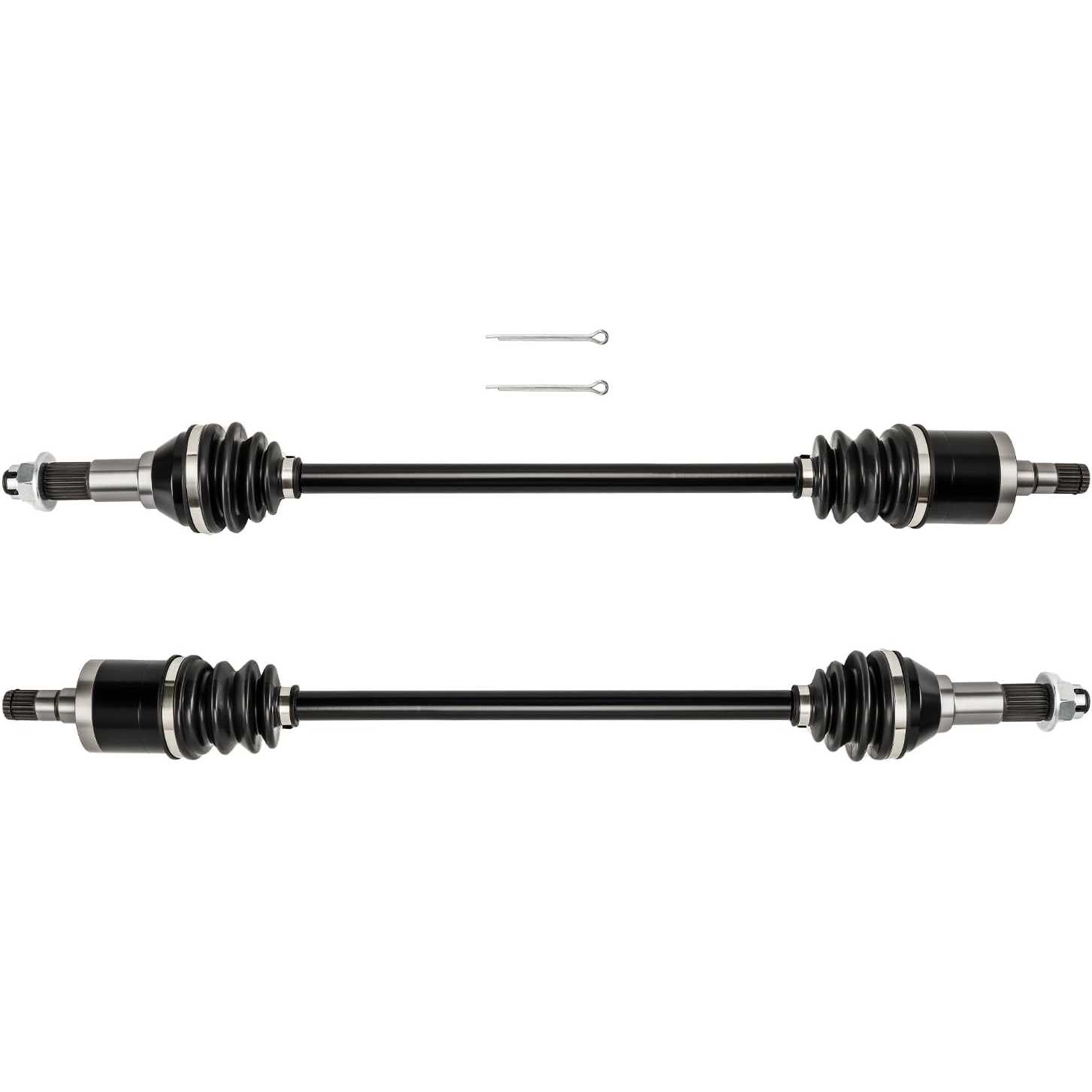

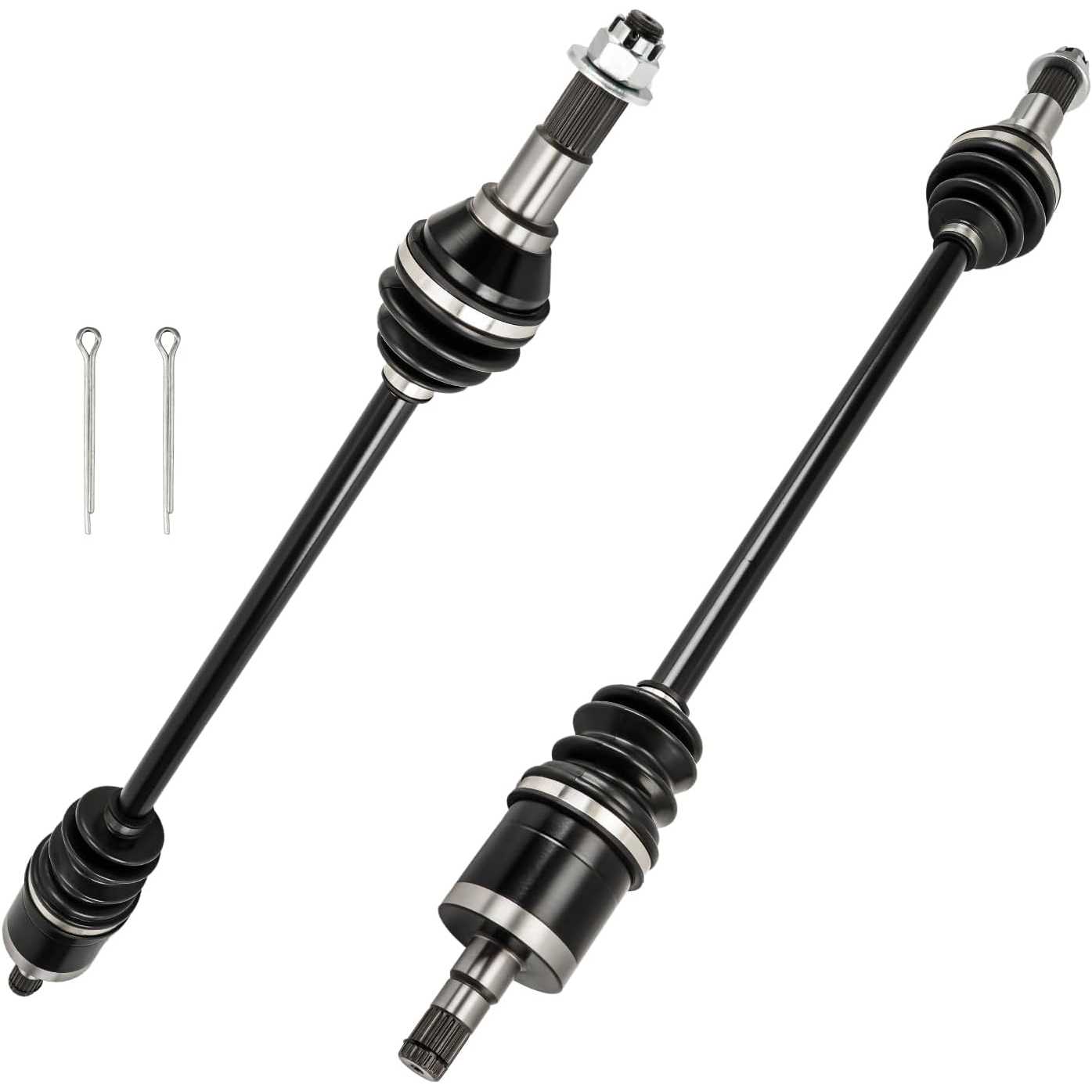

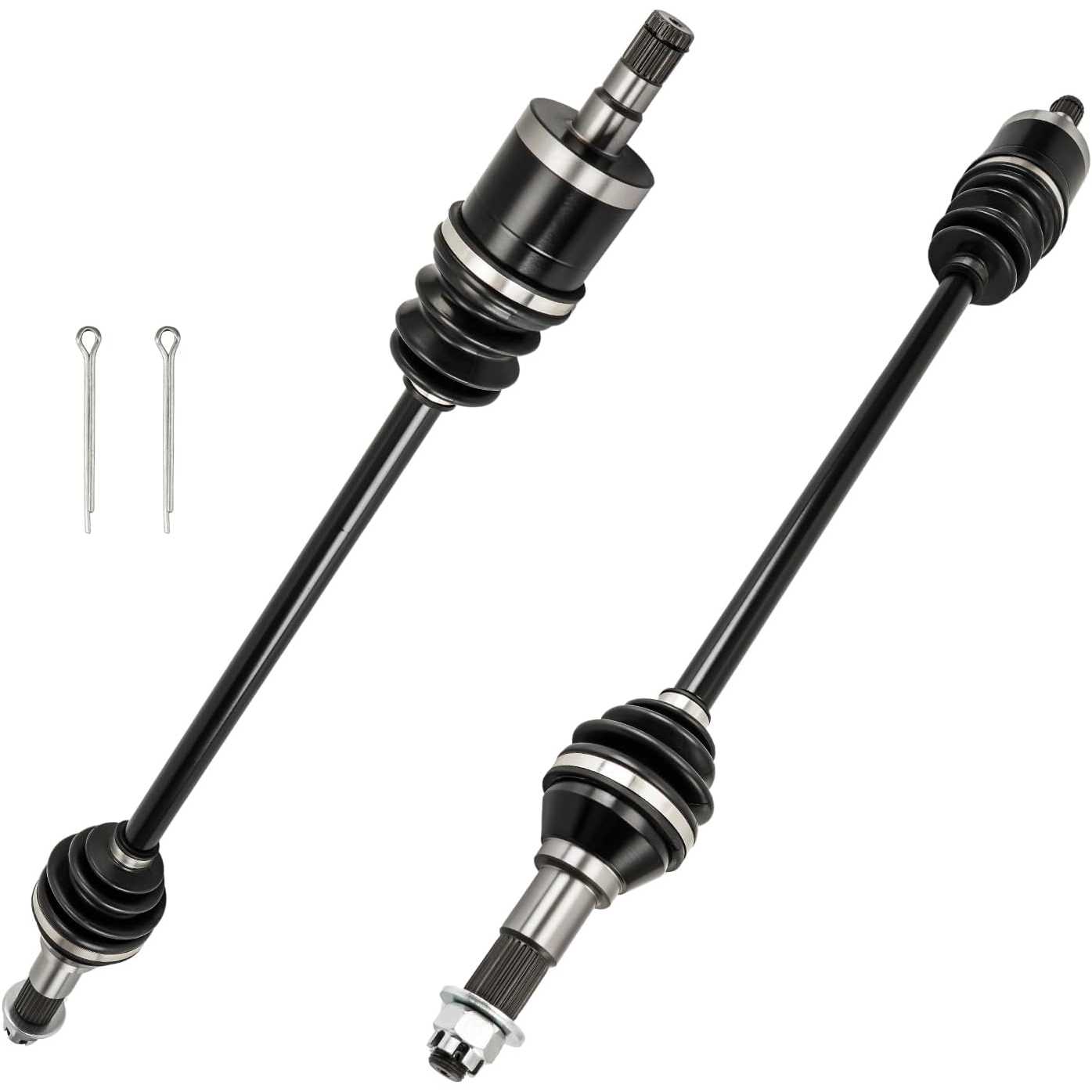

  • Drive Shaft Details: 2x Front cv axle shaft. Compressed Length: 28.57 inch.
  • Compatibility Verification: Please check the compatibility list on the listing page for more submodel details to make sure your exact model is included.

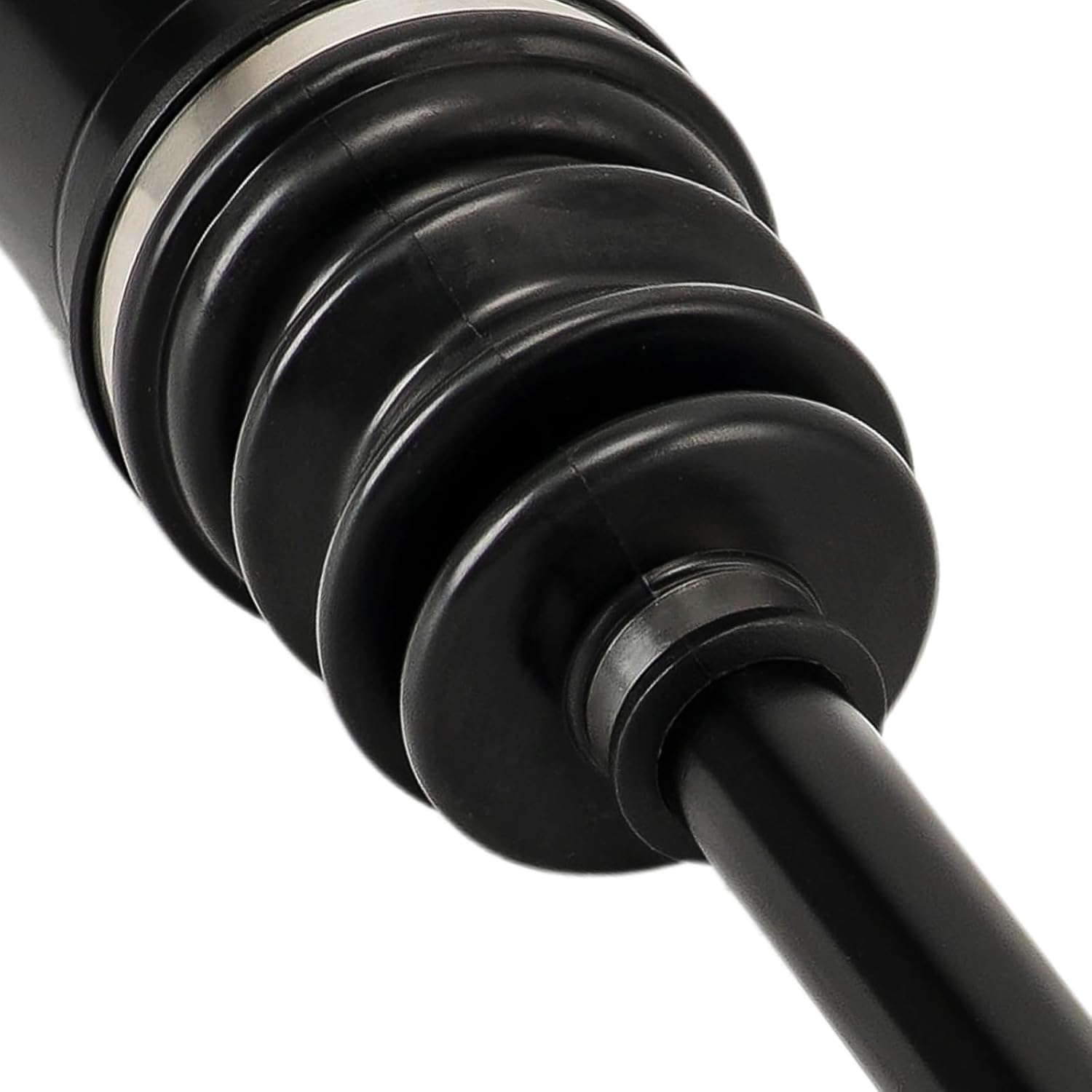

  • High Quality: CV shafts are made of high-quality chloroprene rubber for greater durability and longevity. High-quality grease can withstand high temperatures and high torque requirements, ensuring long-term reliable performance.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2013 - 20162016 - 201720172015 - 201620162015 - 201620152014 - 20152016 - 201720172015 - 20172016 - 20172015 - 20162015
MakeCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-AmCan-Am
ModelMaverick 1000RMaverick 1000R DPSMaverick 1000R TurboMaverick 1000R Turbo X dsMaverick 1000R Turbo X rsMaverick 1000R X dsMaverick 1000R X rs DPSMaverick Max 1000RMaverick Max 1000R DPSMaverick Max 1000R TurboMaverick Max 1000R Turbo X dsMaverick Max 1000R Turbo X rsMaverick Max 1000R X dsMaverick Max 1000R X rs DPS
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine--------------
Note
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.7/5

Based on 6 reviews

567%
433%
30%
20%
10%

Mil

09/29/2026

Verified buyer

It has good quality and is easy to use and install. It transfers force very well and does not leak oil. It looks gorgeous and feels durable. It also operates quietly and is straightforward to install. Overall, I really like it, and it fits my car perfectly.

DaveTheMechanic_18

12/12/2025

This axle feels really well-made, heavy duty and strong. Great price too, much cheaper than I expected. Installation was a breeze.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
