1988-2005 Honda Civic 1.5L | Front Driver Side CV Axle | 664060 - PHILTOP

1988-2005 Honda Civic 1.5L | Front Driver Side CV Axle | 664060 - PHILTOP

Front Left

Built to Last

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
2217SHA819VUS

Specifications

Brand
PHILTOP
Position
Front Left
ABS Ring Included
Yes
Quantity
1
Input Shaft Spline Count
25

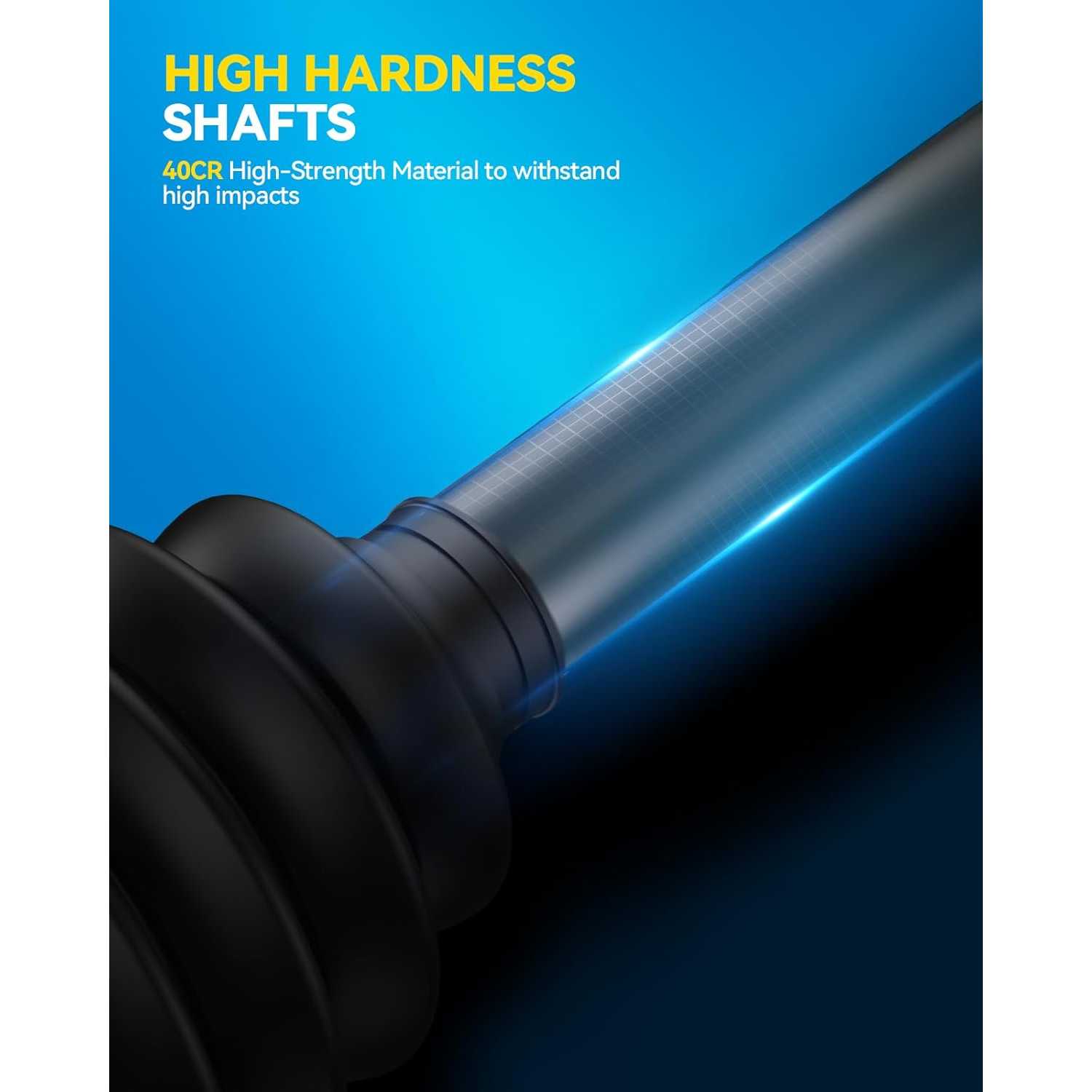

Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included

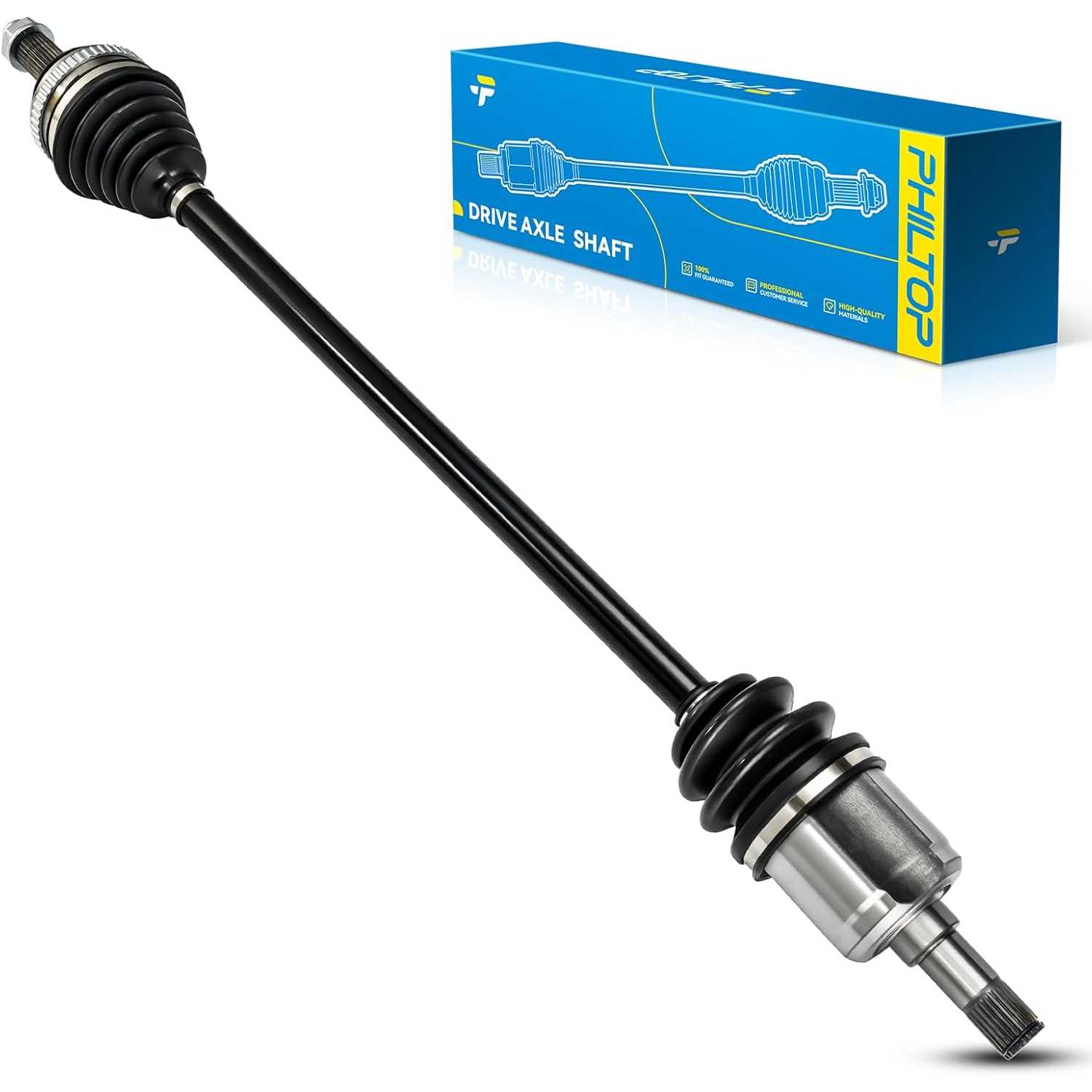

1x Front Left Cv Axle Shaft - 664060
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
664060

Highlights

  • Vehicle Fitment: Front Axle Shaft for 1988 Civic 1.5L, 1989-1991 Civic FWD, 1992-1998 Civic, 1999 Civic Value Package, 1999-2000 Civic CX/DX/EX/GX/HX/LX, 2001 Civic Coupe Automatic CVT, 2001-2005 Civic Automatic, 2002 Civic Automatic CVT, 2003-2005 Civic 1.7L Automatic CVT, 1993 Civic del Sol, 1994 Civic del Sol 1.5L, 1995-1997 Civic del Sol S/Si, 1988 CRX DX, 1988-1991 CRX Si, 1989-1991 CRX Base, 1997-2000 EL.
  • CV Joint OE Number: 44011S01003, 44011S04010, 44011S04951, 664060, 44011S01951, 44011SH3A02, 44011ST7950, 44011SR1003, 44011SR3020, 44011SR1902, 44011SR1901, 44011SR1013, 44011SR3040, 44011SR3030, 44306S01A21, 44306S04N00, 44011SR3952, 44011ST7900, 44011SR3003, 44011SJ4970, 44011SR1951, 44011SR3901, 44011SR3953, 44306S01A71, 44306S5AJ61, 44306S5AJ11, 44306S5DA11, 44306S5DA61, 44306S5AJ62, 44306SH3A01, 44306S04N50.

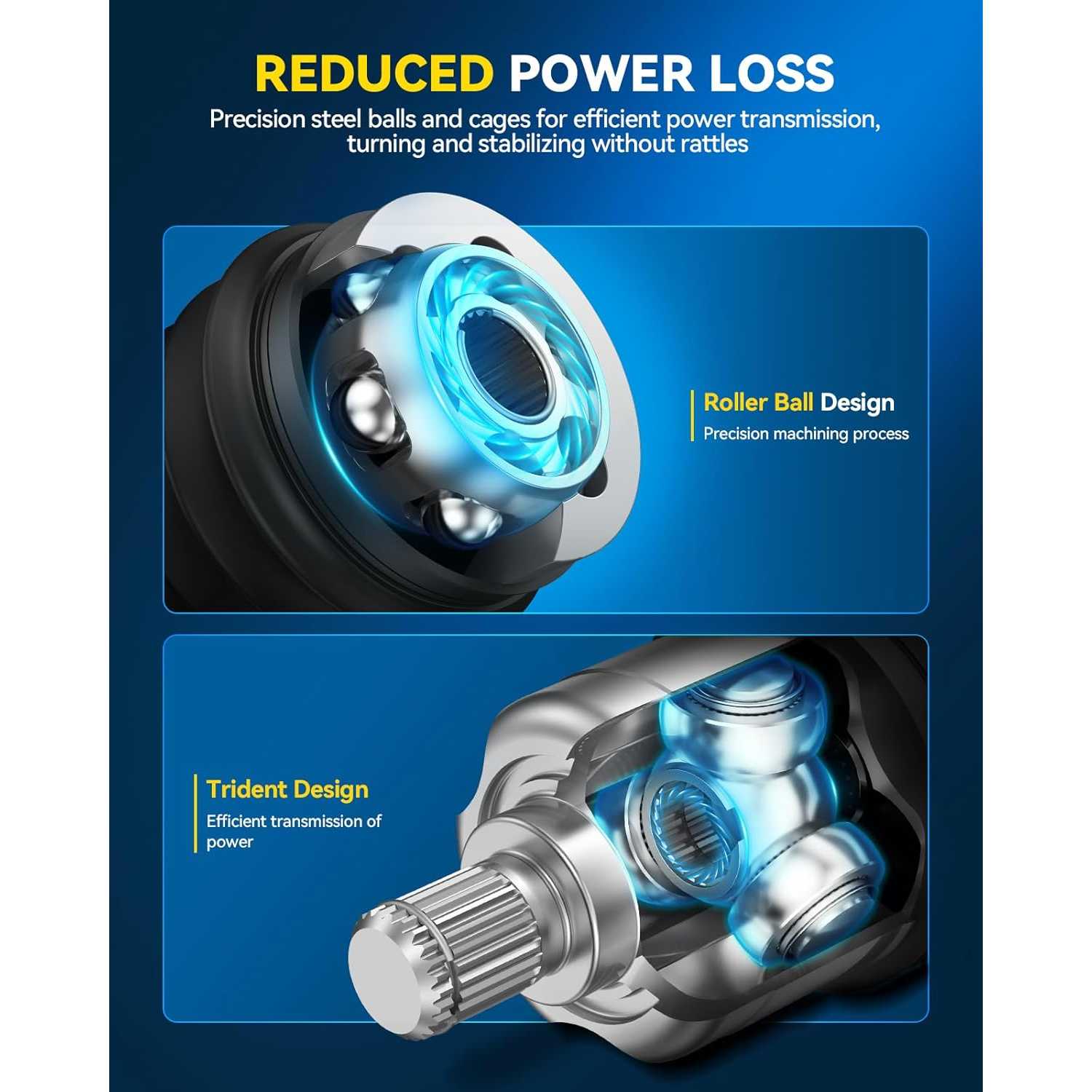

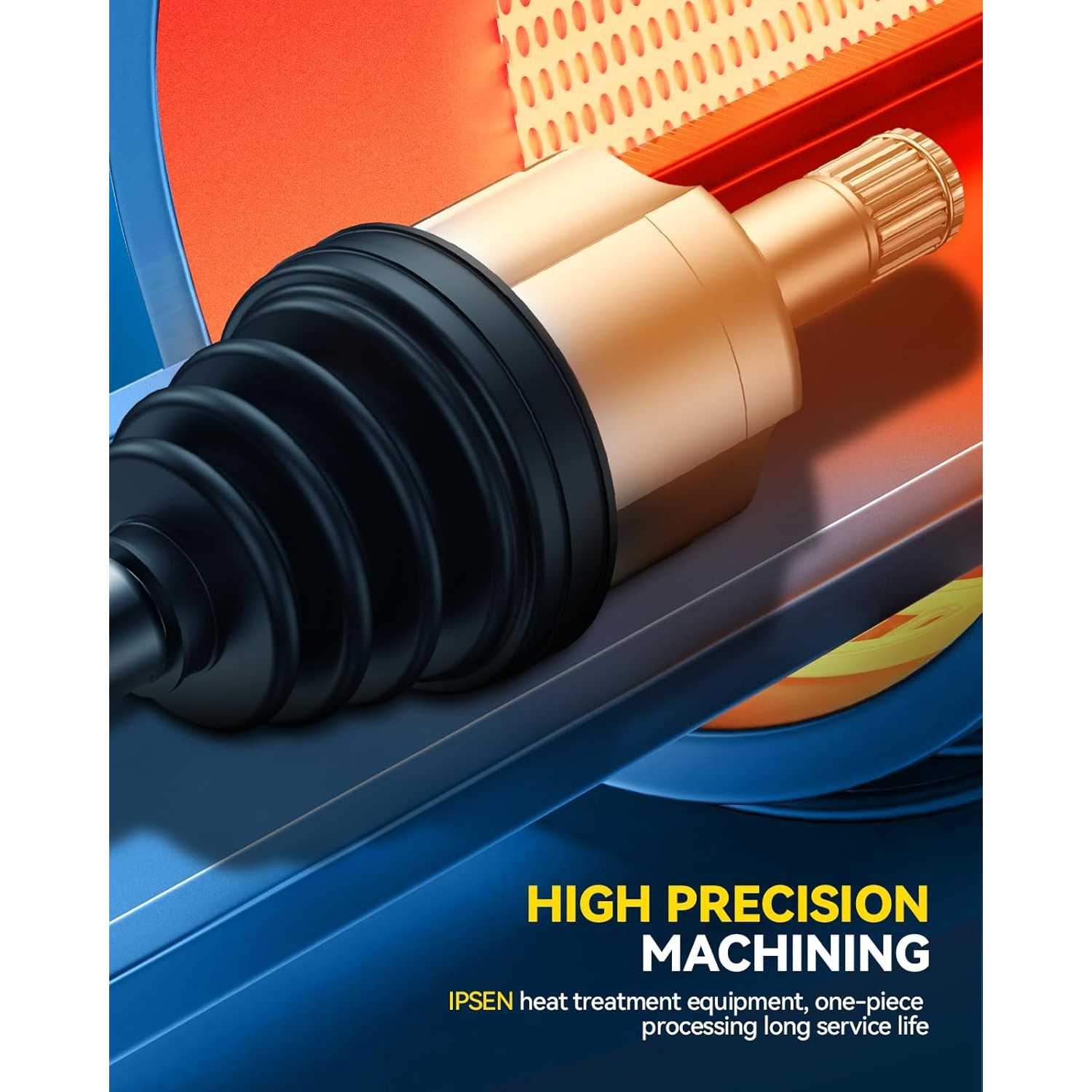

  • High Quality: Half shafts are normalized to ensure product stability.The cv shafts are also ground to improve the ball path and ball surface finish to prolong the product life.

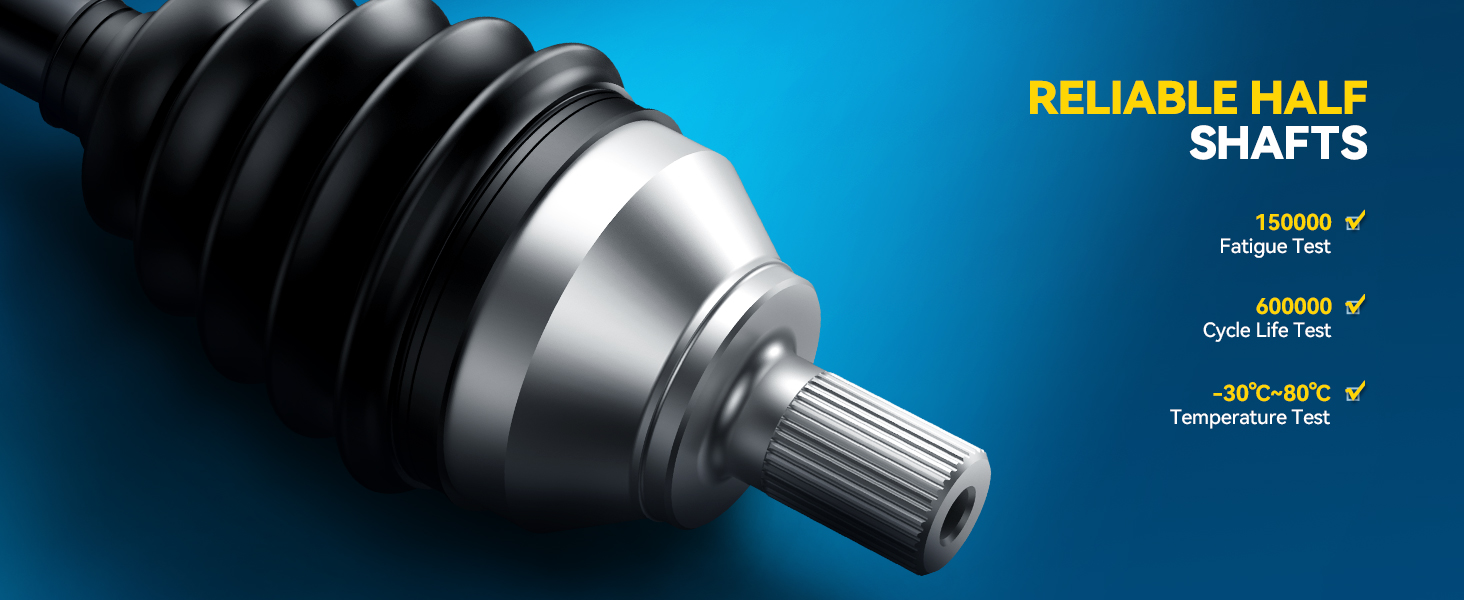

  • Factory Testing: All cv axle shafts undergo a triple factory inspection as a means of confirming product accuracy.Our Axle shafts remain in great condition under extreme conditions.
  • Purchase Verification: Before purchasing, please confirm that the cv axle will fit your vehicle by entering 'Year-Make-Model' through the Suncentauto adapter.

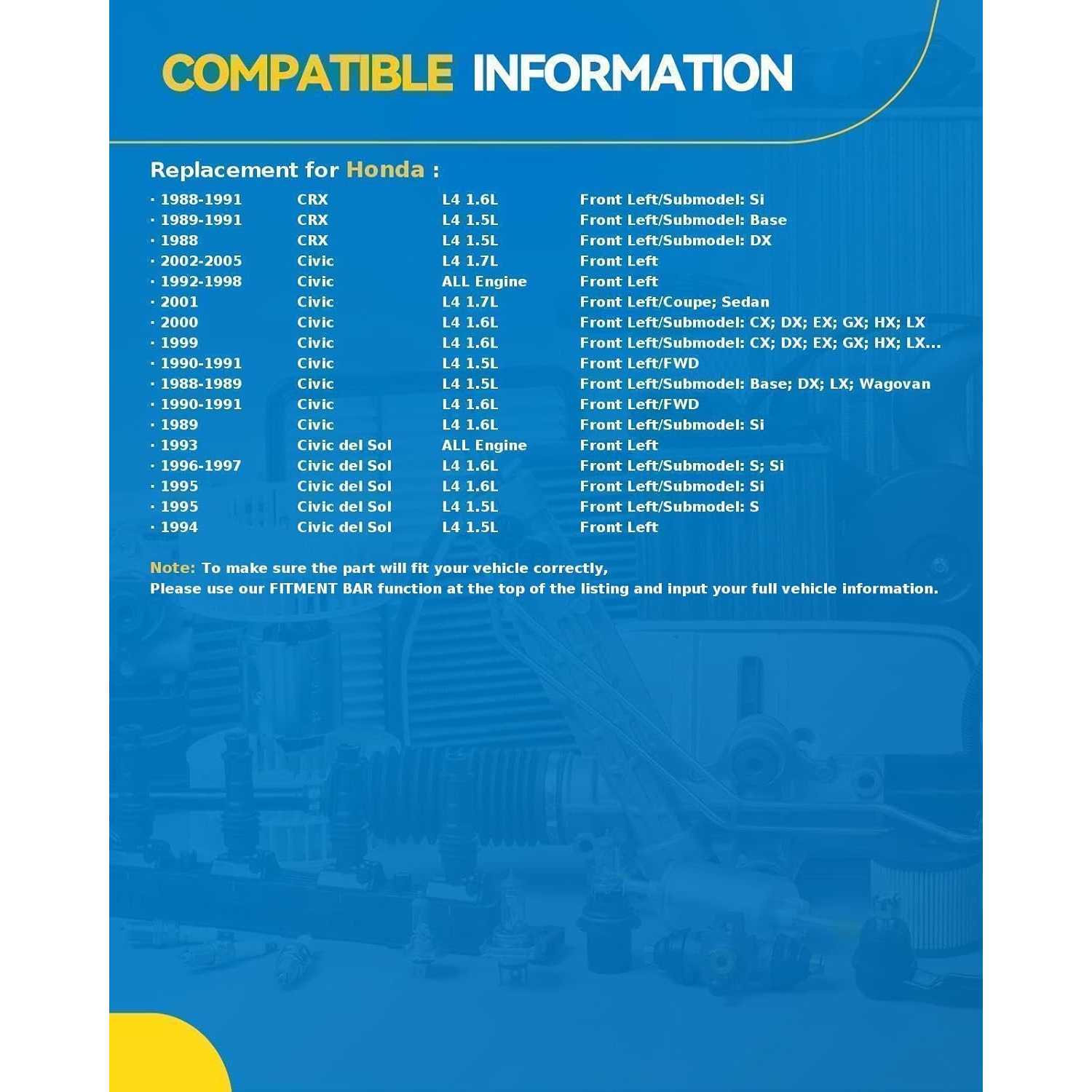

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year1989 - 199119881988 - 19911988 - 19911992 - 19951996 - 20001988 - 19911992 - 19951996 - 20002001 - 20051990 - 19911992 - 20002001 - 200520051998 - 20002002 - 20051996 - 20002001 - 20051988 - 19911992 - 19951996 - 20002001 - 200520051989 - 19911992 - 19951992 - 199519992004 - 20051988 - 19891993 - 19951996 - 199719931995 - 1997
MakeHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHonda
ModelCRXCRXCRXCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivicCivic del SolCivic del SolCivic del SolCivic del Sol
TrimBaseDXSiBaseCXCXDXDXDXDXEXEXEXEX Special EditionGXGXHXHXLXLXLXLXLX Special EditionSiSiVXValue PackageValue PackageWagovanSSSiSi
Engine1.5L L41.5L L41.6L L41.5L L41.5L L41.6L L41.5L L41.5L L41.6L L41.7L L41.6L L41.6L L41.7L L41.7L L41.6L L41.7L L41.6L L41.7L L41.5L L41.5L L41.6L L41.7L L41.7L L41.6L L41.6L L41.5L L41.6L L41.7L L41.5L L41.5L L41.6L L41.6L L41.6L L4
Note---
w/ 26 Spline Outboard Joint
--
w/ 26 Spline Outboard Joint
---
w/ 26 Spline Outboard Joint
-------
w/ 26 Spline Outboard Joint
----
w/ 26 Spline Outboard Joint
----
w/ 26 Spline Outboard Joint
----

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

13

Reviews

4.6/5

Based on 5 reviews

580%
40%
320%
20%
10%

RickFixIt_737

04/28/2026

My Civic was making that awful grinding noise, and this axle completely silenced it. Drives smooth as butter now, and I feel way safer on the road. Huge improvement.

Kelly_SUV_Life_979

01/21/2026

Shipping was incredibly fast, showed up right when I needed it. The installation process was smooth sailing, everything lined up perfectly. Super happy with this purchase.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
