2020-2021 Toyota Corolla 1.8L L4 | Front Driver Side CV Axle 25.61in | NCV69193 - PHILTOP

2020-2021 Toyota Corolla 1.8L L4 | Front Driver Side CV Axle 25.61in | NCV69193 - PHILTOP

Front Left

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
9090SHA741EUS

Specifications

Brand
PHILTOP
Position
Front Left
ABS Ring Included
No
Quantity
1

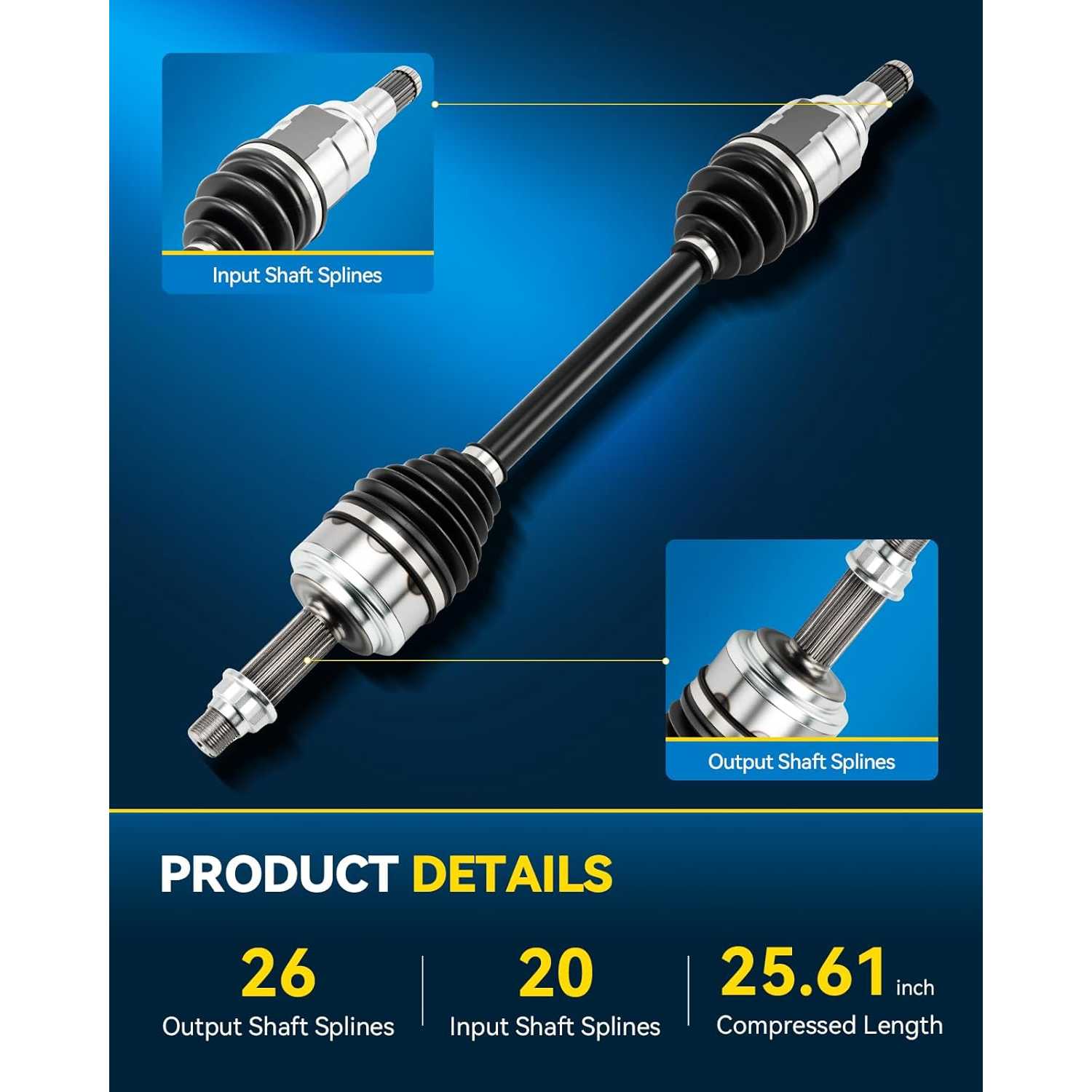

Input Shaft Spline Count
20
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included
1x Front Left Cv Axle Shaft - NCV69193
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
NCV69193

Highlights

  • Compatible Vehicles: NCV69193 Front Left Axles for 2020-2021 Corolla L/LE/XLE Except Japan Built Vehicle.
  • Specifications: Axle Nut Included: Yes, ABS Ring Included: No, Input Shaft Spline Count: 20, Output Shaft Spline Count: 26, Compressed Length: 25.61 inch, Position: Front Left.
  • Safe Driving: The drive shaft's superb ball cage design minimises transmission angle loss, ensuring efficient power transfer. The new drive shaft contributes to enhanced driving stability.
  • Long Service Life: The drive shaft surfaces undergo heat treatment for enhanced wear and corrosion resistance, ensuring suitability for demanding road conditions and climatic environments. The chloroprene dust covers on the cv axle shafts effectively prevent fluid leakage.
  • OE Standard: The new automotive half-shaft threads and splines undergo precision rolling for seamless direct replacement. Each cv axle shaft is rigorously tested to original equipment manufacturer standards, ensuring vehicle compatibility and product reliability.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2020 - 20212020 - 20212020 - 2021
MakeToyotaToyotaToyota
ModelCorollaCorollaCorolla
TrimLLEXLE
Engine1.8L L41.8L L41.8L L4
Note-
Exc. Built in japan; To 04/2021
-

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

Reviews

4.8/5

Based on 15 reviews

587%
47%
37%
20%
10%

Eudo González

09/18/2026

Verified buyer

Muy bueno

Tony Hoskins

08/28/2026

Verified buyer

Arrived on time worked as it should

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
