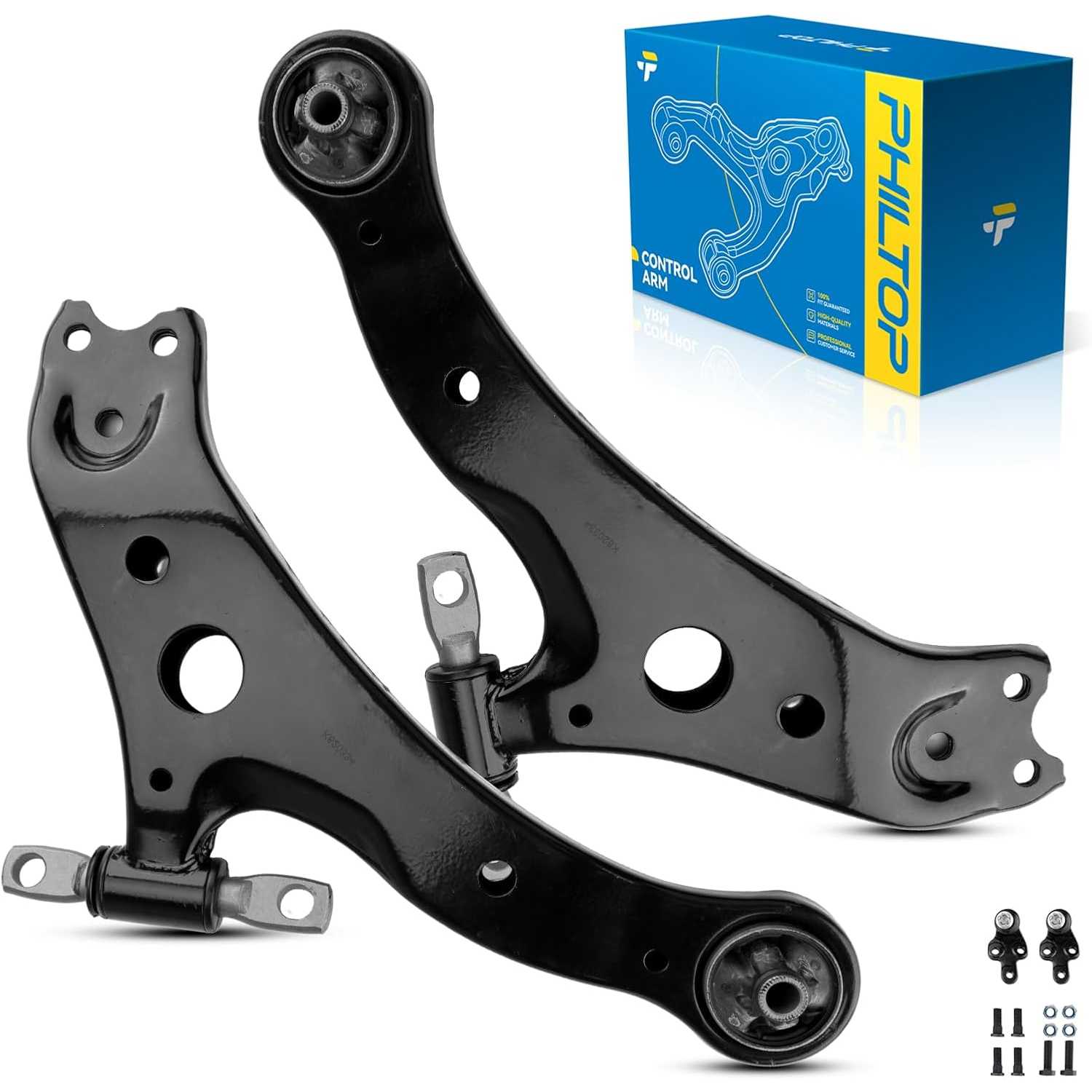

PHILTOP Front Lower Control Arms for Camry 2002-2006, Highlander 2001-2007, RX350 2007-2009, RX330 2004-2006, Solara 2004-2008,

PHILTOP Front Lower Control Arms for Camry 2002-2006, Highlander 2001-2007, RX350 2007-2009, RX330 2004-2006, Solara 2004-2008,

Ball Joint Included

Corrosion Resistant

Deformation Resistant

5.0

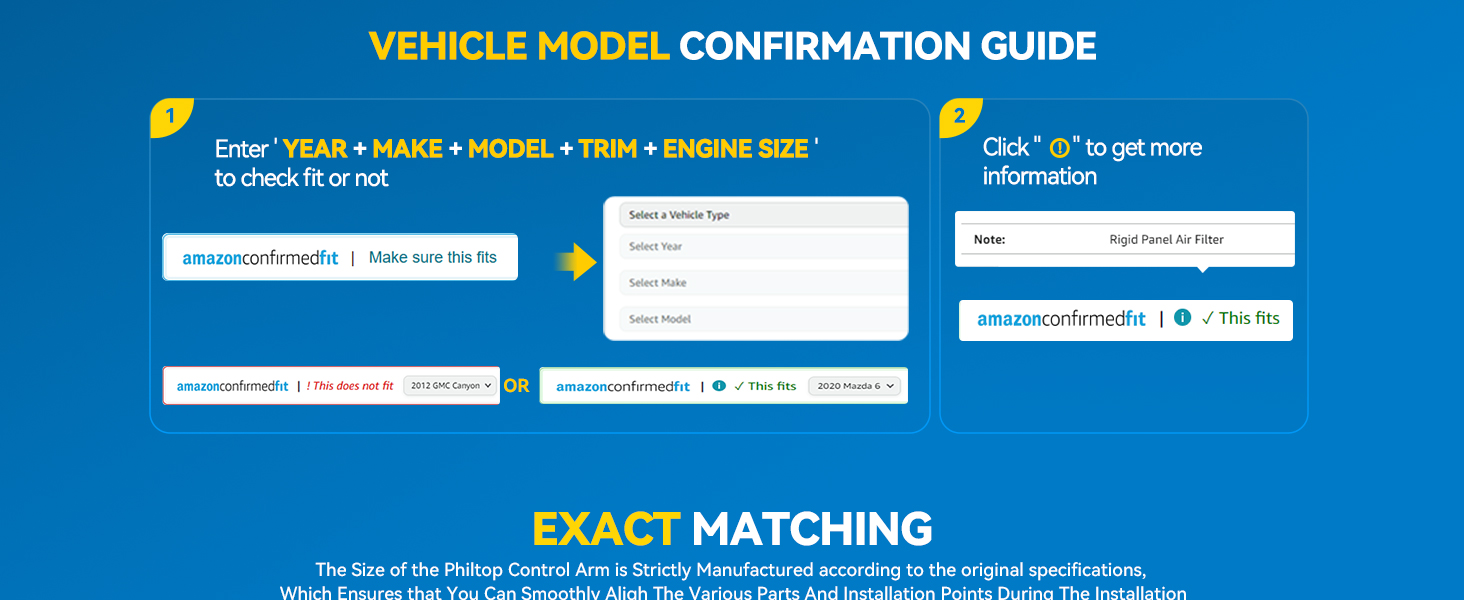

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
4504CAK172GUS

Specifications

Brand
PHILTOP
Items Included

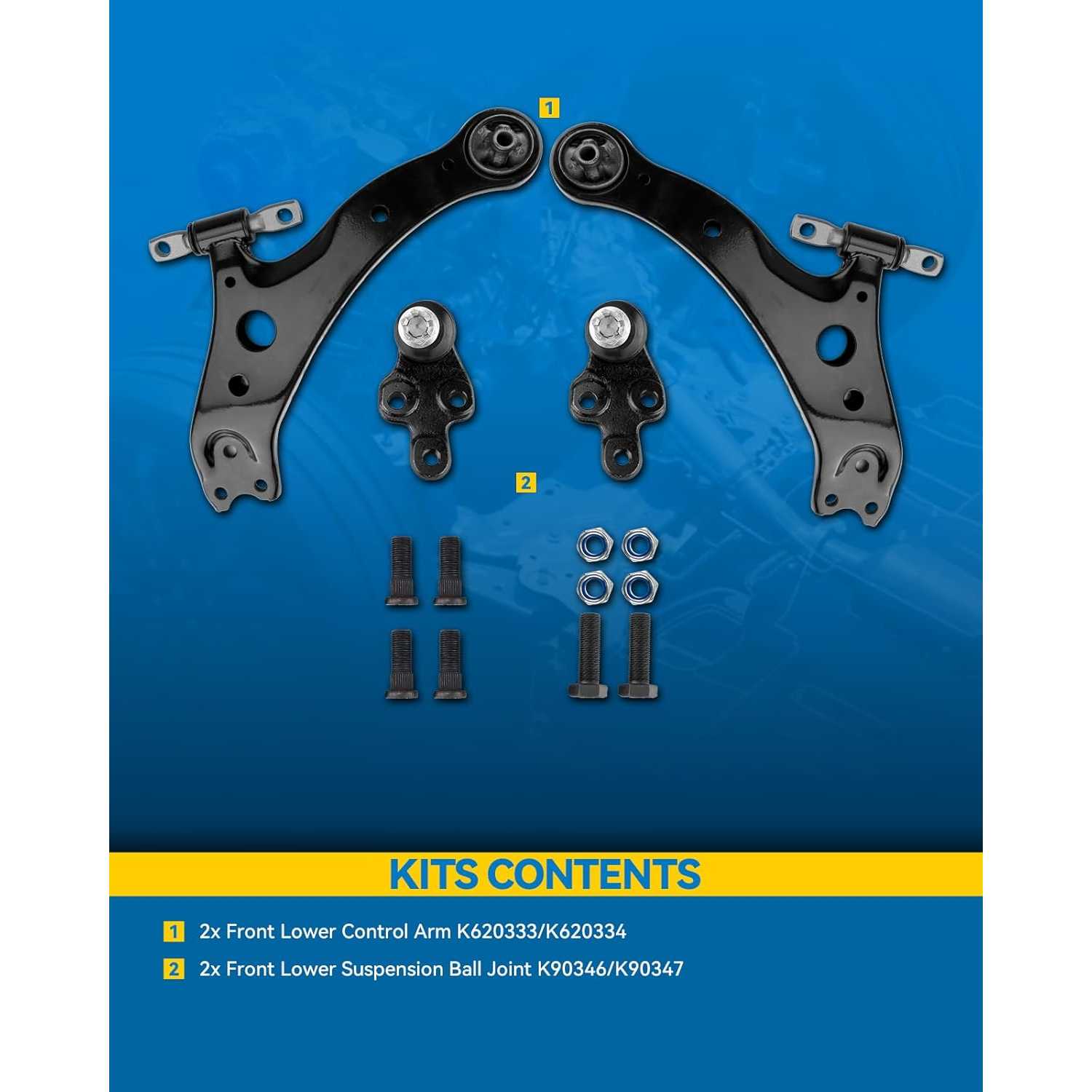

1x Front Right Lower Control Arm (Passenger) - K620714 1x Front Left Lower Control Arm (Driver) - K620713 1x Front Left Lower Suspension Ball Joint (Driver) - K90346 1x Front Right Lower Suspension Ball Joint (Passenger) - K90347
Quantity
4
Position
Front Lower
Surface Finish
Chrome
Material
Steel
Warranty Period
2-Year
OE Number
4806906070,4806933050,4806906080,4806906100,4806933060,4806928120,4806958010,4806906140,4806906180,4334009010S1,4333009010,4806806070,4334009010,4806906150,4806806100,4334009080,4334029175,4333029405,4333009560,4333009160,4334029215,4333029615,480690E010,480680E010
Part Number
K90346,K90347,RK620333,RK620334,MK90346,MK90347,TC1515,TC8135,TC1514,GS20246,GK90347,GK90346,527004,527003,CB74204PR,CB74203,CB74203PR,CA74414,CA74414PR,524154,B90346XL,B90347XL,K200041,TYF608,TYF606,JBU866

Highlights

  • #63,796 in Automotive (See Top 100 in Automotive)
  • #138 in Automotive Replacement Control Arms
  • Fitment: PHILTOP Front Lower Control Arms for Camry 2002-2006, Highlander 2001-2007, RX350 2007-2009, RX330 2004-2006, Solara 2004-2008, ES330 2004-2006, ES300 2002-2003, RX400h 2006-2008.
  • Package Contents: 1x Front Lower Right Side Control Arm (Passenger) - K620333 1x Front Lower Left Side Control Arm (Driver) - K620334; 1x Front Lower Left (Driver) Side Suspension Ball Joint - K90346; 1x Front Lower Right (Passenger) Side Ball Joint - K90347; 2x Front Left & Right Side Sway Bar End Link - K90344.
  • Tips: Please check that the control arm is suitable for your vehicle by "Suncentautoconfirmedfit" before purchasing.

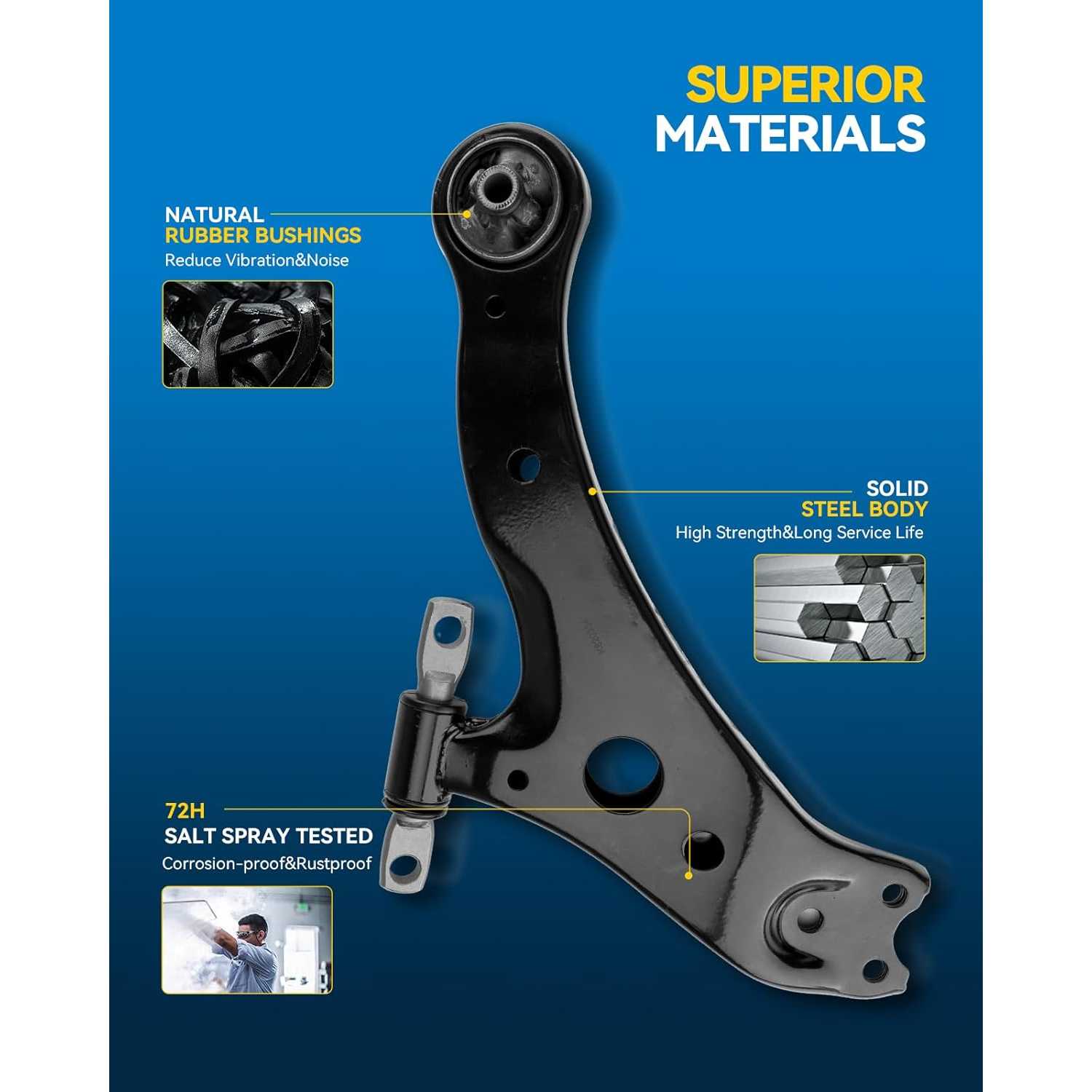

  • Long Service Life: Designed to handle severe impacts and repetitive loads through heat-treatment.Coatings to studs inhibit corrosion to promote a long service life.
  • Easy to install: Excellent product design and manufacturing technology make PHILTOP control arms better fit your car and make your installation fast and simple.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2002 - 20032004 - 20062004 - 20062007 - 20092006 - 20082005 - 20062002 - 20062002 - 20062002 - 20062002 - 20032004 - 20062002 - 20062002 - 20062001 - 20072001 - 20032004 - 20072006 - 20072006 - 20072001 - 20032004 - 20072006 - 20072004 - 20082004 - 2008200620062004 - 20082004 - 20082007 - 20082007 - 2008
MakeLexusLexusLexusLexusLexusToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelES300ES330RX330RX350RX400hCamryCamryCamryCamryCamryCamryCamryCamryHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderHighlanderSolaraSolaraSolaraSolaraSolaraSolaraSolaraSolara
TrimBaseBaseBaseBaseBaseBaseLELESESESEXLEXLEBaseBaseBaseHybridHybrid LimitedLimitedLimitedSportSESESE SportSE SportSLESLESportSport
Engine3.0L V63.3L V63.3L V63.5L V63.3L V62.4L L42.4L L43.0L V62.4L L43.0L V63.3L V62.4L L43.0L V62.4L L43.0L V63.3L V63.3L V63.3L V63.0L V63.3L V63.3L V62.4L L43.3L V62.4L L43.3L V62.4L L43.3L V62.4L L43.3L V6
Note
Standard Design
Standard Design
Standard Design;w/o Air Suspension
Standard Design;w/o Air Suspension
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design
Standard Design

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the installation side, mounting points and ball-joint configuration.
  • Inspect the new control arm, bushings, ball joint and dust boot for damage.
  • Check the steering linkage, stabilizer link and related suspension components for looseness or wear.
  • Support the vehicle with approved jack stands and support the steering knuckle to protect the brake hose and ABS wiring.
  • Replacing control arms in left/right pairs is recommended when both sides have similar mileage or wear.

Installation Steps

  • Step-1: Raise and support the vehicle, then remove the wheel.
  • Step-2: Support the steering knuckle and disconnect the stabilizer link or related components as required.
  • Step-3: Separate the ball joint using the correct puller—do not strike or pry it aggressively.
  • Step-4: Remove the mounting bolts and old control arm, then clean the mounting points.
  • Step-5: Position the new arm and hand-start all fasteners.
  • Step-6: Connect the ball joint and stabilizer link, replacing any single-use nuts or bolts.
  • Step-7: Return the suspension to normal ride height before tightening the control-arm pivot bolts to specification.

After Installation

  • Confirm all fasteners and locking components are secure.
  • Check that the wheel rotates freely without interference.
  • Perform a short, low-speed road test and check for noise, pulling or unstable steering.
  • A professional four-wheel alignment is required after installation.
  • Recheck the installation after the first 50–100 km.

Product Video

Product Description

11

Reviews

5.0/5

Based on 3 reviews

5100%
40%
30%
20%
10%

Karissa hilliard

01/12/2025

Verified buyer

Exact fit for 2005 Toyota Camry, good price and everything was included to do the job

Rachel

01/12/2025

Verified buyer

Direct fit and replacement. Not too hard to install. This product worked on my Highlander 2004.

FAQS

Fitment depends on your car's year, model, and sometimes whether it is 2WD or 4WD. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm.

We stand behind our chassis components with a 3-Year Limited Warranty for your safety and peace of mind. Scroll to the "Warranty & Support" section at the bottom of the page for full details.

We offer both individual arms and complete suspension kits. Please check the "Package Includes" or "Quantity" section to see if you are ordering a single Driver/Passenger side arm or a full multi-piece kit.
