2007-2017 Toyota Camry 2.4L/2.5L | Front Passenger Side CV Axle Shaft | 665294 - PHILTOP

2007-2017 Toyota Camry 2.4L/2.5L | Front Passenger Side CV Axle Shaft | 665294 - PHILTOP

Front Right

Built to Last

4.4

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1963SHA6130US

Specifications

Brand
PHILTOP
Position
Front Right
ABS Ring Included
Yes
Quantity
1
Input Shaft Spline Count
24
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
26
Items Included

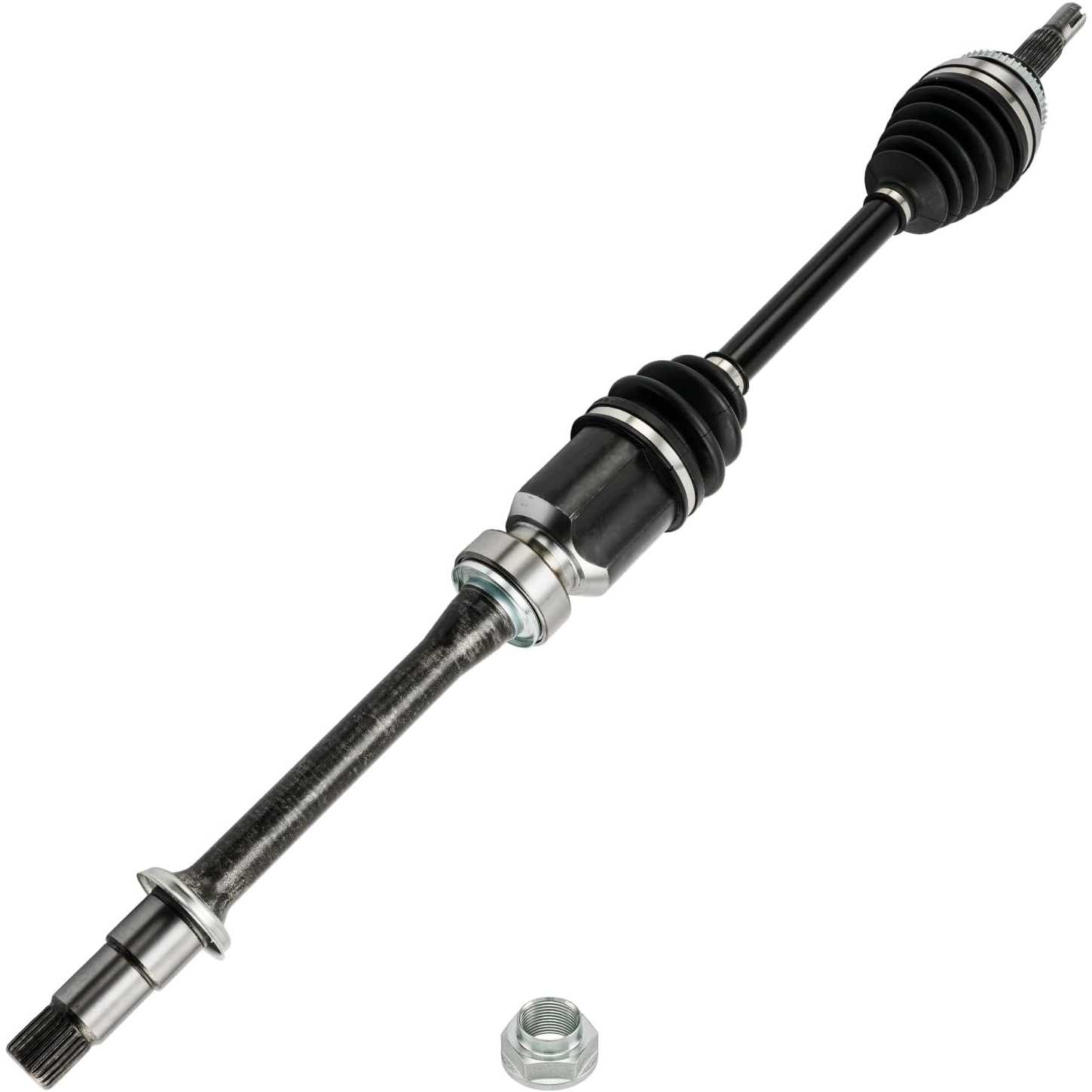

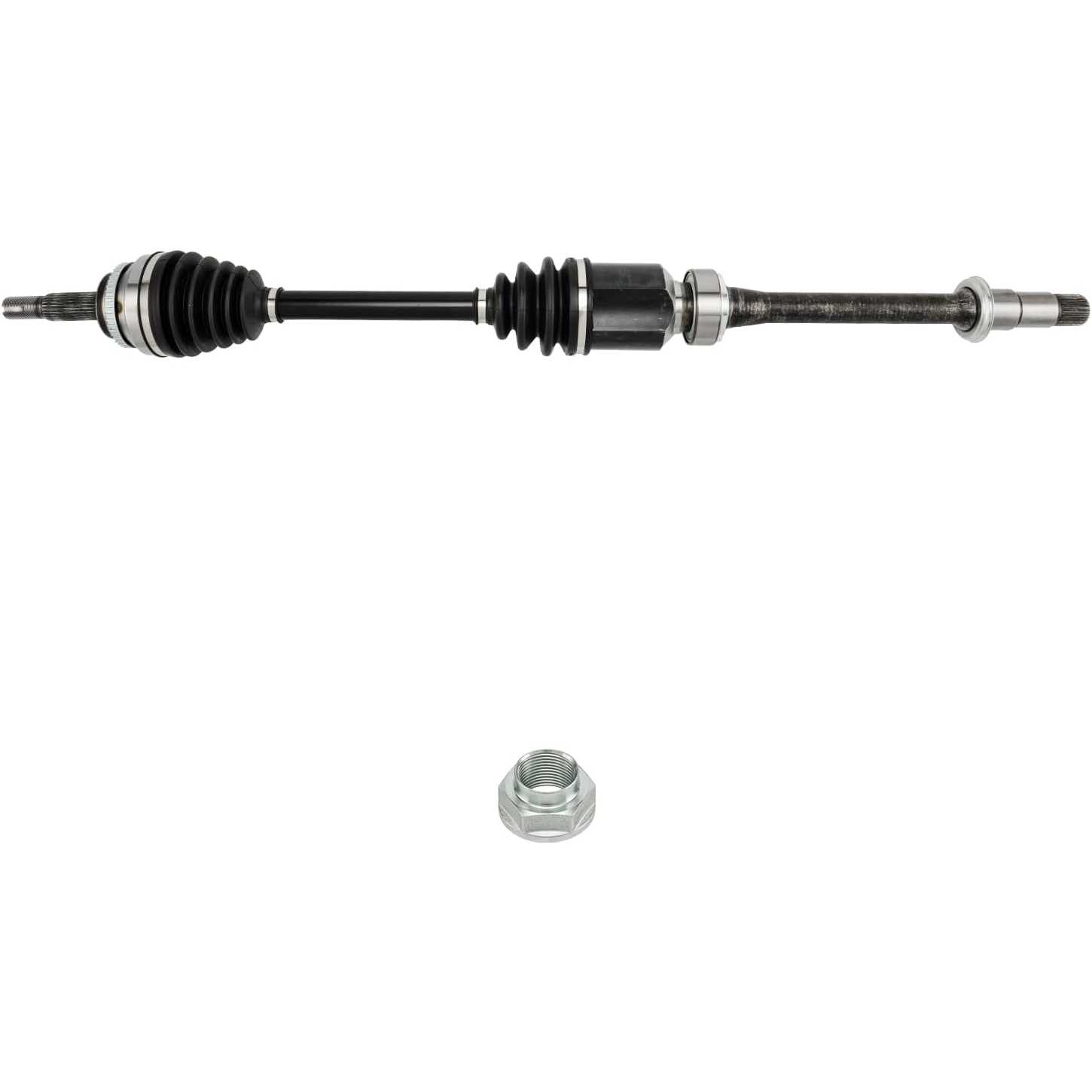

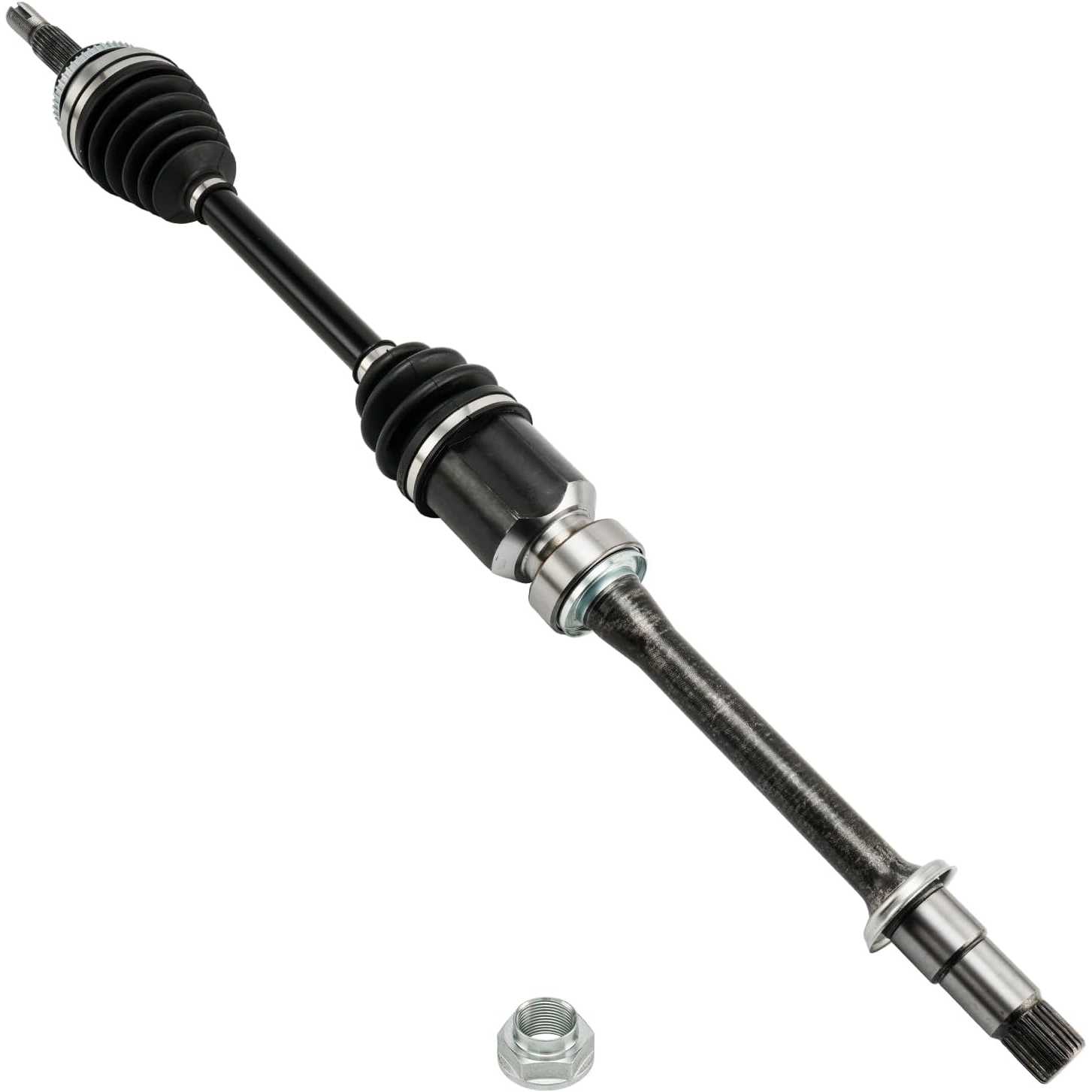

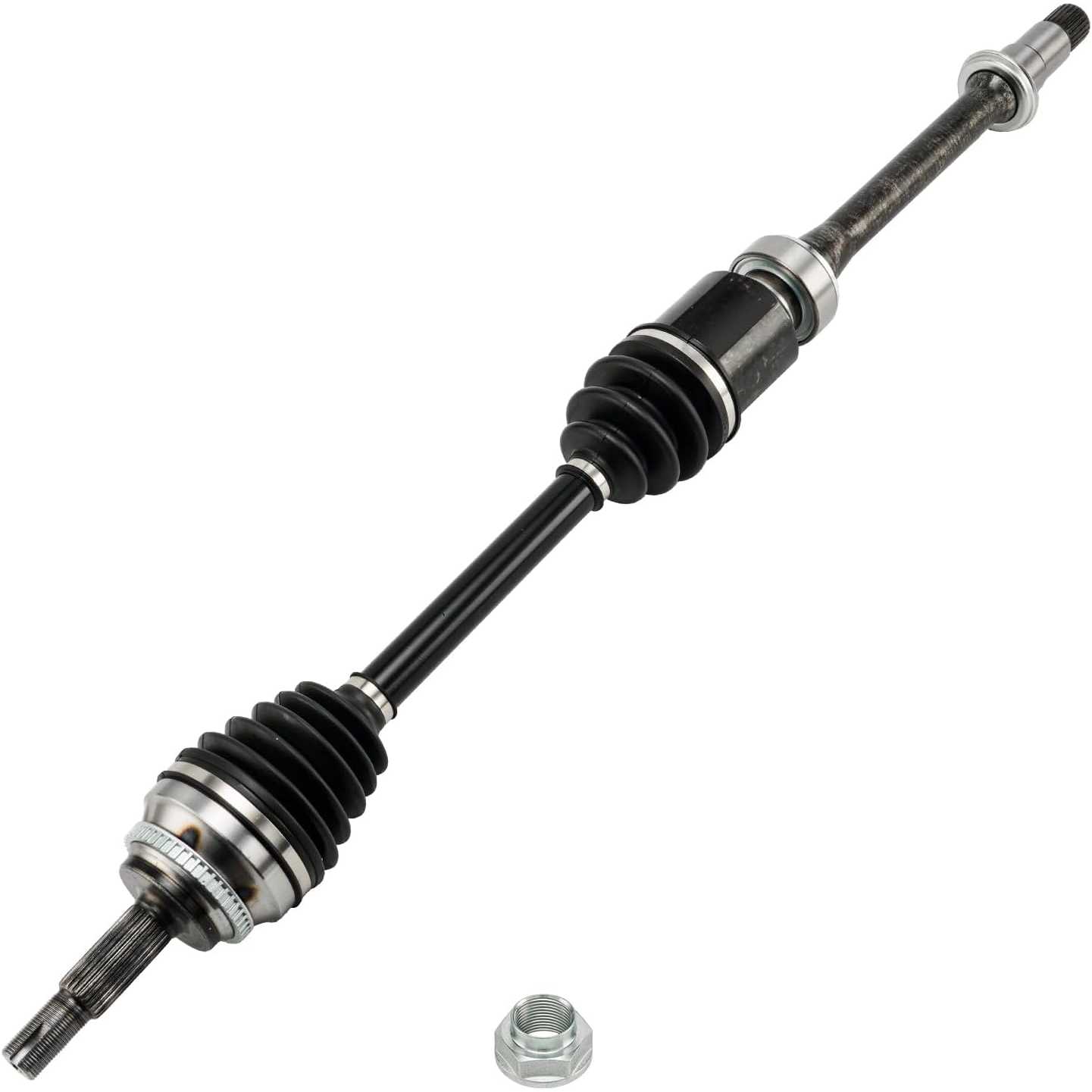

1x Front Right Cv Axle Shaft - 66-5294
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
665294

Highlights

  • Cv Axle Fitment: Front Right CV Joint for 2007-2011 Camry Hybrid 2012-2017 Camry 2.5L(GAS;Except SE Sport/Special Edition).
  • Reference Number: 4341006730, 4341033310, 665294, 66-5294, 4341006732, NCV69077, APCVA720
  • Drive Shaft Details: 1x Front cv axle shaft - 66-5294. Compressed Length: 38.00 inch. Output Shaft Spline Count: 26. Iutput Shaft Spline Count: 24.
  • Compatibility Verification: Please check the compatibility list on the listing page for more submodel details to make sure your exact model is included.

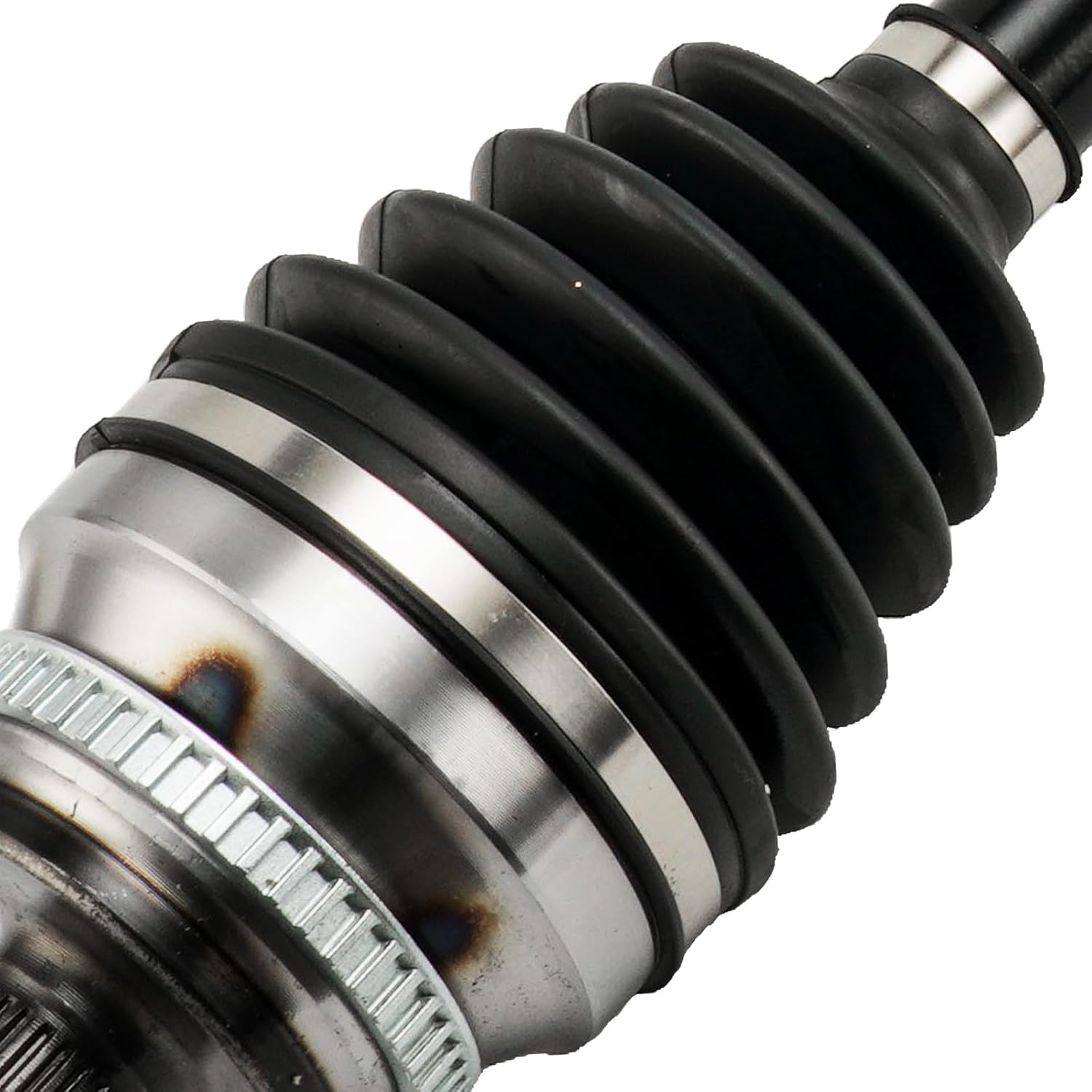

  • High Quality: CV shafts are made of high-quality chloroprene rubber for greater durability and longevity. High-quality grease can withstand high temperatures and high torque requirements, ensuring long-term reliable performance.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2007 - 20112012 - 20142012 - 20172012 - 2017201420162012 - 20172015 - 2017
MakeToyotaToyotaToyotaToyotaToyotaToyotaToyotaToyota
ModelCamryCamryCamryCamryCamryCamryCamryCamry
TrimHybridLLESESE SportSpecial EditionXLEXSE
Engine2.4L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L42.5L L4
Note--------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.4/5

Based on 5 reviews

560%
420%
320%
20%
10%

Steve_DIYer_837

12/24/2025

Fantastic value! The build quality is excellent, feels very sturdy. It's a great alternative to the expensive factory parts.

SarahDrives_488

10/07/2025

My car was pulling to one side and making a weird noise. This axle shaft fixed both issues instantly. Feels much more stable and safe to drive now.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
