2005-2015 Volkswagen Jetta 1.9L/2.0L | Front Passenger Side CV Axle Shaft | 667446 - PHILTOP

2005-2015 Volkswagen Jetta 1.9L/2.0L | Front Passenger Side CV Axle Shaft | 667446 - PHILTOP

Front Right

Built to Last

4.7

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
8113SHA6668US

Specifications

Brand
PHILTOP
Position
Front Right
ABS Ring Included
No
Quantity
1
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
36
Items Included

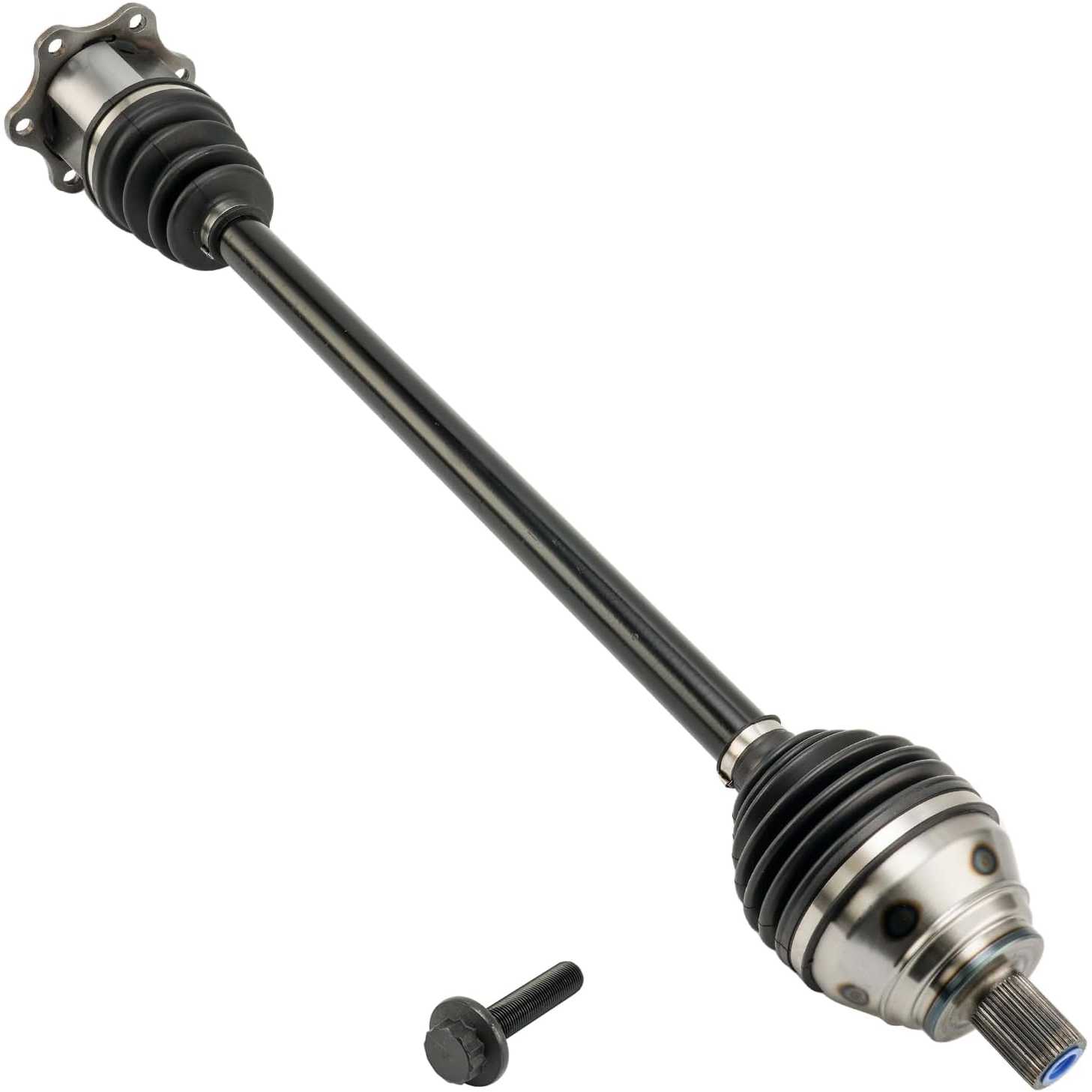

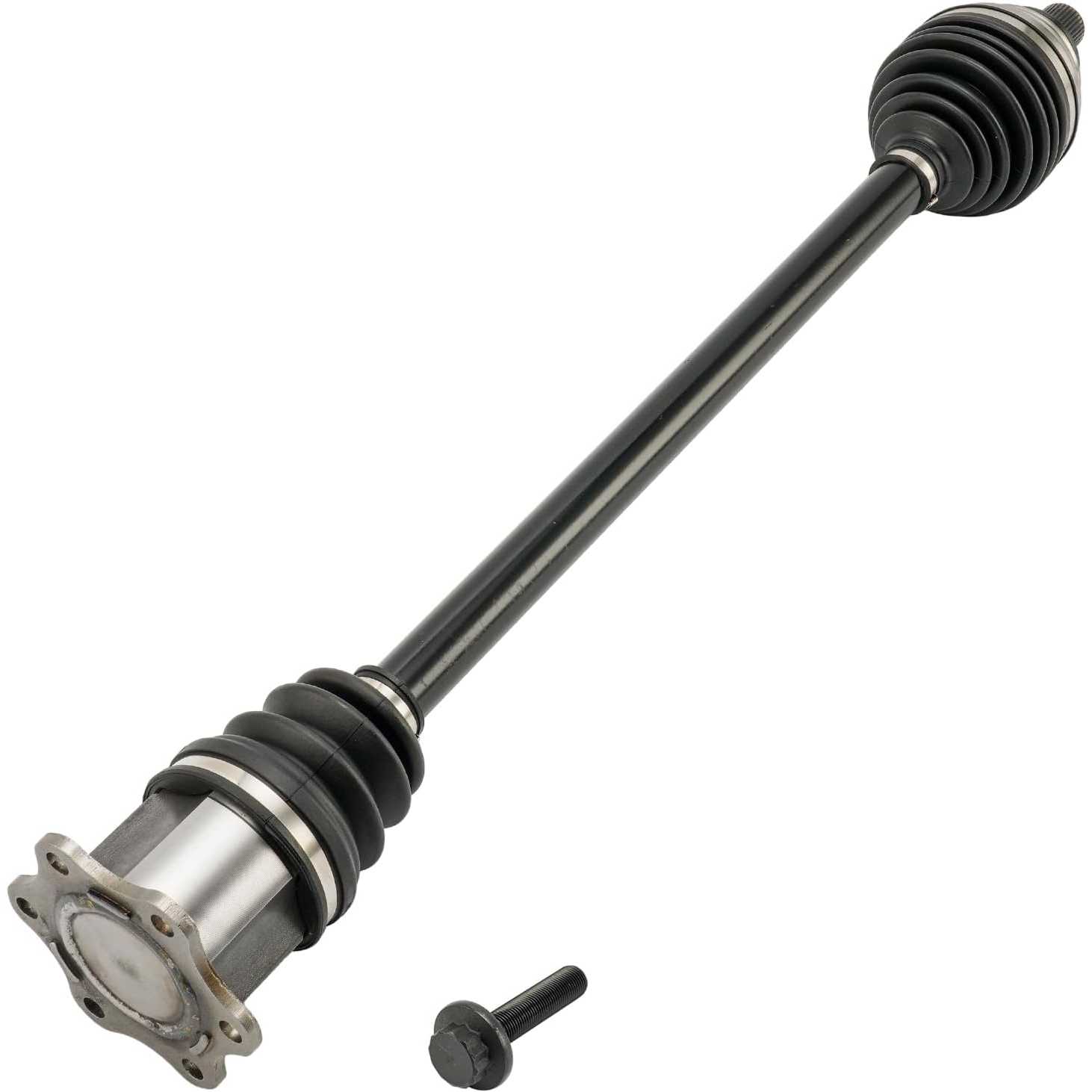

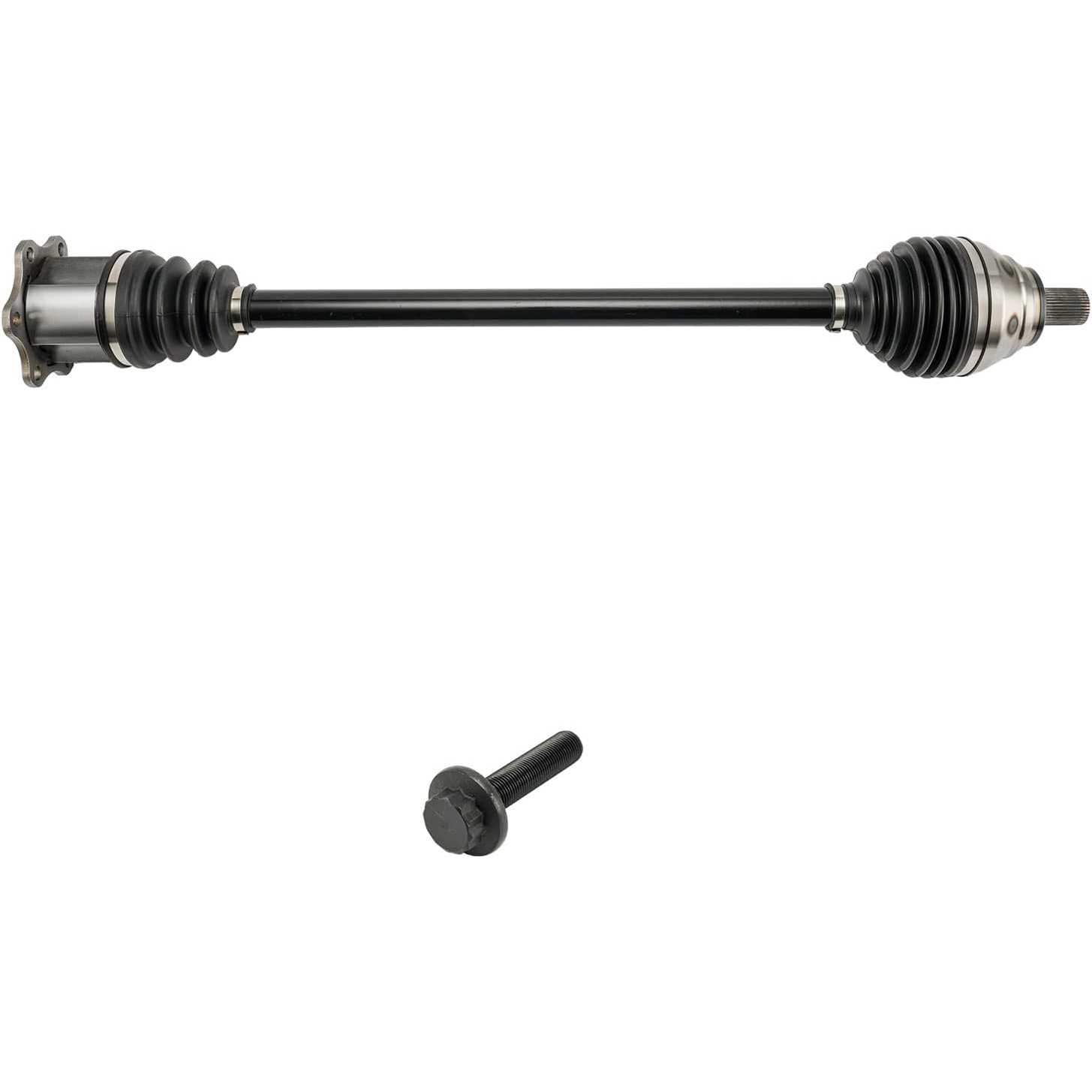

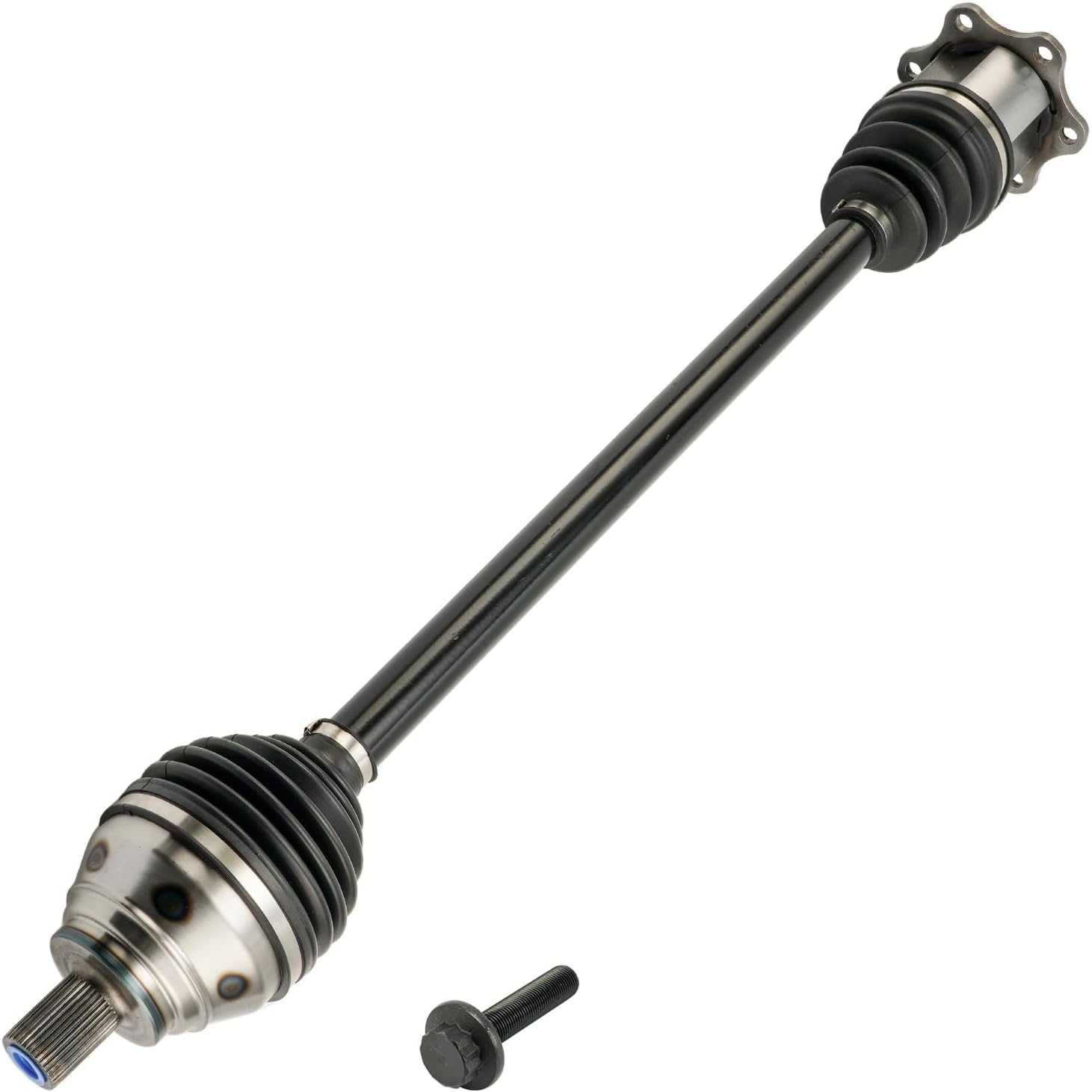

1x Front Right Cv Axle Shaft - 66-7446
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
667446

Highlights

  • Cv Axle Fitment: Front Right CV Joint for 2010-2013 A3 TDI, 2010-2014 Golf, 2005-2006 Jetta 1.9L(Trans:Automatic Dual Clutch), 2009-2009 Jetta TDI, 2010-2014 Jetta TDI(Trans:Automatic Dual Clutch), 2010-2010 Jetta TDI Cup Edition(Trans:Automatic Dual Clutch), 2012-2014 Jetta TDI Premium(Trans:Automatic Dual Clutch), 2015 Jetta TDI S/TDI SE/TDI SEL(Trans:Automatic Dual Clutch).
  • Reference Number: APCVA976, 1K0407272QE, 66-7446, 1K0407272QE, 1K0407272HR, 1K0407272DQ, 667446, 1K0407272EG

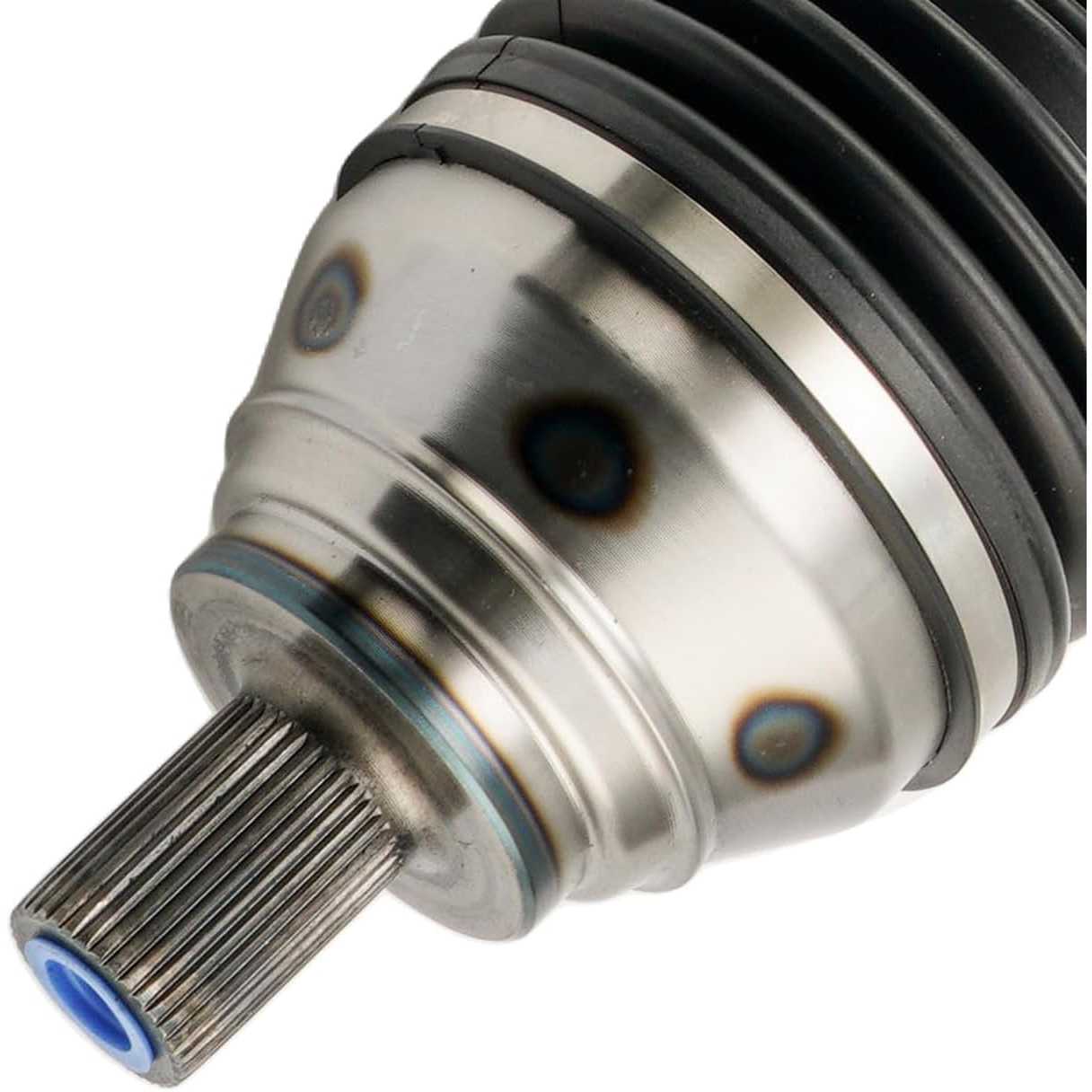

  • Drive Shaft Details: 1x Front cv axle shaft - 66-7446. Compressed Length: 29.94 inch. Output Shaft Spline Count: 36.
  • Compatibility Verification: Please check the compatibility list on the listing page for more submodel details to make sure your exact model is included.

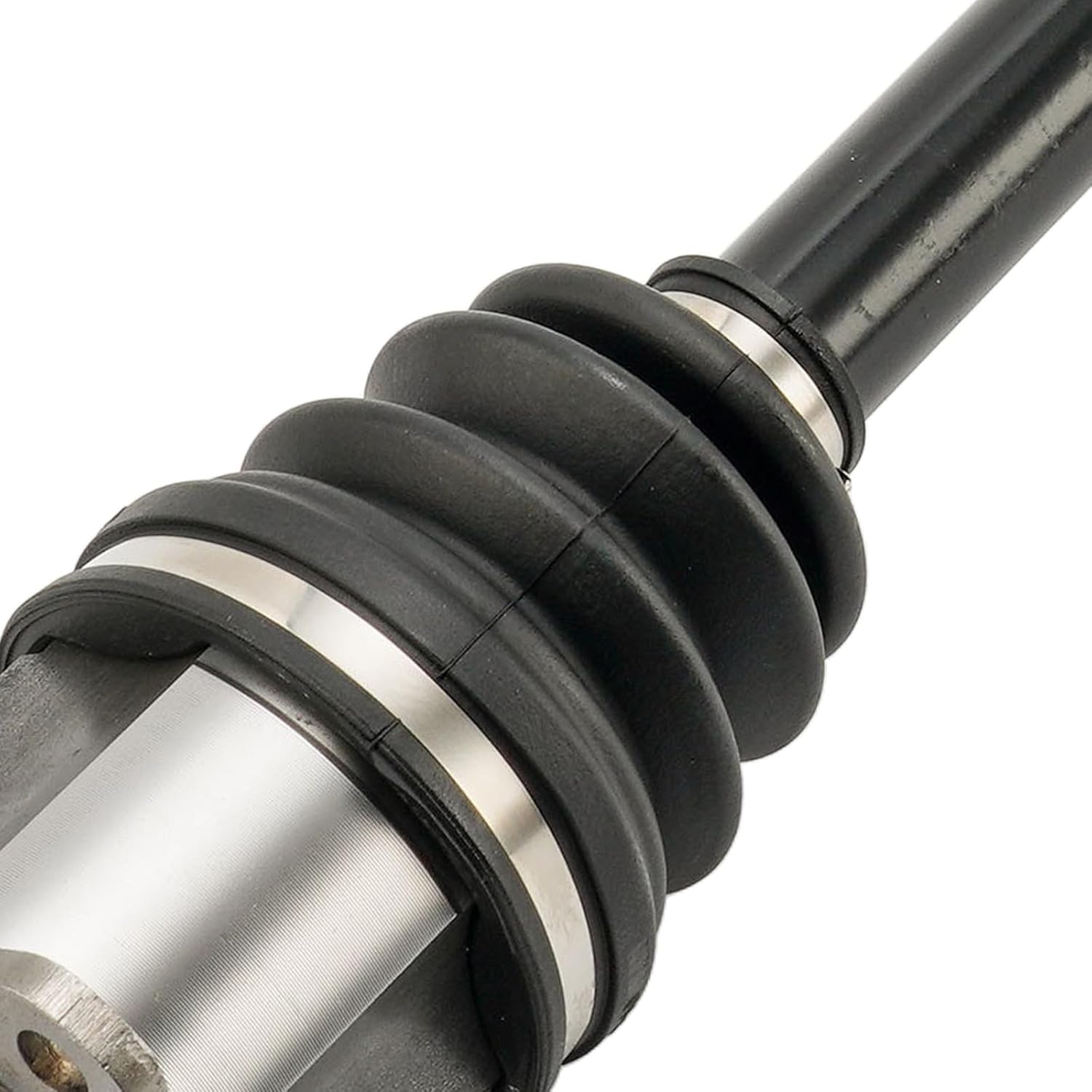

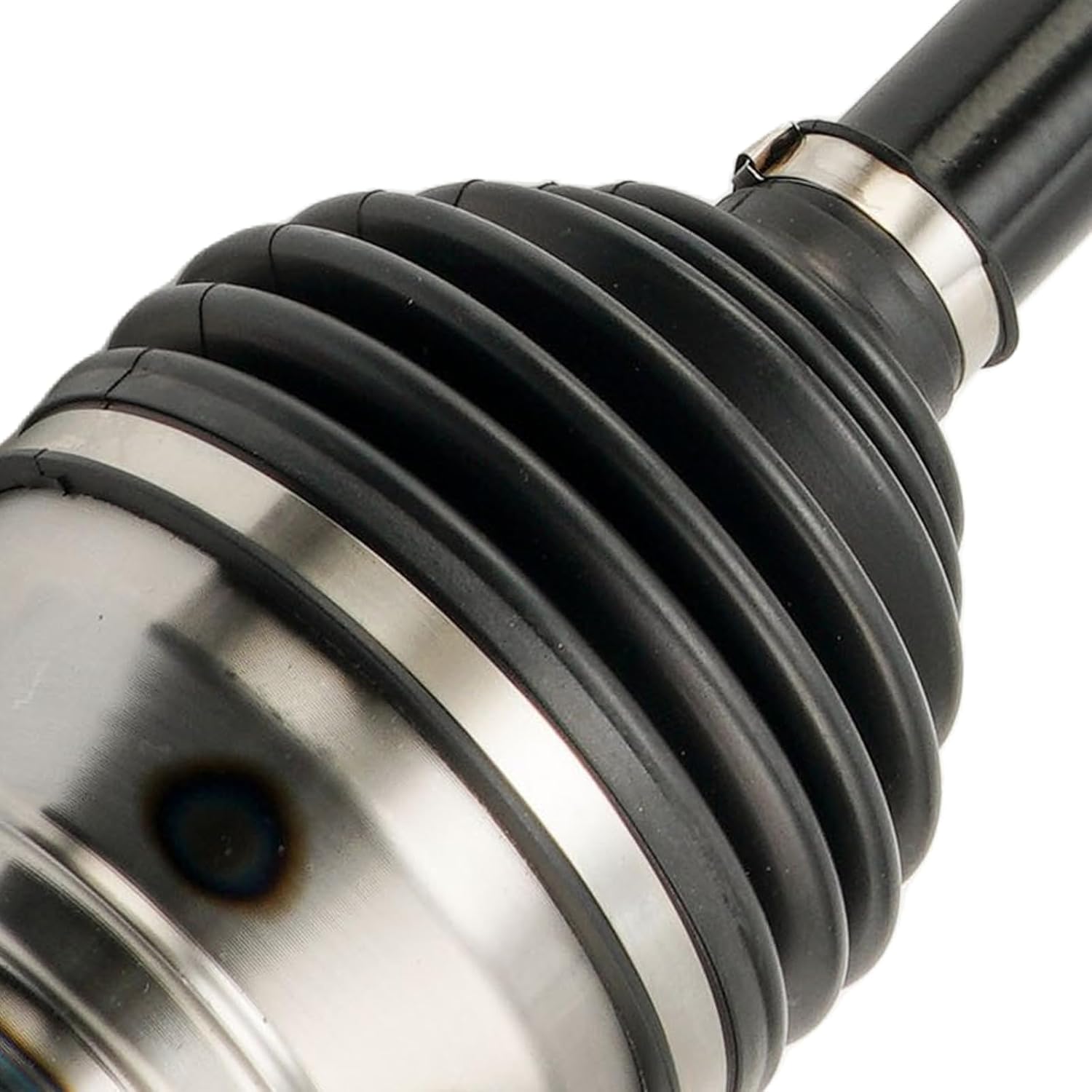

  • High Quality: CV shafts are made of high-quality chloroprene rubber for greater durability and longevity. High-quality grease can withstand high temperatures and high torque requirements, ensuring long-term reliable performance.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2010 - 20132010 - 20142005 - 20062009 - 201420102012 - 2014201520152015
MakeAudiVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagenVolkswagen
ModelA3GolfJettaJettaJettaJettaJettaJettaJetta
TrimTDITDITDITDITDI Cup EditionTDI PremiumTDI STDI SETDI SEL
Engine2.0L L42.0L L41.9L L42.0L L42.0L L42.0L L42.0L L42.0L L42.0L L4
Note---------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.

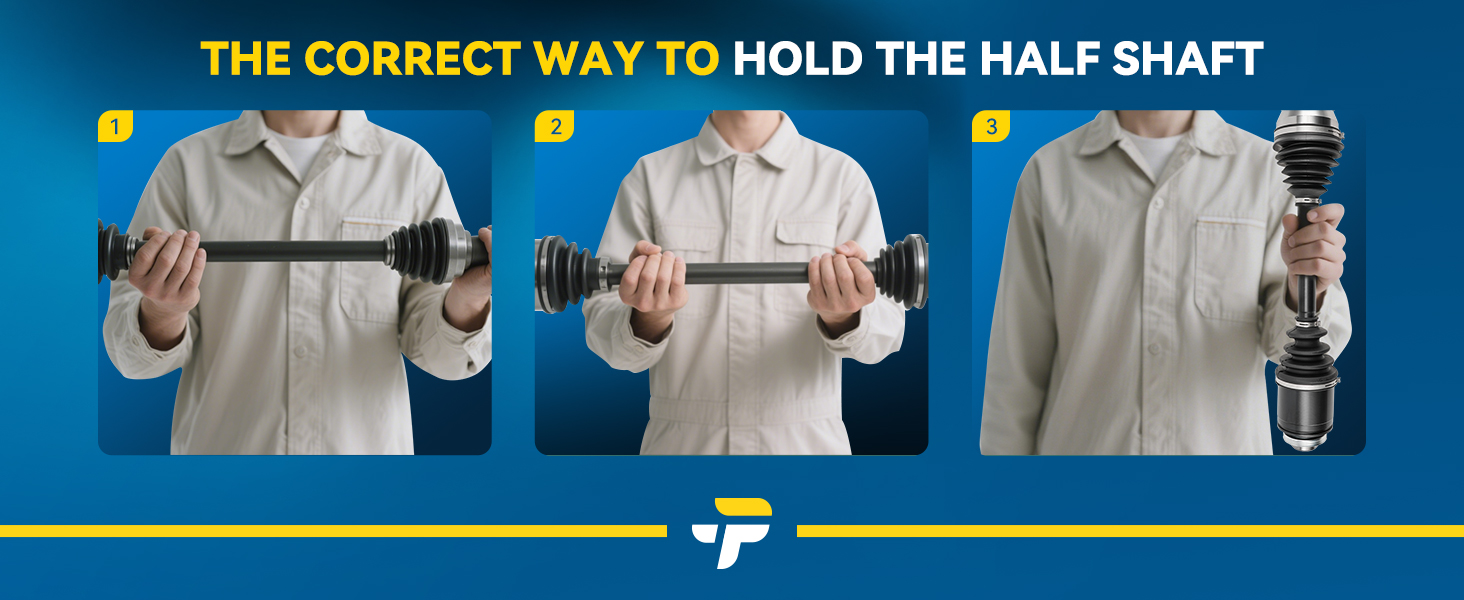

    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

4.7/5

Based on 7 reviews

571%
429%
30%
20%
10%

cristian morales

02/14/2026

Verified buyer

👍

Lord Leo

09/13/2026

Verified buyer

half the price of same thing from the local national chain store this is same quality and fits nicely on my Silverado 2500 HD 2006. Gave to my mechanic and he said it fits perfectly and has zero issues

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
