Front Right

Built to Last

4.5

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
3900SHA724KUS

Specifications

Brand
PHILTOP
Position
Front Right
ABS Ring Included
Yes
Quantity
1

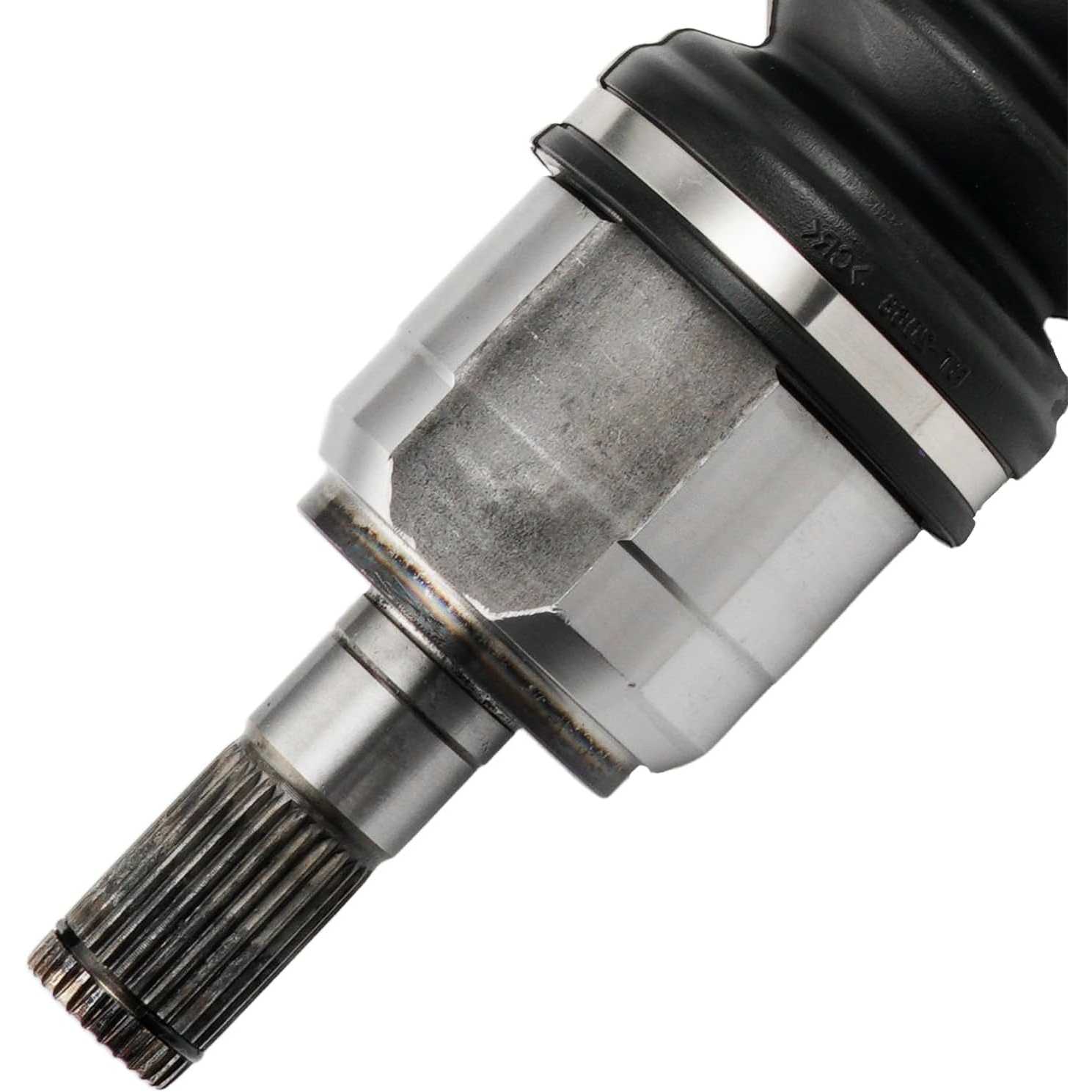

Input Shaft Spline Count
27
Material

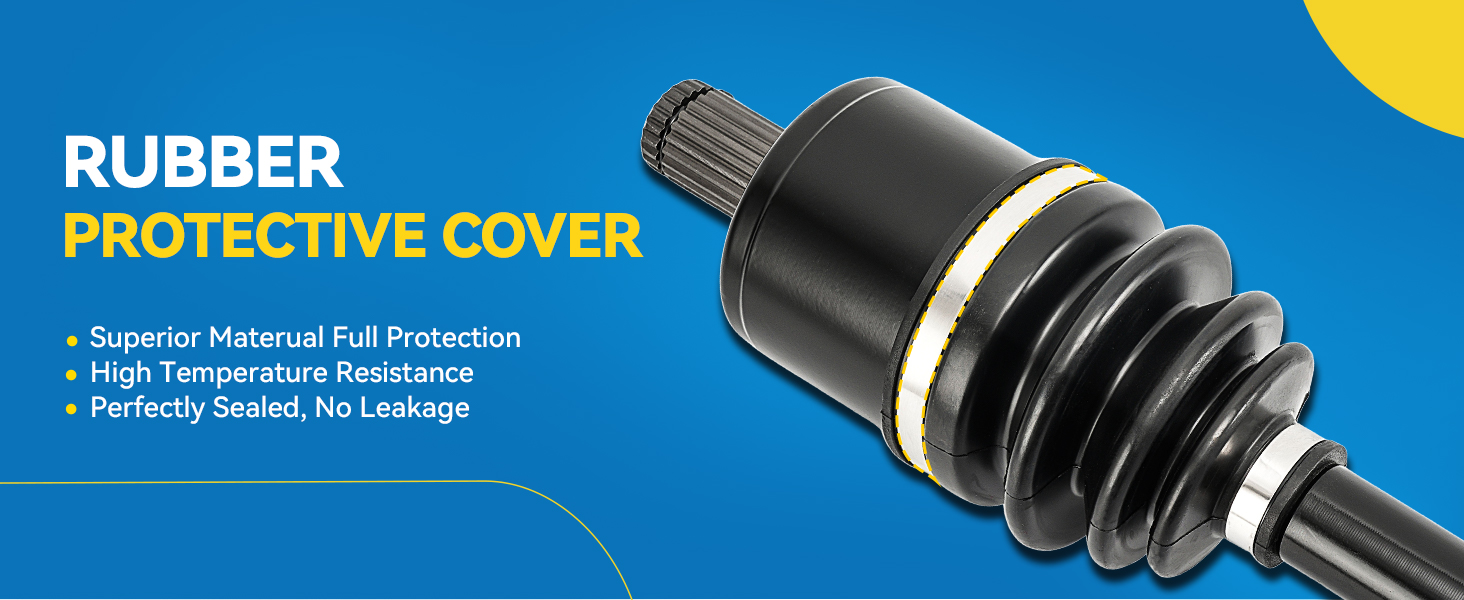

SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
25
Items Included

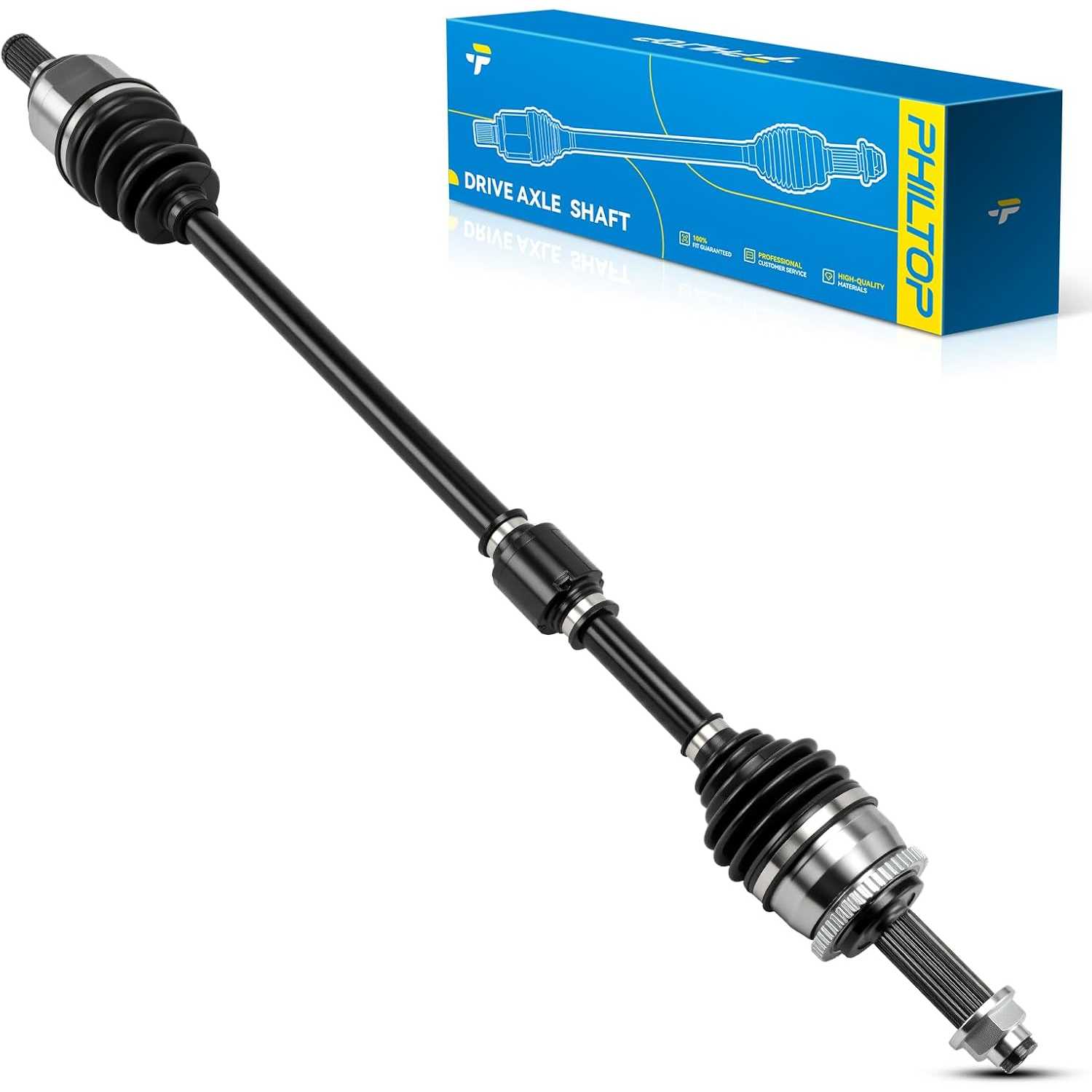

1x Front Right Cv Axle Shaft - NCV37091
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
NCV37091

Highlights

  • VEHICLE FIT: CV Axle Shafts compatible with 2012-2017 Hyundai Accent
  • Reference Numbers: NCV37091,495011R100 cv axle shaft
  • Reliably: Enjoy a smoother, more reliable ride with our high-quality CV Axle Shaft. Premium materials and excellent performance provide dependable support for your daily driving needs.

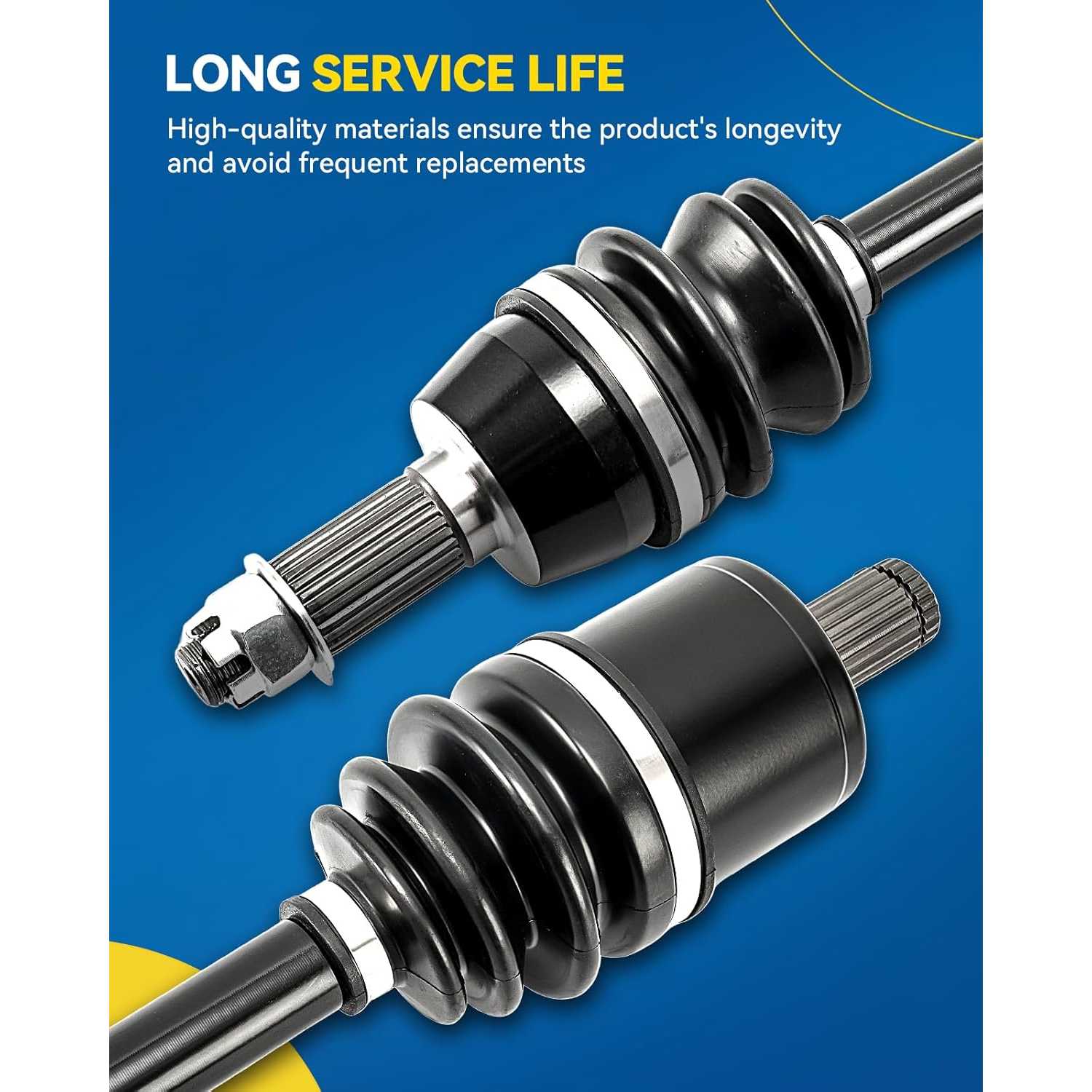

  • Superior Quality Build:Half shafts normalized & one-piece treated for extended service life. Heat-treated components resist wear, corrosion, and impact damage.
  • Purchase Verification: Before ordering this CV Axle Shaft Assembly, check the compatibility list on the details page or use Suncentauto's fitment filter by entering your Year-Make-Model.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2012 - 20152012 - 20152012 - 20142016 - 20172015 - 20172017
MakeHyundaiHyundaiHyundaiHyundaiHyundaiHyundai
ModelAccentAccentAccentAccentAccentAccent
TrimGLSGSSESESportValue Edition
Engine1.6L L41.6L L41.6L L41.6L L41.6L L41.6L L4
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

13

Reviews

4.5/5

Based on 2 reviews

550%
450%
30%
20%
10%

Mega

10/03/2026

Verified buyer

Buenos productos

Rob_HomeGarage_271

02/11/2026

The part looks good and works well, but it did require a specific socket I didn't have. Luckily, I found one at home. Otherwise, it's a good value.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
