2006-2018 Honda TRX680FA FourTrax Rincon | Front Passenger Side ATV/UTV Compatible CV Axle 19.54in | HON7008 - PHILTOP

2006-2018 Honda TRX680FA FourTrax Rincon | Front Passenger Side ATV/UTV Compatible CV Axle 19.54in | HON7008 - PHILTOP

Front Right

Built to Last

5.0

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7125SHA239NUS

Specifications

Brand
PHILTOP
Position
Front Right
ABS Ring Included
No
Quantity
1
Input Shaft Spline Count
20
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
21

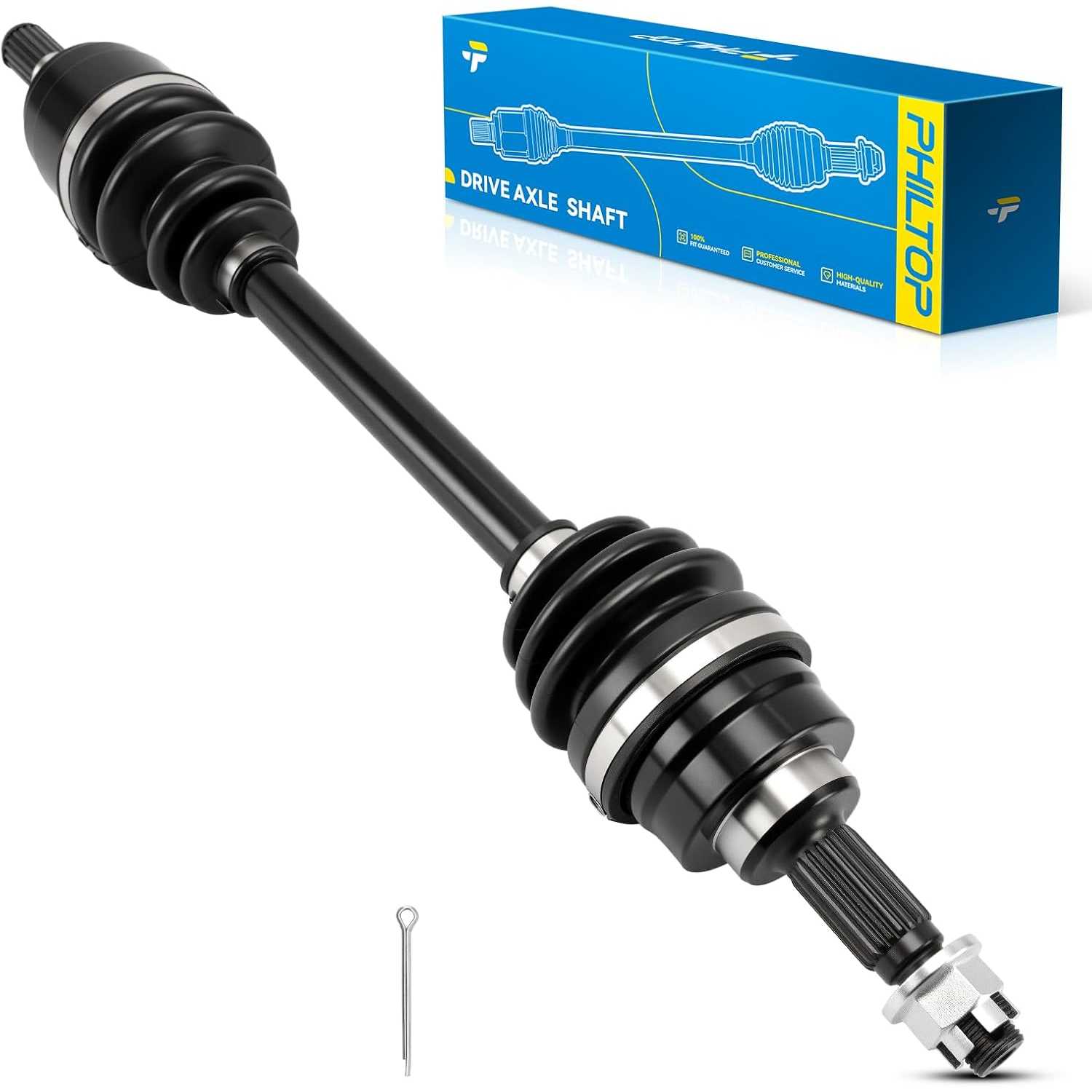

Items Included
1x Front Right Cv Axle Shaft
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
HON7008

Highlights

  • Fitment: 19.5in Front Right CV Axle Assembly Fit for 2005-2009 TRX500FM FourTrax Foreman 4x4, TRX500FA FourTrax Foreman Rubicon, TRX500FE FourTrax Foreman 4x4 ES, 2006-2018 TRX680FA FourTrax Rincon, 2007-2009 TRX500FPE FourTrax Foreman 4x4 ES w/ Power Steering, 2011-2014 TRX500FA FourTrax Foreman Rubicon, 2008-2009 TRX500FPM FourTrax Foreman 4x4 w/ Power Steering, 2011-2013 TRX500FE FourTrax Foreman 4x4 ES, TRX500FM FourTrax Foreman 4x4.
  • Drive Safely: The special structure inside the ball head of the half shaft is able to transmit power efficiently for better handling and stable steering.
  • Drive Shaft Parameters: 1x Front Right cv axle shaft, Compressed Length: 19.54 Inch, Output Shaft Spline Count: 21, Input Shaft Spline Count: 20.
  • Reliable Quality: Our CV shaft assemblies are manufactured to OE specifications and quality standards under the direction of a professional OEM manufacturer. All half shafts are factory tested for reliability, durability and performance.

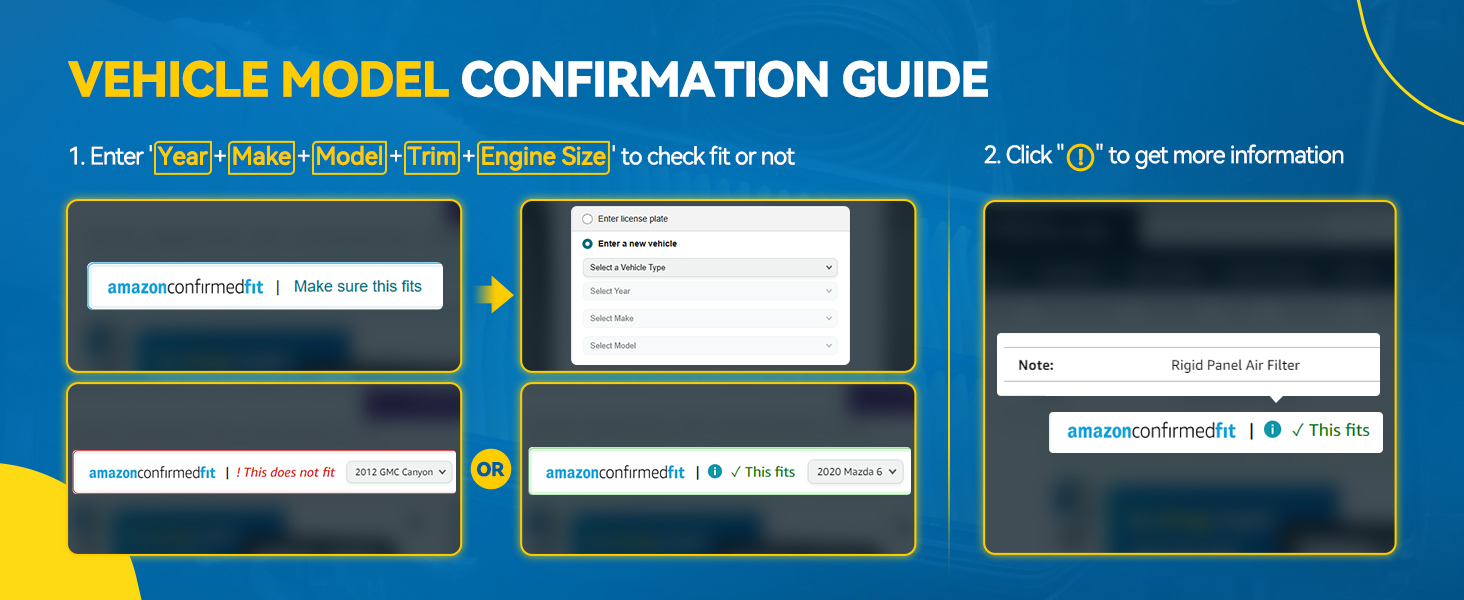

  • Adaptation Validation: Before purchasing a half shaft, please confirm that the product is suitable for your vehicle by using the fit verification guide provided by Suncentauto.

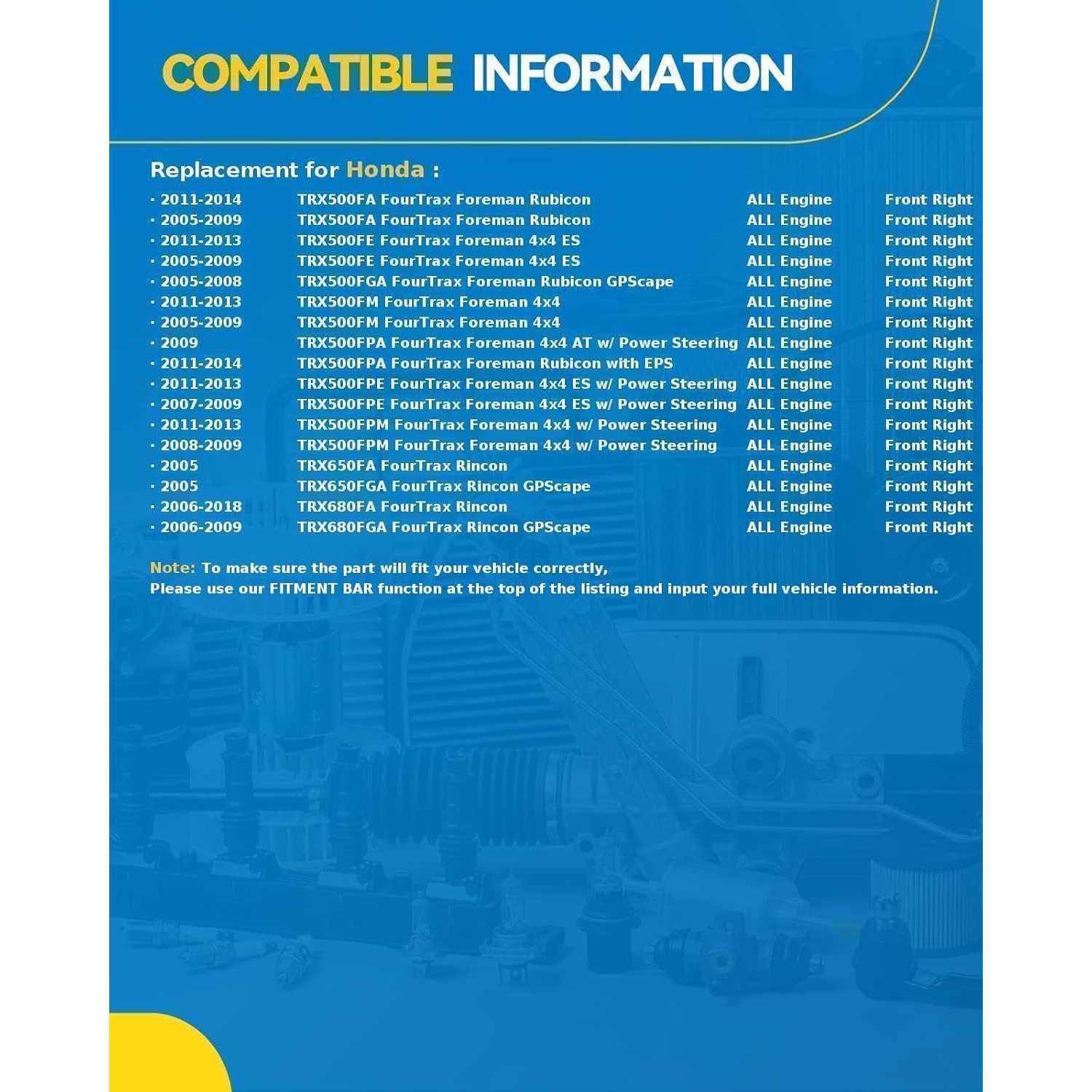

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20092011 - 20142005 - 20092011 - 20132005 - 20082005 - 20092011 - 201320092011 - 20142007 - 20092011 - 20132008 - 20092011 - 2013200520052006 - 20182006 - 2009
MakeHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHondaHonda
ModelTRX500FA FourTrax Foreman RubiconTRX500FA FourTrax Foreman RubiconTRX500FE FourTrax Foreman 4x4 ESTRX500FE FourTrax Foreman 4x4 ESTRX500FGA FourTrax Foreman Rubicon GPScapeTRX500FM FourTrax Foreman 4x4TRX500FM FourTrax Foreman 4x4TRX500FPA FourTrax Foreman 4x4 AT w/ Power SteeringTRX500FPA FourTrax Foreman Rubicon with EPSTRX500FPE FourTrax Foreman 4x4 ES w/ Power SteeringTRX500FPE FourTrax Foreman 4x4 ES w/ Power SteeringTRX500FPM FourTrax Foreman 4x4 w/ Power SteeringTRX500FPM FourTrax Foreman 4x4 w/ Power SteeringTRX650FA FourTrax RinconTRX650FGA FourTrax Rincon GPScapeTRX680FA FourTrax RinconTRX680FGA FourTrax Rincon GPScape
TrimBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBaseBase
Engine-----------------
Note
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
Standard Duty Replacement
4X4;Standard Duty Replacement
4X4;Standard Duty Replacement
4X4;Standard Duty Replacement
4X4;Standard Duty Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.
    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

12

Reviews

5.0/5

Based on 1 review

5100%
40%
30%
20%
10%

Chris_GearHead_133

03/24/2026

This axle totally fixed the grinding noise I was hearing. My Foreman feels much smoother and more powerful on the trail now. Big improvement!

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
