2008-2013 Nissan Rogue 2.5L | Front Passenger Side CV Axle Shaft | 666287 - PHILTOP

2008-2013 Nissan Rogue 2.5L | Front Passenger Side CV Axle Shaft | 666287 - PHILTOP

Front Right

Built to Last

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1632SHA805ZUS

Specifications

Brand
PHILTOP
Position
Front Right
ABS Ring Included
Yes
Quantity
1
Input Shaft Spline Count
27
Material
SAE 1055 Steel and Chloroprene Rubber
Output Shaft Spline Count
29
Items Included

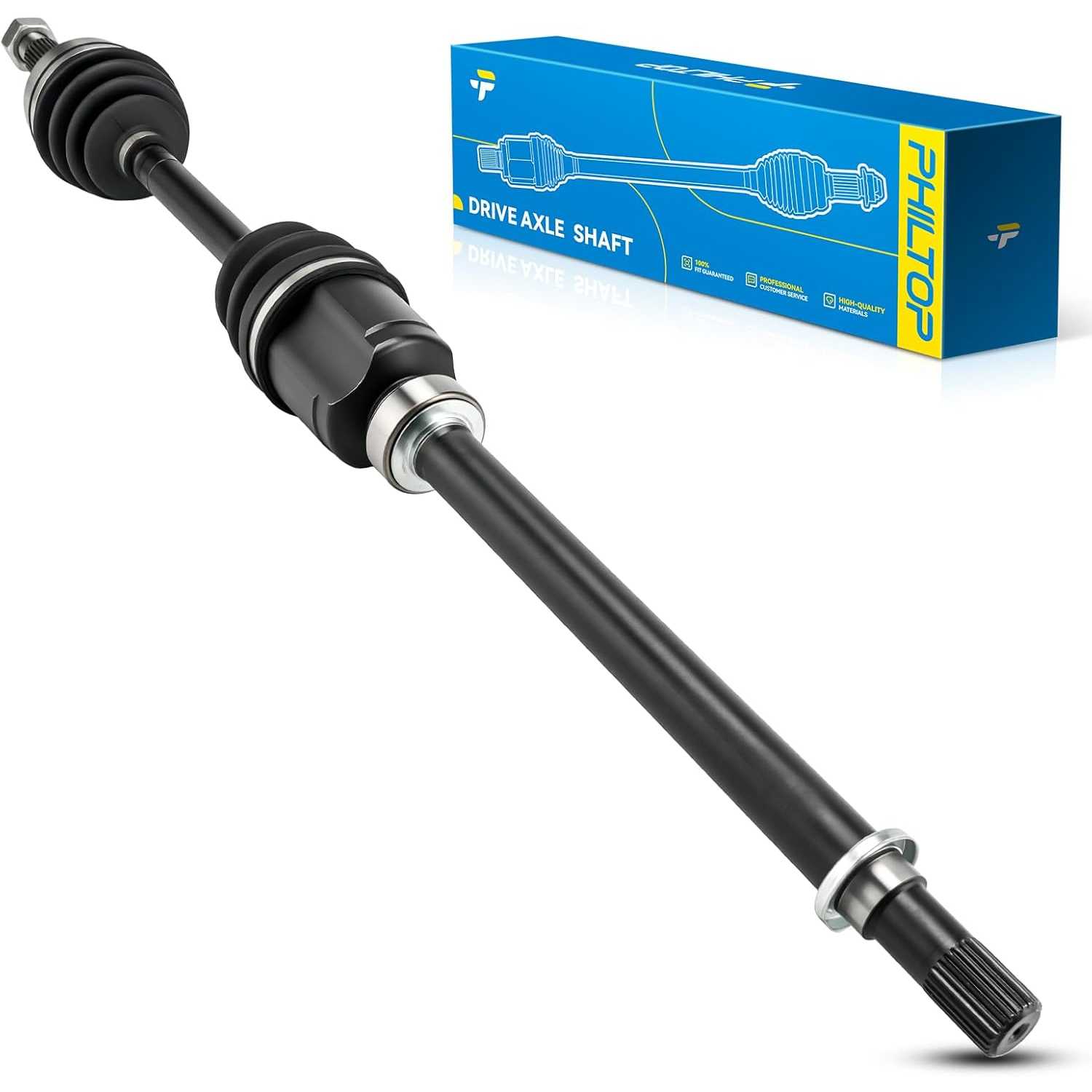

1x Front Right Cv Axle Shaft - 666287
Axle Nut Included
Yes
Warranty Period
2-Year
Part Number
666287

Highlights

  • Vehicle Fitment: Front Axle Shaft for 2008-2013 Rogue AWD, 2014-2015 Rogue Select AWD.The new half-shafts enhance driving stability and safety in challenging conditions.
  • CV Joint OE Number: 39100JG04C, 666287, 39100JM10A.The constant velocity joint shaft employs an OEM-matched design, ensuring perfect compatibility and enabling direct replacement of original components.

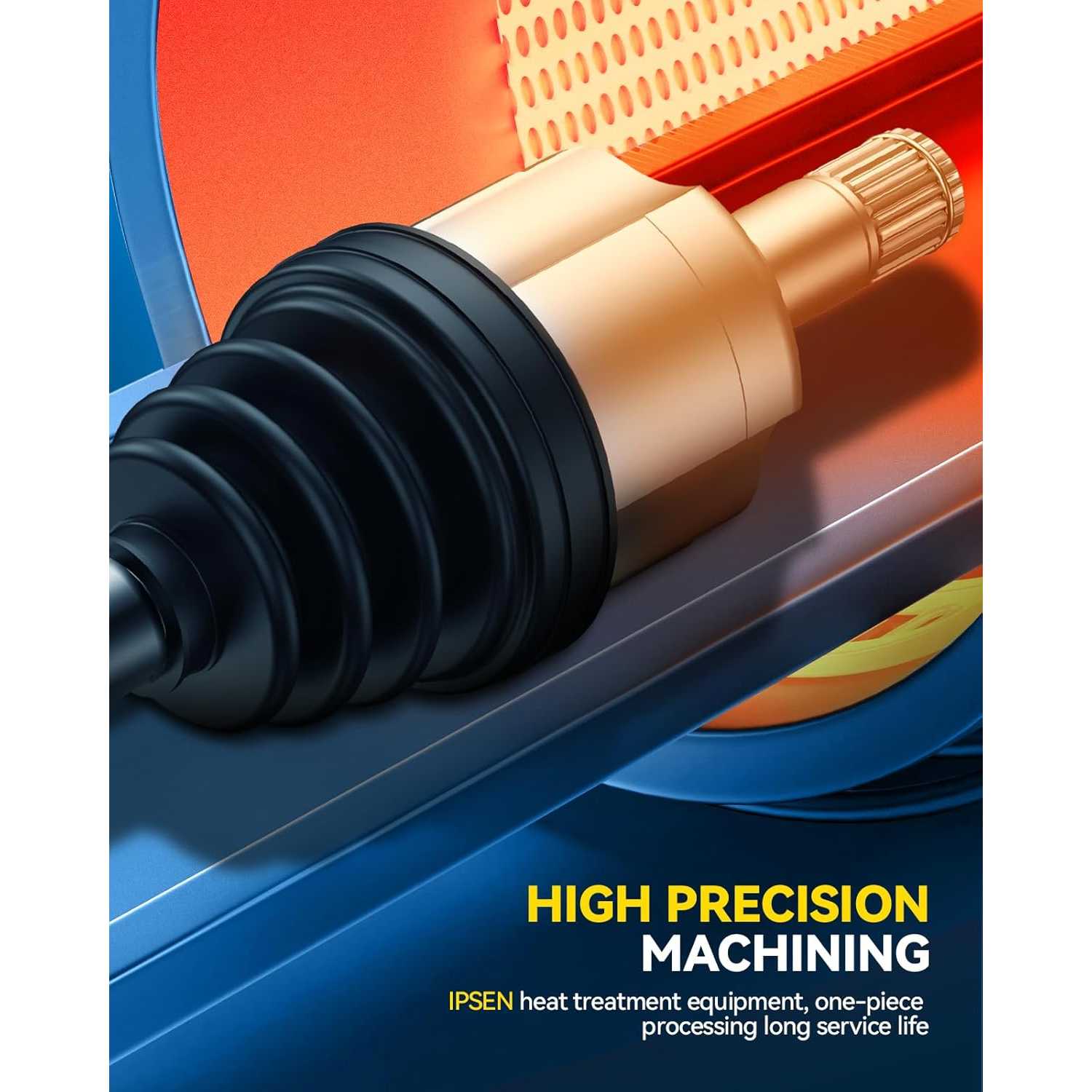

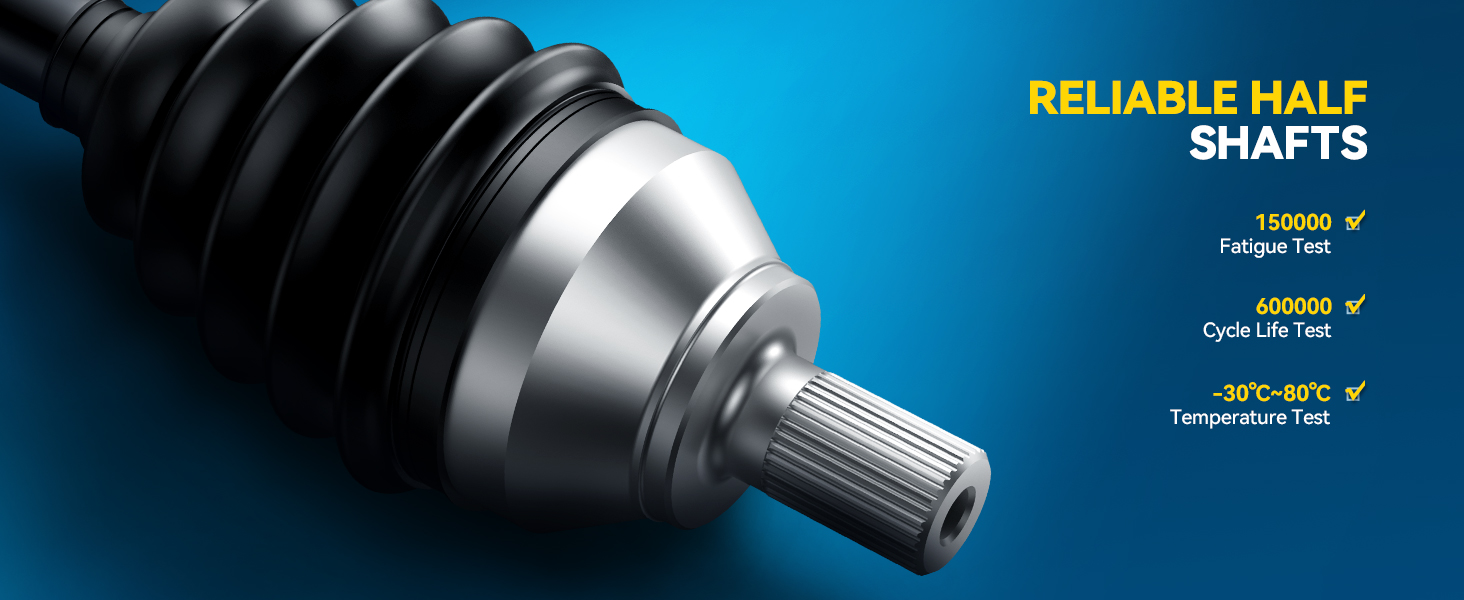

  • High Quality: Half shafts are normalized to ensure product stability.The cv shafts are also ground to improve the ball path and ball surface finish to prolong the product life.
  • Factory Testing: All cv axle shafts undergo a triple factory inspection as a means of confirming product accuracy.Our Axle shafts remain in great condition under extreme conditions.
  • Purchase Verification: Before purchasing, please confirm that the cv axle will fit your vehicle by entering 'Year-Make-Model' through the Suncentauto adapter.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year20102008 - 201320112008 - 20102011 - 20132014 - 2015
MakeNissanNissanNissanNissanNissanNissan
ModelRogueRogueRogueRogueRogueRogue Select
TrimKromSS KromSLSVS
Engine2.5L L42.5L L42.5L L42.5L L42.5L L42.5L L4
Note------

How to Install?

Installation Manual Download

User manual (PDF)
Download

Checks Before Installation

  • Confirm the vehicle, installation position, spline counts, mounting points and ABS components match.
  • Inspect the hub bearing, suspension parts, transmission mount and axle seal. Repair looseness, damage or leakage first.
  • Compare the new and original axles in a fully compressed position. Confirm the compressed length and key dimensions match.
    Verify that the new and original CV axles have the same compressed length
  • Check that the boots, clamps, splines and supplied axle nut are complete and undamaged.
  • Support both CV joints when handling. Do not pull, sharply bend or carry the axle by its rubber boot.

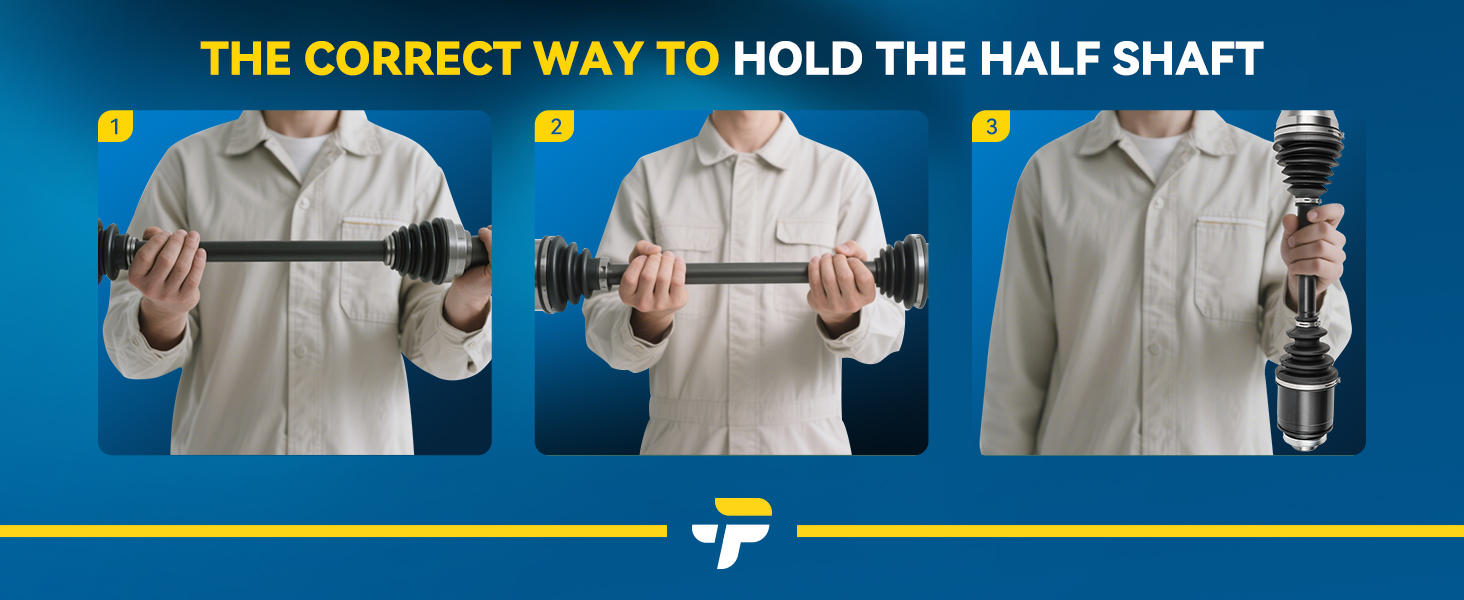

    The correct way to hold a CV axle

Installation Steps

  • Step-1: Secure the Vehicle: Loosen the axle nut with the wheels on the ground. Raise the vehicle on a level surface and support it securely with jack stands.
  • Step-2: Remove the Old Axle: Remove the wheel and necessary suspension components. Separate the outer spline from the hub with the proper puller.
  • Step-3: Release the Inner Joint: Use a CV joint puller or slide hammer. Never strike the axle directly or pull it out with bolts. Be prepared for possible transmission-fluid loss.
  • Step-4: Install the New Axle: Clean the splines and seal-contact surface. Insert the inner joint straight into the transmission until the retaining ring fully locks, then install the outer spline into the hub.
  • Step-5: Reassemble and Torque: Reinstall all suspension components and use a new axle nut. Hand-start the fasteners and tighten everything to the vehicle manufacturer’s specified torque.
  • Step-6: Final Assembly: Reinstall the wheel, torque the lug nuts in a crisscross pattern and check or refill the specified transmission fluid if required.

After Installation

  • Confirm the inner joint is fully seated and all fasteners are secure.
  • Check the CV boots, clamps and axle seal for damage or leakage.
  • Rotate the wheel by hand and verify the axle moves smoothly without binding or contacting nearby components.
  • Perform a low-speed road test. Check for clicking while turning, clunking during acceleration, vibration and fluid leakage.
  • If suspension geometry was disturbed, have the wheel alignment checked.

Product Video

Product Description

13

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

JPH

09/28/2026

Verified buyer

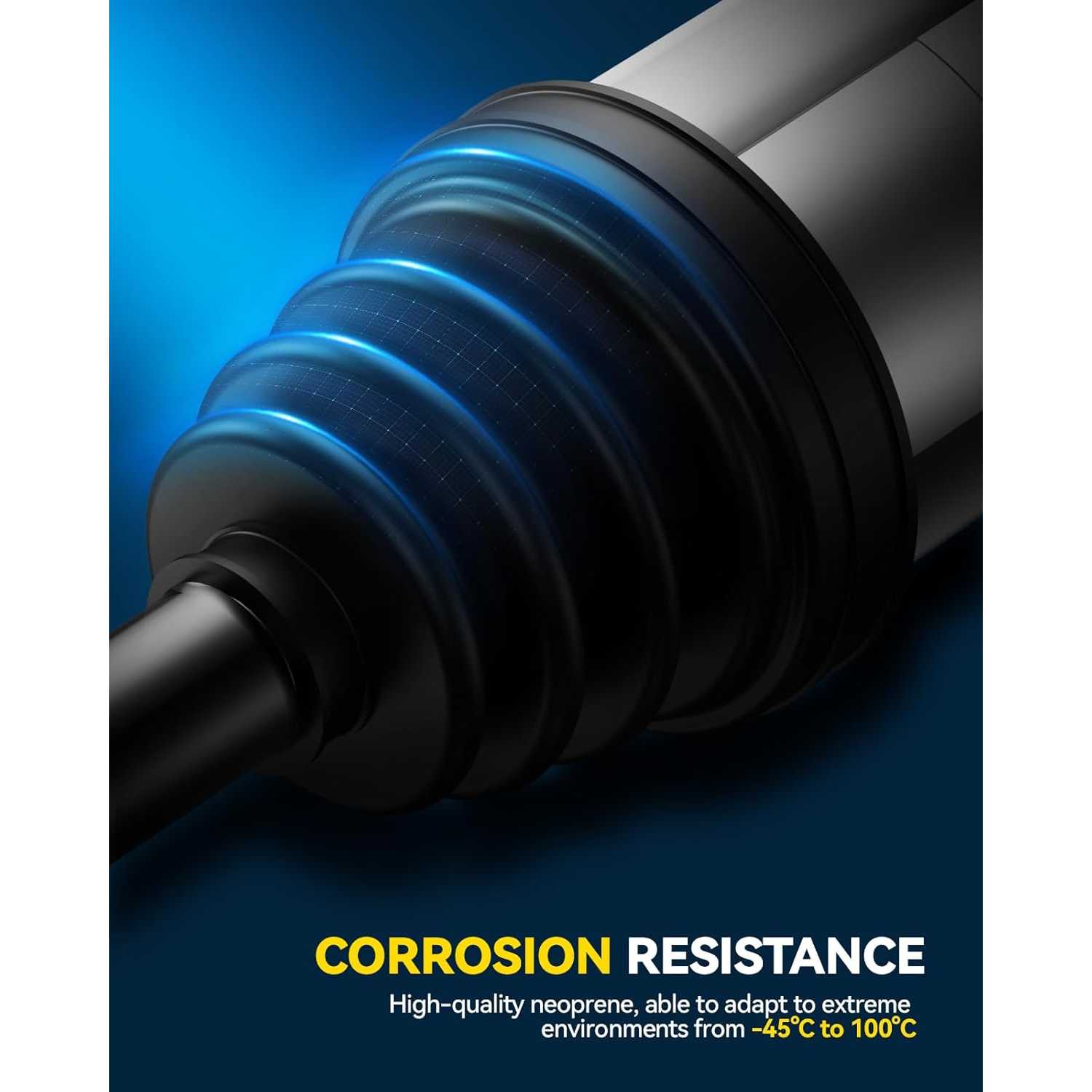

I ordered this PHILTOP CV Axle Shaft for my daughter's 2011 Nissan Rogue, and it's an exact fit. Her old axle had a torn boot, and was clanking loudly every time she cam up the driveway since the grease had dried up. It's quiet as a mouse now. It was easy to install, as CV axles go, and fit perfect. I really love the neoprene boots because regular rubber boots trend to crack in extreme temperatures, and we live on a mountain, in Maine where 20 below is a "chilly" day. The axle went in without issue and is excellent quality. No problem recommending it and the price is awesome !

CarGuy_John_181

11/28/2025

Arrived quickly and fit my Rogue perfectly. Installation was smooth sailing, no problems at all. The car is driving great now, no more weird noises. Very satisfied with this purchase.

FAQS

Fitment depends on the engine, transmission, and whether your car has ABS. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a match.

Most CV axles are side-specific due to different lengths. Please check the "Placement on Vehicle" section in our specifications table to ensure you are ordering the correct side for your repair.

The number of teeth (splines) on the ends must match exactly. Please refer to the "Technical Specifications" on this page to verify the Inner and Outer Spline counts before purchasing.
