Front

Complete Strut & Coil Spring Assembly

4.8

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
1203SAA976ZUS

Specifications

Brand
PHILTOP
Items Included

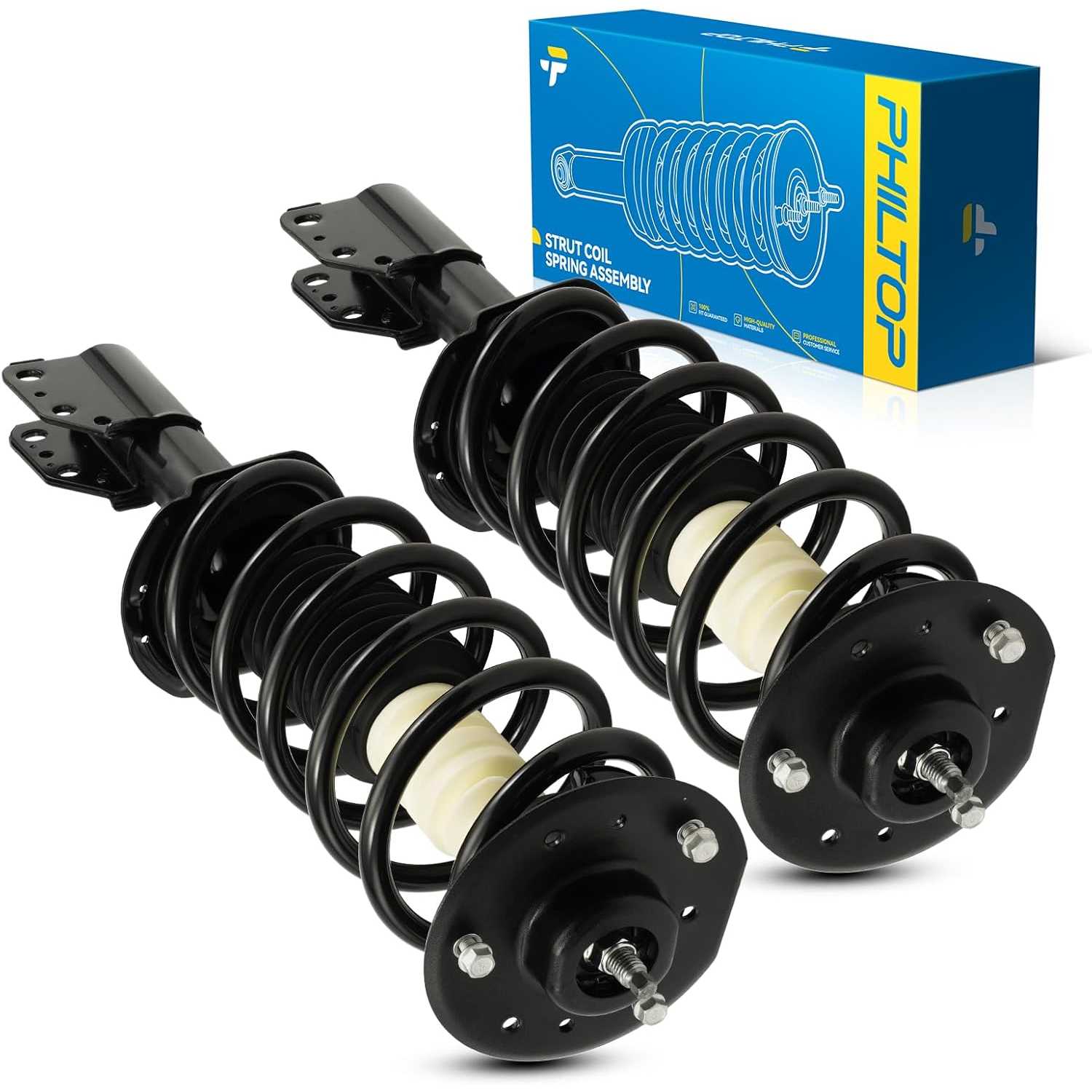

1x Front Right Complete Strut Assembly - 172209 1x Front Left Complete Strut Assembly - 172210
Color
Black
Steel Tube Material
Mild Steel(ST37 Equivalent)
Bump Stop Included
Polyurethane
Piston Rod Material
SAE 1045 Steel
Type
Complete Strut & Coil Spring Assembly
Quantity
2
Position
Front
Oil Seal Material
Nitrile Rubber
Warranty Period
2-Year
Part Number
172209,172210,SR4160,SR4159,ST8618R

Highlights

  • WIDELY COMPATIBLE: PHILTOP Complete Struts Replacement for Equinox 2005-2006, Torrent 2006-2006. Meet OE Standards, please Comfirm our products are compatible with your car
  • OE-QUALITY, VEHICLE-SPECIFIC DESIGH: Application specific coil spring, mount and strut feature an OE-style design to ensure an optimized ride and handling experience unique to each vehicle profile. #OE# 171322*2+171398*2
  • STABLE DRIVE: Our shock absorbers provide stability and strong damping for a comfortable experience for both passenger and driver. Driving on steep roads is not a problem either. We are committed to providing our customers with a perfect driving experience
  • 100% RECOVERY PERFORMANCE: Worn-out struts increase stopping distance by 20%. Shorten the braking distance and enhance the safety distance after replacing the PHILTOP struts assembly. Increase steering responsiveness, minimize stopping distance, and boost your driving confidence.
  • IMPROVE TIRE GRIP: By raising the spring stiffness coefficient, the wheel's quick vibration is reduced, the tire is kept from leaving the road, and exercise stability is enhanced. Damping rods lessen body vibration and bounce by creating resistance through fluid flow to absorb or slow down the direct effect of energy.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2005 - 20062005 - 20062006
MakeChevroletChevroletPontiac
ModelEquinoxEquinoxTorrent
TrimLSLTBase
Engine3.4L V63.4L V63.4L V6
Note
Replaces Part 182209,182210;Recommended OE Application -Specific Replacement;Front Left;Front Right
Replaces Part 182209,182210;Recommended OE Application -Specific Replacement;Front Left;Front Right
Replaces Part 182209,182210;Recommended OE Application -Specific Replacement;Front Left;Front Right

How to Install?

Installation Manual Download

User manual (PDF)
Download

Purchase & Installation Notice

  • Confirm the vehicle year, model, suspension type, installation position and part number before ordering.
  • For a complete strut assembly, replacing only individual accessories is not recommended. Mixing worn and new springs, mounts, bearings, dust boots or bump stops may cause noise, uneven ride height and repeated labor costs. Replace the complete assembly when these components are worn or damaged.
  • For balanced damping and handling, inspect both sides of the same axle and replace them as a pair when necessary.

Installation Steps

  • Step-1: Secure the Vehicle: Park on level ground, raise and support the vehicle with approved jack stands, then remove the wheel.
  • Step-2: Disconnect Related Components: Detach the stabilizer link, brake-hose bracket and ABS wiring as required. Support the steering knuckle to prevent pulling on hoses or wires.
  • Step-3: Remove the Old Unit: Remove the lower and upper mounting hardware, support the assembly and carefully remove it.
  • Step-4: Install the New Unit: Confirm the correct side and orientation, position the new assembly and hand-start all fasteners. If spring transfer is required, use a professional spring compressor. Never loosen the center nut with the spring under tension.
  • Step-5: Reconnect and Torque: Reinstall all brackets, links, hoses and wiring. Ensure nothing is twisted or stretched, then tighten all fasteners to the vehicle manufacturer’s specified torque. Do not grip or damage the polished piston rod.
  • Step-6: Reinstall and Align: Reinstall the wheel, lower the vehicle, complete the final torque check and perform a professional wheel alignment.

Product Description

总成无适配12

Reviews

4.8/5

Based on 4 reviews

575%
425%
30%
20%
10%

Bryan Wickham

04/22/2024

Verified buyer

easy to install. have a couple of months on them and they appear to be working ok. note: don't plan on autocrossing with them''

Kelly_SUV_Life_723

02/06/2026

These struts totally transformed my ride. No more clunking over bumps and the steering feels tighter. I'm really impressed with how well they perform for the price.

FAQS

Fitment depends on your car's year, model, and engine type. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind our suspension quality with a 3-Year Limited Warranty against leaks and structural failure. Scroll to the "Warranty & Support" section at the bottom of the page for full details.

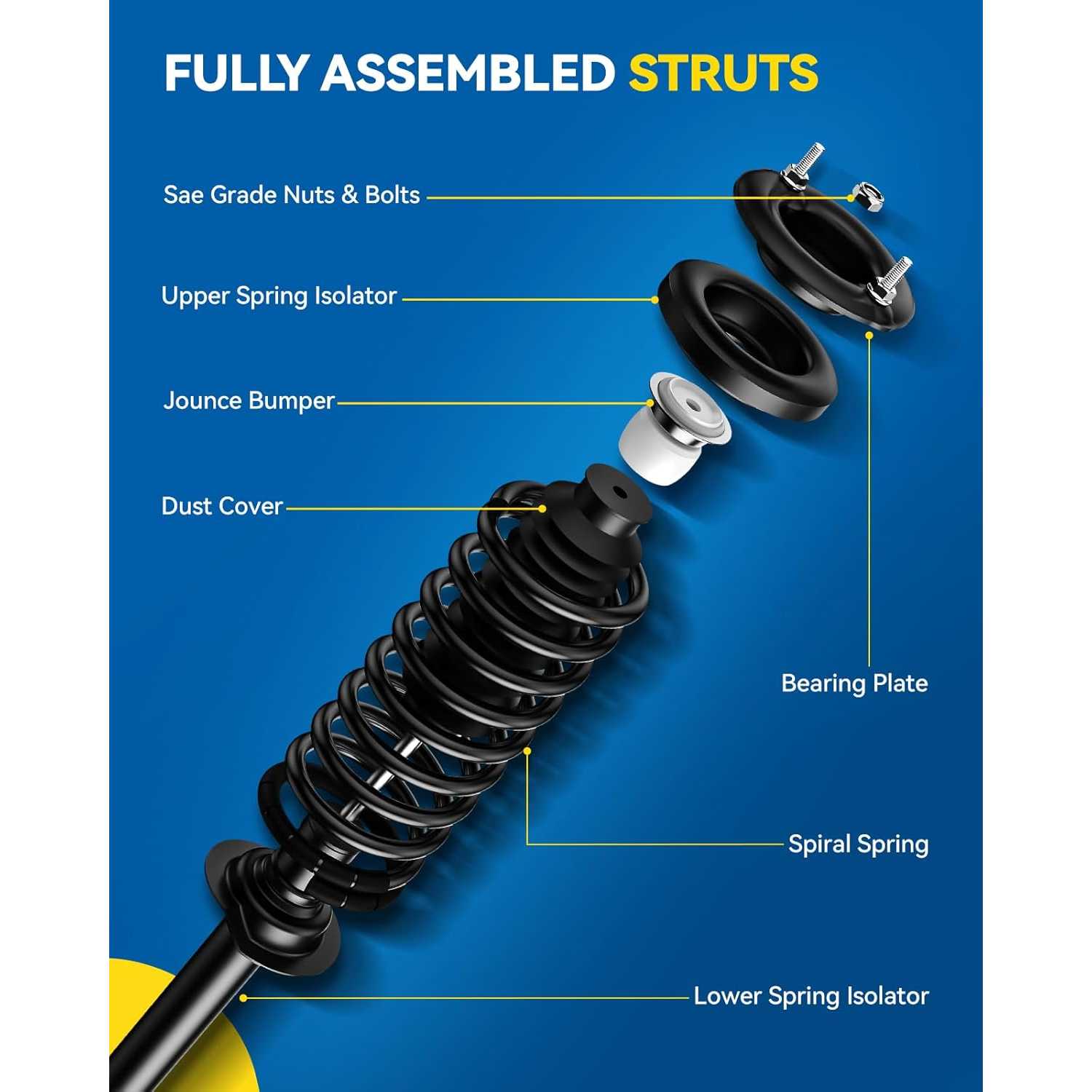

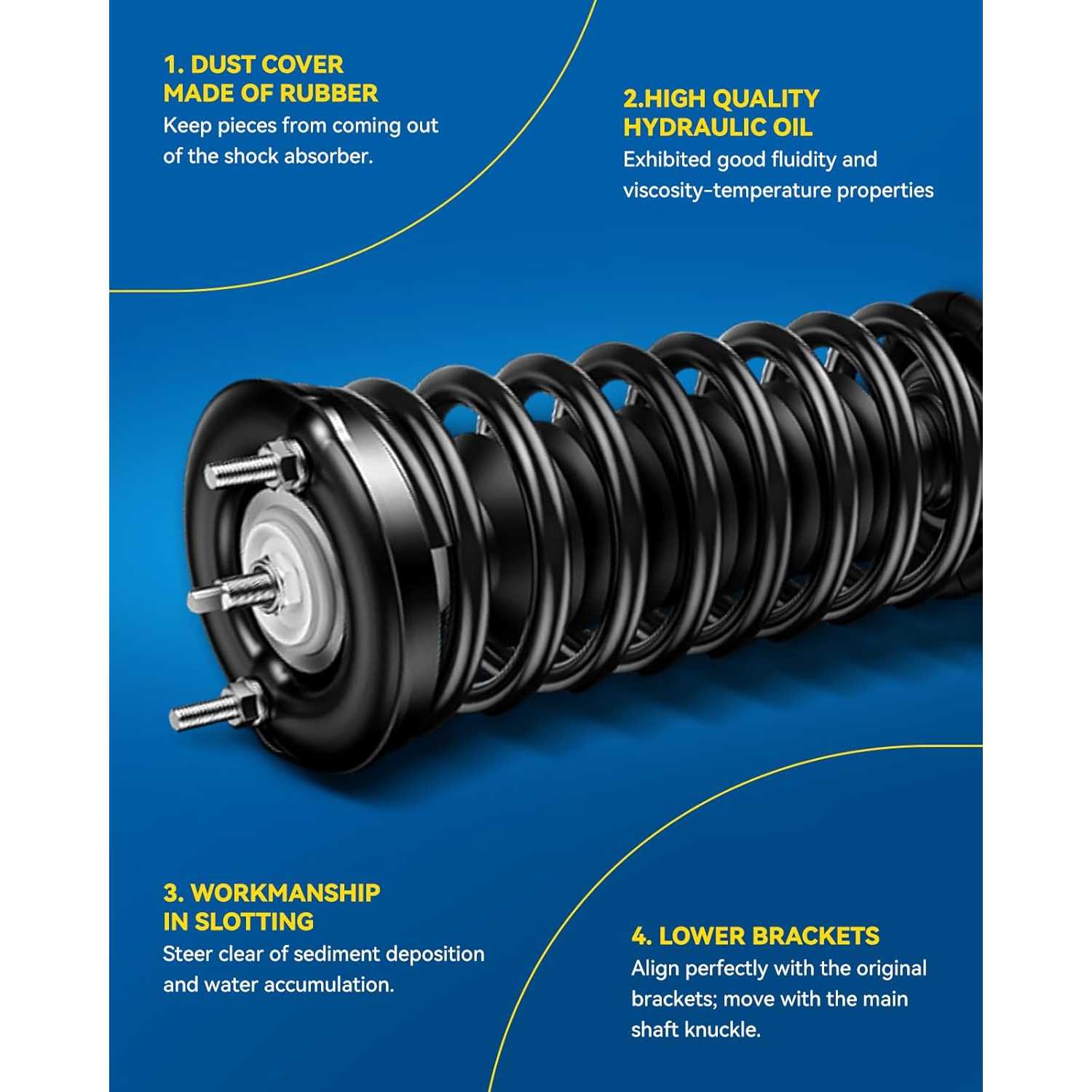

Yes, our Quick-Strut units include the strut, coil spring, strut mount, boot, and bumper pre-assembled. Review our product photos to see the fully integrated unit ready for bolt-on installation.
