Front

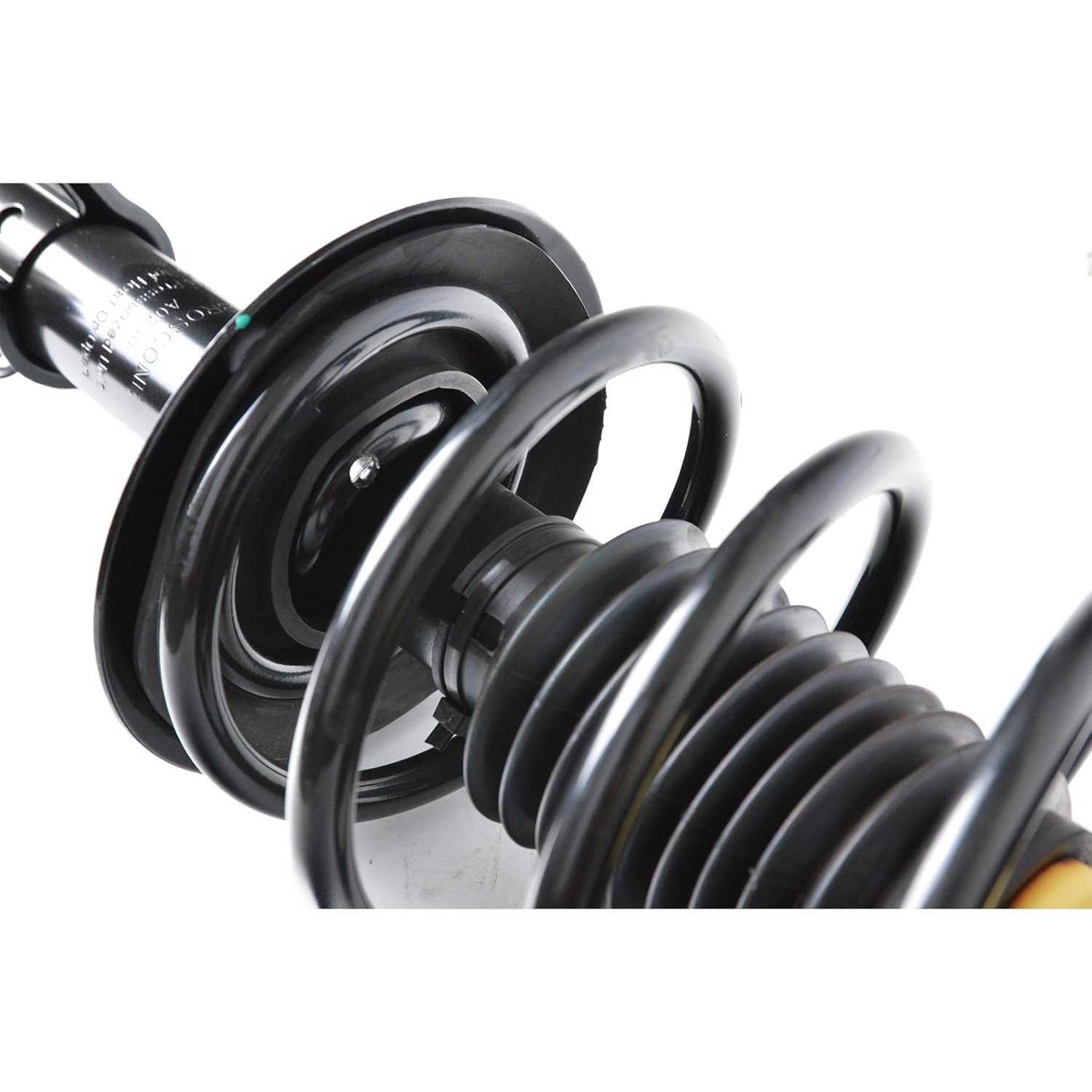

Complete Strut & Coil Spring Assembly

4.6

Check if this fits your vehicle

Select a vehicle to check this product.

SKU:
7024SAA7206US

Specifications

Brand
PHILTOP
Items Included

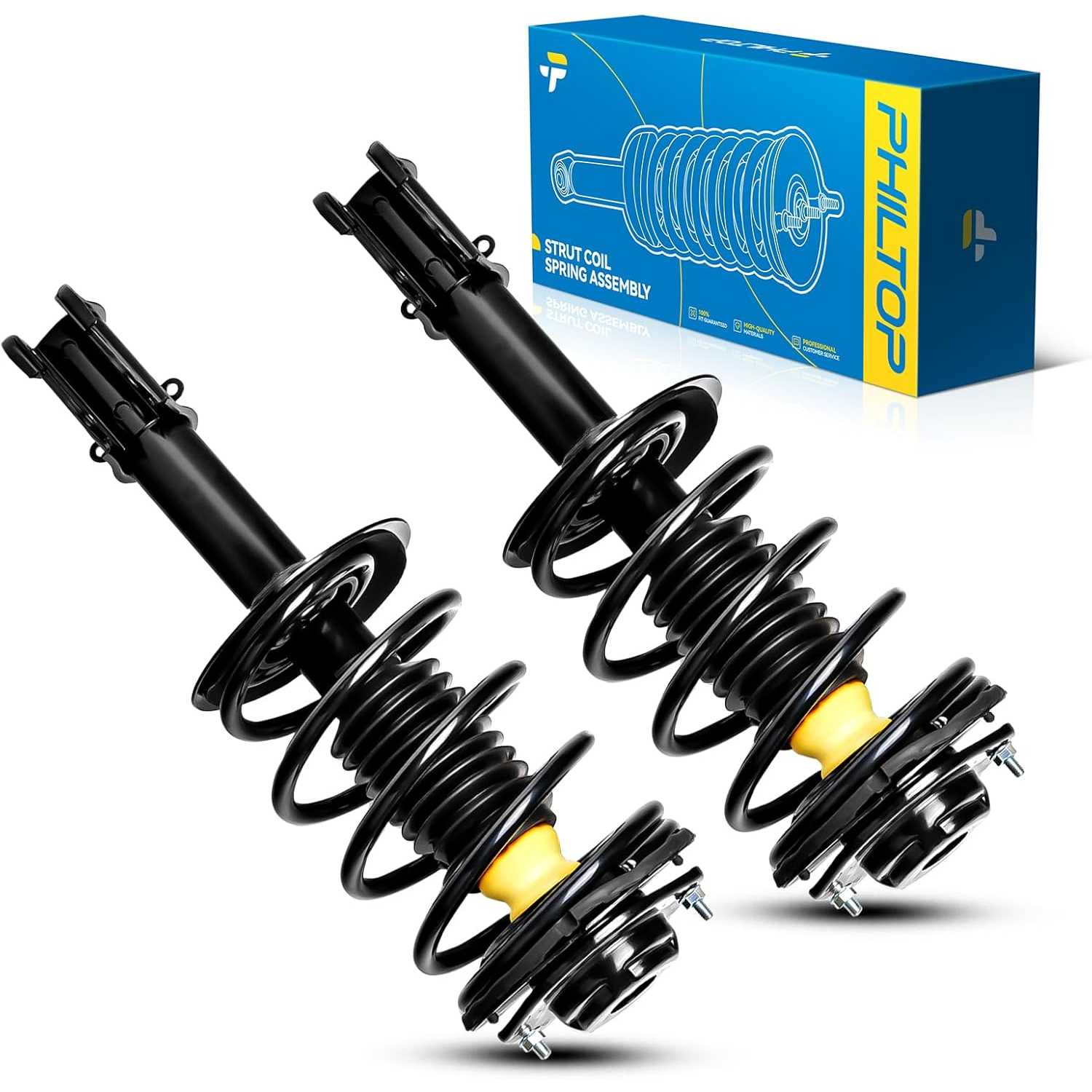

2x Front Strut & Coil Spring Shock Assemblies - 171592
Color
Black
Steel Tube Material
Mild Steel(ST37 Equivalent)
Bump Stop Included
Polyurethane

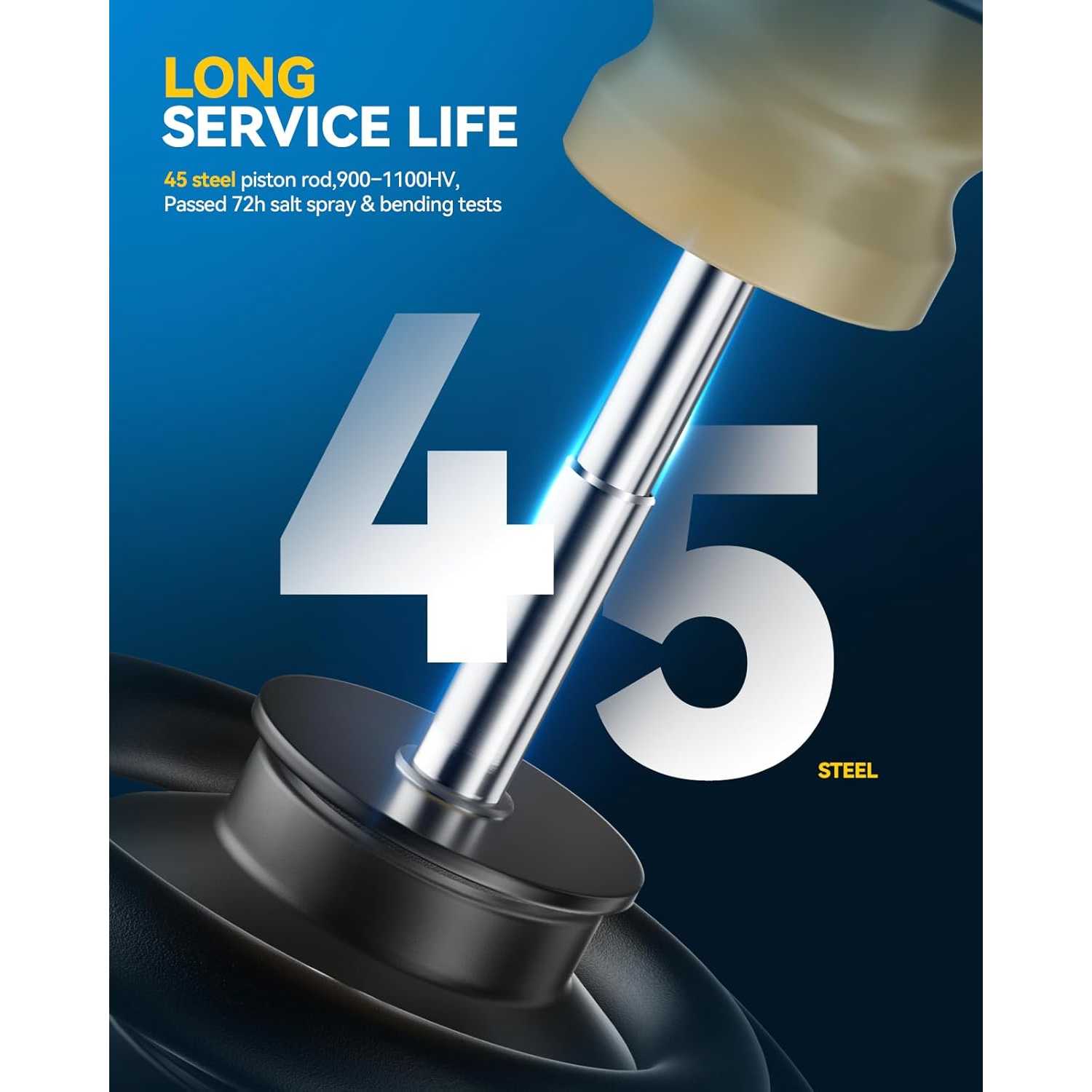

Piston Rod Material
SAE 1045 Steel
Type
Complete Strut & Coil Spring Assembly
Quantity
2
Position
Front

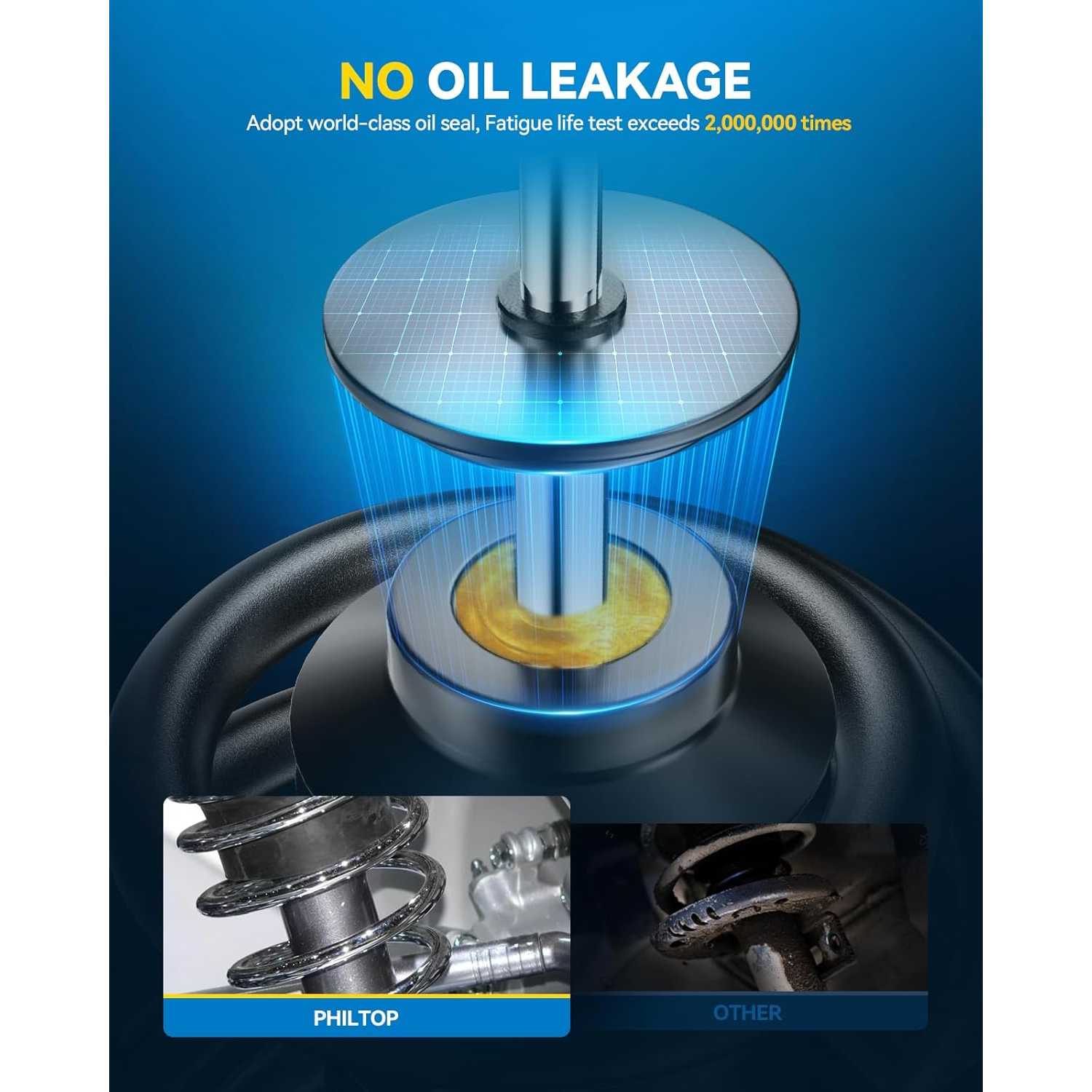

Oil Seal Material
Nitrile Rubber
Warranty Period
2-Year
Part Number
171592,SR4053

Highlights

  • Fitment: PHILTOP Front Struts for PT Cruiser 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010.
  • OE NUMBER: 171592, 11074, 1332335, 92140080, G56965, LS3484591B, SR4053, ST8562.
  • Tips:For details, please confirm the matching in "confirmed it" to confirm whether the parts are suitable for your vehicle application.If you have any questions about the struts, please feel free to contact us.

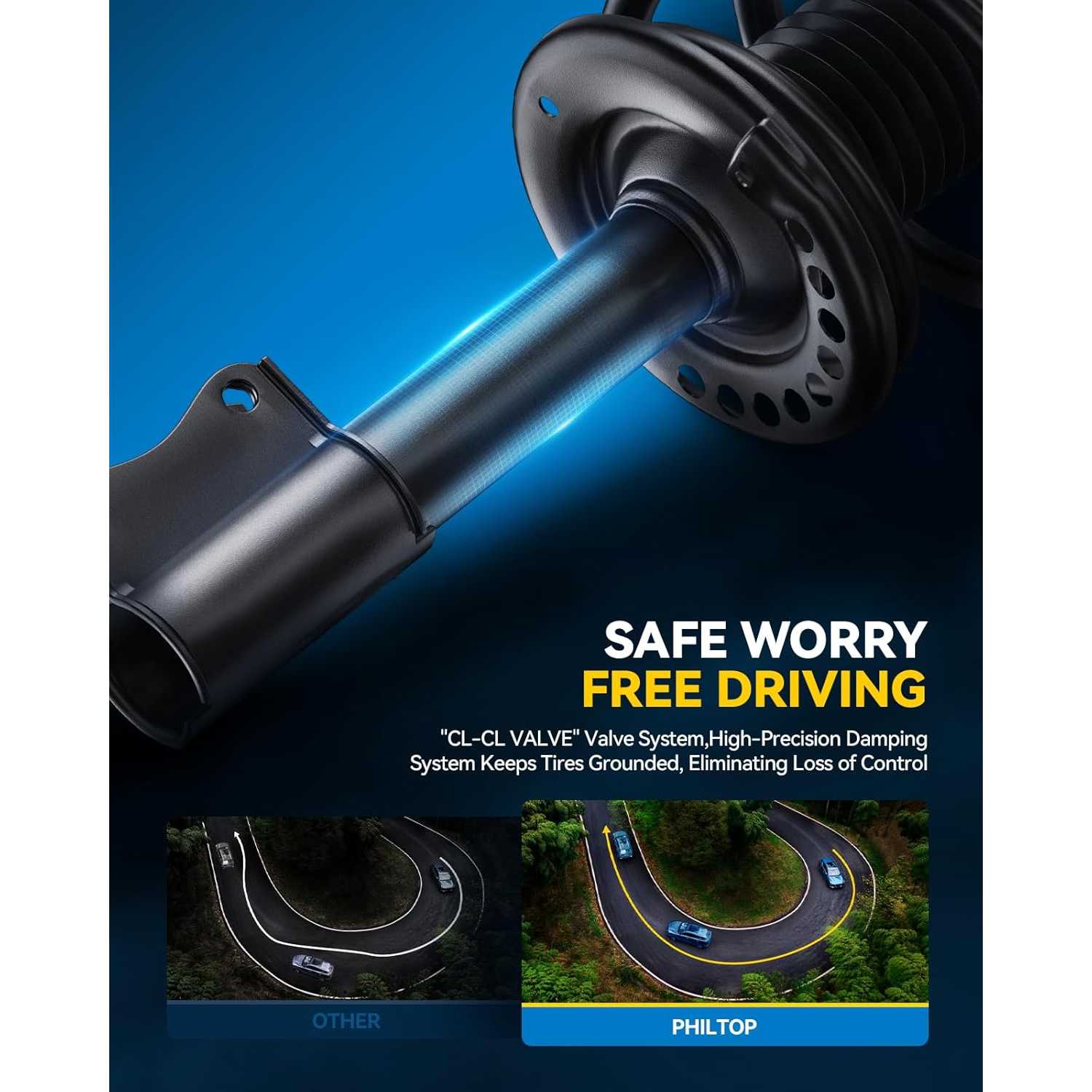

  • Bounce Reduction: Damping rods reduce body vibration and bounce by generating resistance through the flow of fluid to absorb or slow down the direct impact of energy.
  • More Stable: A new increase tire grip. By increasing the spring rate factor, the rapid vibration of the wheels is suppressed and the tires are prevented from leaving the road.

Compatible Vehicles

Check if this fits your vehicle

Vehicle(s) Fit Information

Year2001 - 200920102010200220052003 - 20072008 - 20092001 - 20092005 - 20062001 - 2009
MakeChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChryslerChrysler
ModelPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT CruiserPT Cruiser
TrimBaseClassicCouture EditionDreamDream CruiserGTLXLimitedStreet CruiserTouring
Engine2.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L42.4L L4
Note
Replaces Part 181592;Recommended OE Application -Specific Replacement
Replaces Part 181592;Recommended OE Application -Specific Replacement
Replaces Part 181592;Recommended OE Application -Specific Replacement
Replaces Part 181592;Recommended OE Application -Specific Replacement
Replaces Part 181592;Recommended OE Application -Specific Replacement
Replaces Part 181592;Recommended OE Application -Specific Replacement
Replaces Part 181592;Recommended OE Application -Specific Replacement
Replaces Part 181592;Recommended OE Application -Specific Replacement
Replaces Part 181592;Recommended OE Application -Specific Replacement
Replaces Part 181592;Recommended OE Application -Specific Replacement

How to Install?

Installation Manual Download

User manual (PDF)
Download

Purchase & Installation Notice

  • Confirm the vehicle year, model, suspension type, installation position and part number before ordering.
  • For a complete strut assembly, replacing only individual accessories is not recommended. Mixing worn and new springs, mounts, bearings, dust boots or bump stops may cause noise, uneven ride height and repeated labor costs. Replace the complete assembly when these components are worn or damaged.
  • For balanced damping and handling, inspect both sides of the same axle and replace them as a pair when necessary.

Installation Steps

  • Step-1: Secure the Vehicle: Park on level ground, raise and support the vehicle with approved jack stands, then remove the wheel.
  • Step-2: Disconnect Related Components: Detach the stabilizer link, brake-hose bracket and ABS wiring as required. Support the steering knuckle to prevent pulling on hoses or wires.
  • Step-3: Remove the Old Unit: Remove the lower and upper mounting hardware, support the assembly and carefully remove it.
  • Step-4: Install the New Unit: Confirm the correct side and orientation, position the new assembly and hand-start all fasteners. If spring transfer is required, use a professional spring compressor. Never loosen the center nut with the spring under tension.
  • Step-5: Reconnect and Torque: Reinstall all brackets, links, hoses and wiring. Ensure nothing is twisted or stretched, then tighten all fasteners to the vehicle manufacturer’s specified torque. Do not grip or damage the polished piston rod.
  • Step-6: Reinstall and Align: Reinstall the wheel, lower the vehicle, complete the final torque check and perform a professional wheel alignment.

Product Description

14-1

Reviews

4.6/5

Based on 11 reviews

573%
418%
39%
20%
10%

Customer

08/08/2024

Verified buyer

Fit like they were made for the car

Darell

06/05/2024

Verified buyer

Muy buena calidad recomendados

FAQS

Fitment depends on your car's year, model, and engine type. Please enter your vehicle's Brand, Year, and Model into the "Fitment Checker" at the top of the page to confirm a 100% match.

We stand behind our suspension quality with a 3-Year Limited Warranty against leaks and structural failure. Scroll to the "Warranty & Support" section at the bottom of the page for full details.

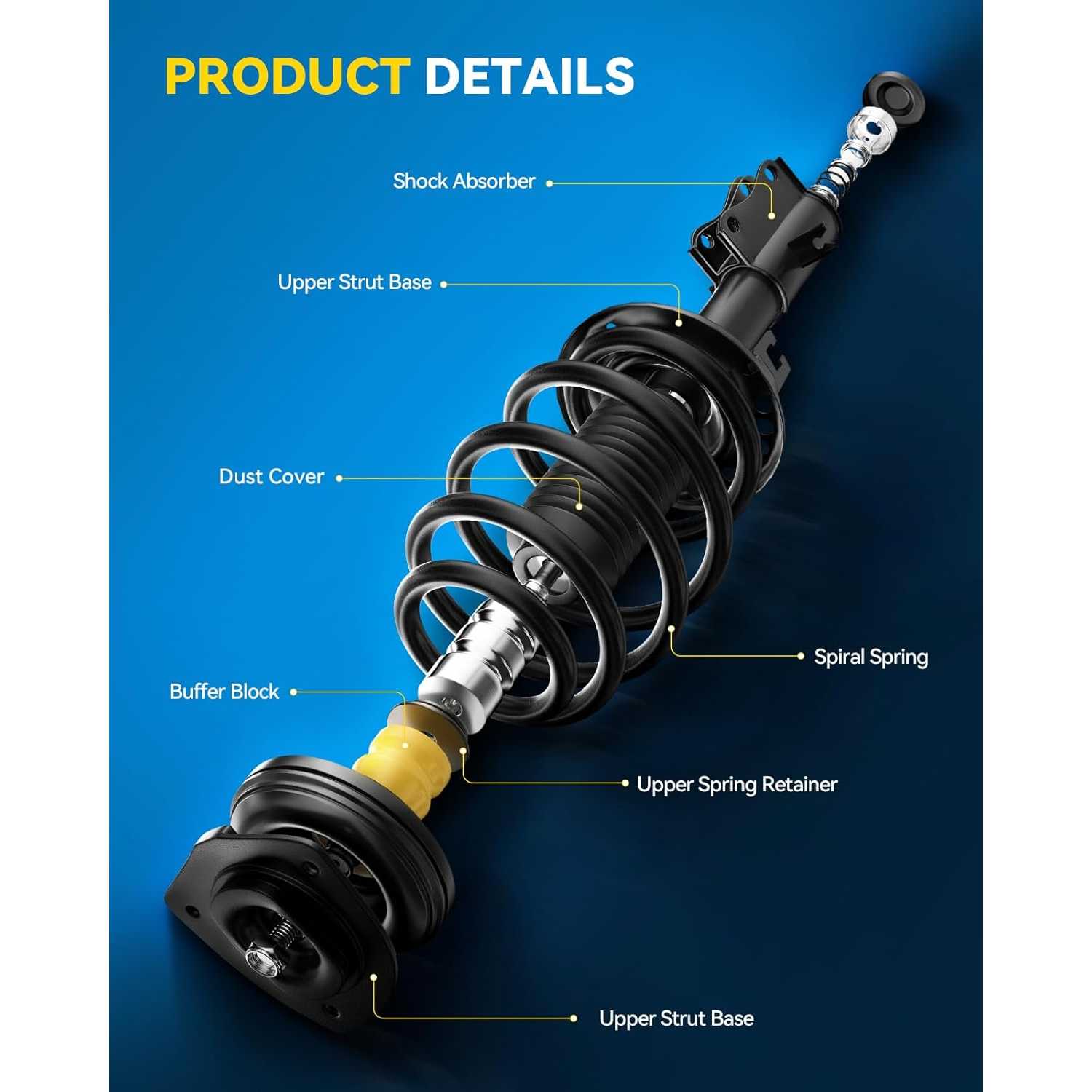

Yes, our Quick-Strut units include the strut, coil spring, strut mount, boot, and bumper pre-assembled. Review our product photos to see the fully integrated unit ready for bolt-on installation.
